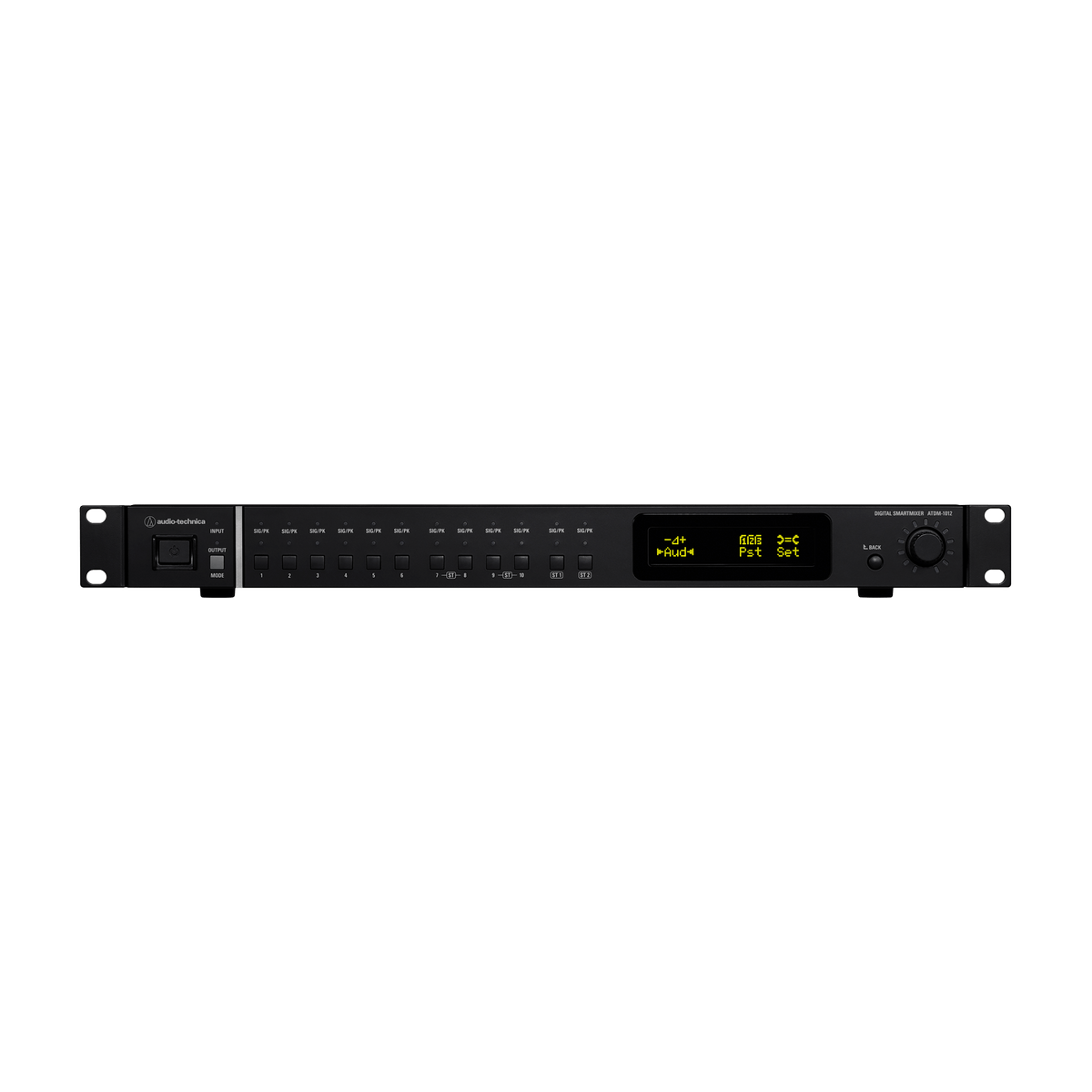

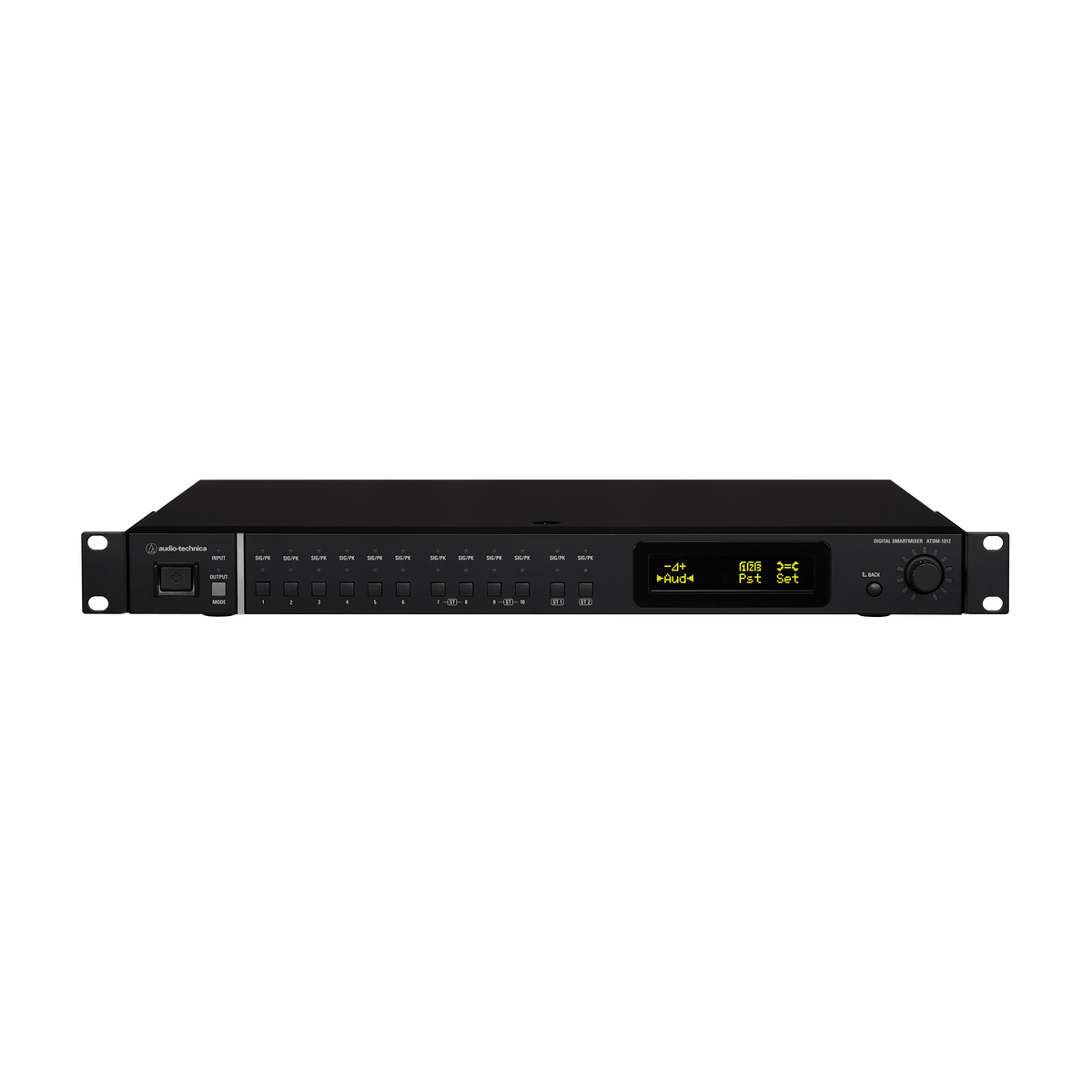

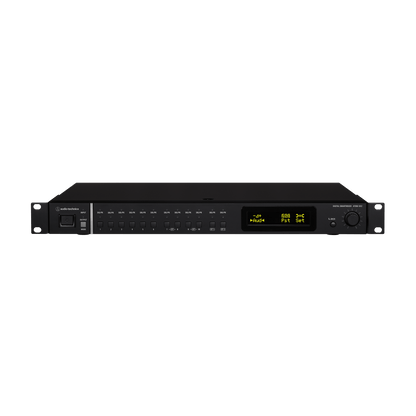

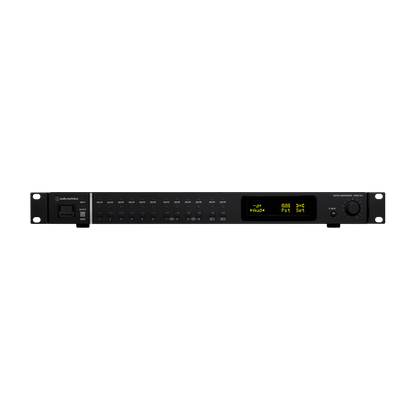

Audio-Technica ATDM-1012: 10-Channel Digital Smart Mixer
The ATDM-1012 is a 14-input / 12-bus digital SmartMixer designed for installed conferencing and AV applications. It offers 10 mic/line inputs (with high-quality preamps), two stereo line inputs, USB audio I/O and flexible matrix routing suitable for boardrooms, courtrooms, hospitality and other installed environments. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Inputs / Matrix: 14-input / 12-bus full matrix (10 mic/line inputs + 2 stereo line inputs) with routing to any bus.
- Preamp / Channels: High-quality discrete mic preamps, phase invert, low-cut filter and 4-band parametric EQ per input.
- Smart Mixing: Four smart-mixing groups (gain-sharing or gating) and automatic mixing functions.
- Echo / Noise Management: Up to 10-channel Acoustic Echo Cancellation (AEC) and Noise Cancelling (NC).

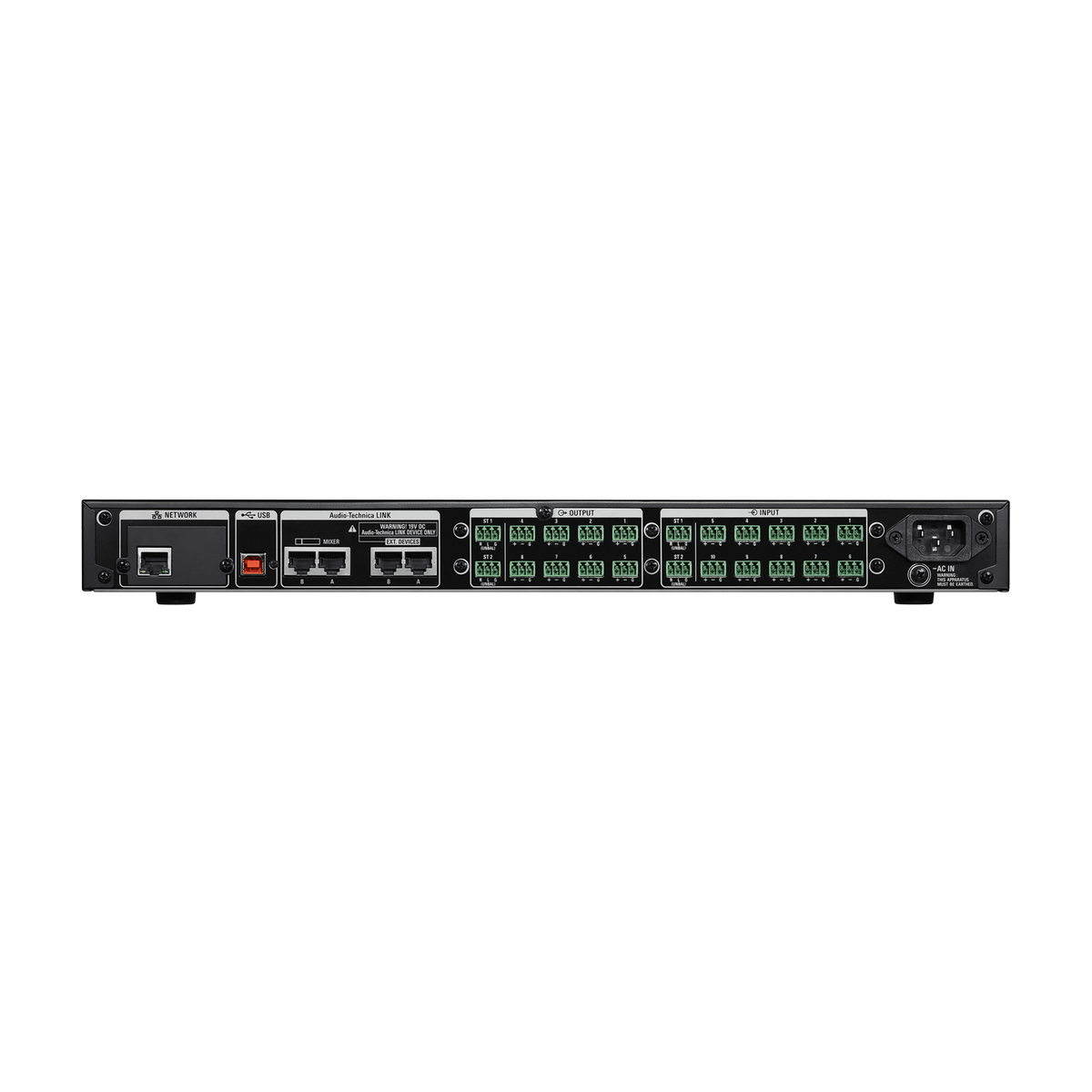

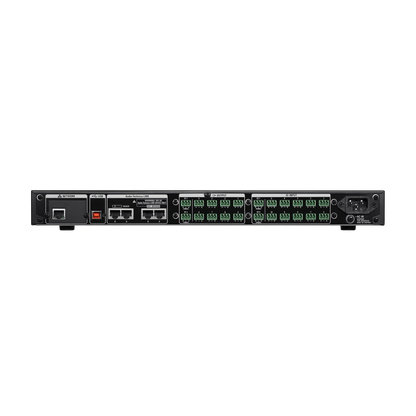

- Outputs: Eight balanced outputs and two unbalanced stereo outputs (multiple level formats supported).
- Digital I/O: USB audio I/O (USB Type-B: 1 stereo input, 1 stereo output, 24-bit). Dante is not included on this model (see ATDM-1012DAN for Dante capability).
- Networking / Cascading: Audio-Technica LINK for cascading up to 8 ATDM devices; remote access via Web Remote Manager / IP control.
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | ATDM-1012 |
| Product Type | Digital Mixer |
| Dimensions | 19.0 inch x 12.77 inch x 1.73 inch (482.6 x 324.3 x 44 mm). |
| Weight | 7.9 lbs (3.6 kg). |
| Inputs | 10 balanced Mic/Line inputs, 2 stereo unbalanced line inputs (total 14 inputs) + 8 sub-inputs referenced in manual. |
| Outputs | 8 balanced outputs, 2 unbalanced stereo outputs, micro-level output available. |
| USB | USB Type-B device; stereo in x1, stereo out x1 (24-bit). |
| A/D-D/A Resolution | 24-bit (manufacturer spec). |
| Max Gain / Levels | Maximum gain ~64 dB; maximum input/output levels per datasheet. |
| Power | 100 to 240 V AC, 50/60 Hz. Power consumption listed ~65 W (varies by listing/manufacturer doc). |
| Operating temp / humidity | 0 to 40 degreesC; 25 to 85% (no condensation) per manual. |
| Included accessories | AC power cable; Euroblock connector x 22; Quick Start Guide / documentation. |
| Aggregate | x |
| Accessories Included | AC power cable; Euroblock connectors x 22; Quick Start Guide / User manual (paper or downloadable) |
Why Buy the Audio-Technica ATDM-1012 10-Channel Digital Smart Mixer from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the ATDM-1012 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Published specifications list the dimensions of the Audio-Technica ATDM-1012 as 19.0 inch x 12.77 inch x 1.73 inch (482.6 x 324.3 x 44 mm)., and the weight of the Audio-Technica ATDM-1012 as 7.9 lbs (3.6 kg).
Published specifications list these items with the Audio-Technica ATDM-1012: AC power cable, Euroblock connectors x 22, Quick Start Guide / User manual (paper or downloadable).
Inputs / Matrix: 14-input / 12-bus full matrix (10 mic/line inputs + 2 stereo line inputs) with routing to any bus. Preamp / Channels: High-quality discrete mic preamps, phase invert, low-cut filter and 4-band parametric EQ per input.
Smart Mixing: Four smart-mixing groups (gain-sharing or gating) and automatic mixing functions. Echo / Noise Management: Up to 10-channel Acoustic Echo Cancellation (AEC) and Noise Cancelling (NC).
The Audio-Technica ATDM-1012 is sold as 10-Channel Digital Smart Mixer. The ATDM-1012 is a 14-input / 12-bus digital SmartMixer designed for installed conferencing and AV applications.
Trianze Tech stocks the Audio-Technica ATDM-1012 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
