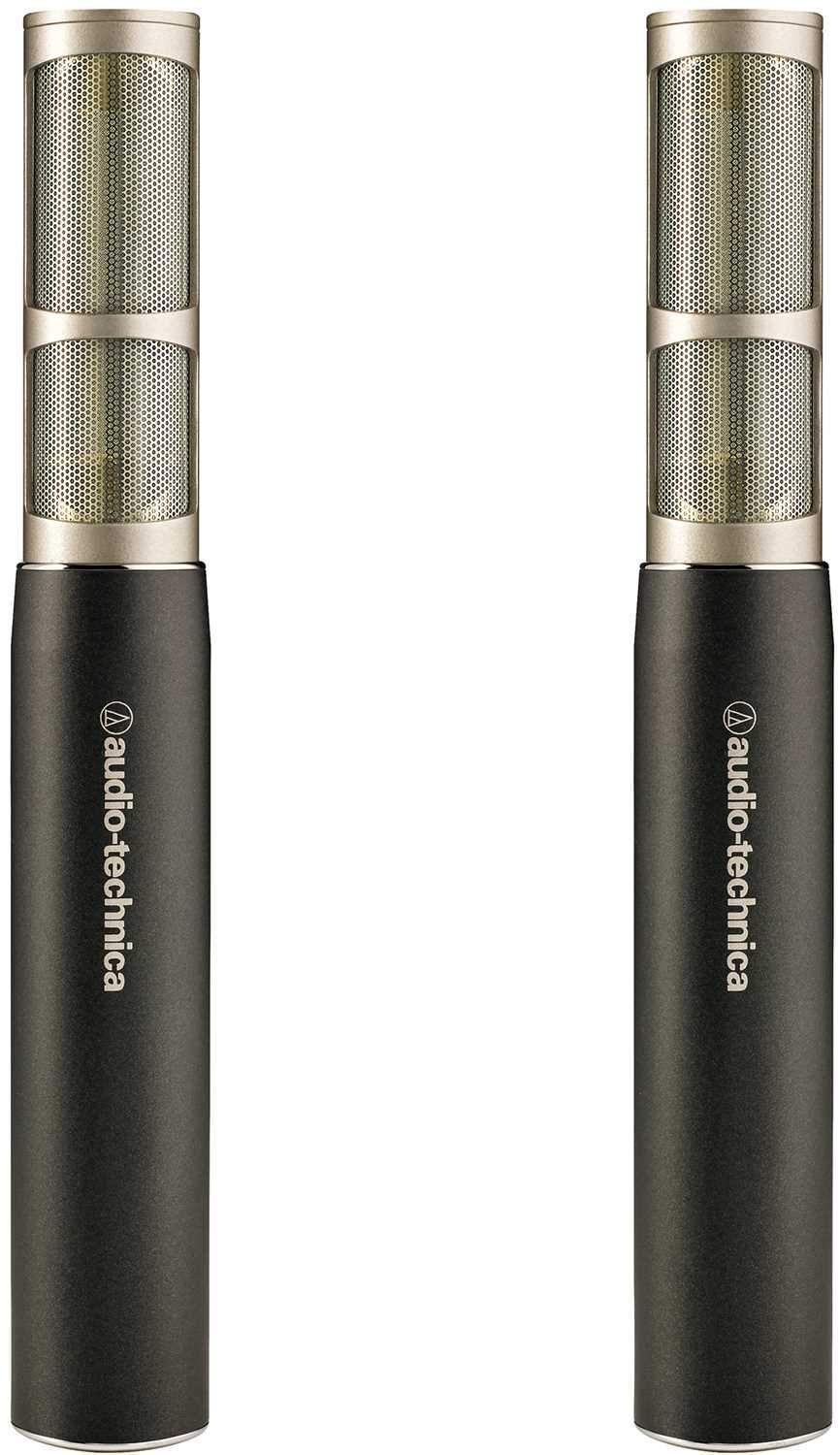

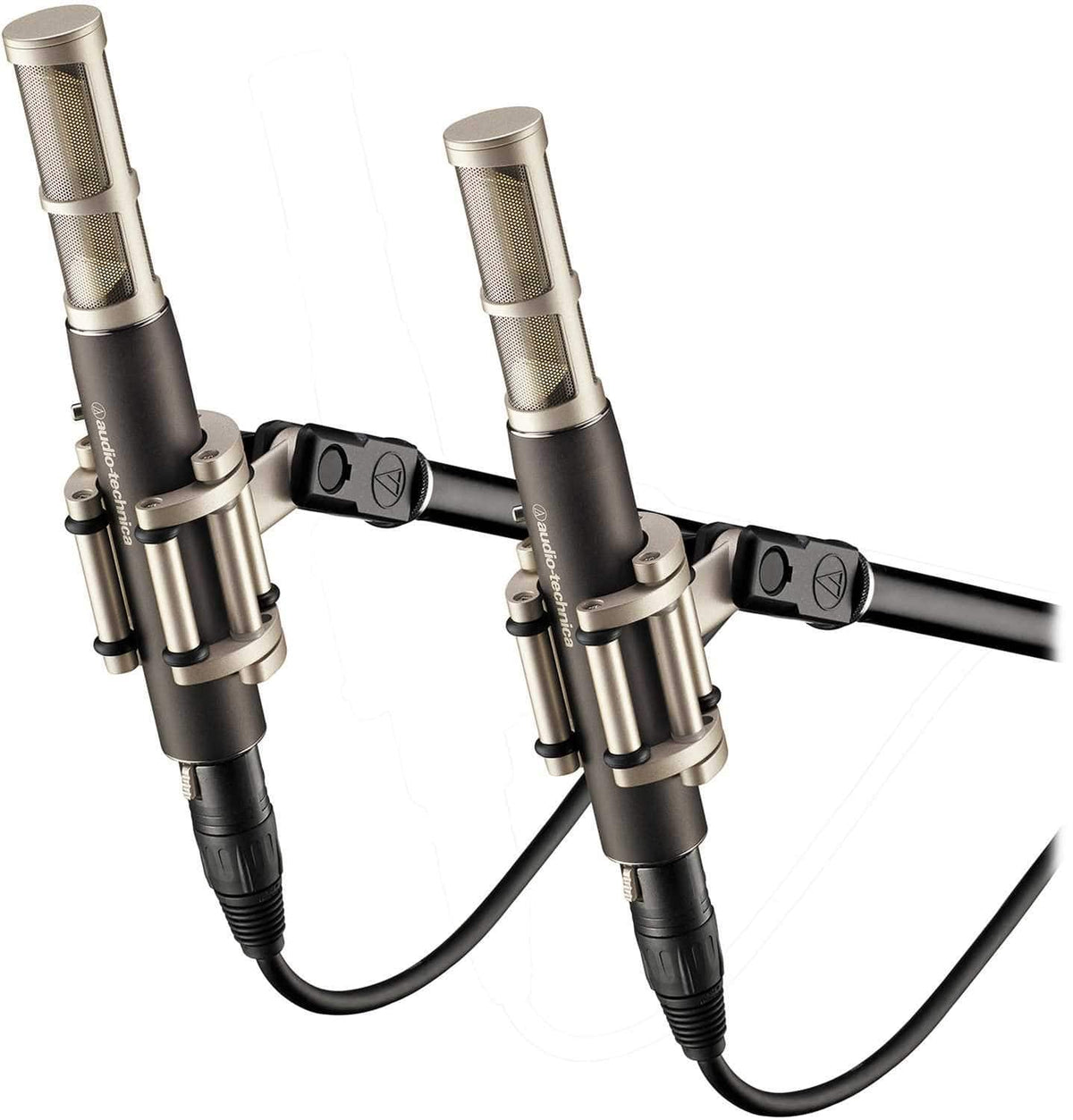

Audio-Technica AT-AT5045P: AT5045P Condenser Microphone Stereo Pair
Studio Instrument Microphones The AT5045P is two of Audio-Technica's premier condenser instrument microphones in a stereo pair pack. Offering the performance of a large-diaphragm, side-address condenser in a convenient, stick-type body, the AT5045, despite the space limitations imposed by its housing,boasts Audio-Technica's largest single diaphragm. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Audio-Technica's premier studio condenser instrument microphone
- Pure, realistic sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments
- Side-address, stick-design microphone with more diaphragm surface area than most traditional large diaphragm side-address microphones
- Discrete components carefully selected for optimized performance
- Transformer-coupled output is optimized to provide smooth sonic character
- Exceptionally low noise with high-SPL capability
- Hand built and inspected for 100% quality control
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | AT-AT5045P |
| Product Type | Small Diaphragm Condenser Mics |
| Polar Pattern | Cardioid |
| Frequency Response | 20 to 20,000 Hz |
| Open Circuit Sentivity | -35 dB (17.7 mV) re 1V at 1 Pa |
| Impedance | 100 ohms |
| Maximum Input Sound Level | 149 dB SPL, 1 kHz at 1% T.H.D. |
| Noise | 8 dB SPL |
| Dynamic Range (typical) | 141 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 86 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 48V DC, 1.4 mA typical |
| Weight | 197 g (7.0 oz) |
| Dimensions | 177.0 mm (6.97 inch) long, 25.0 mm (0.98 inch) maximum body diameter |
| Output Connector | Integral 3-pin XLRM-type |

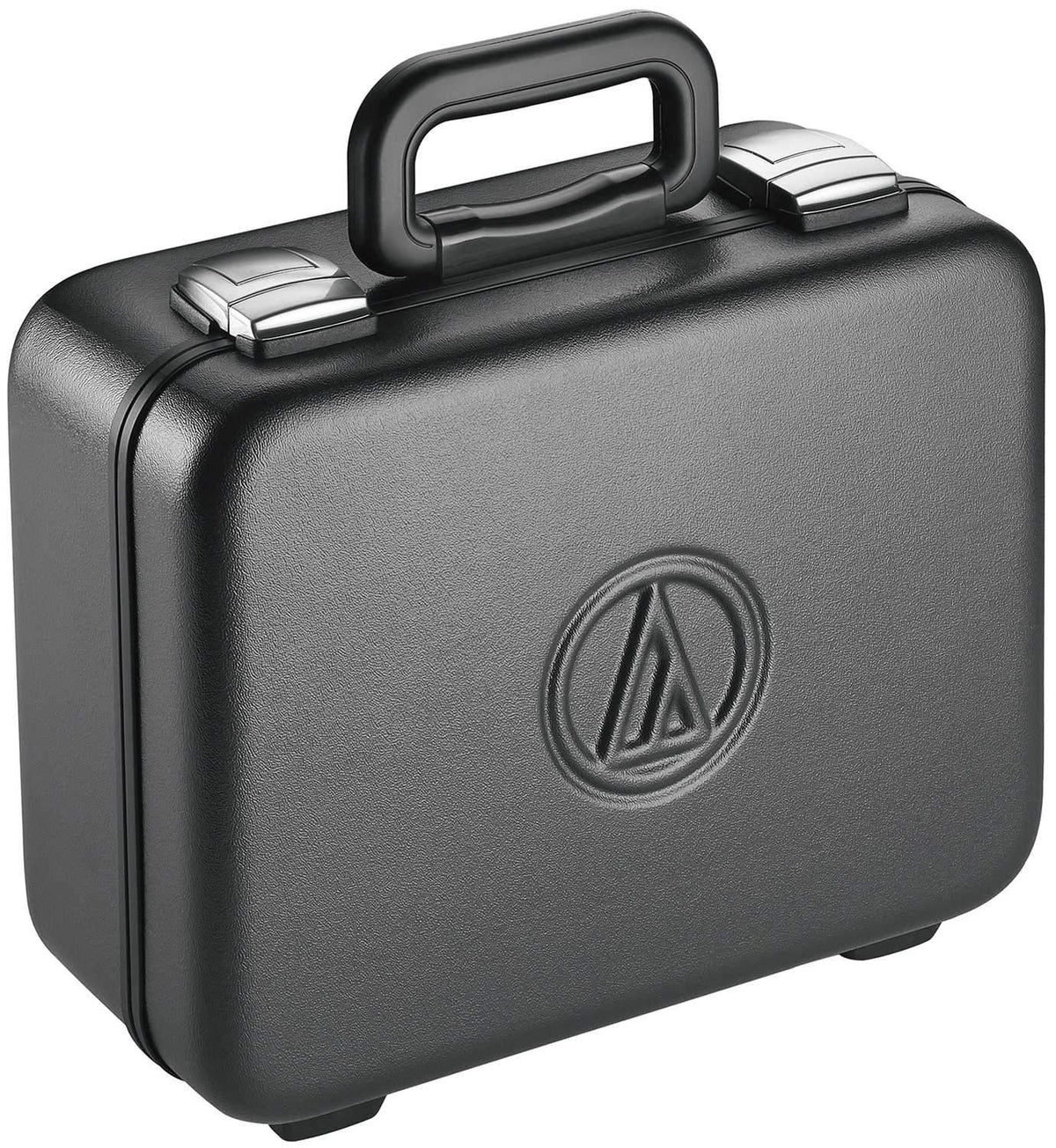

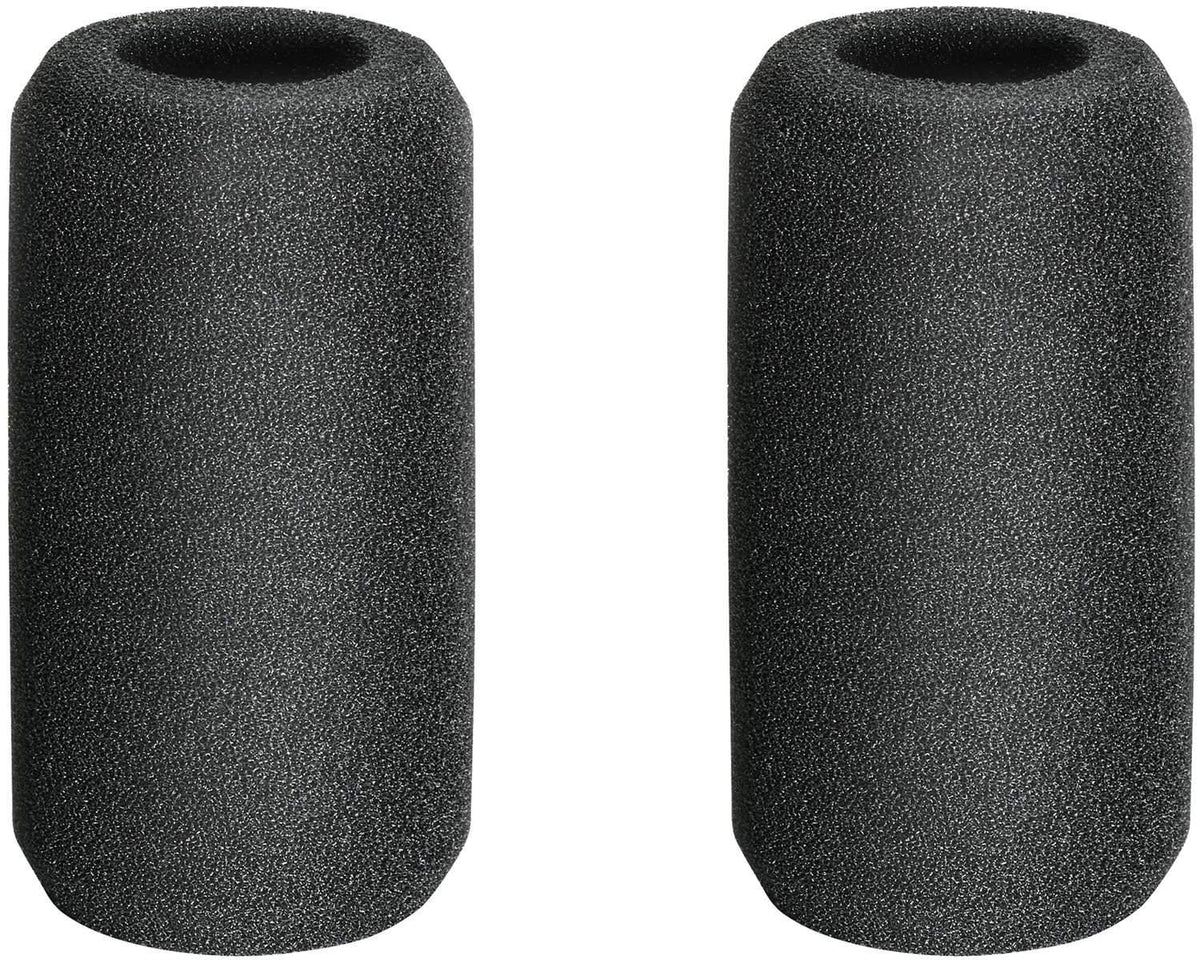

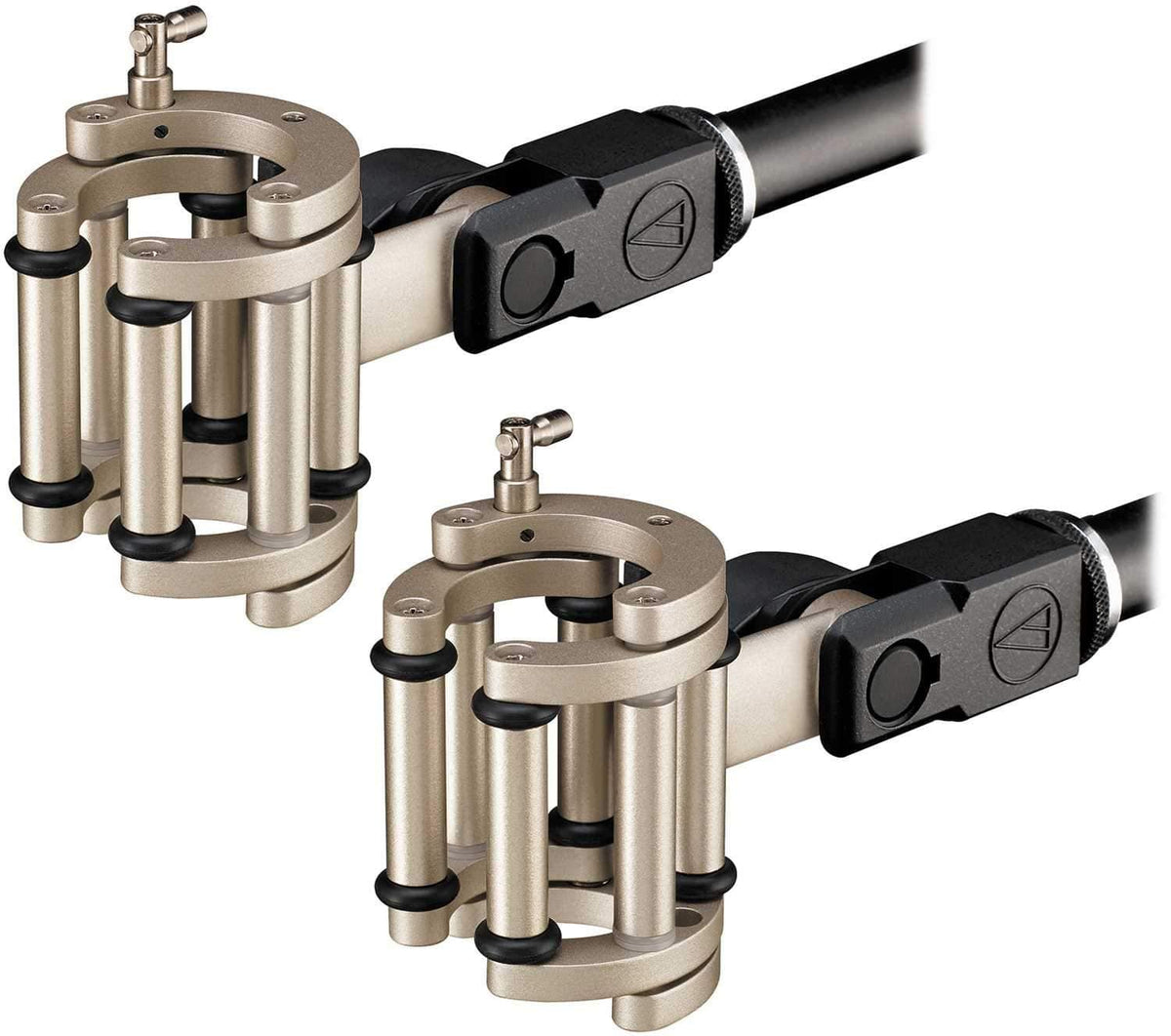

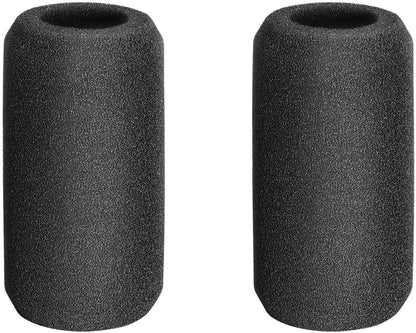

| Accessories Furnished | Two AT8481 isolation clamp for 5/8 inch-27 threaded stands; two AT8165 windscreen; protective carrying case |
| Audio-Technica Case Style | R11 |
Why Buy the Audio-Technica AT-AT5045P AT5045P Condenser Microphone Stereo Pair from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the AT-AT5045P to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica AT-AT5045P uses a Cardioid polar pattern.
The Audio-Technica AT-AT5045P has a frequency response of 20 to 20,000 Hz.
The listing gives no sensitivity figure for the Audio-Technica AT-AT5045P, and a maximum input sound level of 149 dB SPL, 1 kHz at 1% T.H.D. Trianze Tech can confirm figures for your application.
Published specifications list the power requirement of the Audio-Technica AT-AT5045P as 48V DC, 1.4 mA typical.
The Audio-Technica AT-AT5045P has Integral 3-pin XLRM-type as its connector.
