Audio-Technica AT5040: Condenser Microphone
Brand
:Audio-Technica
Model
:
AT5040
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Audio-Technica AT5040: Condenser Microphone
Studio Vocal Microphone Audio-Technica's premier studio vocal microphone, the AT5040 represents a milestone in condenser design, offering remarkably musical high-fidelity performance, with profound realism and depth, presence and purity of sound. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Audio-Technica's premier studio condenser vocal microphone
- Extremely musical high-fidelity performance, with profound realism and depth, presence and purity of sound

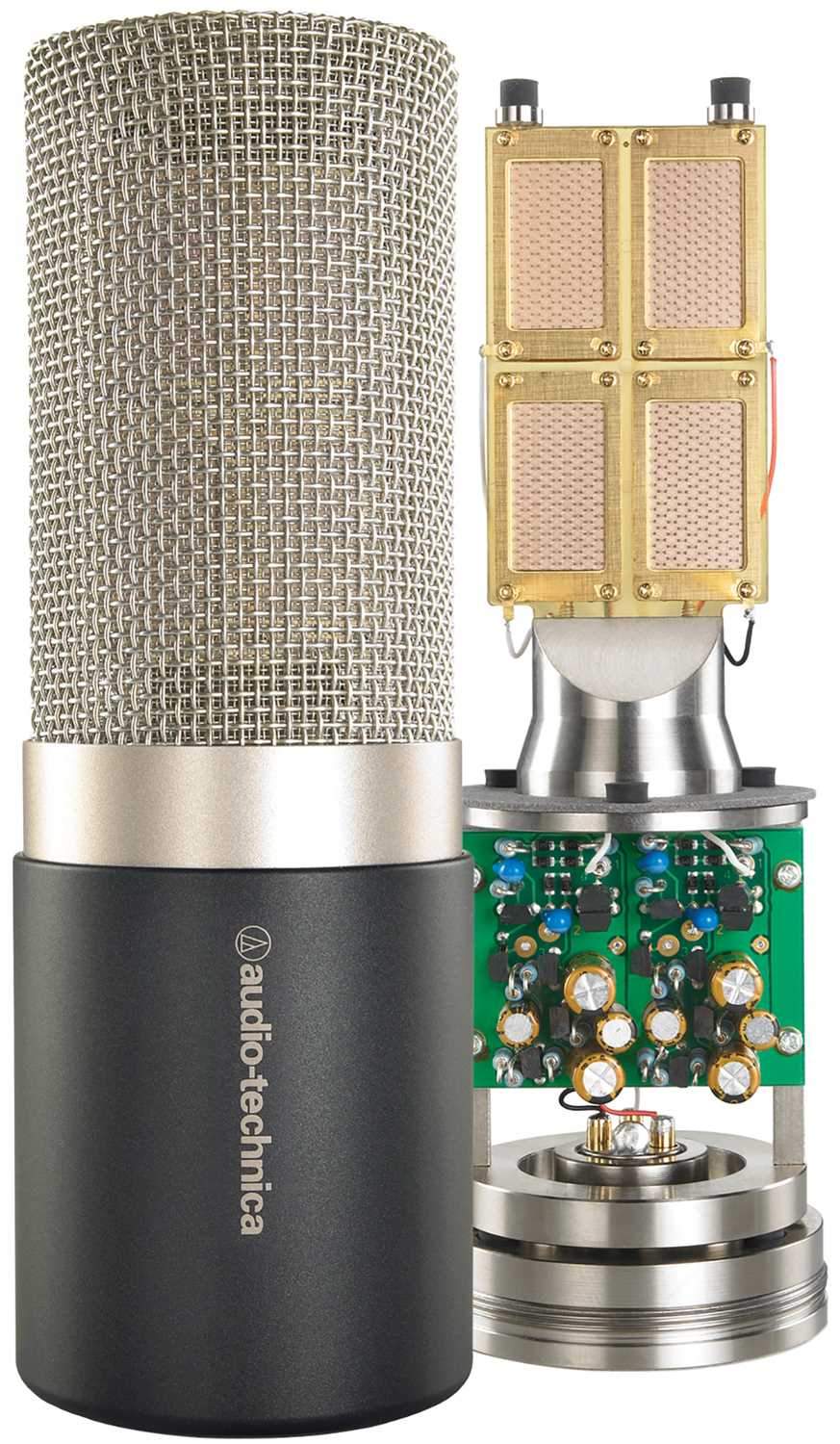

- Four rectangular diaphragms (2 micron) function together as Audio-Technica's largest-ever element, providing combined surface area twice that of a standard one-inch circular diaphragm
- Exceptionally low noise and wide dynamic range ideal for studio vocals
- Discrete components carefully selected for optimized capsule performance
- High-SPL capability and extended frequency response
- Hand assembled and inspected for 100% quality control
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | AT5040 |
| Product Type | Large Diaphragm Condenser Mics |
| Polar Pattern | Cardioid |
| Frequency Response | 20 to 20,000 Hz |
| Open Circuit Sensitivity | -25 dB (56.2 mV) re 1V at 1 Pa |
| Impedance | 50 ohms |
| Maximum Input Sound Level | 142 dB SPL, 1 kHz at 1% T.H.D. |
| Noise | 5 dB SPL |
| Dynamic Range (typical) | 137 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 89 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 48V DC, 3.8 mA typical |
| Weight | 582 g (20.5 oz) |
| Dimensions | 165.3 mm (6.51 inch) long, 57.0 mm (2.24 inch) maximum body diameter |

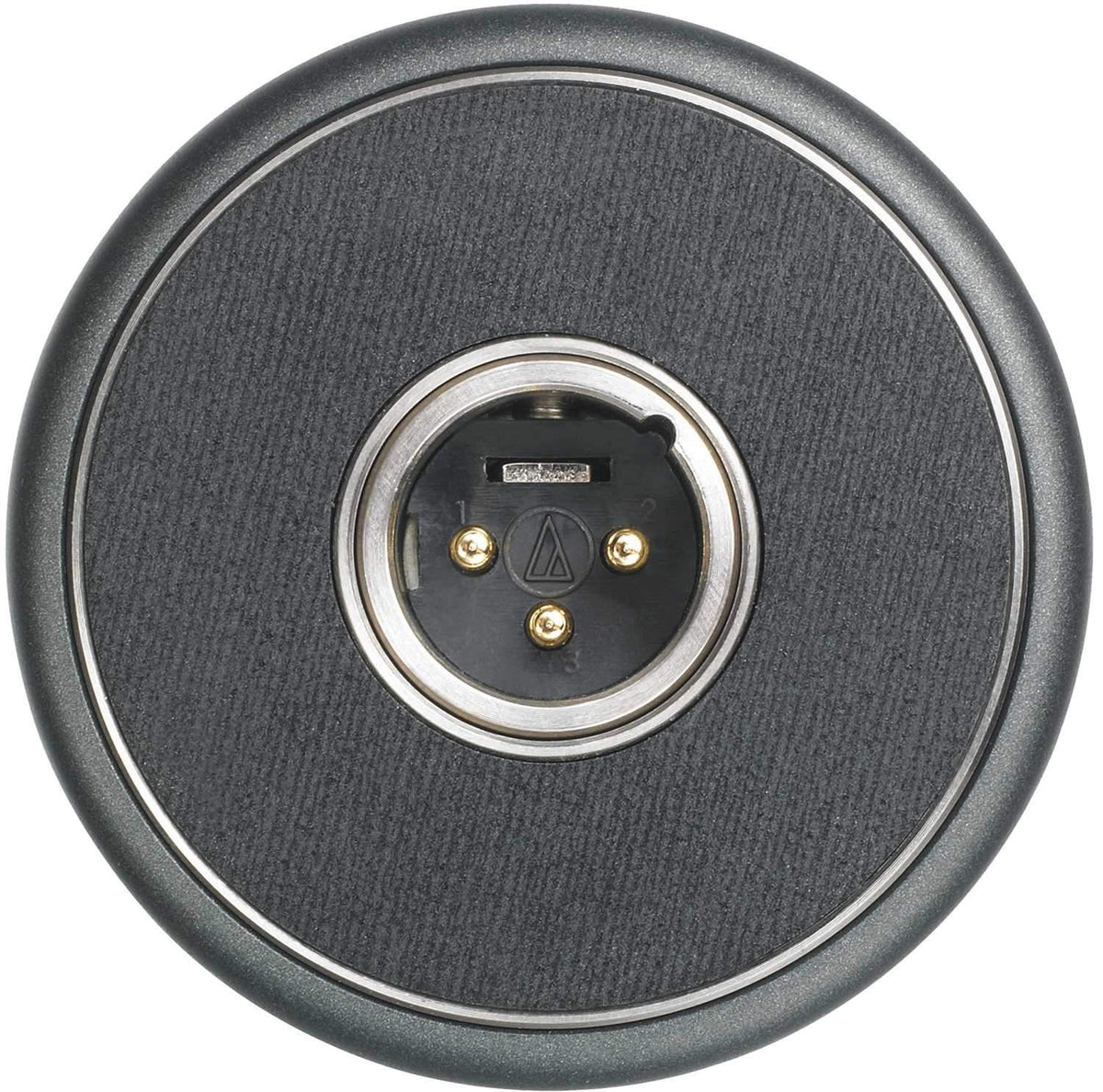

| Output Connectors | Integral 3-pin XLRM-type |

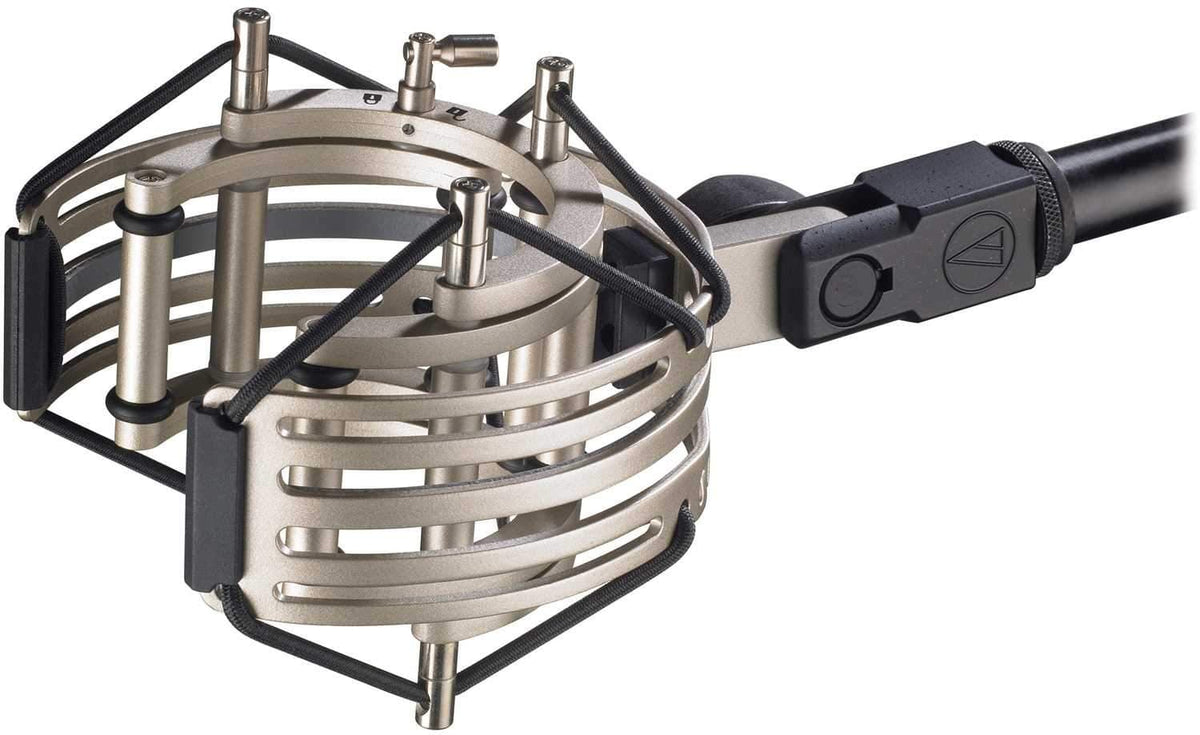

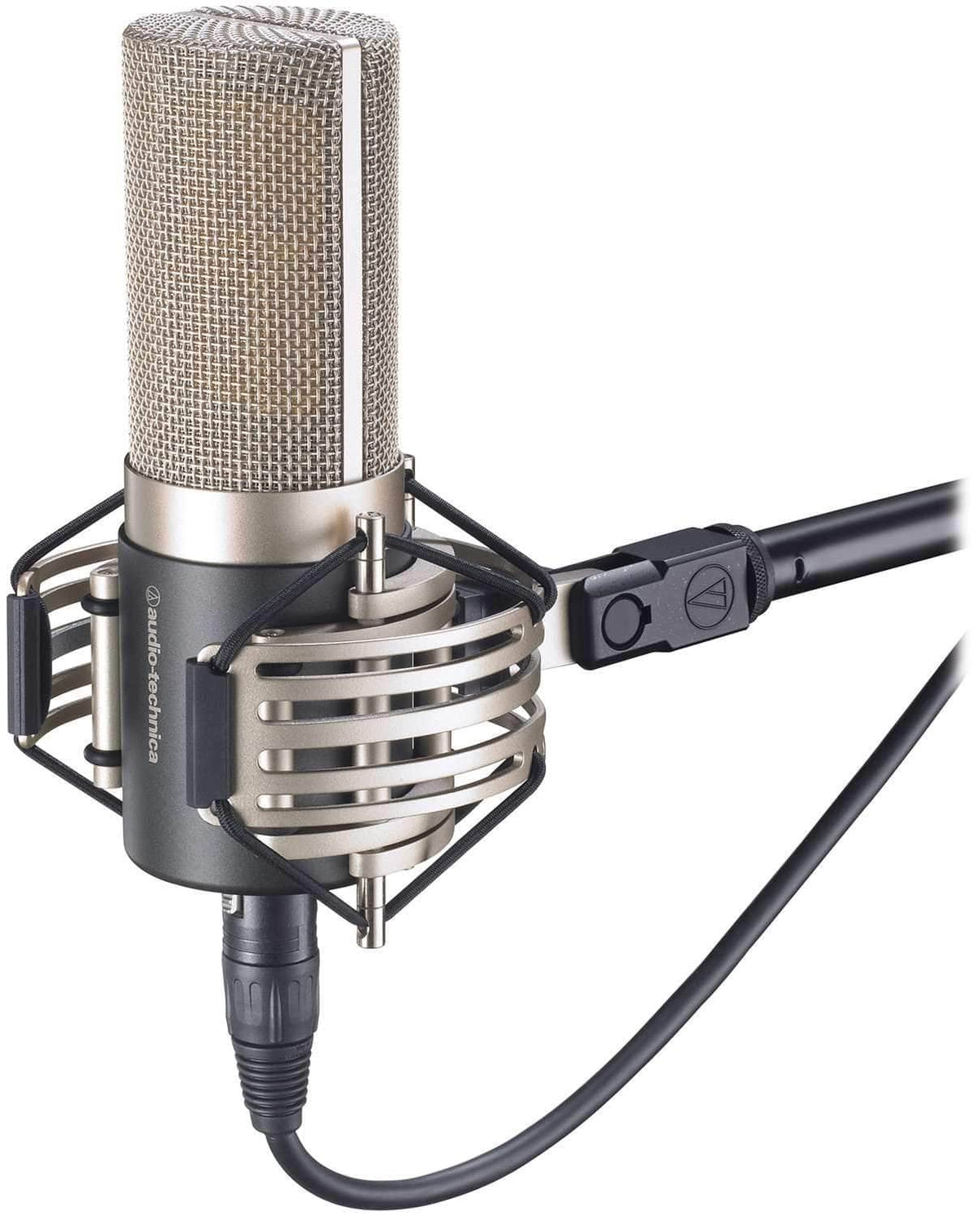

| Accessories Furnished | AT8480 shock mount for 5/8 inch-27 threaded stands; protective carrying case |
Why Buy the Audio-Technica AT5040 Condenser Microphone from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the AT5040 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica AT5040 uses a Cardioid polar pattern.
The Audio-Technica AT5040 has a frequency response of 20 to 20,000 Hz.
The Audio-Technica AT5040 has an open circuit sensitivity of -25 dB (56.2 mV) re 1V at 1 Pa, and a maximum input sound level of 142 dB SPL, 1 kHz at 1% T.H.D. Trianze Tech can confirm figures for your application.
Published specifications list the power requirement of the Audio-Technica AT5040 as 48V DC, 3.8 mA typical.
The Audio-Technica AT5040 has Integral 3-pin XLRM-type as its connector.
Trianze Tech stocks the Audio-Technica AT5040 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
