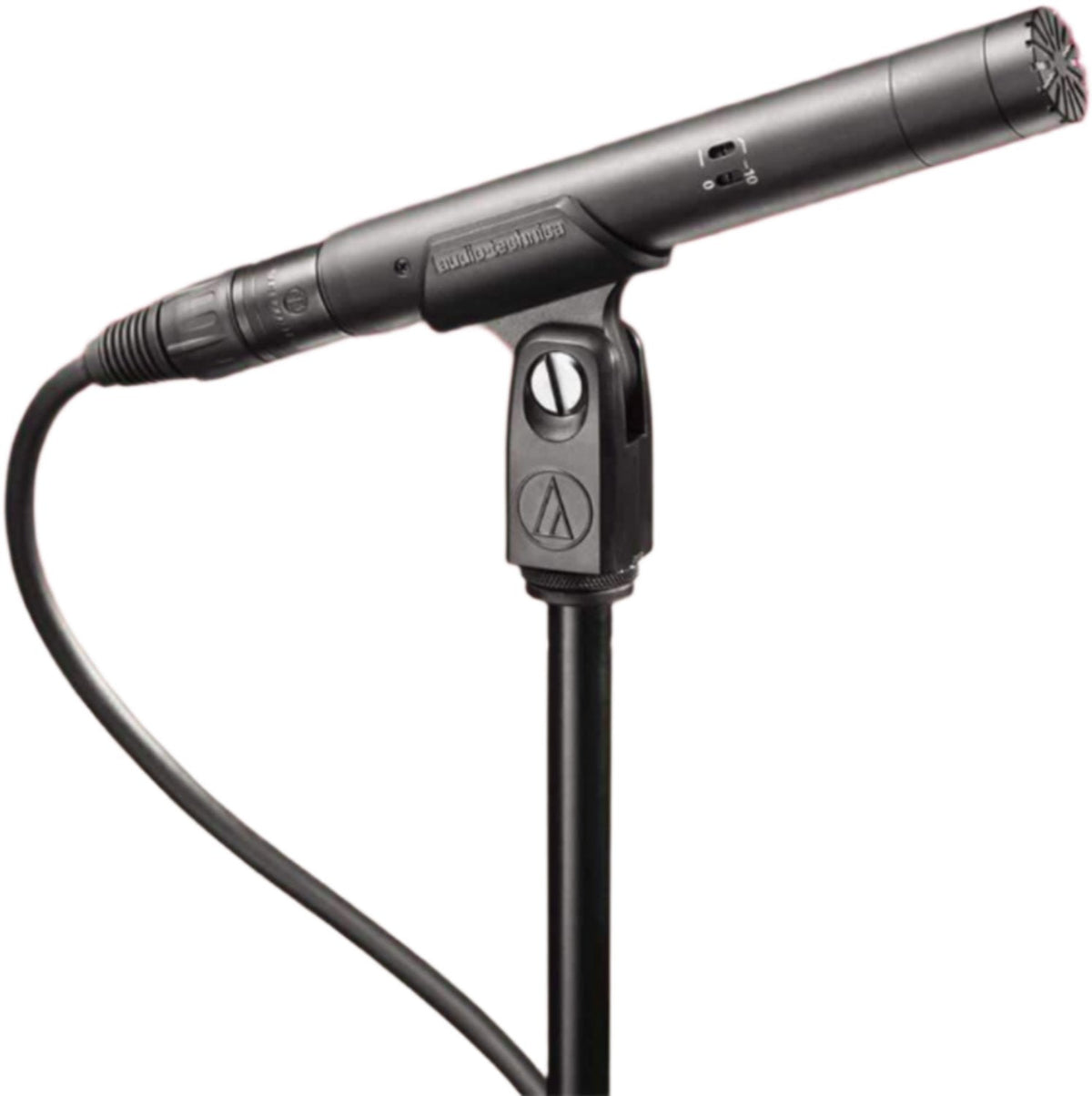

Audio-Technica AT4022: Condenser Microphone
The low-profile AT4022 omnidirectional condenser recording mic is outstanding for piano, acoustic guitar, and other acoustic instruments. With a flat, extended frequency response and wide dynamic range ideal for critical studio and live applications, the AT4022 handles high SPLs with ease. The microphone's omnidirectional polar pattern preserves the "sound" of the recording location, delivers flat response and freedom from proximity effect. Supplied by Trianze Tech across Dubai, Abu Dhabi, the UAE and the GCC.
Key Features:
- Outstanding performance and rugged construction, ideal for critical studio & live applications
- High SPL handling and wide dynamic range
- Flat, extended frequency response
- Switchable 80 Hz hi-pass filter and 10 dB pad
- Omnidirectional polar pattern provides maximum ambient pickup
- Low self noise perfectly suited for digital recording equipment
- Exceptional reproduction of low frequency sounds
Technical Specifications:
| Spec | Value |
|---|---|
| Brand | Audio-Technica |
| Model | AT4022 |
| Product Type | Small Diaphragm Condenser Mics |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 to 20,000 Hz |
| Low Frequency Roll-Off | 80 Hz, 12 dB/octave |
| Open Circuit Sensitivity | -34 dB (19.9 mV) re 1V at 1 Pa |
| Impedance | 250 ohms |
| Maximum Input Sound Level | 146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL with 10 dB pad (nominal) |
| Noise | 13 dB SPL |
| Dynamic Range (typical) | 133 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 81 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 48V DC, 3.0 mA typical |
| Weight | 124 g (4.4 oz) |
| Dimensions | 144.0 mm (5.67 inch) long, 21.0 mm (0.83 inch) maximum body diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Furnished | AT8405a stand clamp for 5/8 inch-27 threaded stands; windscreen; protective carrying case |
| Audio-Technica Case Style | S1 |
Why Buy the Audio-Technica AT4022 Condenser Microphone from Trianze Tech?
- Genuine Audio-Technica product sourced through authorized channels with local UAE support
- Pre-sales help matching the AT4022 to your microphones, mixers and installation
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for venues, broadcasters, schools and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Audio-Technica AT4022 uses a Omnidirectional polar pattern. Omnidirectional polar pattern provides maximum ambient pickup.
The Audio-Technica AT4022 has a frequency response of 20 to 20,000 Hz, with a low frequency roll-off of 80 Hz, 12 dB/octave.
The Audio-Technica AT4022 has an open circuit sensitivity of -34 dB (19.9 mV) re 1V at 1 Pa, and a maximum input sound level of 146 dB SPL, 1 kHz at 1% T.H.D.; 156 dB SPL with 10 dB pad (nominal). Trianze Tech can confirm figures for your application.
Published specifications list the power requirement of the Audio-Technica AT4022 as 48V DC, 3.0 mA typical.
The Audio-Technica AT4022 has Integral 3-pin XLRM-type as its connector.
