Allen & Heath ZED60-10FX: Multipurpose Analog USB Mixer with 60mm Faders and 16 Built In Effects
Model
:
ZED60-10FX
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

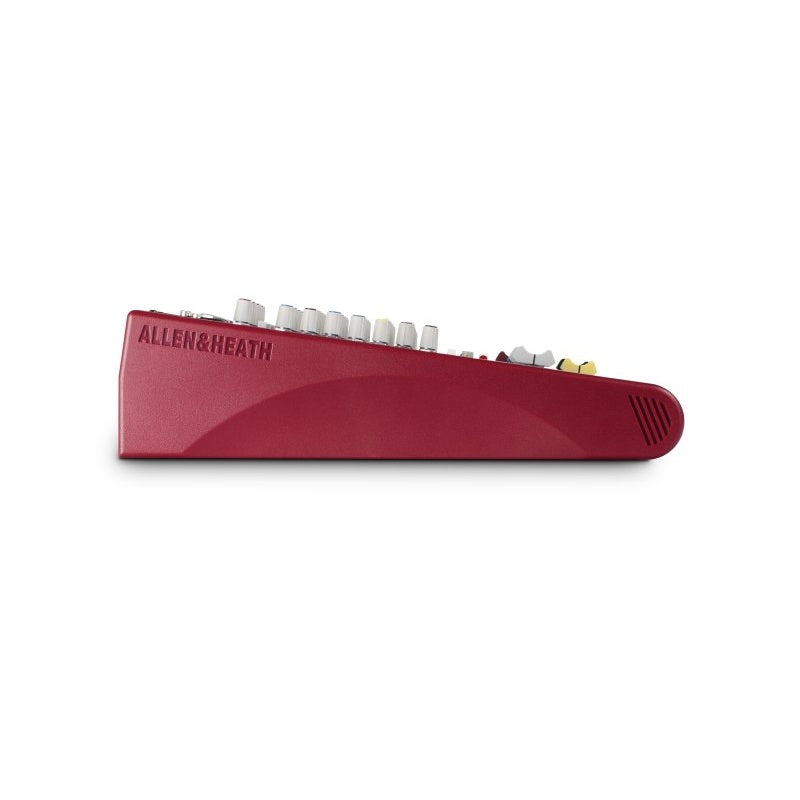

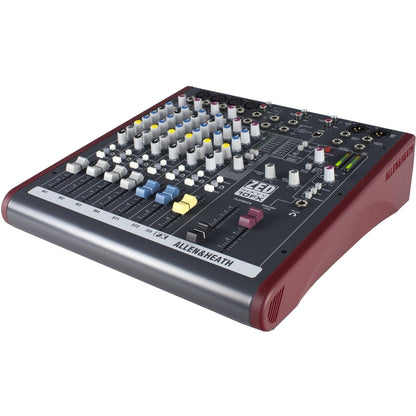

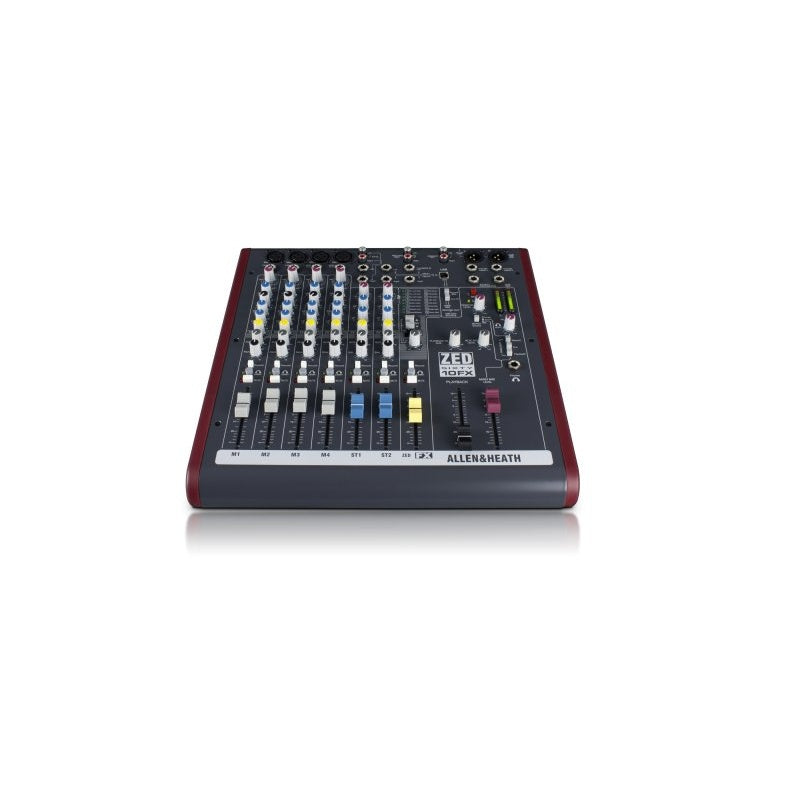

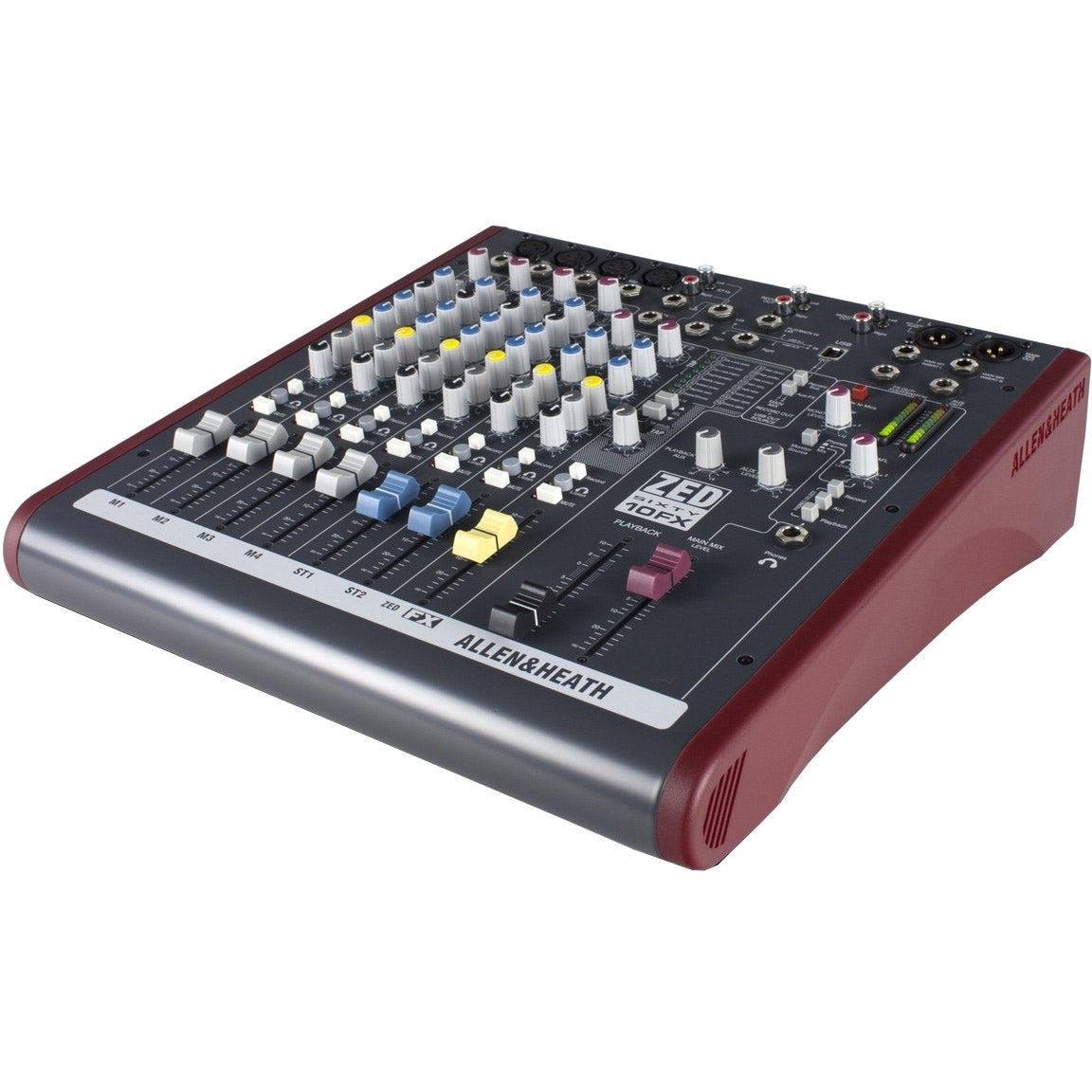

Allen & Heath ZED60-10FX Multipurpose USB Mixer with FX
The Allen & Heath ZED60-10FX is a portable analog mixer for live performance and studio recording, built around premium 60 mm faders. It has 4 mono mic and line channels on XLR with DuoPre preamps, 2 stereo line channels, Hi-Z instrument inputs on channels 3 and 4 so guitarists can skip the DI box, a 3 band EQ with sweepable mid, 16 built in effects and a stereo 2 in 2 out USB audio interface. It weighs 3.8 kg and measures 336 x 95 x 346 mm. Trianze Tech supplies the ZED60-10FX across Dubai, Abu Dhabi, the UAE and GCC.
Key Features:
- 60 mm faders for tactile control
- 4 mono mic and line channels with DuoPre preamps
- 2 stereo line channels
- Hi-Z instrument inputs on channels 3 and 4 with a gain boost switch
- 3 band EQ with sweepable mid
- 16 built in time based effects
- Stereo 2 in 2 out USB audio interface
Technical Specifications:
| Spec | Value |
|---|---|
| Model | ZED60-10FX |
| Type | Analog mixer with USB |
| Mono Channels | 4 mic and line (XLR) |
| Stereo Channels | 2 (quarter inch TRS) |
| Instrument Inputs | Hi-Z on channels 3 and 4 |
| EQ | 3 band with sweepable mid |
| Effects | 16 built in |
| USB Audio | 2 in 2 out, 16 bit |
| Dimensions | 336 x 95 x 346 mm |
| Weight | 3.8 kg |
Why Buy the Allen & Heath ZED60-10FX from Trianze Tech?
- Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
- Pre-sales help matching the ZED60-10FX to your console, stage boxes and network
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for live sound, installation, worship and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The ZED60-10FX has 4 mono mic and line channels with XLR inputs and DuoPre preamps, plus 2 stereo line channels.
Yes. Channels 3 and 4 have Hi-Z instrument inputs, so a guitar can connect without a DI box, with a gain boost switch for very low level pickups.
It has 16 built in time based effects including delay and reverb, edited with 3 buttons and 9 display LEDs.
It has a stereo 2 in 2 out USB audio interface for recording to and playing from a computer.
It weighs 3.8 kg and measures 336 x 95 x 346 mm.
Trianze Tech supplies the Allen & Heath ZED60-10FX in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
