Allen & Heath SQ SLink Card: M-SQ-SLINK SQ SLink Audio Networking Card with 128x128 Channels at 48kHz or 96kHz
Model
:
SQ SLink Card
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support

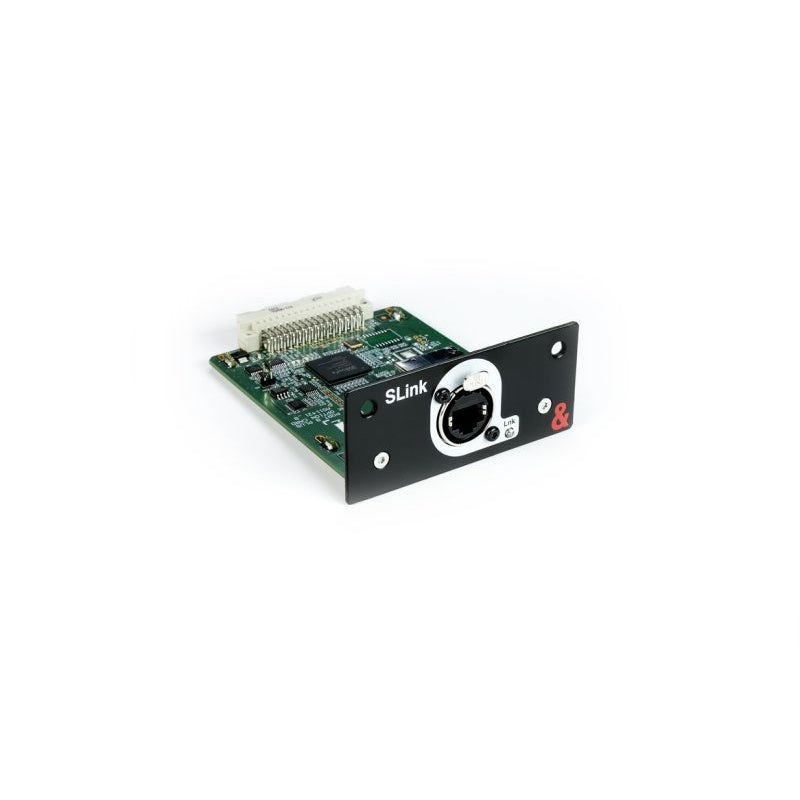

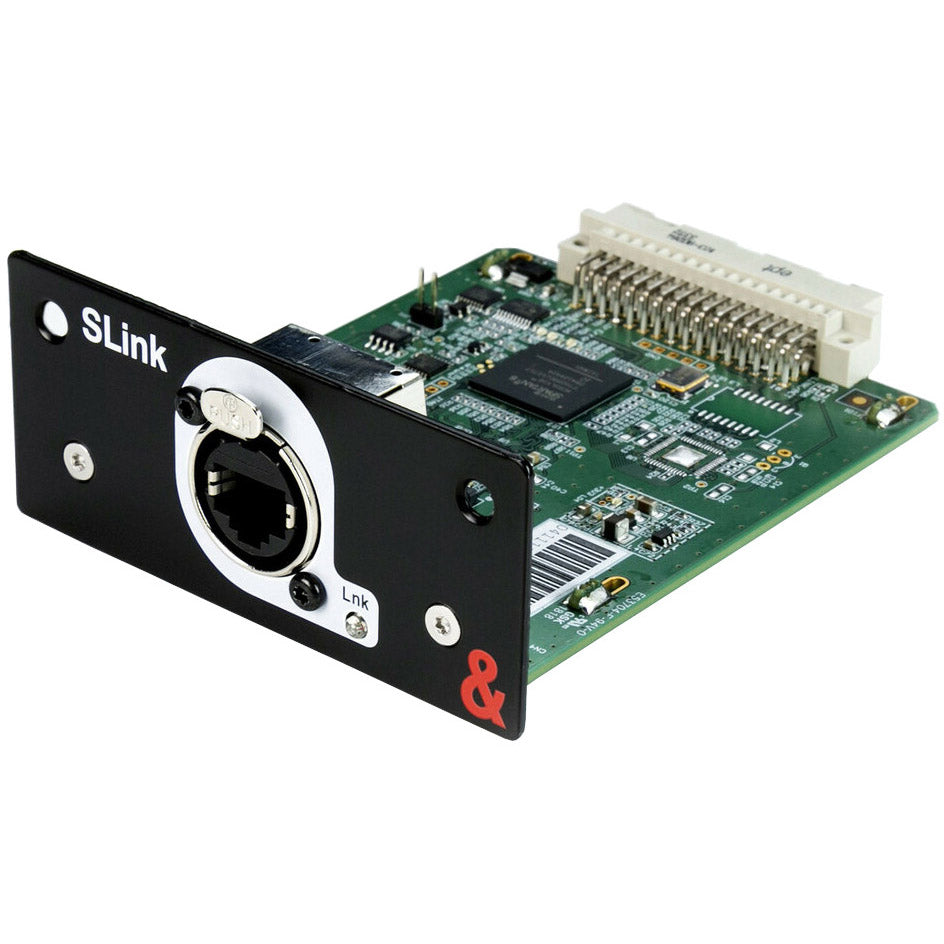

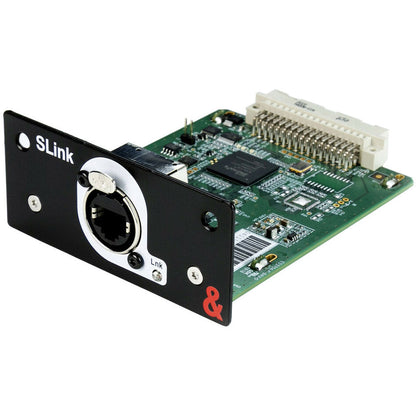

Allen & Heath SQ SLink Audio Networking Expansion Card
The Allen & Heath SQ SLink card (M-SQ-SLINK) is one of several audio networking option cards made to fit the SQ mixer. It adds a single intelligent SLink socket to any SQ console and delivers up to 128x128 channels at 48 kHz or 96 kHz. Once fitted it acts like a fully built in port, connecting a further 128 inputs and 128 outputs of digital audio, with 52 microsecond latency and a bidirectional, point to point, plug and play L2 Ethernet protocol. It runs independently of the built in SLink port, so two Allen & Heath protocols can run at once. Trianze Tech supplies the SQ SLink card across Dubai, Abu Dhabi, the UAE and GCC.
Key Features:
- Adds an intelligent SLink socket to any SQ
- Up to 128x128 channels at 48 kHz or 96 kHz
- 52 microsecond latency
- Runs independently of the built in SLink port
- Supports ME, DX, dSNAKE expanders and gigaACE
- Direct link to another Qu, SQ or dLive system
Technical Specifications:
| Spec | Value |
|---|---|
| Model | SQ SLink audio networking card |
| Part Number | M-SQ-SLINK |
| Channels | Up to 128 x 128 |
| Sampling Rate | 48 kHz or 96 kHz |
| Latency | 52 microseconds |
| Protocol | Bidirectional point to point L2 Ethernet, plug and play |
| Supports | ME, DX (32x32 at 96 kHz), dSNAKE (48x64 at 48 kHz), gigaACE (128x128 at 96 kHz) |
| Fits | SQ mixers |
Why Buy the Allen & Heath SQ SLink Card from Trianze Tech?
- Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
- Pre-sales help matching the SQ SLink Card to your console, stage boxes and network
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for live sound, installation, worship and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The M-SQ-SLINK delivers up to 128x128 channels of digital audio at 48 kHz or 96 kHz.
The SQ SLink card has a low latency of 52 microseconds.
Yes. It runs independently of the built in SLink port, so two different Allen & Heath protocols can run in one system at the same time.
You can combine an SQ with ME personal monitoring, DX expanders (32x32 at 96 kHz) or dSNAKE expanders (48x64 at 48 kHz), and the card also supports gigaACE (128x128 at 96 kHz). All external gear is sold separately.
Yes. Fitting an SQ with the SLink card makes it possible to connect directly to another Qu, SQ or dLive system, for example for digital FOH and monitor splits or broadcast feeds.
Trianze Tech supplies the Allen & Heath SQ SLink card in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
