Allen & Heath SQ MADI Card: 64x64 MADI Interface Card for SQ Mixers at 48 kHz or 96 kHz with Dual BNC I/O
Model
:
SQ MADI Card
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Allen & Heath SQ MADI 64x64 MADI Interface Card

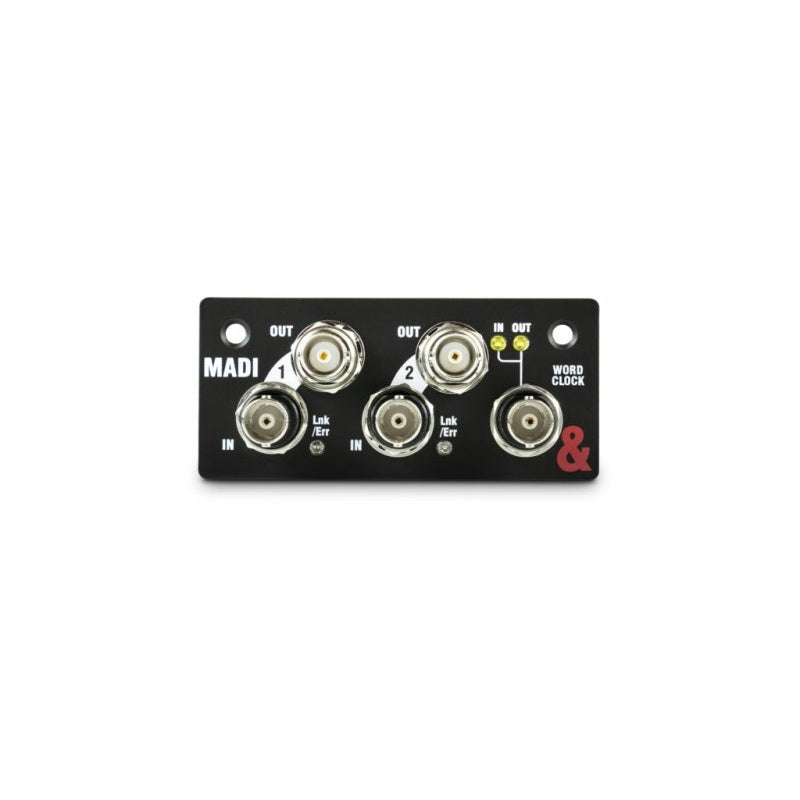

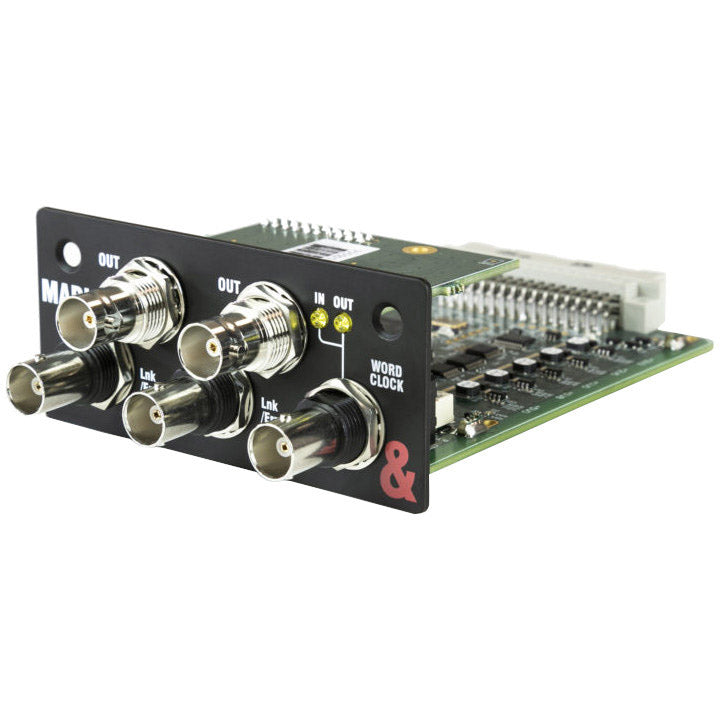

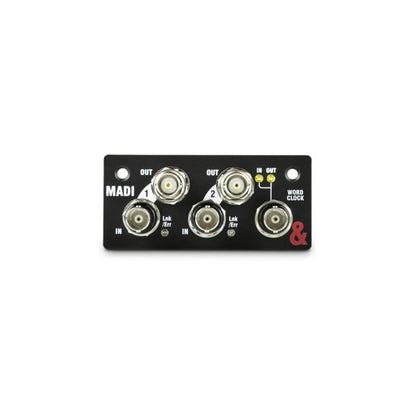

The Allen & Heath SQ MADI card gives any SQ mixer a 64x64 MADI interface running at 48 kHz or 96 kHz. Two BNC inputs pair with two BNC outputs for split or redundant setups, and a dual function (in/out) BNC wordclock connection lets the console sync with other equipment. It connects and synchronizes an SQ with broadcast or recording systems, OB vans and third party consoles for high channel count feeds over coaxial cable. Trianze Tech supplies the SQ MADI card across Dubai, Abu Dhabi, the UAE and GCC.
Key Features:
- 64x64 MADI interface for any SQ mixer
- 48 kHz or 96 kHz operation
- Two BNC inputs and two BNC outputs for split or redundant setups
- Dual function BNC wordclock in/out
- High channel count feeds over coaxial cable
Technical Specifications:
| Spec | Value |
|---|---|
| Model | SQ MADI Interface Card |
| Type | MADI option card |
| Networking I/O | 64 x 64 MADI |
| Sampling Rate | 48 kHz or 96 kHz |
| Audio Connectors | 2 x BNC in, 2 x BNC out |
| Wordclock | Dual function (in/out) BNC |
| Works with | SQ mixers |
Why Buy the Allen & Heath SQ MADI Card from Trianze Tech?
- Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
- Pre-sales help matching the SQ MADI Card to your console, stage boxes and network
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for live sound, installation, worship and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The SQ MADI card gives any SQ mixer a 64x64 MADI interface running at 48 kHz or 96 kHz.
It has two BNC inputs and two BNC outputs for split or redundant setups, plus a dual function (in/out) BNC wordclock connection.
It connects and synchronizes the console with broadcast or recording systems, OB vans and third party consoles for high channel count feeds over coaxial cable.
It is designed for any SQ mixer.
Both give 64x64 MADI. The SQ MADI card is the option card for SQ mixers, while Trianze Tech confirms the compatible consoles for the AH-M-MADI2-A at order.
Trianze Tech supplies the Allen & Heath SQ MADI Card in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
