Allen & Heath SQ-5: 48 Channel 36 Bus 96kHz Digital Mixer with 16 Faders and 16 Mic Preamps
Model
:
SQ-5
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

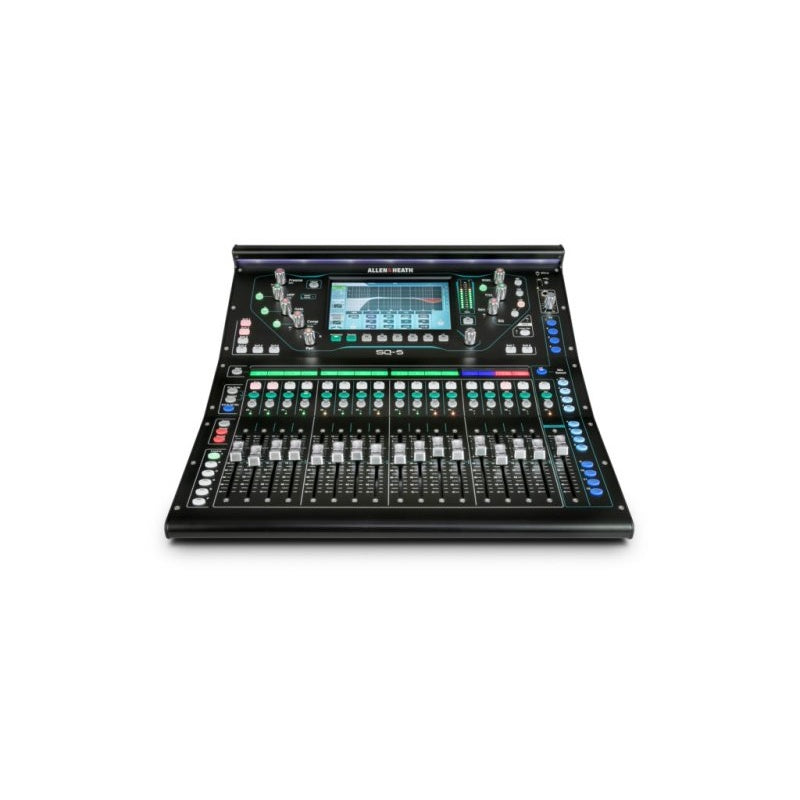

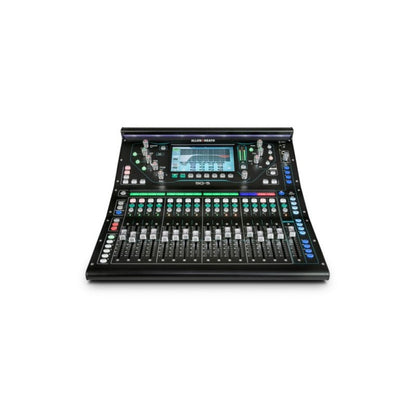

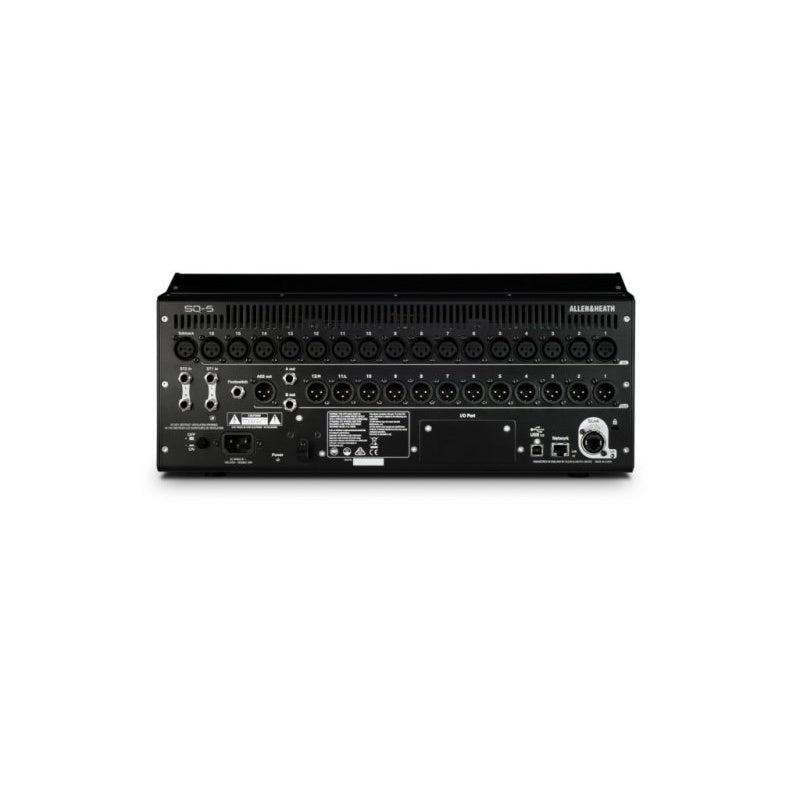

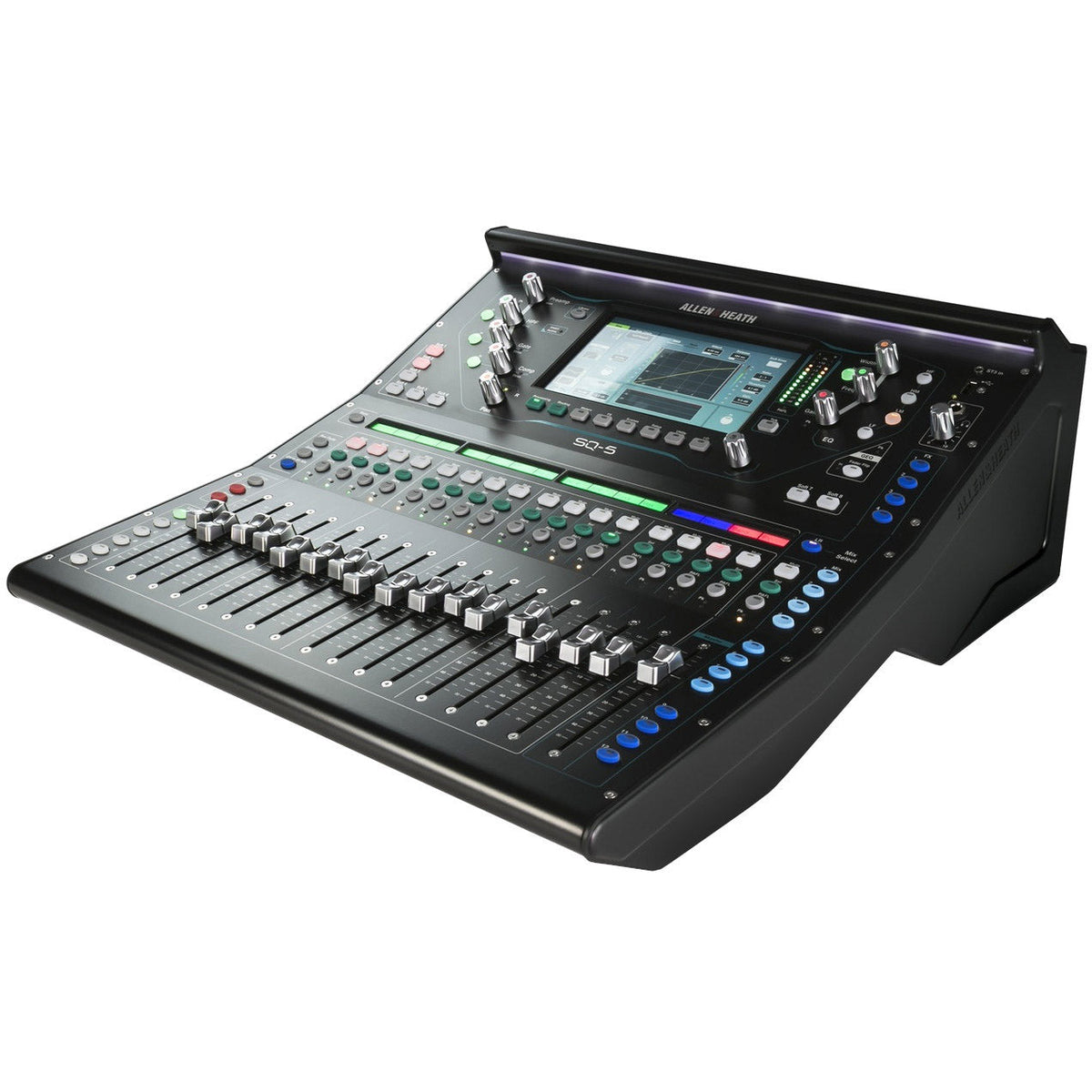

Allen & Heath SQ-5 48 Channel Digital Mixer
The Allen & Heath SQ-5 is a compact 48 channel, 36 bus digital mixer running at 96 kHz on the XCVI FPGA processing core. It has 16 plus 1 motorized faders over 6 layers, 16 mic preamps, a 7 inch touchscreen, 8 assignable softkeys, a 32 x 32 USB audio interface and a 64 x 64 I/O port for networking cards. It suits live sound, corporate events, installations and houses of worship. Trianze Tech supplies the SQ-5 across Dubai, Abu Dhabi, the UAE and GCC.
Key Features:
- 48 input channels and 36 buses at 96 kHz
- XCVI FPGA core with parallel compressor paths
- 16 plus 1 motorized faders over 6 layers
- 16 mic preamps and 8 stereo FX engines
- 32 x 32 USB audio interface for multitrack recording
- 64 x 64 I/O port for Dante, Waves, MADI and SLink cards
Technical Specifications:
| Spec | Value |
|---|---|
| Model | SQ-5 |
| Processing | XCVI FPGA, 96 kHz |
| Channels and Buses | 48 channels, 36 buses |
| Faders | 16 plus 1 motorized, 6 layers |
| Mic Preamps | 16 |
| Touchscreen | 7 inch |
| Softkeys | 8 assignable |
| USB Audio | 32 x 32 |
| Expansion | 64 x 64 I/O port |
| Remote Apps | SQ MixPad and SQ4You |
Why Buy the Allen & Heath SQ-5 from Trianze Tech?
- Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
- Pre-sales help matching the SQ-5 to your console, stage boxes and network
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for live sound, installation, worship and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The SQ-5 has 48 input channels and 36 buses, all processed at 96 kHz on the XCVI FPGA core.
The SQ-5 has 16 plus 1 motorized faders over 6 layers and 16 mic preamps, with a 7 inch touchscreen and 8 assignable softkeys.
Yes. The SQ-5 has a built in 32 x 32 USB audio interface for multitrack recording and playback to a computer.
Yes. Its 64 x 64 I/O port accepts optional networking cards, including Dante, Waves, MADI and SLink. The cards are sold separately.
Yes. The SQ MixPad app gives remote mixing from a tablet and SQ4You gives performers personal monitor mixes over the network.
Trianze Tech supplies the Allen & Heath SQ-5 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
