Allen & Heath MixWizard WZ4 14:4:2: Compact All Purpose Analog Mixer with Two Digital FX Engines and 2x6 Matrix
Model
:
MixWizard WZ4 14:4:2
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

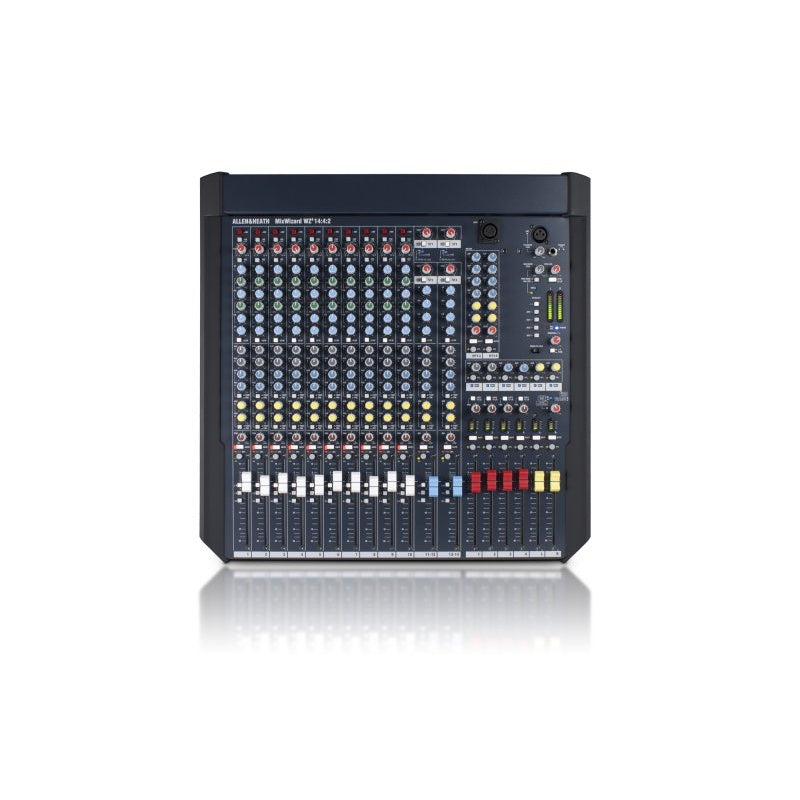

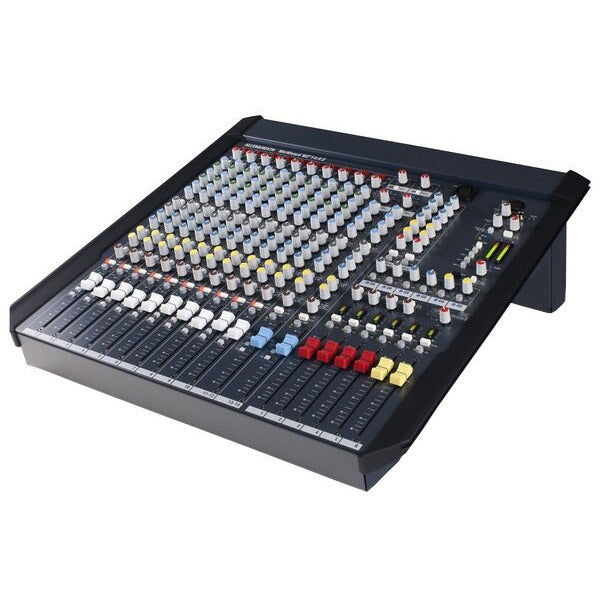

Allen & Heath MixWizard WZ4 14:4:2 All Purpose Mixer
The Allen & Heath MixWizard WZ4 14:4:2 is a compact all purpose analog mixer for live sound such as FOH and monitoring, recording and corporate events. It is built for jobs that need fewer channels but cannot compromise on audio quality, with individual circuit cards, potentiometers nutted to the panel and a rugged steel chassis. This fourth generation MixWizard has two digital FX engines with 20 built in FX presets and EQ in and out switching. Trianze Tech supplies the WZ4 14:4:2 across Dubai, Abu Dhabi, the UAE and GCC; confirm dimensions and power with us at order.
Key Features:
- 10 mono mic or line inputs with high pass filter
- 2 full channel dual stereo inputs and a 2 track replay input
- 2x6 way matrix for recording, broadcast feeds and zone feeds
- Two digital FX engines with 20 built in presets
- Oscillator, pink noise generator and individual talkback
- QCC connector system for free standing, rack or flight case use
Technical Specifications:
| Spec | Value |
|---|---|
| Model | MixWizard WZ4 14:4:2 |
| Type | Analog mixer |
| Mono Mic or Line Inputs | 10, high pass filter per channel |
| Dual Stereo Inputs | 2 |
| Replay Input | 2 track |
| Matrix | 2x6 way |
| Digital FX | 2 engines, 20 presets |
| Test Tools | Oscillator and pink noise generator |
| Connectors | QCC system |
| Dimensions, weight and power | Confirmed at order |
Why Buy the Allen & Heath MixWizard WZ4 14:4:2 from Trianze Tech?
- Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
- Pre-sales help matching the MixWizard WZ4 14:4:2 to your console, stage boxes and network
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for live sound, installation, worship and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
It has 10 mono mic or line inputs with a high pass filter per channel, 2 full channel dual stereo inputs for keyboards or other stereo instruments, and a 2 track replay input.
Yes. It has two digital FX engines with parameter control, 20 built in FX presets and EQ in and out switching.
The 2x6 way matrix gives multi purpose outputs for recording and broadcast feeds, delay fills, zone feeds and more.
Yes. The QCC connector system lets you use it free standing, mounted in a 19 inch rack or in a portable flight case. The supplied side trims protect it in transport and can be removed for permanent installs.
It has an oscillator, a pink noise generator, individual talkback to all outputs, engineer metering and monitoring, and a lamp socket.
Trianze Tech supplies the Allen & Heath MixWizard WZ4 14:4:2 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
