Allen & Heath M-DL-DANTE64-A: 64x64 Dante Audio Networking Card at 96kHz with Primary, Secondary and Control Ports
Model
:
M-DL-DANTE64-A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

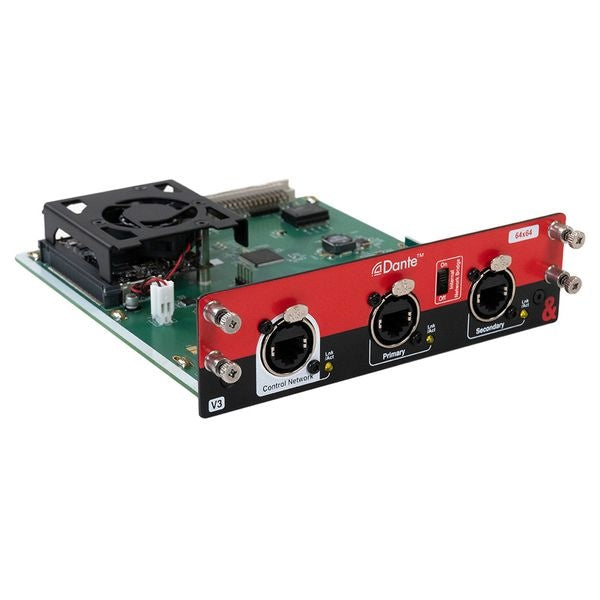

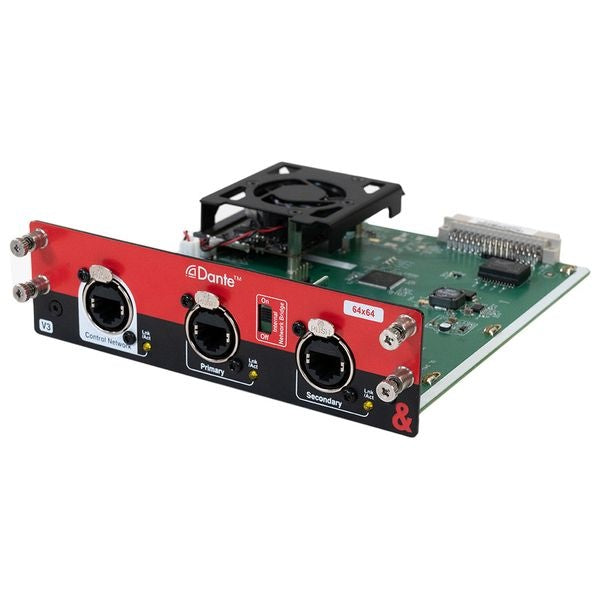

Allen & Heath M-DL-DANTE64-A 64x64 Dante Card
The Allen & Heath M-DL-DANTE64-A is a 64x64 Dante networking option card that delivers low latency and a high channel count over standard networking cabling and hardware. It provides 64 channels of bidirectional audio at 96 kHz for high channel digital splits between systems, and allows simultaneous multitrack recording with Dante Virtual Soundcard (sold separately). Primary and Secondary front panel ports connect to multiple Dante devices or give dual cable redundancy, and a dedicated Control Network port is used for Dante Controller software (sold separately). Trianze Tech supplies it across Dubai, Abu Dhabi, the UAE and GCC.
Key Features:
- 64 channels of bidirectional audio at 96 kHz
- Low latency over standard network cabling

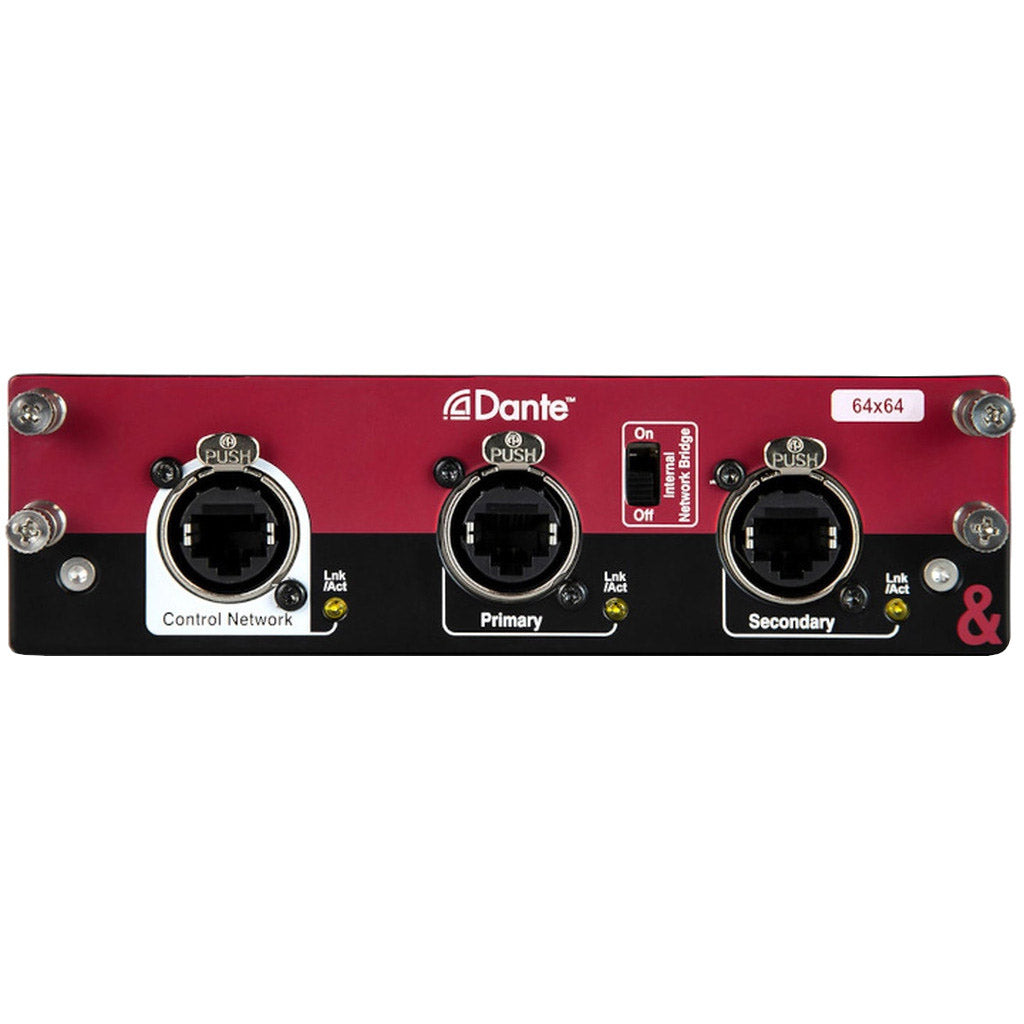

- Primary and Secondary ports for multiple devices or redundancy
- Dedicated Control Network port
- Dante Domain Manager supported
- Compatible with 48 kHz and 96 kHz Dante devices
Technical Specifications:
| Spec | Value |
|---|---|
| Model | M-DL-DANTE64-A |
| Channels | 64 x 64 bidirectional at 96 kHz |
| Channels at 48 kHz | Up to 512 x 512 per Audinate figures |
| Network Ports | Primary, Secondary, Control |
| Domain Management | Dante Domain Manager supported |
| Software | Dante Controller and Dante Virtual Soundcard (sold separately) |
Why Buy the Allen & Heath M-DL-DANTE64-A from Trianze Tech?
- Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
- Pre-sales help matching the M-DL-DANTE64-A to your console, stage boxes and network
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for live sound, installation, worship and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The M-DL-DANTE64-A provides 64 channels of bidirectional Dante audio at 96 kHz.
The M-DL-DANTE64-A carries 64 x 64 channels at 96 kHz, while the M-DL-DANTE128-A carries 128 x 128 channels at 96 kHz.
Yes. The Primary and Secondary front panel ports connect to multiple Dante devices at once or give dual cable redundancy with compatible hardware.
Yes. You can capture multitrack recordings at the same time as using the card by running Dante Virtual Soundcard, which is sold separately.
Yes. Dante Domain Manager is fully supported, enabling integration with large networks, routing across subnets and authentication options.
Trianze Tech supplies the Allen & Heath M-DL-DANTE64-A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
