Allen & Heath DX164-W: Wall Mountable Expander with 16 Mic Preamps, 4 XLR Outputs and 96 kHz Converters
Model
:
DX164-W
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

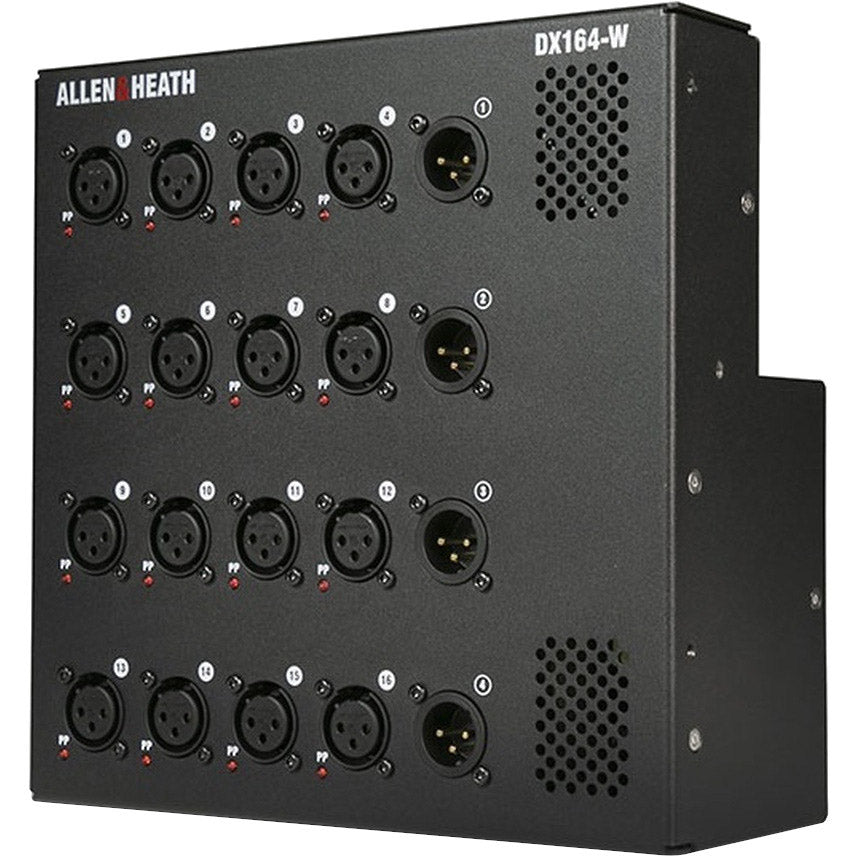

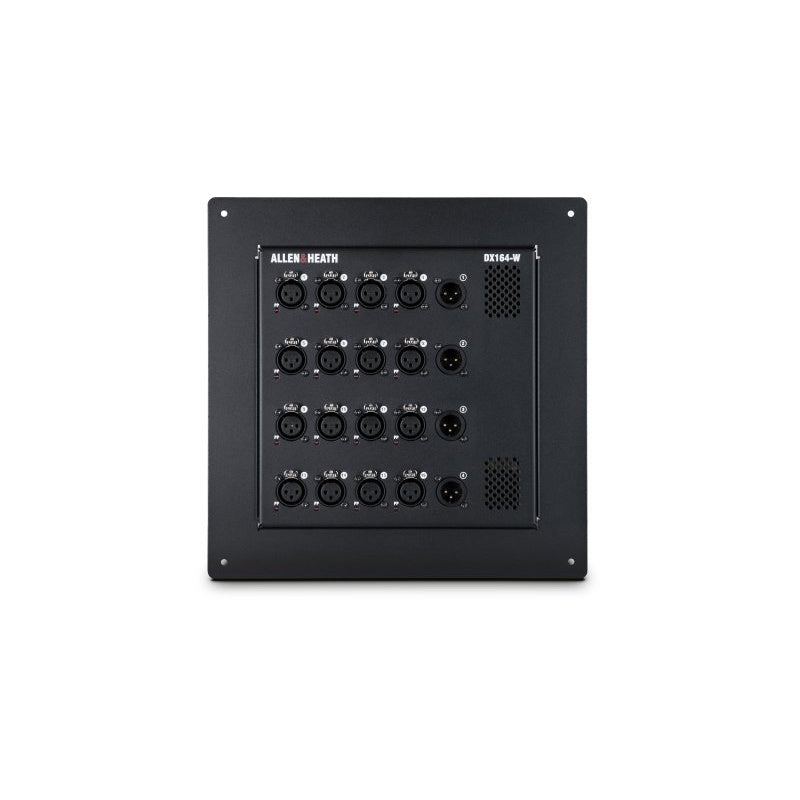

Allen & Heath DX164-W Wall Mountable Expander
The Allen & Heath DX164-W is a wall mountable remote I/O expander with 16 mic preamps, each with an independent phantom power LED, 4 XLR line outputs and 96 kHz converters. It is designed for wall mounting or installation in a stage dip trap, fits a standard NEMA box with custom brackets (sold separately), and is compatible with the ACE Backstage 174SLBK stage pocket system. It connects over a single Cat5e cable with a secure etherCON port to a dLive, Avantis, SQ or AHM-64 system. Trianze Tech supplies the DX164-W across Dubai, Abu Dhabi, the UAE and GCC.
Key Features:
- 16 mic preamps with phantom power LEDs
- 4 XLR line outputs
- 96 kHz converters
- Wall mount or stage dip trap installation
- Fits a standard NEMA box with custom brackets
- Compatible with ACE Backstage 174SLBK stage pockets
- Single Cat5e etherCON connection
Technical Specifications:
| Spec | Value |
|---|---|
| Model | DX164-W Wall Mountable Expander |
| Mic Preamps | 16, independent phantom power LEDs |
| XLR Line Outputs | 4 |
| Sampling Rate | 96 kHz |
| Connection | Single Cat5e via etherCON |
| Power | Three power supply options, confirmed at order |
| Mounting | Wall mount or stage dip trap |
| NEMA box | Custom brackets, sold separately |
| Works with | dLive, Avantis, SQ, AHM-64 |
Why Buy the Allen & Heath DX164-W from Trianze Tech?
- Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
- Pre-sales help matching the DX164-W to your console, stage boxes and network
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for live sound, installation, worship and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DX164-W has 16 mic preamps with independent phantom power LED indicators, plus 4 XLR line outputs and 96 kHz converters.
It is designed for wall mounting or installation in a stage dip trap. It also fits a standard NEMA box with custom brackets, sold separately, and is compatible with the ACE Backstage 174SLBK stage pocket system.
A standard dLive system takes up to 6 units, 4 via the MixRack and 2 via the surface, adding up to 96 remote inputs and 24 remote outputs. With a DX Link card or DX Hub up to 46 units can connect.
Use a single Cat5e cable to a secure etherCON port. It connects to the dLive surface, MixRack, DX Hub, or an upstream DX164-W or DX168.
It works with Allen & Heath dLive, Avantis and SQ mixers and the AHM-64 audio matrix processor. External gear is sold separately.
Trianze Tech supplies the Allen & Heath DX164-W in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
