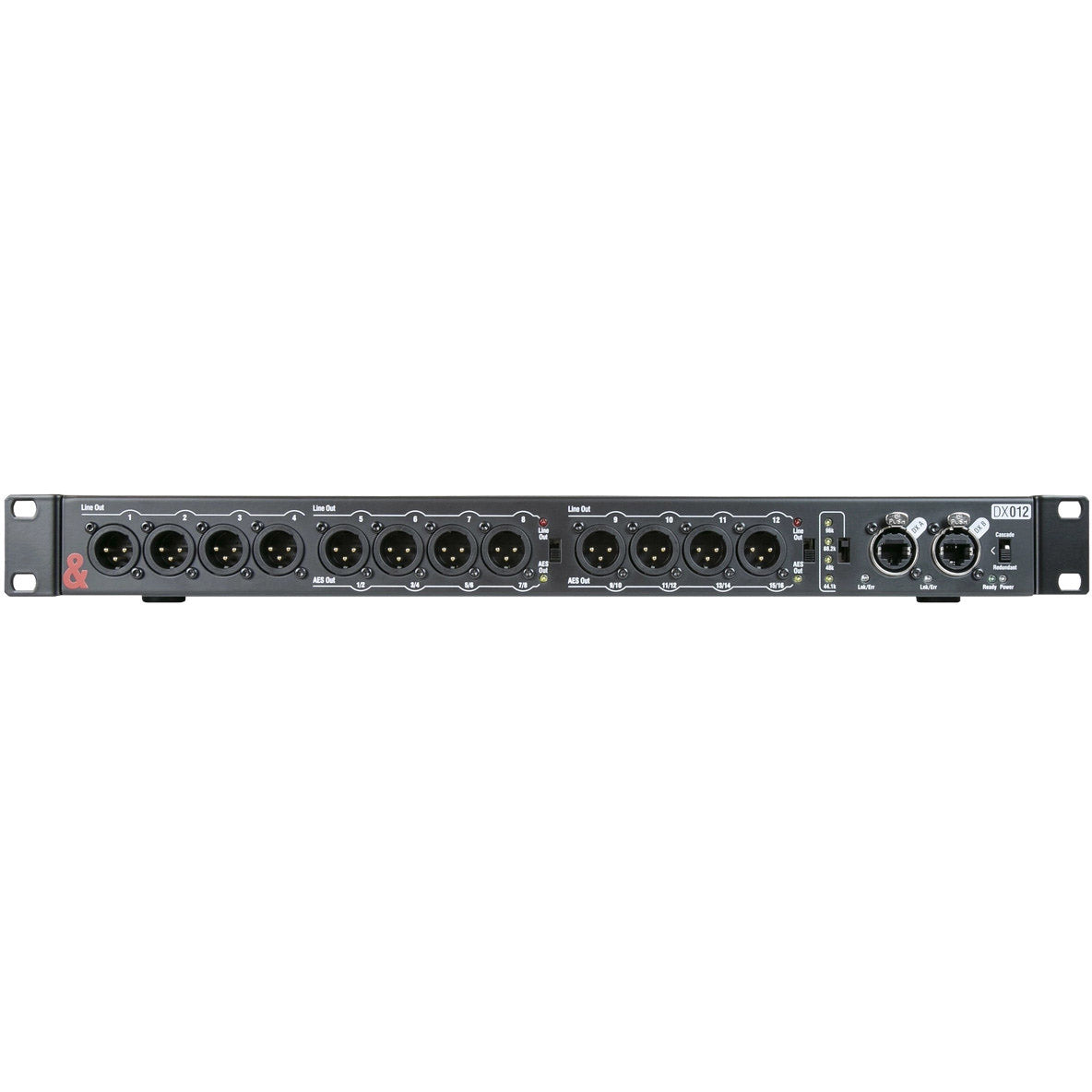

  • Allen & Heath DX012 XLR 12 output audio expander

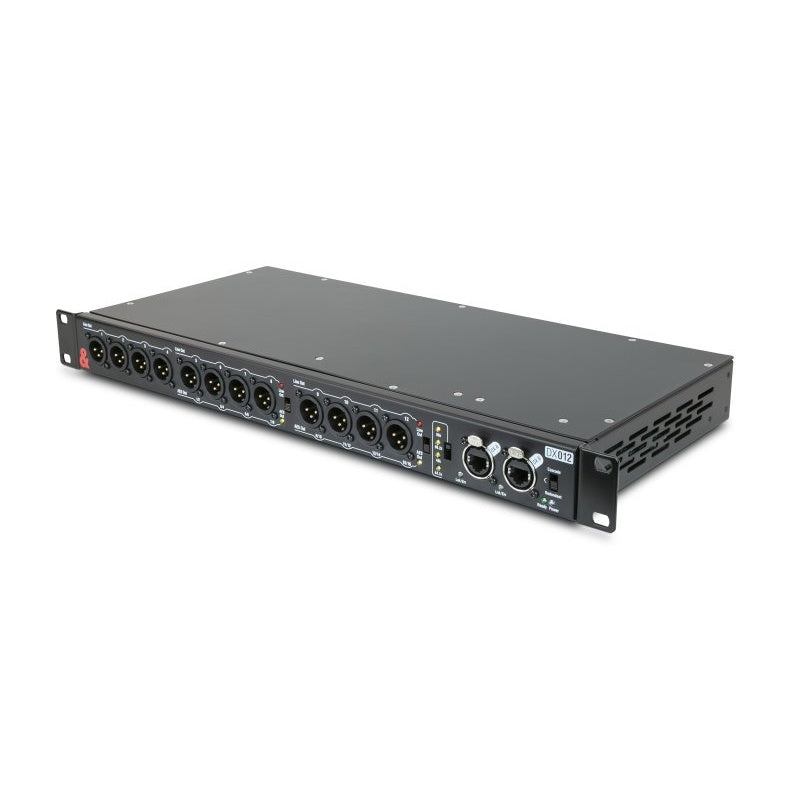

  • Allen & Heath DX012 XLR 12 output audio expander, view 2
1 2

Allen & Heath DX012: XLR 12 Output Audio Expander in 1U with Analog and AES Outputs

  • 12 XLR output expander
  • Analog and AES outputs
  • 1U build
  • Cat5e connection with Cascade
Brand :Allen & Heath
Model : DX012

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • In ear monitor feeds
  • Amplifier rack feeds
  • Portable and permanent installations
  • Installed audio and broadcast
Allen & Heath DX012 XLR 12 output audio expander, view 2
Allen & Heath DX012
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Allen & Heath DX012 XLR 12 Output Audio Expander

The Allen & Heath DX012 is a remote output expander in a small 1U build, adding 12 XLR outputs that can be analog or AES digital to SQ, Avantis and dLive mixers and the AHM-64 audio matrix processor. It suits uses such as feeding in ear monitoring systems or amplifier racks, in portable and permanent installations. A single Cat5e cable connects it to a dLive surface or MixRack, AHM-64, Avantis or SQ mixer, or to an upstream DX expander through a secure EtherCon port. A second locking EtherCon port gives a redundant connection, and Cascade daisy chaining feeds up to 2 downstream DX expanders on each port. Trianze Tech supplies the DX012 across Dubai, Abu Dhabi, the UAE and GCC.

Key Features:

  • 12 additional XLR outputs
  • Analog and AES digital output options
  • 1U build for portable or permanent use
  • Single Cat5e connection to the mixer
  • Second locking EtherCon port for redundancy
  • Cascade daisy chain up to 2 DX expanders per port

Technical Specifications:

Spec Value
Model DX012
Outputs 12 XLR (analog or AES)
Rack Size 1U
Connection Cat5e to dLive, AHM-64, Avantis or SQ
Ports Two locking EtherCon
Cascade Up to 2 downstream DX expanders per port
Compatible Systems SQ, Avantis, dLive, AHM-64

Why Buy the Allen & Heath DX012 from Trianze Tech?

  • Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
  • Pre-sales help matching the DX012 to your console, stage boxes and network
  • Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
  • Procurement-ready quotations for live sound, installation, worship and corporate projects

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1 x Allen & Heath DX012 audio expander
  • Confirm the power cable, Cat5e cable and accessories included with Trianze Tech at time of order

Warranty

  • Allen & Heath manufacturer warranty, terms confirmed by Trianze Tech at time of order
  • Local UAE support from the Trianze Tech AV team

Sustainability

  • One Cat5e cable replaces many analog output runs
  • Compact 1U build saves rack space

Expandability

  • Cascade up to 2 downstream DX expanders per port
  • Redundant second EtherCon port
  • Works with SQ, Avantis, dLive and AHM-64

Distribution

  • Available from Trianze Tech with delivery across Dubai, Abu Dhabi, the UAE and the GCC
  • Contact us to confirm current stock and lead time for the DX012

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DX012 adds 12 XLR outputs, which can be configured as analog or AES digital outputs for your application.
The DX012 is a small 1U build that integrates into portable and permanent installations.
It works with Allen & Heath SQ, Avantis and dLive mixers and the AHM-64 audio matrix processor. All external gear is sold separately.
A single Cat5e cable connects it to a dLive surface, dLive MixRack, AHM-64, Avantis or SQ mixer, or to an upstream DX expander through a secure EtherCon port.
Yes. Cascade daisy chaining feeds up to 2 downstream DX expanders on each port, and the second locking EtherCon port provides a redundant connection to compatible hardware.
