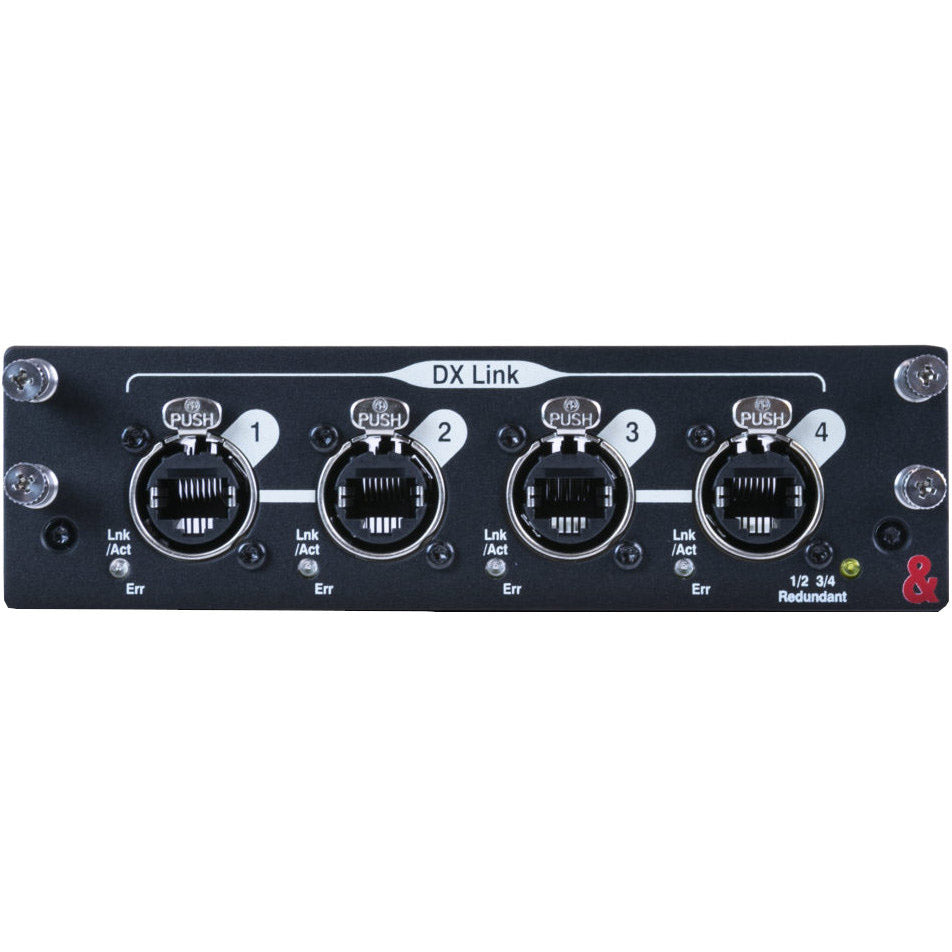

  • Allen & Heath DX Link audio networking card
  • Allen & Heath DX Link audio networking card, view 2
1 2

Allen & Heath DX Link Card: M-DL-DXLINK DX Link Audio Networking Card with 4 Ports of 32x32 Channels at 96kHz for dLive

  • 4 DX Link ports
  • 32x32 channels per port at 96 kHz
  • Parallel or Redundant modes
  • Up to 128 remote inputs and outputs
Brand :Allen & Heath
Model : DX Link Card

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Touring stage racks on dLive
  • Large venue and festival systems
  • Installed dLive systems
  • Houses of worship and theatres

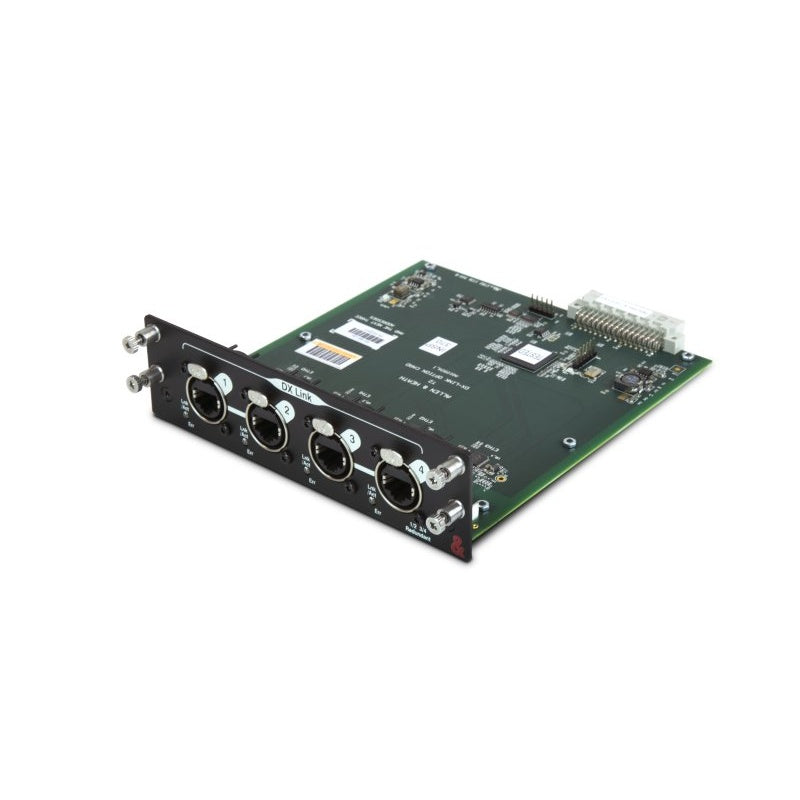

Allen & Heath DX Link audio networking card, view 2
Allen & Heath DX Link Card
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Allen & Heath DX Link Audio Networking Card

The Allen & Heath DX Link card (M-DL-DXLINK) is one of several audio networking options that fit any dLive I/O port. It provides 4 DX Link ports, each carrying 32x32 channels of 96 kHz audio, to connect dLive DX expander units in either Parallel or Redundant mode. In Redundant mode, one DX32, DX168 or DX164-W expander connects to each pair of DX Link ports with two Cat5e or better cables per redundant connection. In Parallel mode, one DX32 or up to two DX168 or DX164-W expanders connect to each port, adding up to 128 remote inputs and outputs to the dLive system per DX Link module. Trianze Tech supplies the DX Link card across Dubai, Abu Dhabi, the UAE and GCC.

Key Features:

  • 4 DX Link ports, each 32x32 channels at 96 kHz
  • Parallel mode for up to 128 remote inputs and outputs
  • Redundant mode with two Cat5e cables per connection
  • Connects DX32, DX168 and DX164-W expanders
  • Fits any dLive I/O port
  • One of several networking card options

Technical Specifications:

Spec Value
Model DX Link audio networking card
Part Number M-DL-DXLINK
DX Link Ports 4
Channels per Port 32 x 32 at 96 kHz
Parallel Mode 1 DX32 or up to 2 DX168 or DX164-W per port
Redundant Mode 1 expander per pair of ports, 2 cables
Cable Cat5e or higher
Fits dLive I/O port

Why Buy the Allen & Heath DX Link Card from Trianze Tech?

  • Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
  • Pre-sales help matching the DX Link Card to your console, stage boxes and network
  • Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
  • Procurement-ready quotations for live sound, installation, worship and corporate projects

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1 x Allen & Heath DX Link audio networking card
  • Expanders and cables are sold separately, confirm accessories with Trianze Tech at time of order

Warranty

  • Allen & Heath manufacturer warranty, terms confirmed by Trianze Tech at time of order
  • Local UAE support from the Trianze Tech AV team

Sustainability

  • Card upgrade avoids replacing the MixRack
  • Cat5e cabling replaces heavy multicores

Expandability

  • Connects DX32, DX168 and DX164-W expanders
  • Redundant mode for secure connections
  • Fits any dLive I/O port

Distribution

  • Available from Trianze Tech with delivery across Dubai, Abu Dhabi, the UAE and the GCC
  • Contact us to confirm current stock and lead time for the DX Link Card

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DX Link card (M-DL-DXLINK) has 4 DX Link ports, each carrying 32x32 channels of 96 kHz audio.
In Parallel mode, 1 DX32 or up to 2 DX168 or DX164-W expanders connect to each DX Link port. In Redundant mode, 1 expander connects to each pair of ports with 2 Cat5e or better cables for a backup path.
In Parallel mode, up to 128 remote inputs and outputs can be added to the dLive system per DX Link module.
The dLive DX expanders: the DX32, DX168 and DX164-W. The expanders are sold separately.
It can be fitted to any Allen & Heath dLive I/O port.
Trianze Tech supplies the Allen & Heath DX Link card in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
