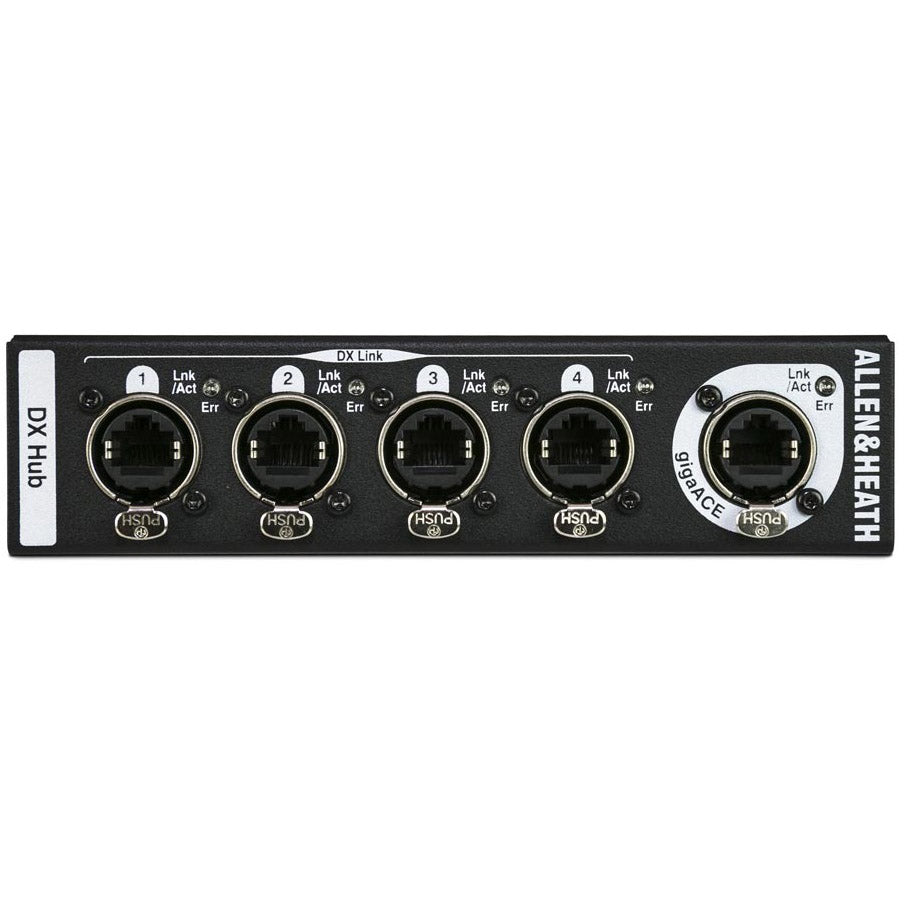

  • Allen & Heath DX Hub remote audio networking hub
  • Allen & Heath DX Hub remote audio networking hub, view 2
1 2

Allen & Heath DX Hub: Remote Audio Networking Hub with 4 DX Link Ports and 32x32 Channels per Port at 96kHz

  • 4 DX Link ports
  • 32x32 channels per port at 96 kHz
  • Up to 128 remote inputs
  • Daisy-chainable with auto firmware matching
Brand :Allen & Heath
Model : DX Hub

View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Large touring stage racks
  • Festival and arena systems
  • Installed multi room audio
  • Houses of worship and theatres

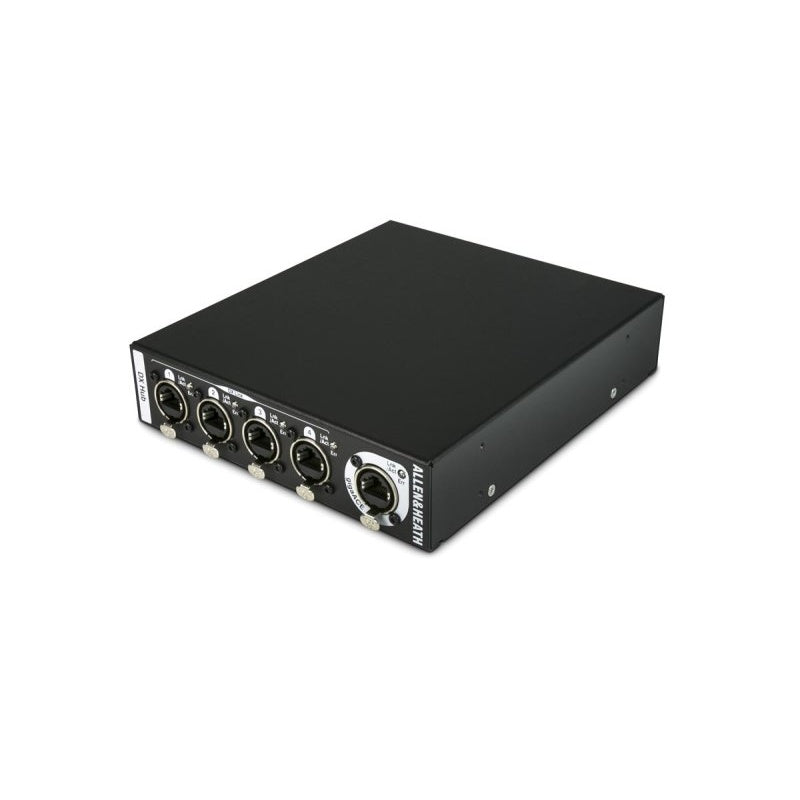

Allen & Heath DX Hub remote audio networking hub, view 2
Allen & Heath DX Hub
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Allen & Heath DX Hub Remote Audio Networking Hub

The Allen & Heath DX Hub is a remote audio networking hub that works with any Allen & Heath AHM-64, SQ or Avantis mixer via SLink, or with an Avantis mixer or dLive system through a gigaACE I/O module (all external gear sold separately). It offers 4 DX Link ports, each carrying 32x32 channels of 96 kHz audio, and supports DX auto firmware matching. Each port takes up to 2 dLive DX expanders, so one DX32 or any combination of 2 DX168 or DX164-W expanders gives up to 128 remote inputs and 64 remote outputs. Multiple hubs can be daisy-chained, and on dLive this also enables dual redundancy. A Cat5e link cable reaches 100 m. Trianze Tech supplies the DX Hub across Dubai, Abu Dhabi, the UAE and GCC.

Key Features:

  • 4 DX Link ports, each 32x32 channels at 96 kHz
  • Up to 2 dLive DX expanders per port
  • Up to 128 remote inputs and 64 remote outputs
  • Daisy-chain multiple hubs, with dual redundancy on dLive
  • DX auto firmware matching
  • Cat5e link up to 100 m

Technical Specifications:

Spec Value
Model DX Hub
DX Link Ports 4
Channels per Port 32 x 32 at 96 kHz
Expanders per Port Up to 2 dLive DX expanders
Maximum Remote I/O 128 inputs, 64 outputs
Cable Distance Up to 100 m on Cat5e
Connection SLink (AHM-64, SQ, Avantis) or gigaACE (Avantis, dLive)

Why Buy the Allen & Heath DX Hub from Trianze Tech?

  • Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
  • Pre-sales help matching the DX Hub to your console, stage boxes and network
  • Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
  • Procurement-ready quotations for live sound, installation, worship and corporate projects

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1 x Allen & Heath DX Hub
  • Confirm the power cable, link cables and accessories included with Trianze Tech at time of order

Warranty

  • Allen & Heath manufacturer warranty, terms confirmed by Trianze Tech at time of order
  • Local UAE support from the Trianze Tech AV team

Sustainability

  • One Cat5e link replaces heavy multicores
  • Auto firmware matching reduces service visits

Expandability

  • Daisy-chain multiple DX Hubs
  • Add DX32, DX168 or DX164-W expanders
  • Works via SLink or gigaACE

Distribution

  • Available from Trianze Tech with delivery across Dubai, Abu Dhabi, the UAE and the GCC
  • Contact us to confirm current stock and lead time for the DX Hub

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DX Hub has 4 DX Link ports, each providing 32x32 channels of 96 kHz audio.
With one DX32 expander or any combination of 2 DX168 or DX164-W expanders per port, a DX Hub system reaches up to 128 remote inputs and 64 remote outputs.
It connects to an AHM-64, SQ or Avantis mixer via SLink, or to an Avantis mixer or dLive system using a gigaACE I/O module. All external gear is sold separately.
Yes. Multiple DX Hubs can be daisy-chained for further expansion, and with a dLive system this can also provide dual redundancy.
A Cat5e link cable gives connectivity up to 100 m away.
Trianze Tech supplies the Allen & Heath DX Hub in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
