Allen & Heath DT168: Portable Dante Expander with 16 Mic Preamps, 8 XLR Outputs and 96kHz Converters
Model
:
DT168
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Allen & Heath DT168 Dante Expander

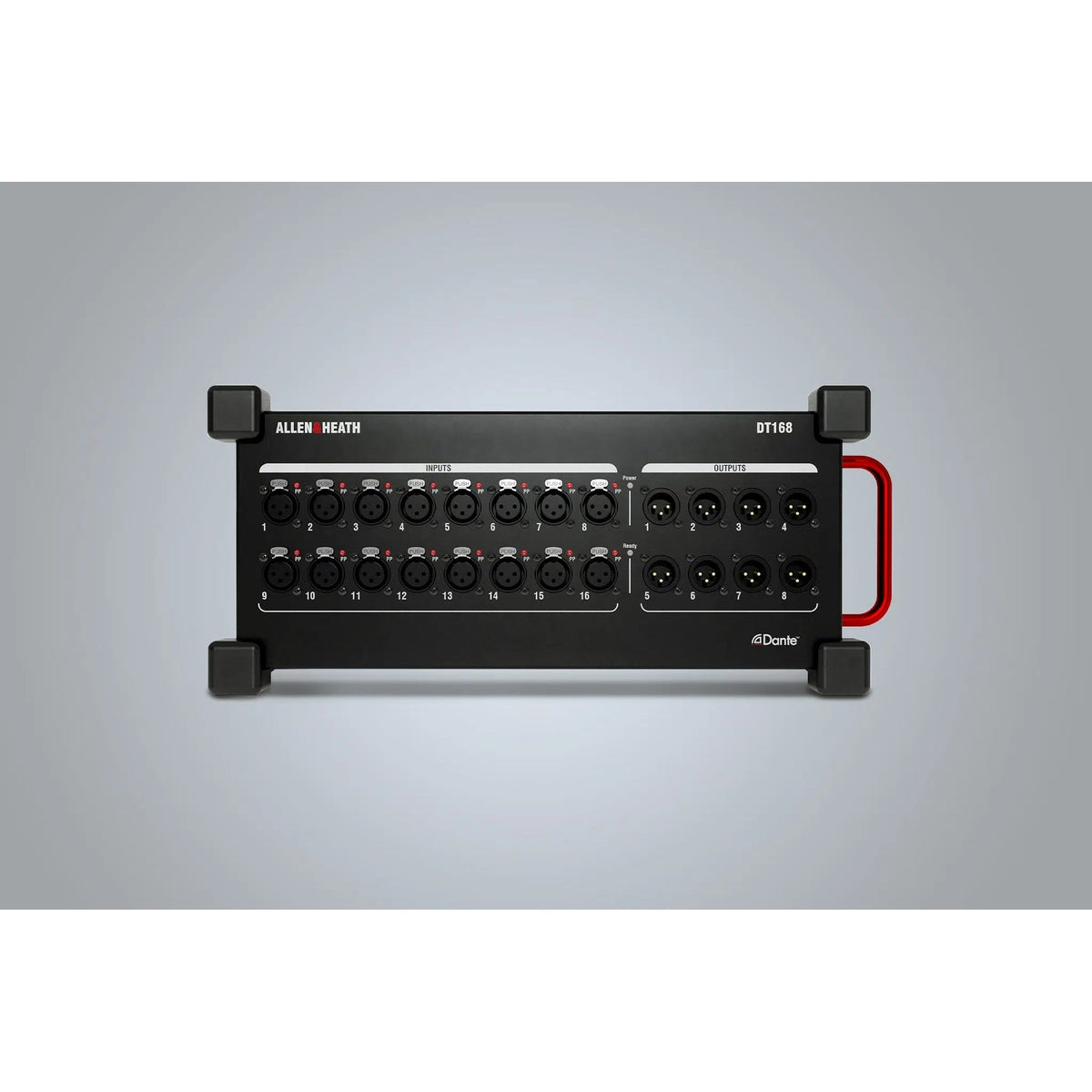

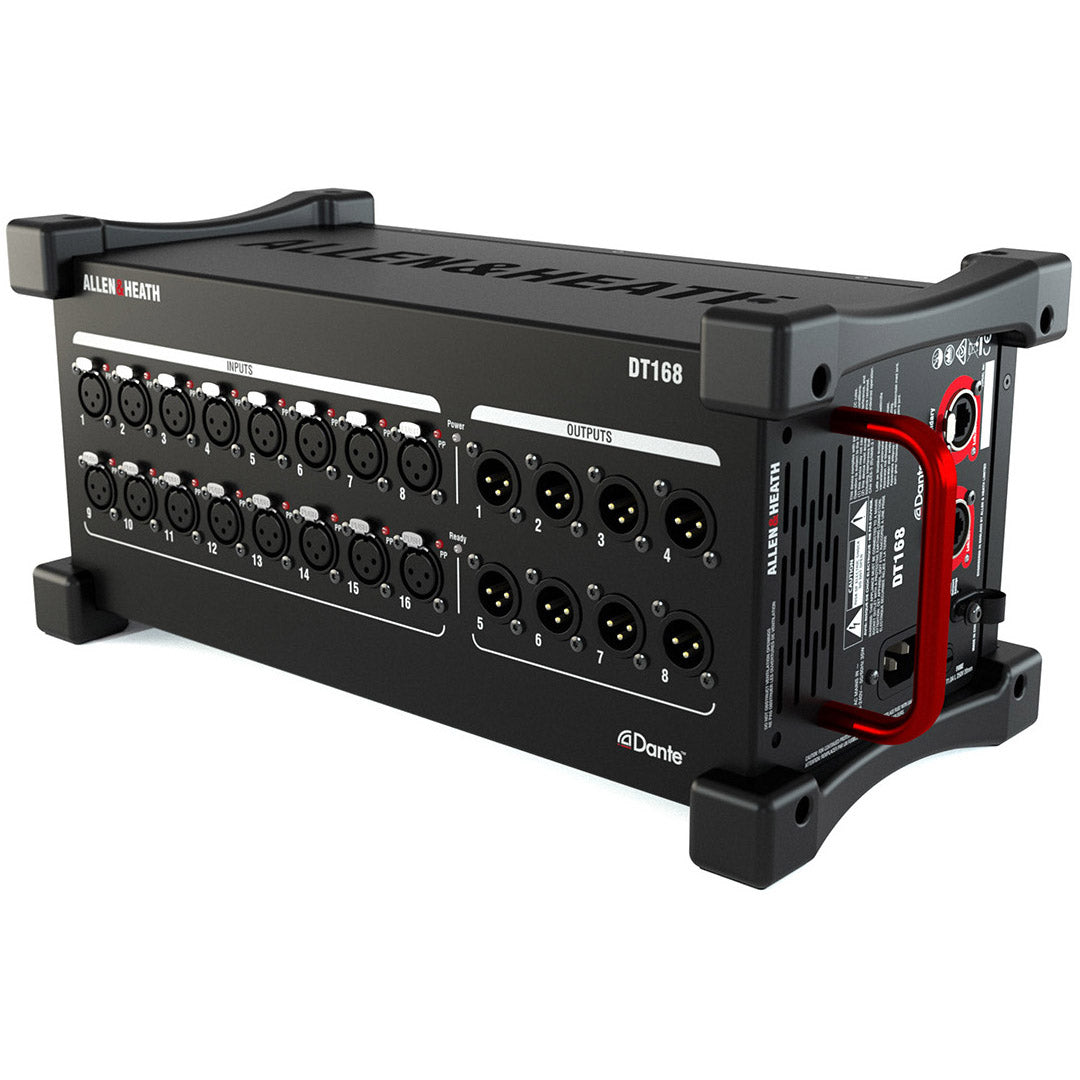

The Allen & Heath DT168 is a portable Dante stagebox with rubber bumpers and a carry handle, suited to touring bands, mobile houses of worship and any job that needs mobile I/O. It provides 16 microphone preamps with 96 kHz converters and 8 XLR line outputs over Dante, with Primary and Secondary Dante ports on locking EtherCon connectors for daisy chaining or redundancy. It is AES67 compatible and Dante Domain Manager ready, and the DT Preamp Control app for Windows and macOS controls multiple DT expanders remotely. Trianze Tech supplies the DT168 across Dubai, Abu Dhabi, the UAE and GCC.
Key Features:
- 16 microphone preamps with 96 kHz converters
- 8 XLR line outputs

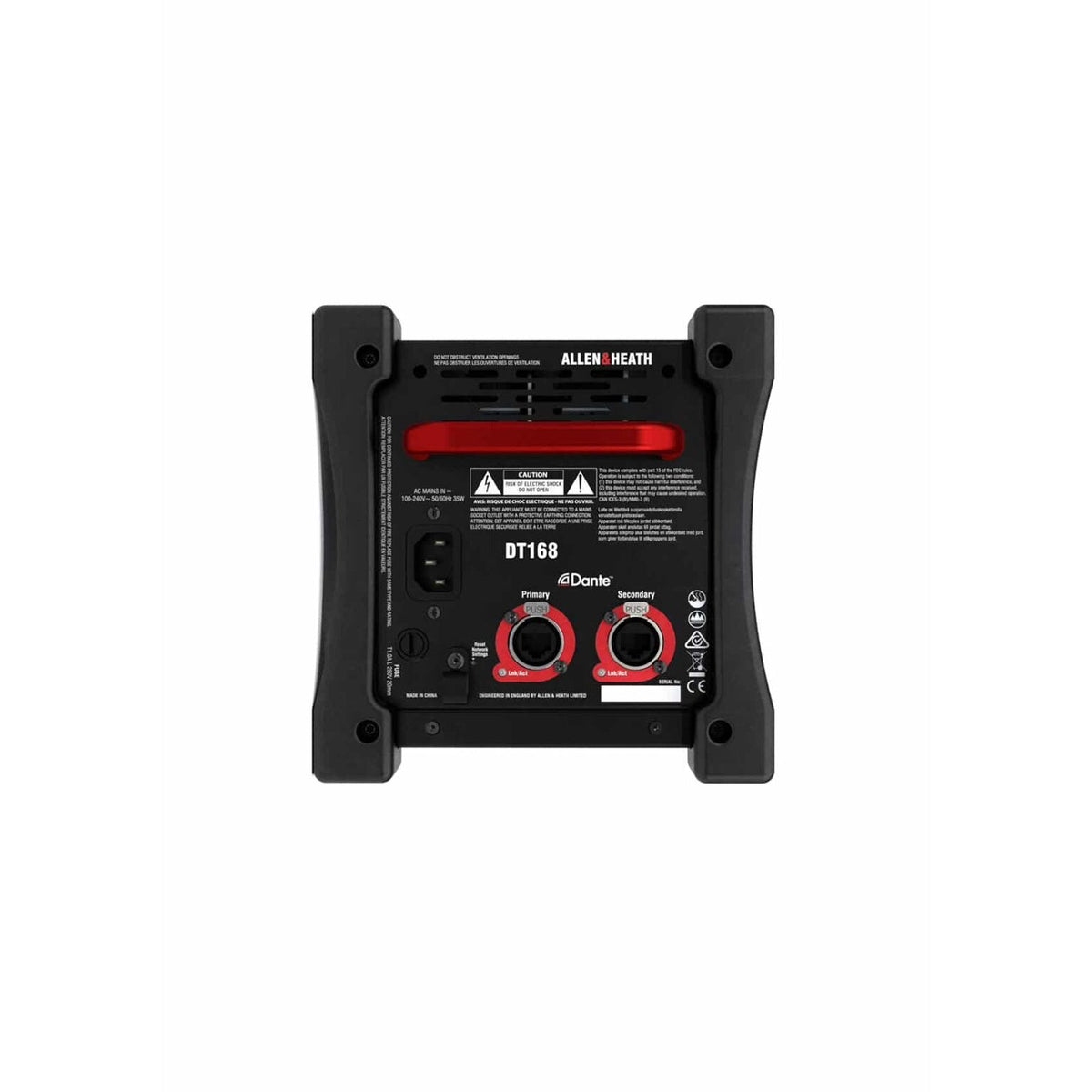

- Primary and Secondary Dante ports on EtherCon
- AES67 compatible and Dante Domain Manager ready
- DT Preamp Control app for Windows and macOS
- Rubber bumpers and carry handle
Technical Specifications:
| Spec | Value |
|---|---|
| Model | DT168 |
| Mic Preamps | 16 |
| XLR Line Outputs | 8 |
| Sampling Rate | 96 kHz |
| Network | Dante, Primary and Secondary EtherCon ports |
| Standards | AES67, Dante Domain Manager ready |
| Control | DT Preamp Control app |
| Max Units | Up to 16 per system |
Why Buy the Allen & Heath DT168 from Trianze Tech?
- Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
- Pre-sales help matching the DT168 to your console, stage boxes and network
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for live sound, installation, worship and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DT168 has 16 microphone preamps with 96 kHz converters and 8 XLR line outputs over Dante.
Yes. It has Primary and Secondary Dante ports on locking EtherCon connectors, so you can daisy chain or add a redundant network.
Used with an SQ Dante or dLive 96kHz Dante card, it adds up to 16 units to an AHM-64, SQ, Avantis or dLive system. The cards are sold separately.
It comes with DT Preamp Control, a Windows and macOS app that controls multiple DT expanders remotely and lets you use them with Dante equipped third party digital mixers and sound management systems.
Yes. An optional 19 inch rack mount kit, sold separately, turns the portable DT168 into a permanent installed solution.
Trianze Tech supplies the Allen & Heath DT168 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
