Allen & Heath DT164-W: Dante Wallmount I/O Expander with 16 Mic Preamps, 4 XLR Outputs and 96 kHz Converters
Model
:
DT164-W
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

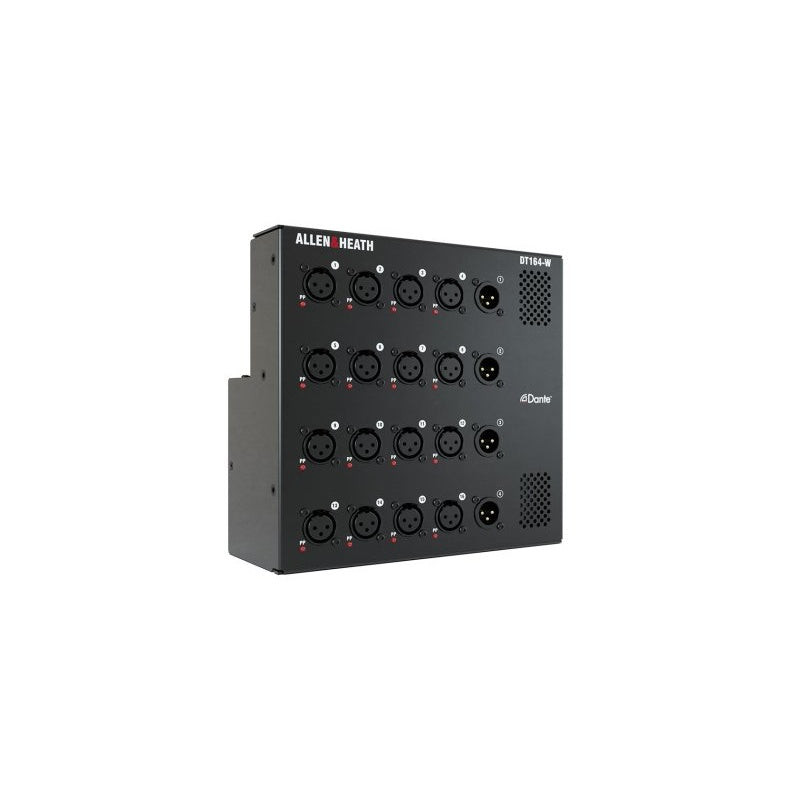

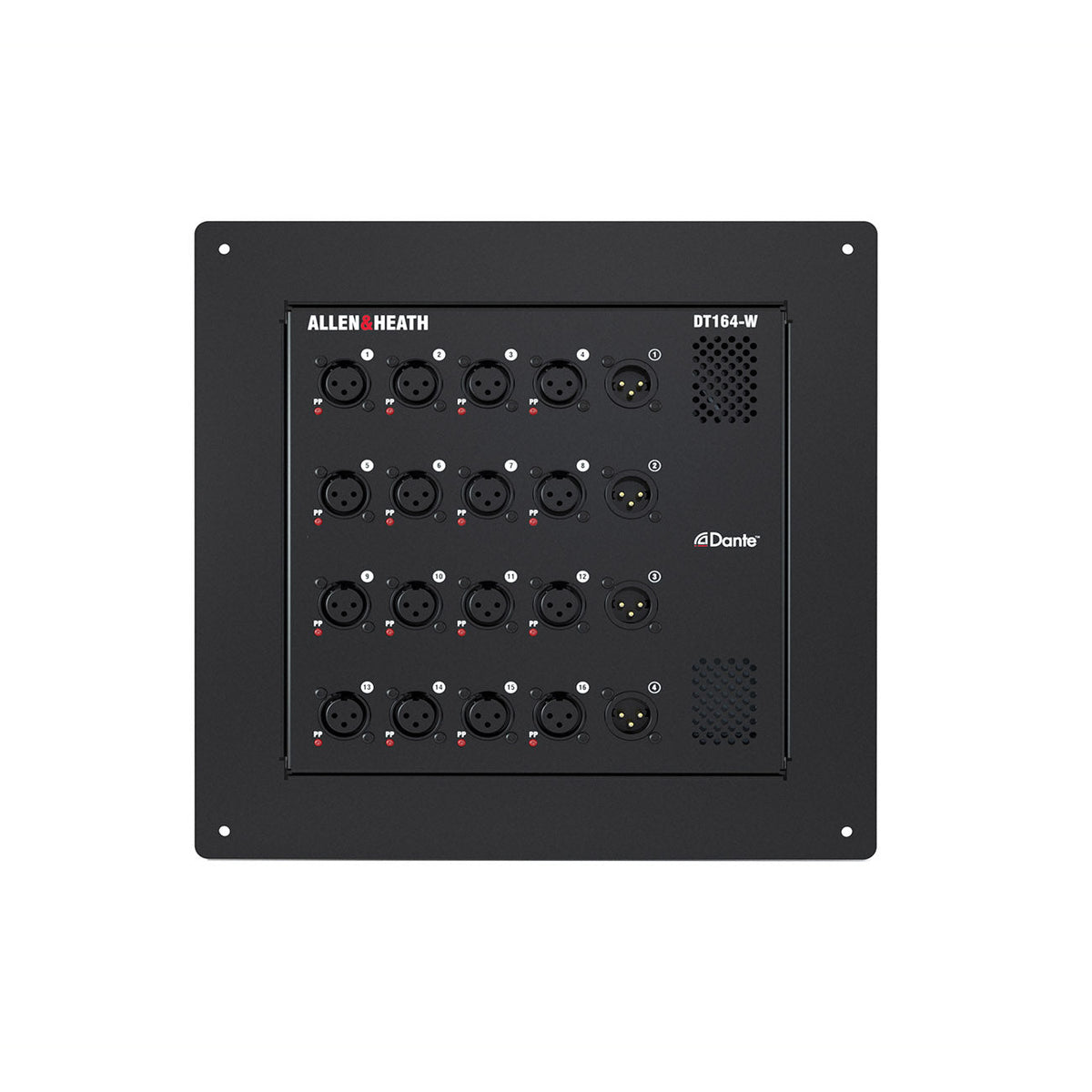

Allen & Heath DT164-W Dante I/O Wallmount Expander
The Allen & Heath DT164-W is a wallmount Dante I/O expander with 16 microphone preamps and 96 kHz converters, 4 XLR line outputs, and Primary and Secondary Dante ports with locking etherCON connectors for daisy chaining or redundancy. Used with an SQ Dante or dLive 96 kHz Dante card, up to 16 units can be added to an AHM-64, SQ, Avantis or dLive system. Trianze Tech supplies the DT164-W across Dubai, Abu Dhabi, the UAE and GCC; cards and external equipment are sold separately.
Key Features:
- 16 microphone preamps with 96 kHz converters
- 4 XLR line outputs
- Primary and Secondary Dante ports
- Locking etherCON connectors
- Daisy chain or redundant Dante links
- AC mains or gland module with DC 12 V backup
- DT Preamp Control app for Windows and macOS
Technical Specifications:
| Spec | Value |
|---|---|
| Model | DT164-W Dante I/O Wallmount Expander |
| Mic Preamps | 16 |
| XLR Line Outputs | 4 |
| Sampling Rate | 96 kHz |
| Dante Ports | Primary and Secondary, locking etherCON |
| Power | 100 to 230 V AC via IEC, or gland module with screw terminals |
| Backup Power | DC 12 V |
| Control | DT Preamp Control app (Windows, macOS) |
| Units per system | Up to 16 |
| Cards and external equipment | Sold separately |
Why Buy the Allen & Heath DT164-W from Trianze Tech?
- Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
- Pre-sales help matching the DT164-W to your console, stage boxes and network
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for live sound, installation, worship and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DT164-W has 16 microphone preamps with 96 kHz converters, plus 4 XLR line outputs.
It has Primary and Secondary Dante ports with locking etherCON connectors, for daisy chaining or redundancy.
It takes 100 to 230 V AC from an IEC inlet, or you can swap the IEC inlet for a gland module with screw terminals for fixed installs. A DC 12 V backup supply is also provided.
Used with an SQ Dante or dLive 96 kHz Dante card, up to 16 units can be added to an AHM-64, SQ, Avantis or dLive system. The cards are sold separately.
Use the DT Preamp Control app for Windows and macOS. It controls multiple DT expanders remotely and works with Dante equipped third party digital mixers and sound management systems.
Trianze Tech supplies the Allen & Heath DT164-W in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
