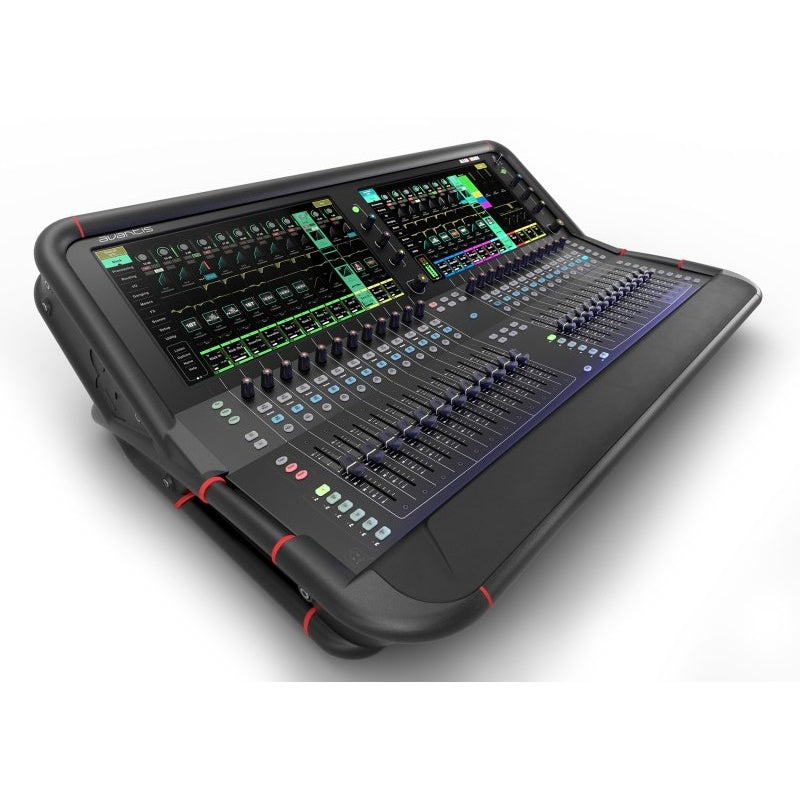

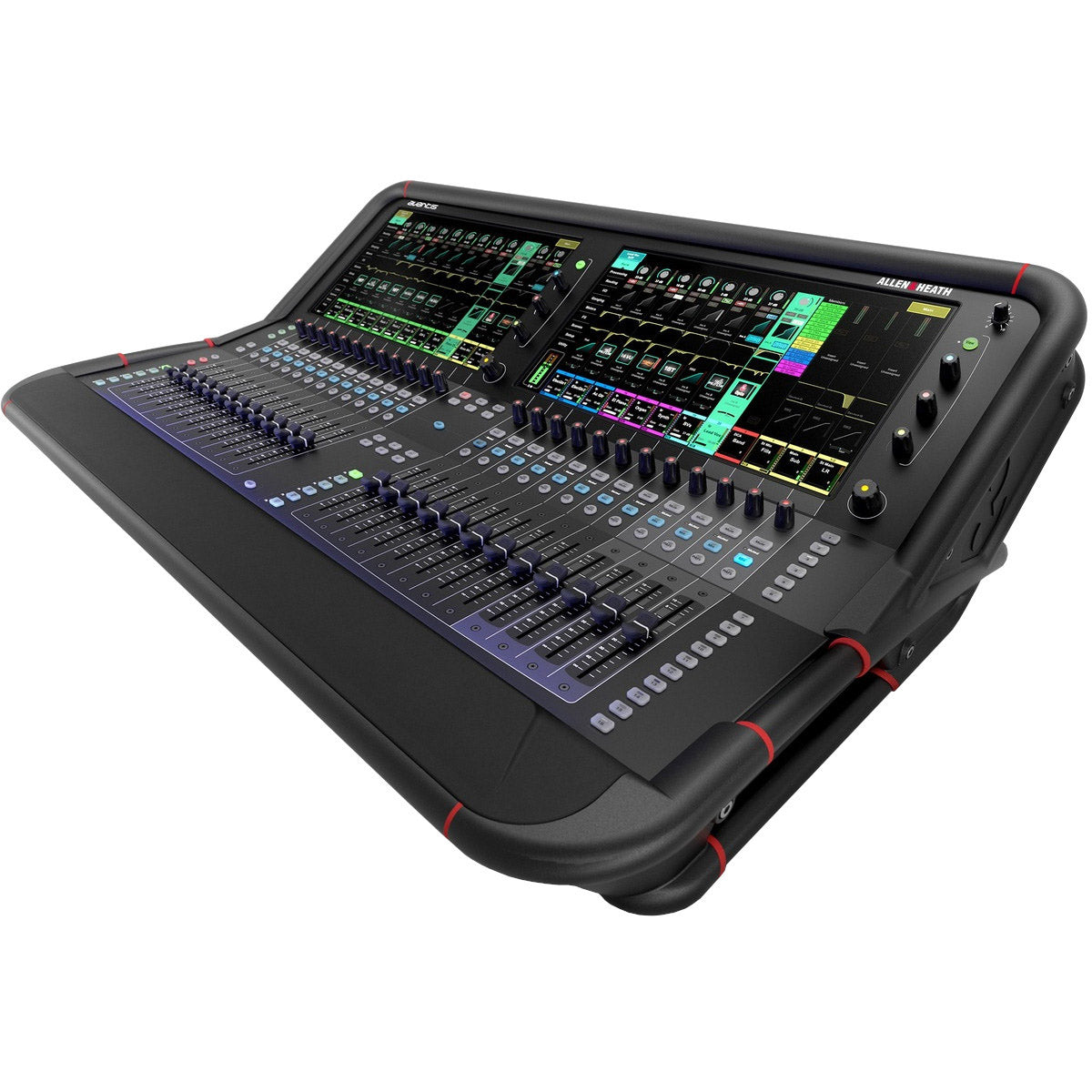

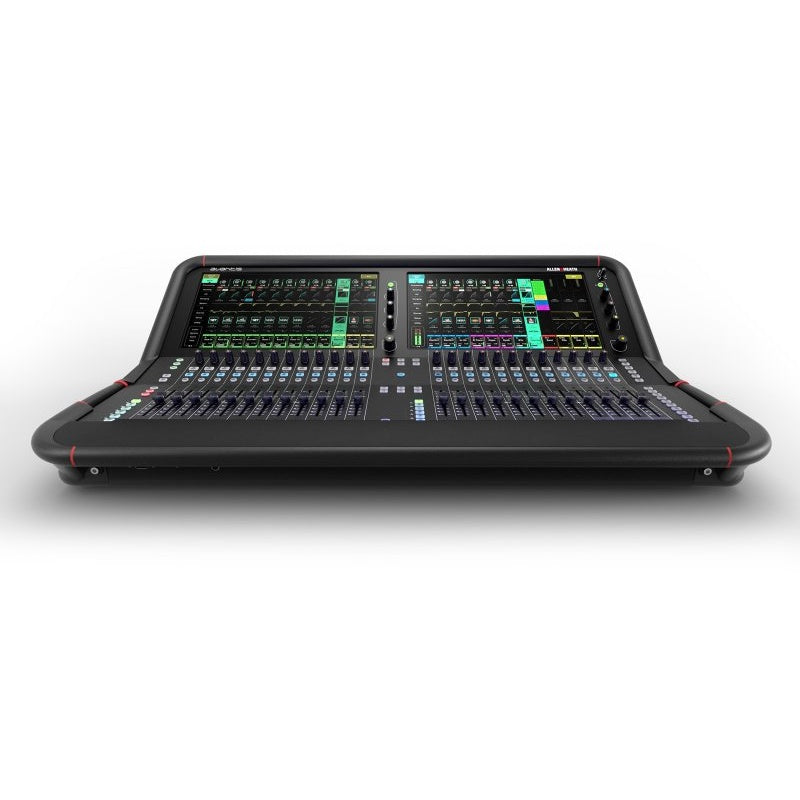

Allen & Heath Avantis: 64 Channel 42 Bus 96kHz Digital Mixer with 24 Faders and Dual 15.6 Inch Touchscreens
Model
:
Avantis
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Allen & Heath Avantis 64 Channel Digital Mixer
The Allen & Heath Avantis is a 64 channel, 42 bus digital mixer running at 96 kHz on the XCVI FPGA core with 0.7 ms latency. It has 24 faders over 6 layers, 12 XLR mic and line inputs with recallable preamps, 12 XLR outputs, AES in and out, 16 DCAs, dual 15.6 inch Full HD capacitive touchscreens and two 128 x 128 I/O expansion ports. It weighs 26 kg. Trianze Tech supplies the Avantis across Dubai, Abu Dhabi, the UAE and GCC.
Key Features:
- 64 input channels and 42 buses at 96 kHz
- XCVI FPGA core with 0.7 ms latency
- 24 faders over 6 layers and 16 DCAs
- Dual 15.6 inch Full HD capacitive touchscreens
- 12 XLR preamps and 12 XLR outputs
- Two 128 x 128 I/O expansion ports
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Avantis |
| Processing | XCVI FPGA, 96 kHz, 0.7 ms latency |
| Channels and Buses | 64 channels, 42 buses |
| Faders | 24, 6 layers |
| DCAs | 16 |
| Screens | Dual 15.6 inch Full HD capacitive |
| Analog Inputs | 12 XLR mic and line, 60 dB gain range |
| Analog Outputs | 12 XLR |
| Digital | 1 AES in, 2 AES out |
| Expansion | 2 x 128 x 128 I/O ports |
| Weight | 26 kg |
Why Buy the Allen & Heath Avantis from Trianze Tech?
- Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
- Pre-sales help matching the Avantis to your console, stage boxes and network
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for live sound, installation, worship and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Avantis has 64 input channels and 42 configurable buses at 96 kHz, with 16 DCAs.
The Avantis XCVI FPGA core delivers 0.7 ms latency at 96 kHz.
The Avantis has 24 faders over 6 layers and dual 15.6 inch Full HD capacitive touchscreens with gesture control.
It has 12 XLR mic and line inputs with recallable preamps, 12 XLR outputs, one stereo AES input and two stereo AES outputs.
It has two 128 x 128 I/O expansion ports for audio networking cards such as Dante, MADI and gigaACE, sold separately, and an optional dPack for extra dLive style processing.
Trianze Tech supplies the Allen & Heath Avantis in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
