Allen & Heath AR2412: AudioRack Expander with 24 Mic Line Preamps, 12 XLR Outputs and dSNAKE up to 100m
Model
:
AR2412
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

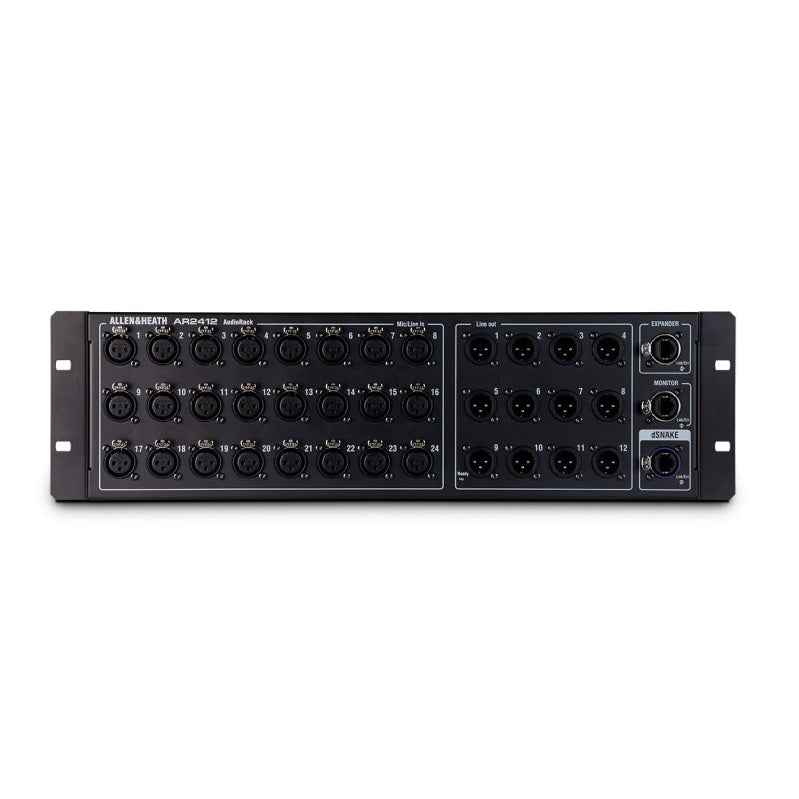

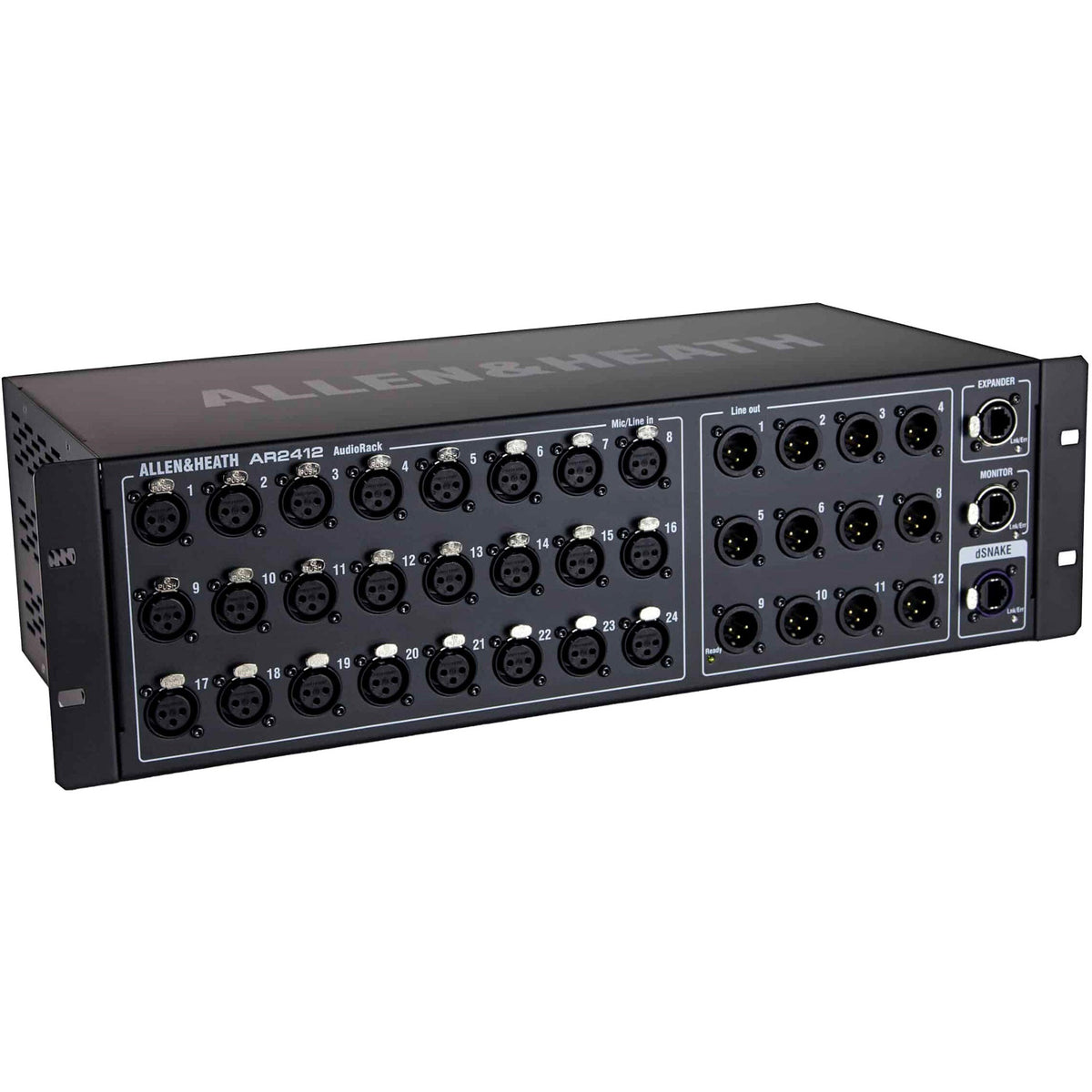

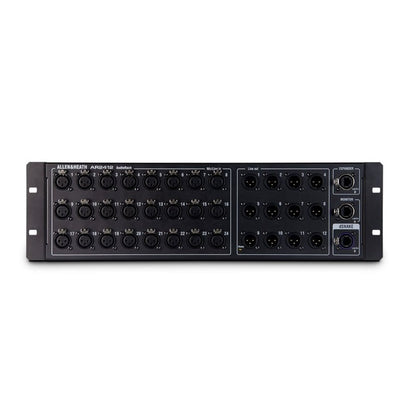

Allen & Heath AR2412 AudioRack Expander
The Allen & Heath AR2412 is a 48 kHz AudioRack expander running on the dSNAKE protocol, letting you place I/O up to 100 m (about 328 feet) from the mixer on a single Cat5 cable. It offers 24 remote controlled XLR mic and line preamps and 12 XLR line outputs, and works with Qu, Avantis and SQ mixers and the AHM-64 audio matrix processor (all sold separately). A built-in Monitor port connects ME-1 personal mixers with 40 channels of audio and is compatible with the Aviom Pro16 monitoring system, and an Expander connection adds an AR84 or AB168 AudioRack. Trianze Tech supplies the AR2412 across Dubai, Abu Dhabi, the UAE and GCC.
Key Features:
- 24 remote controlled XLR mic and line preamps
- 12 XLR line outputs
- dSNAKE protocol up to 100 m on a single Cat5 cable
- Monitor port for ME-1 mixers with 40 channels
- Expander connection for an AR84 or AB168
- Automatic firmware update
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AR2412 |
| Mic and Line Preamps | 24 remote controlled XLR |
| XLR Line Outputs | 12 |
| Sampling Rate | 48 kHz |
| Protocol | dSNAKE |
| Cable Distance | Up to 100 m on Cat5 |
| Monitor Port | ME-1 and Aviom Pro16 compatible, 40 channels |
| Compatible Systems | Qu, Avantis, SQ, AHM-64 |
Why Buy the Allen & Heath AR2412 from Trianze Tech?
- Genuine Allen & Heath equipment sourced through authorized channels with local UAE support
- Pre-sales help matching the AR2412 to your console, stage boxes and network
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Procurement-ready quotations for live sound, installation, worship and corporate projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The AR2412 has 24 remote controlled XLR mic and line preamps and 12 XLR line outputs.
Running on the dSNAKE protocol, the AR2412 can be up to 100 m (about 328 feet) from the mixer on a single Cat5 cable.
It is compatible with Allen & Heath Qu, Avantis and SQ mixers and the AHM-64 audio matrix processor. The mixers are sold separately.
Yes. A built-in Monitor port connects ME-1 personal mixers with 40 channels of audio and is compatible with the Aviom Pro16 monitoring system.
Yes. Its Expander connection adds an AR84 or AB168 AudioRack for more system I/O.
Trianze Tech supplies the Allen & Heath AR2412 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
