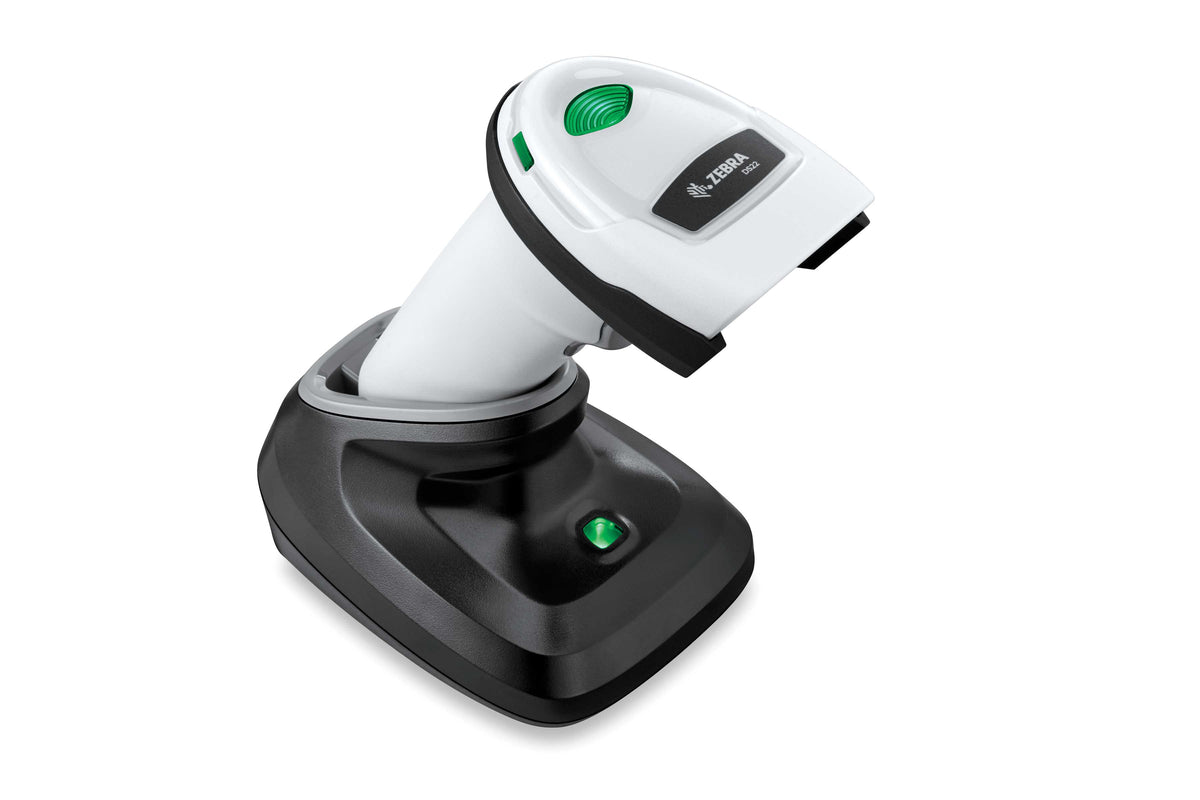

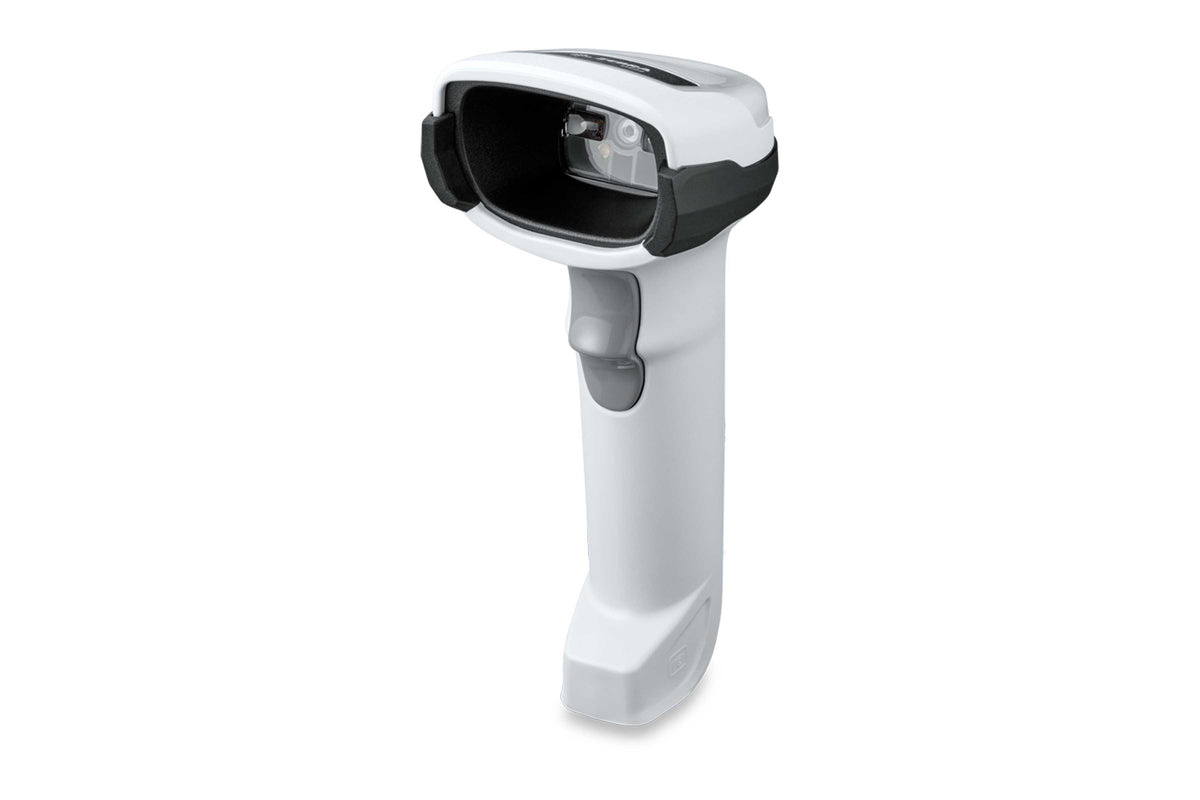

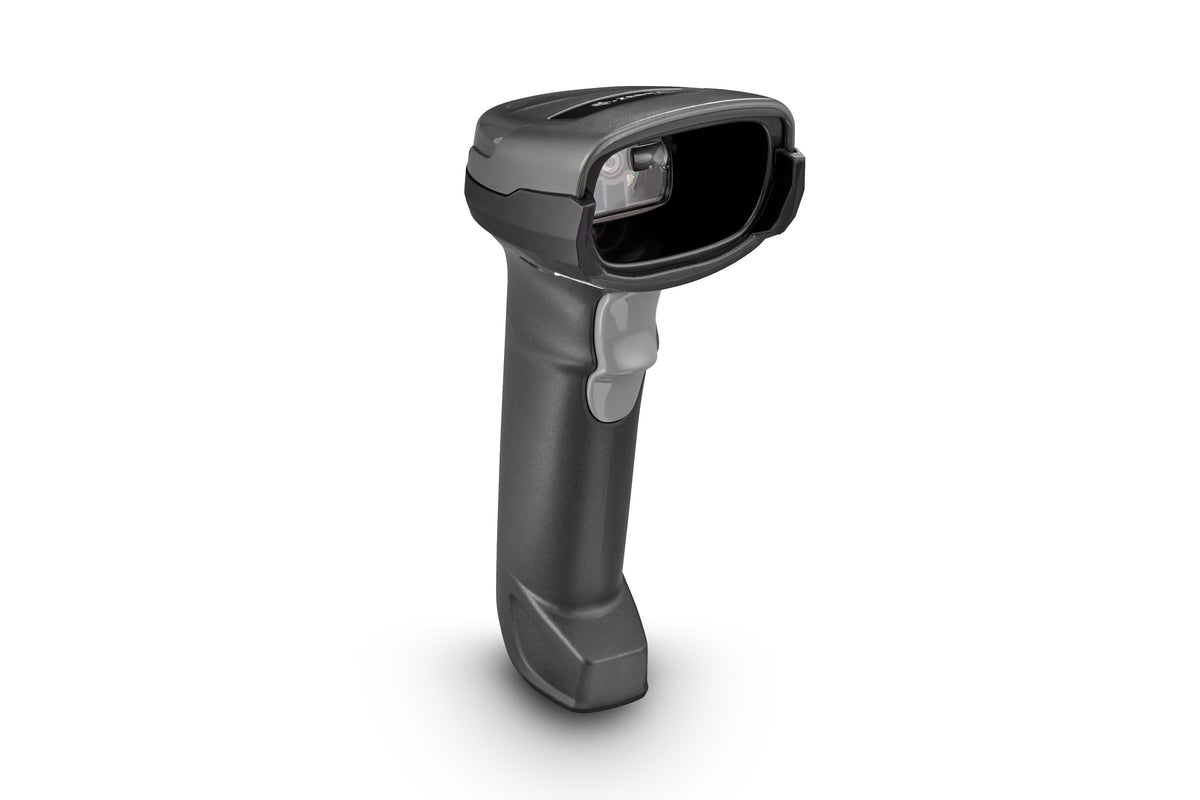

Zebra DS2278: Cordless Bluetooth 1D/2D Handheld Barcode Scanner
Model
:
DS2278
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Zebra DS2278 at a Glance
- Brand
- Zebra
- Model
- DS2278
- Category
- Handheld Barcode Scanners
- Solution
- Barcode & POS Hardware
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Zebra DS2278 Overview
The Zebra DS2278 is the cordless Bluetooth version of Zebra's popular DS2200 series, a 1D/2D imager that reads printed and on screen barcodes at the till. It runs up to 84 hours on a charge and pairs with its cradle at up to 100 m, so cashiers can scan bulky items away from the counter.
Trianze Tech supplies the Zebra DS2278 in Dubai, Abu Dhabi and across the UAE, and helps with setup, accessories and integration with your POS, ERP or warehouse software. The specifications below come from Zebra's own specification sheet.
Key Features
- Reads 1D and 2D barcodes, including codes on phone screens and digital coupons

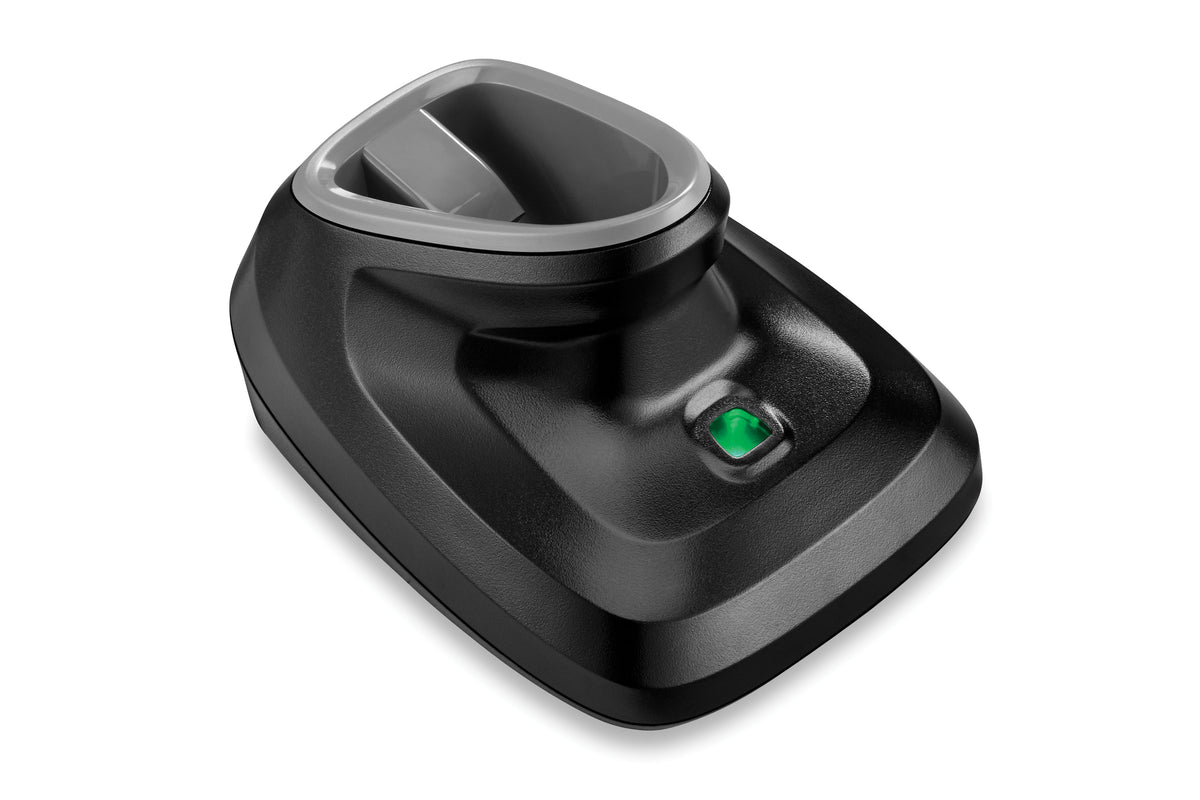

- Bluetooth 4.0 with BLE: about 10 m direct, up to 100 m when paired with the CR2278 cradle
- 2,400 mAh battery rated at 110,000 scans at 60 scans per minute and 84 hours per full charge
- USB, RS232, keyboard wedge and TGCS (IBM) 46XX host interfaces
- Survives multiple 1.5 m drops to concrete, IP52 sealed, in Nova White or Twilight Black
Technical Specifications
| Spec | Detail |
|---|---|
| Scan Engine | 640 x 480 pixels |
| Symbologies | PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
| Field of View | 32.8° H x 24.8° V Nominal |
| Motion Tolerance | Up to 5 in./13 cm. per second for 13 mil UPC |
| Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Wireless | Standard Bluetooth Version 4.0 with BLE: Direct line of sight in open air: Class 2: Minimum 30 ft. (10.0 m) and up to 300 ft. (100.0 m) when paired with CR2278 cradle |
| Battery | 2,400 mAh Li-Ion Battery |
| Drop Rating | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Tumble Rating | Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler 1 |
| Sealing | IP52 |
| Operating Temperature | DS2208/DS2278 Imagers: 32.0° to 122.0° F/0.0° to 50.0° C Presentation Cradle: 32.0° to 104.0° F/0.0° to 40.0° C |
| Dimensions | 6.9 in. H x 2.6 in. W x 3.5 in. D 17.5 cm H x 6.6 cm W x 9.0 cm D Presentation Cradle: 2.8 in. H x 3.7 in. W x 4.8 in. D 7.2 cm H x 9.4 cm W x 12.2 cm D |
| Weight | 7.5 oz. / 214 g Presentation Cradle: 5.2 oz. / 151 g |

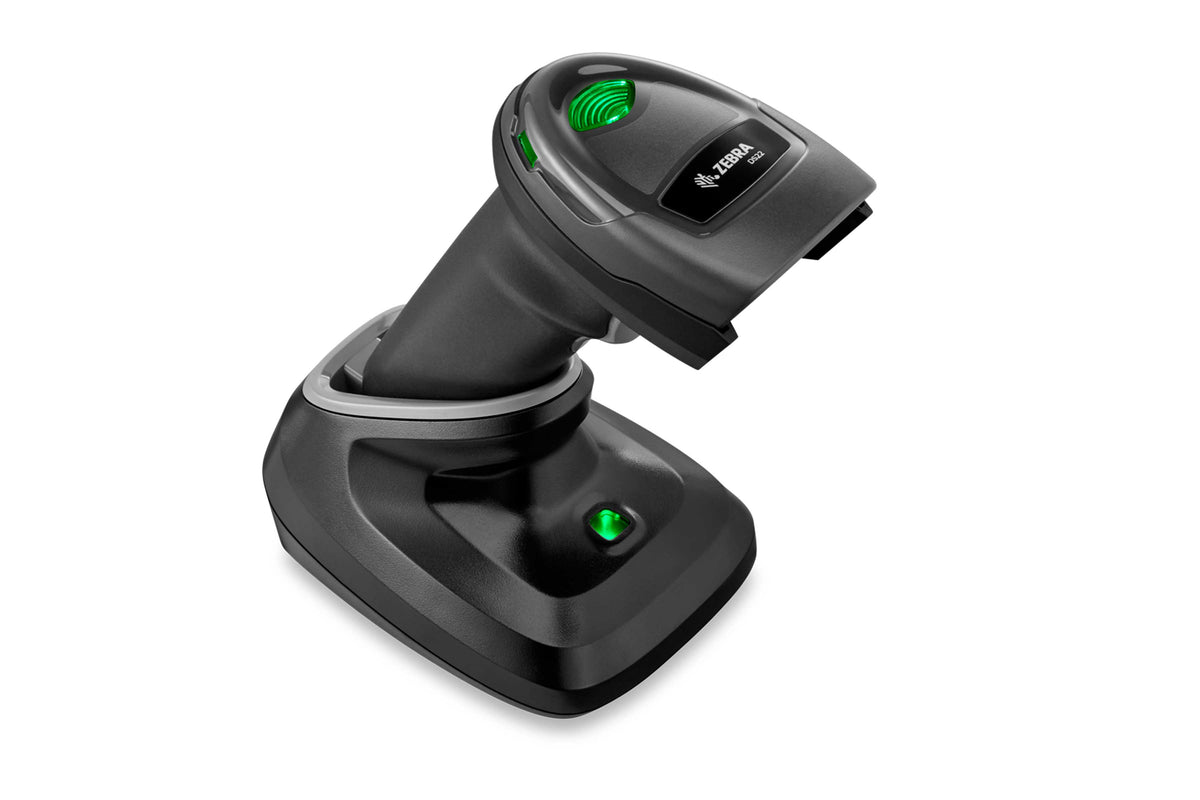

| Colour | Nova White, Twilight Black |
Why Buy the Zebra DS2278 from Trianze Tech?
- Genuine Zebra barcode scanner supplied by Trianze Tech in Dubai
- Setup, configuration and integration with your POS, ERP or warehouse software
- Accessories, spare batteries and consumables available on request
- Delivery across Dubai, Abu Dhabi and the UAE, with GCC delivery on request
What's Included and Support
Frequently asked
Zebra DS2278: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Zebra DS2278 uses Bluetooth 4.0 with BLE. Zebra quotes at least 10 m direct line of sight in open air, and up to 100 m when the scanner is paired with the CR2278 cradle. Walls and other environmental factors can reduce the range.
The Zebra DS2278 has a 2,400 mAh Li-Ion battery. Zebra rates it at 110,000 scans at 60 scans per minute, or 50,000 scans at 10 scans per minute, and up to 84 hours of operating time per full charge.
Yes. The Zebra DS2278 is a 1D/2D imager, so it reads printed barcodes as well as QR codes and other 2D codes shown on phone screens, such as digital coupons, loyalty cards and e-tickets.
The Zebra DS2278 cradle connects to the POS or computer over USB, RS232, keyboard wedge or TGCS (IBM) 46XX over RS485. It supports more than 90 international keyboard layouts.
The Zebra DS2208 is the corded version and weighs 161.6 g. The DS2278 is cordless with a Bluetooth link to its cradle, a 2,400 mAh battery and a weight of 214 g. Both read 1D and 2D barcodes and survive 1.5 m drops to concrete.
Trianze Tech offers the Zebra DS2278 in Dubai with delivery across the UAE and to other GCC countries on request. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
More from Zebra
View all 13 products →-

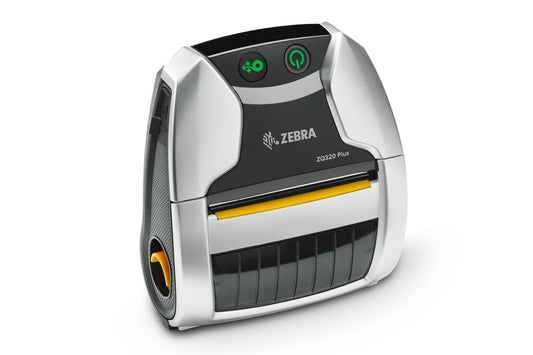

Zebra ZQ320 Plus: 3 Inch Mobile Receipt and Label Printer
-

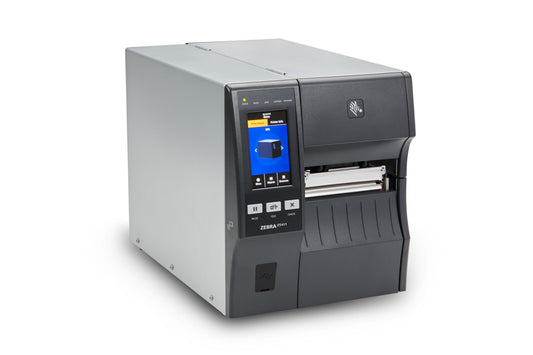

Zebra ZT411: 4 Inch Industrial Barcode Label Printer
-

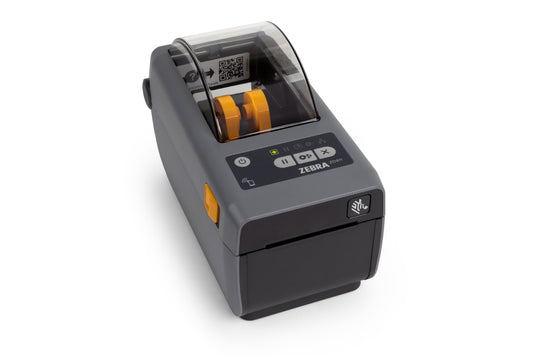

Zebra ZD411: 2 Inch Desktop Thermal Label Printer
-

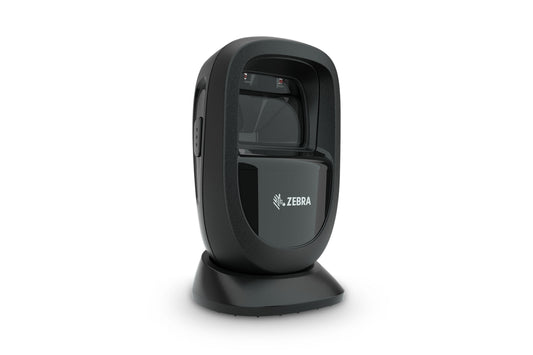

Zebra DS9308: Hands-Free 1D/2D Presentation Barcode Scanner
