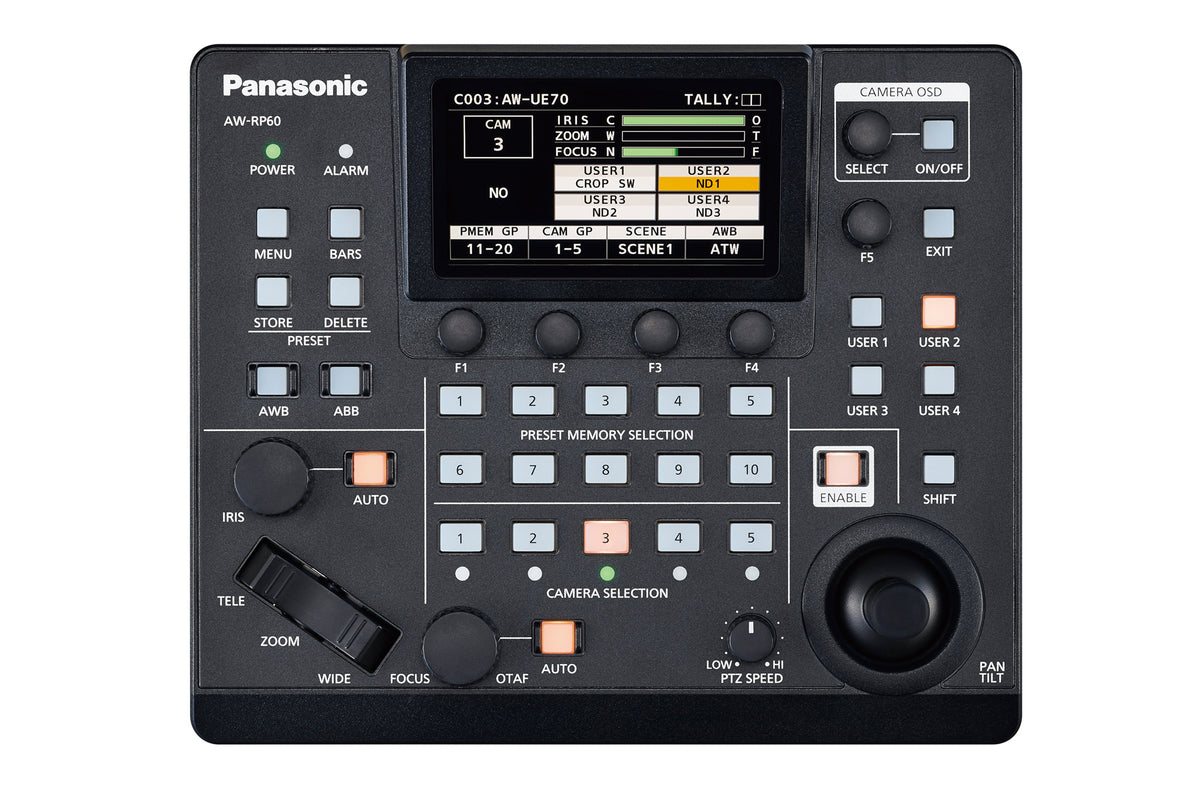

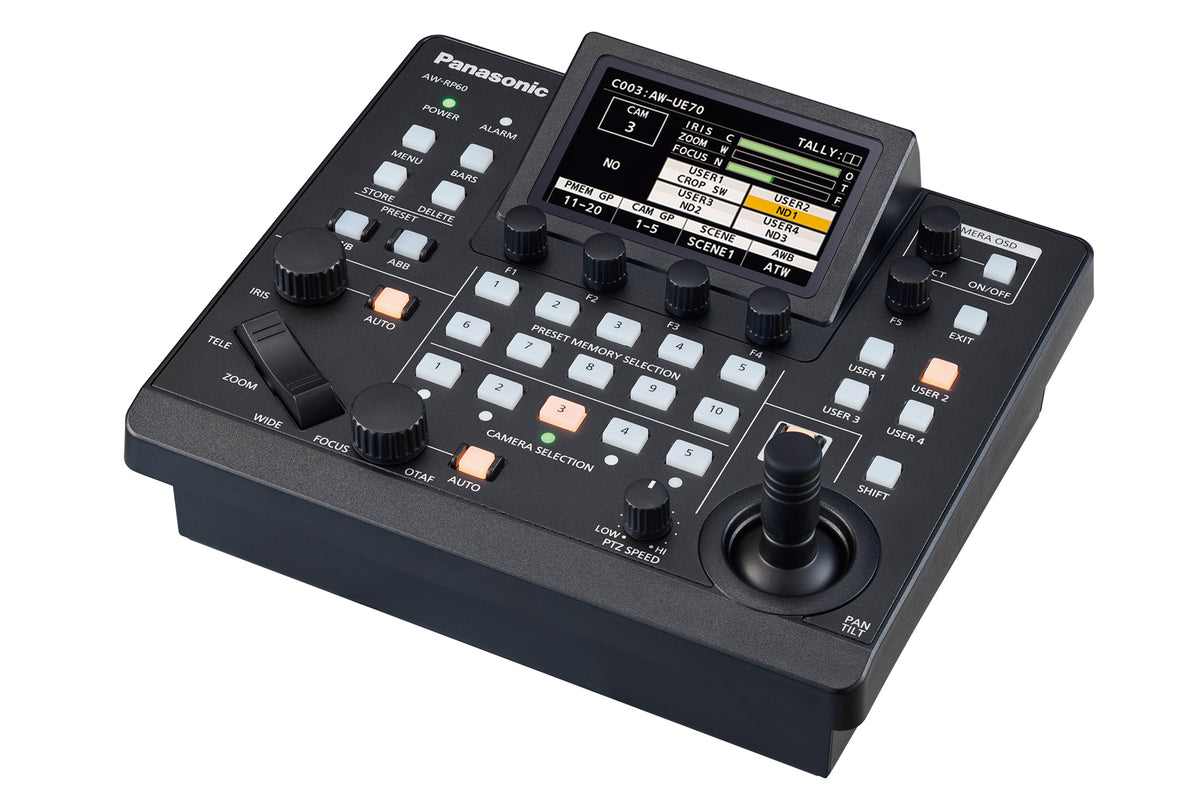

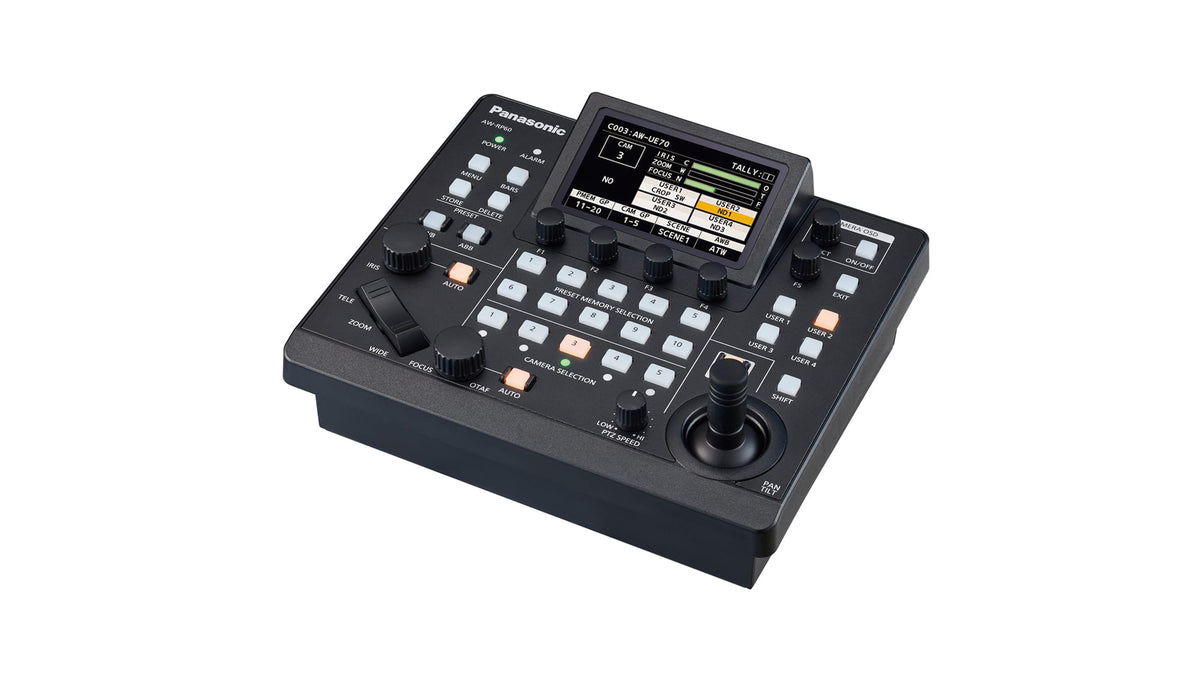

Panasonic AW-RP60GJ: PTZ Camera Remote Controller
Brand
:Panasonic
Model
:
AW-RP60GJ
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic AW-RP60GJ at a Glance
- Brand
- Panasonic
- Model
- AW-RP60GJ
- Category
- Video Accessories
- Solution
- Video Conferencing
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic AW-RP60GJ Overview
The Panasonic AW-RP60GJ is a Panasonic camera controller for Panasonic remote PTZ cameras. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Power Requirements: 12 V DC (10.8 V to 13.2 V)
- PoE: PoE42 V to 57 V DC
- Current Consumption: 0.9 A (XLR connector input), 0.3 A (PoE power supply)
- Ambient Operating Temperature: 0 C to 40 C (32 F to 104 F)
- Ambient Operating Humidity: 20 % to 90 % (no condensation)
- Storage Temperature: -20 C to 50 C (-4 F to 122 F)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AW-RP60GJ |
| Type | Camera controller |
| Power Requirements | 12 V DC (10.8 V to 13.2 V) |
| PoE | PoE42 V to 57 V DC |
| Current Consumption | 0.9 A (XLR connector input), 0.3 A (PoE power supply) |
| Ambient Operating Temperature | 0 C to 40 C (32 F to 104 F) |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Temperature | -20 C to 50 C (-4 F to 122 F) |
| Weight | 1.5 kg (3.31 lbs) |
| Dimensions | W 210 mm x H 92 mm x D 177 mm (8-9/32 inches x 3-5/8 inches x 6-31/32 inches)(excluding protrusions) |
| LCD Display | 3.5 inch LCD (QHD: 960 x 540) |

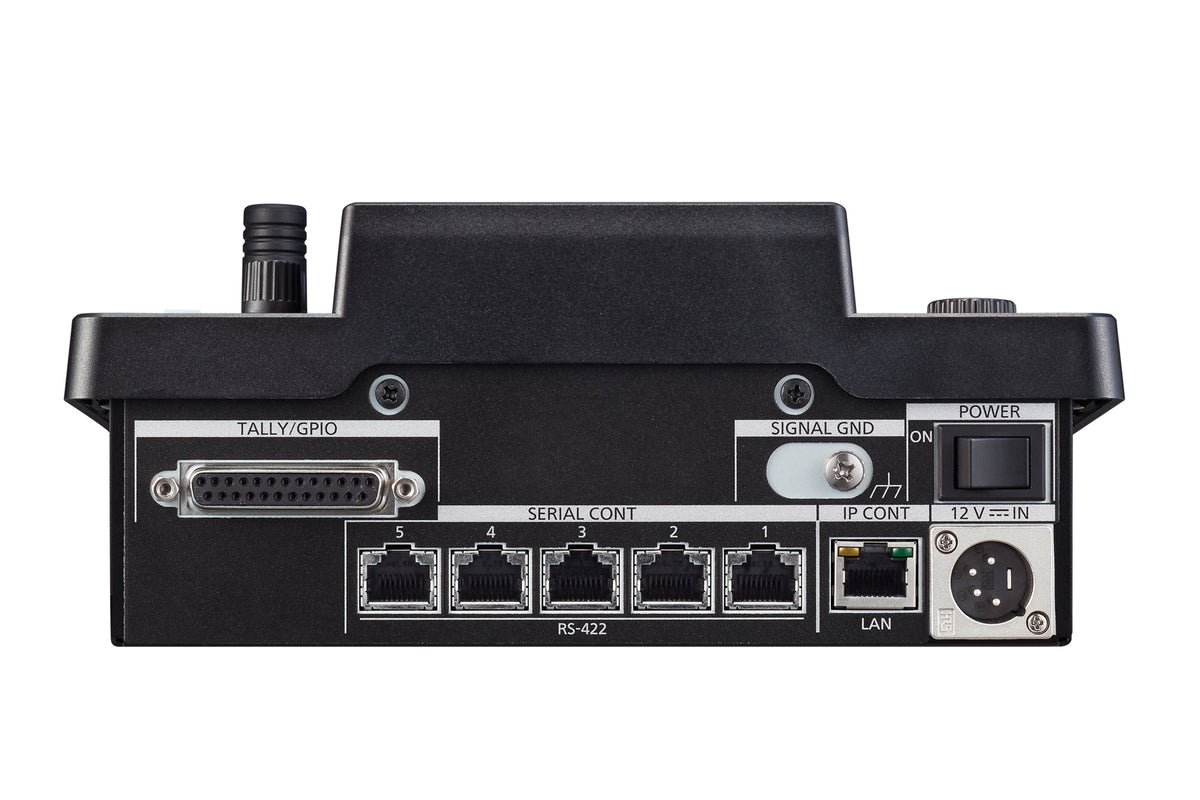

| Input Connector: DC IN | DC 12 V IN, XLR 4-pin |
| Input/Output Connector: LAN(IP CONT) | 10BASE-T/100BASE-TX, PoE inputConnecting cable: LAN cable, max. 100 m (328 ft); When connecting the unit via a switching hub:Straight cable (category 5e), STP (Shielded Twisted Pair) cable recommended; When connecting the unit |
| Input/Output Connector: LAN(SERIAL CONT) | RS-422 (control signals for remote cameras), TALLY OUTConnecting cable:Straight cable (category 5e), max. 1000 m (3280 ft)TALLY OUT:Open collector output (negative logic)Maximum voltage resistance DC 24 V, Maximum current 50 mA |
| Input/Output Connector: TALLY / GPIO 1 | D-sub 25-pin, female, inch threadTALLY IN: Contact input (Status operation)GPIO IN: Contact input (Trigger operation)GPIO OUT: Open collector output (negative logic)Maximum voltage resistance DC 24 V, Maximum current 10 mA |
| Connection Specifications: No. of Connectable Cameras | 200 (IP), 5 (RS422) |
| Connection Specifications: No. of Camera Selection Buttons | 5 (6 to 200 controlled from the LCD) |
| Connection Specifications: No. of Camera Groups | 40 (5 units/group) |
| Memory: Preset Memory | 100 |
Why Buy the Panasonic AW-RP60GJ from Trianze Tech?
- Genuine Panasonic camera controller supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the AW-RP60GJ
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic AW-RP60GJ: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic AW-RP60GJ, Panasonic lists the following. The Panasonic AW-RP60GJ is a Panasonic camera controller for Panasonic remote PTZ cameras..
For the Panasonic AW-RP60GJ, Panasonic lists the following. Power Requirements: 12 V DC (10.8 V to 13.2 V); PoE: PoE42 V to 57 V DC; Current Consumption: 0.9 A (XLR connector input), 0.3 A (PoE power supply); Ambient Operating Temperature: 0 C to 40 C (32 F to 104 F).
For the Panasonic AW-RP60GJ, Panasonic lists the following. PoE: PoE42 V to 57 V DC; Input Connector: DC IN: DC 12 V IN, XLR 4-pin; Input/Output Connector: LAN(IP CONT): 10BASE-T/100BASE-TX, PoE inputConnecting cable: LAN cable, max. 100 m (328 ft); When connecting the; Input/Output Connector: LAN(SERIAL CONT): RS-422 (control signals for remote cameras), TALLY OUTConnecting cable:Straight cable; Input/Output Connector: TALLY / GPIO 1: D-sub 25-pin, female, inch threadTALLY IN: Contact input (Status operation)GPIO IN: Contact input.
For the Panasonic AW-RP60GJ, Panasonic lists the following. Power Requirements: 12 V DC (10.8 V to 13.2 V); Current Consumption: 0.9 A (XLR connector input), 0.3 A (PoE power supply).
For the Panasonic AW-RP60GJ, Panasonic lists the following. Weight: 1.5 kg (3.31 lbs); Dimensions: W 210 mm x H 92 mm x D 177 mm (8-9/32 inches x 3-5/8 inches x 6-31/32 inches)(excluding protrusions).
Trianze Tech stocks the Panasonic AW-RP60GJ in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
