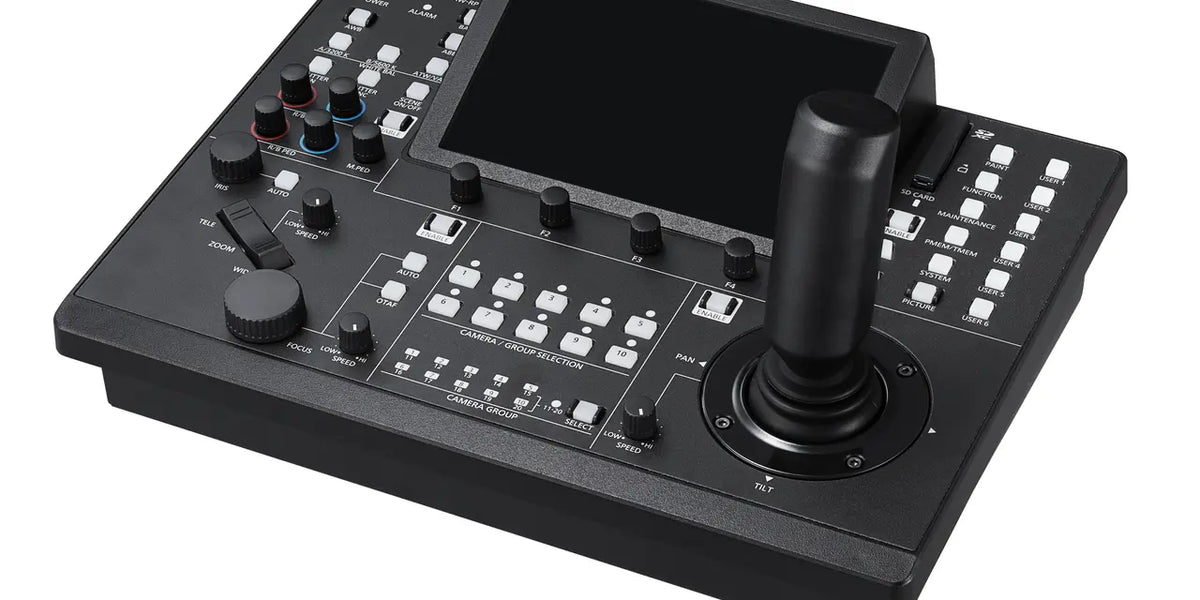

Panasonic AW-RP150GJ: PTZ Camera Remote Controller
Brand
:Panasonic
Model
:
AW-RP150GJ
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic AW-RP150GJ at a Glance
- Brand
- Panasonic
- Model
- AW-RP150GJ
- Category
- Video Accessories
- Solution
- Video Conferencing
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic AW-RP150GJ Overview
The Panasonic AW-RP150GJ is a Panasonic camera controller for Panasonic remote PTZ cameras. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Power Requirements: 12 V DC (10.8 V to 13.2 V)
- PoE: PoE+DC 42 V to 57 V (Camera Input,)
- Current Consumption: 1.0 A (Connector Input), 0.6 A (PoE+ power supply)
- Ambient Operating Temperature: 0 C to 40 C (32 F to 104 F)
- Ambient Operating Humidity: 10 % to 90 % (no condensation)
- Storage Temperature: -20 C to 50 C (-4 F to 122 F)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AW-RP150GJ |
| Type | Camera controller |
| Power Requirements | 12 V DC (10.8 V to 13.2 V) |
| PoE | PoE+DC 42 V to 57 V (Camera Input,) |
| Current Consumption | 1.0 A (Connector Input), 0.6 A (PoE+ power supply) |
| Ambient Operating Temperature | 0 C to 40 C (32 F to 104 F) |
| Ambient Operating Humidity | 10 % to 90 % (no condensation) |
| Storage Temperature | -20 C to 50 C (-4 F to 122 F) |
| Weight | Approx. 3.2 kg (7.05 lb) |
| Dimensions | W 342 mm x H 178 mm x D 245 mm (13-15/32 inches x 7 inches x 9-21/32 inches)(excluding protrusions) |
| Input Connector: DC IN | DC 12 V IN, XLR 4-pin |
| Input Connector: 3G-SDI IN | SMPTE424M/SMPTE292 / 75 ohm (BNC x 1)Supported formats:1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF |
| Output Connector: 3G-SDI ACTIVE THROGH OUT | SMPTE424M/SMPTE292 / 75 ohm (BNC x 1)Supported formats:1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF |
| Input/Output Connector: LAN(IP CONT) | 100BASE-TXPoE+ inputConnection cable: LAN cable, max. 100 m (328 ft); When connecting the unit via a switching hub: Straight cable or a cross cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended; When |
| Input/Output Connector: LAN(SERIAL CONT) | RS-422 (control signals for remote cameras)Connecting cable:Straight cable (category 5e or better shielded cable), max. 1000 m (3280 ft) |
| Input/Output Connector: TALLY OUT | Open collector output (negative logic)Maximum voltage resistance DC 24 V, Maximum current 50 mA |
| Input/Output Connector: TALLY / GPIO 1 | D-sub 25-pin, female, inch threadTALLY IN: 10 inputs (for receiving photocoupler signals)GPI: 6 inputs (for receiving photocoupler signals)GPIO: 5 inputs (for receiving photocoupler signals) or 5 outputs |
| Input/Output Connector: GPIO 2 | D-sub 25-pin, female, inch threadGPI: 10 inputs (for receiving photocoupler signals)GPIO: 10 inputs (for receiving photocoupler signals) or 10 outputs (open collector outputs, negative logic); Input/output switched with menu |
| Input/Output: LCD Display | 7-inch Touch Panel GUI Monitor (WVGA(800x480)) |
| Input/Output: SD Memory Card Slot | SDHC / SDXC Memory Card Slot x 1 |
| Connection Specifications: No. of Connectable Cameras | 200 (IP), 5 (RS422) |
| Connection Specifications: No. of Camera Selection Buttons | 10 |
| Connection Specifications: No. of Camera Groups | 20 (10 units per 1 group) |
| Memory: Preset Memory | No. of memory presets 100 |
| Memory: Tracing Memory | No. of cameras: Cam1 to Cam10Recording time, no. of memory settings: Maximum 5 min. total per camera, maximum of 10 settings per camera |
| Other Functions: No. of User Assignable Buttons | 6 + up to 10 on the LCD menu |
| Other Functions: Pan / Tilt Speed Adjustment | 7 levels |
| Other Functions: TALLY LED Display Color | green / red |
Why Buy the Panasonic AW-RP150GJ from Trianze Tech?
- Genuine Panasonic camera controller supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the AW-RP150GJ
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic AW-RP150GJ: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic AW-RP150GJ, Panasonic lists the following. The Panasonic AW-RP150GJ is a Panasonic camera controller for Panasonic remote PTZ cameras..
For the Panasonic AW-RP150GJ, Panasonic lists the following. Power Requirements: 12 V DC (10.8 V to 13.2 V); PoE: PoE+DC 42 V to 57 V (Camera Input,); Current Consumption: 1.0 A (Connector Input), 0.6 A (PoE+ power supply); Ambient Operating Temperature: 0 C to 40 C (32 F to 104 F).
For the Panasonic AW-RP150GJ, Panasonic lists the following. PoE: PoE+DC 42 V to 57 V (Camera Input,); Input Connector: DC IN: DC 12 V IN, XLR 4-pin; Input Connector: 3G-SDI IN: SMPTE424M/SMPTE292 / 75 ohm (BNC x 1)Supported formats:1080/59.94p, 1080/50p, 1080/59.94i; Output Connector: 3G-SDI ACTIVE THROGH OUT: SMPTE424M/SMPTE292 / 75 ohm (BNC x 1)Supported formats:1080/59.94p, 1080/50p, 1080/59.94i; Input/Output Connector: LAN(IP CONT): 100BASE-TXPoE+ inputConnection cable: LAN cable, max. 100 m (328 ft); When connecting the unit via.
For the Panasonic AW-RP150GJ, Panasonic lists the following. Power Requirements: 12 V DC (10.8 V to 13.2 V); Current Consumption: 1.0 A (Connector Input), 0.6 A (PoE+ power supply).
For the Panasonic AW-RP150GJ, Panasonic lists the following. Weight: Approx. 3.2 kg (7.05 lb); Dimensions: W 342 mm x H 178 mm x D 245 mm (13-15/32 inches x 7 inches x 9-21/32 inches)(excluding protrusions).
Trianze Tech stocks the Panasonic AW-RP150GJ in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
