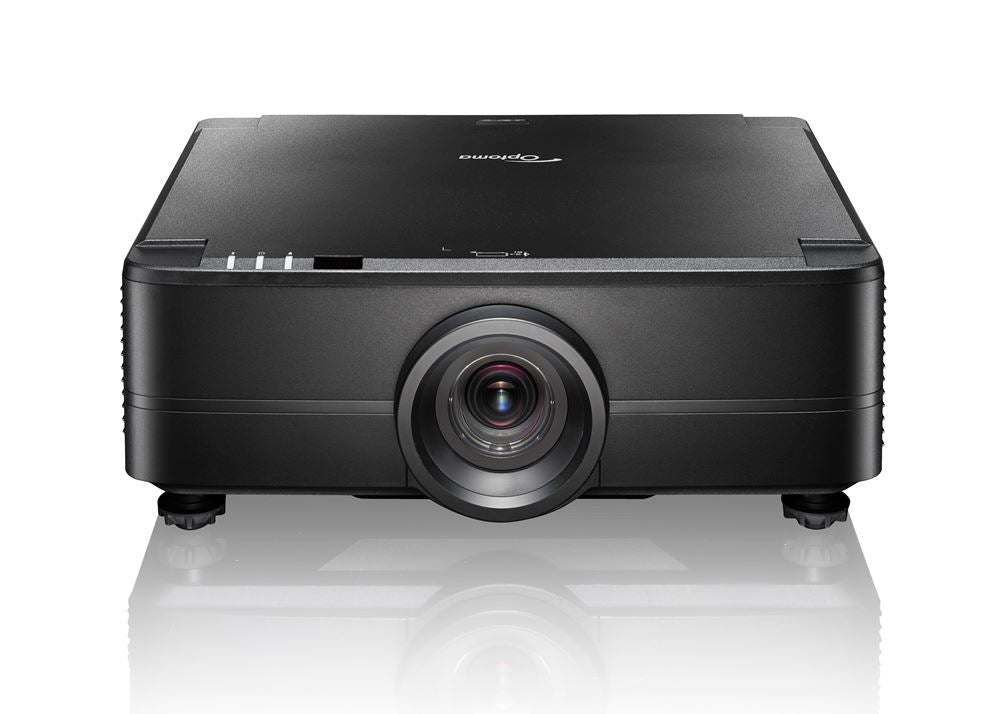

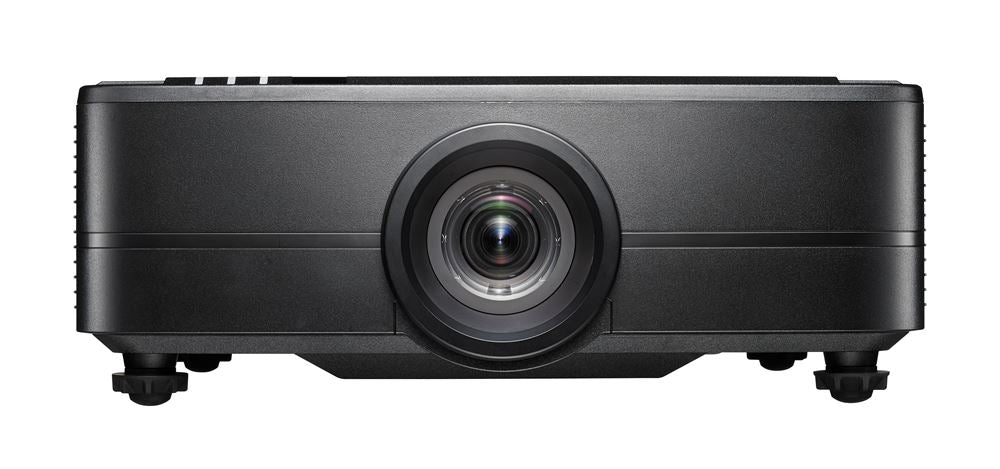

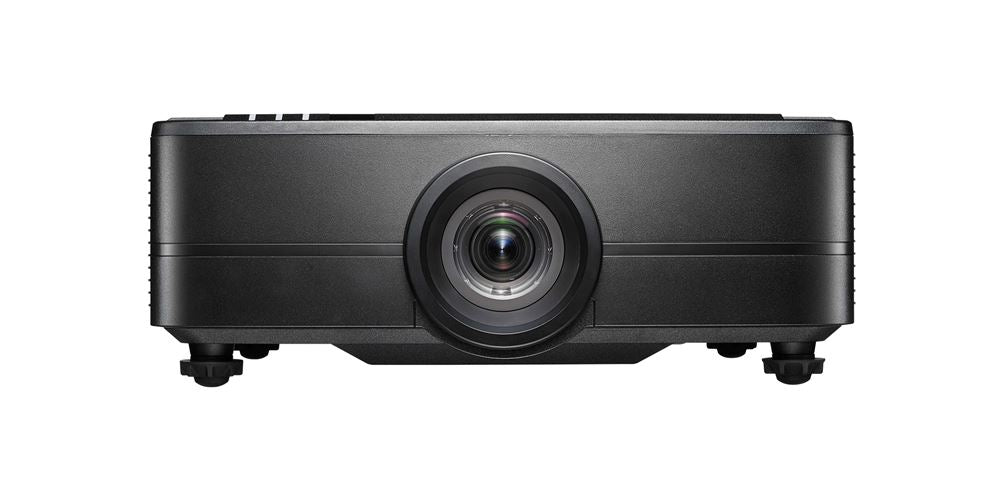

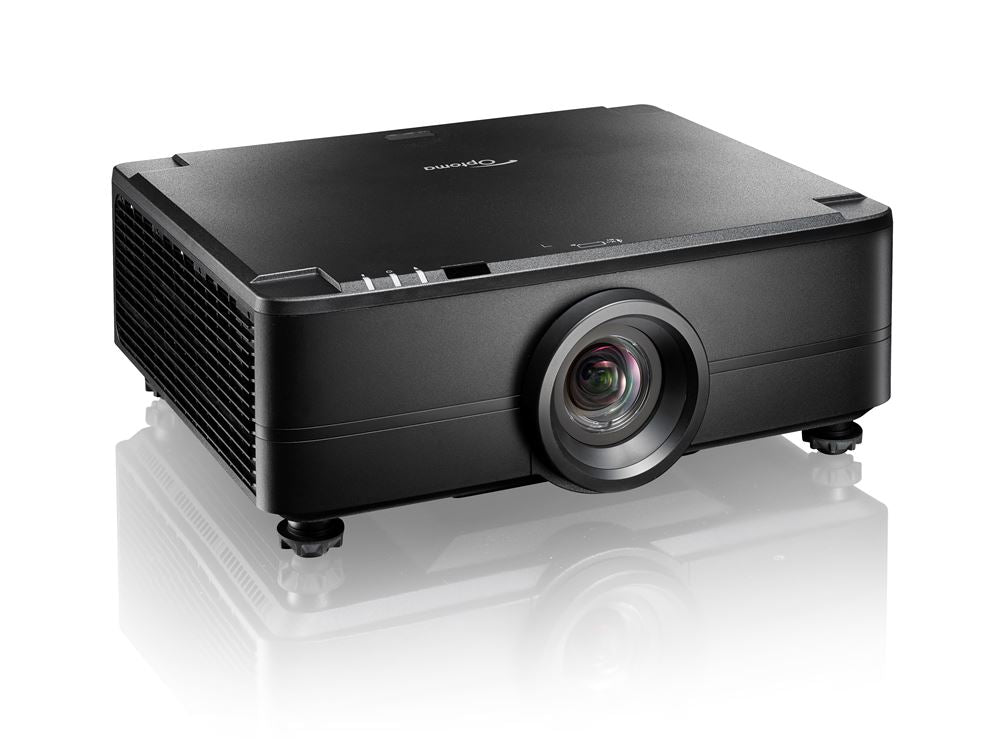

Optoma ZU820TST: 8,200 Lumen WUXGA Laser Projector with Short Throw Lens
Model
:
ZU820TST
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Optoma ZU820TST at a Glance
- Brand
- Optoma
- Model
- ZU820TST
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Optoma ZU820TST Overview
At 8200 lumens with 4K and HDR compatibility, the ZU820TST features a dust-resistant IP5X certified optical engine for 24/7 operation capabilities, offering true maintenance-free projection for up to 30,000 hours of powerful performance in Eco mode. Other features include motorised zoom and focus, full motorised lens shift, and built-in dual 10W speakers. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 8200 lumen DuraCore laser projector: Ultra bright for immersive installations
- Full motorised lens shift: Ideal for a simple set-up
- Large zoom range: Motorised zoom expands placement opportunities
- DuraCore laser technology: Delivers 30,000 hours of virtually maintenance-free operation
- Full lens shift
- Four corner correction
- IP5X Dust resistant optical engine
Technical Specifications:
| Spec | Value |
|---|---|
| Model | ZU820TST |
| Resolution | WUXGA (1920x1200) |
| Brightness | 8,200 |
| ANSI brightness | 6,900 |
| Contrast ratio | 3,000,000:1 |
| Display technology | DLP |
| Light source | Laser |
| Light source life | 30,000 hours |
| Throw ratio | 0.75:1 to 0.95:1 |
| Zoom | 1.26 |
| Lens shift | Vertical: +/-50%, Horizontal: +/-15% |
| Screen size | 1.27m to 25.4m (50" to 1000") diagonal |
| Projection distance | 0.79m, 6.21m |

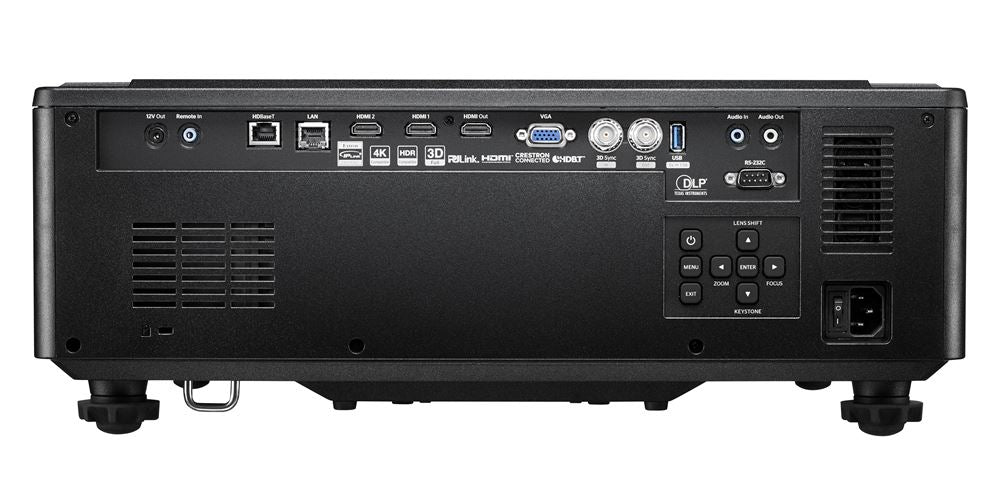

| Connections | Inputs 1 x HDBaseT, 2 x HDMI 2.0, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5mm Outputs 1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5mm Control 1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232 |
| Wired network | Yes |
| Noise level | 34dB to 36dB |
| Power consumption | 260W to 520W |
| Power supply | AC 90 to 264V 50/60 Hz with PFC input |
| IP rating | IP5X |
| 24/7 operation | Yes |
| Built-in speakers | 2 x 10W |
| Dimensions (W x D x H) | 486 x 394.5 x 185.5 mm |
| Net weight | 12.6 kg |
Why Buy the Optoma ZU820TST from Trianze Tech?
- Genuine Optoma laser projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right lens, mount and screen for the ZU820TST
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Optoma ZU820TST: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Optoma ZU820TST is rated at 8,200 lumens, with 6,900 ANSI lumens and a contrast ratio of 3,000,000:1. Brightness is measured by the manufacturer under standard test conditions, so real rooms with ambient light need a screen and room lighting that match.
The Optoma ZU820TST has a native resolution of WUXGA (1920x1200) with a native 16:10 aspect ratio, and it accepts 4:3,16:9,16:10 content. Content at other resolutions is scaled to fit.
The Optoma ZU820TST offers a throw ratio of 0.75:1 to 0.95:1 (short throw), 1.26 zoom, lens shift of Vertical: +/-50%, Horizontal: +/-15%. Projection distance is 0.79m, 6.21m m.
The Optoma ZU820TST uses a laser light source rated for up to 30,000 hours, so it needs no lamp changes in normal use. Optoma lists 24/7 operation as Yes. Dust protection is rated IP5X.
The Optoma ZU820TST connections are: Inputs 1 x HDBaseT, 2 x HDMI 2.0, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5mm Outputs 1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5mm Control 1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232. Wired networking: Yes.
Trianze Tech stocks the Optoma ZU820TST in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
