Optoma ZU507TST: 5,000 Lumen WUXGA Laser Projector with Short Throw Lens
Model
:
ZU507TST
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Optoma ZU507TST at a Glance
- Brand
- Optoma
- Model
- ZU507TST
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Optoma ZU507TST Overview

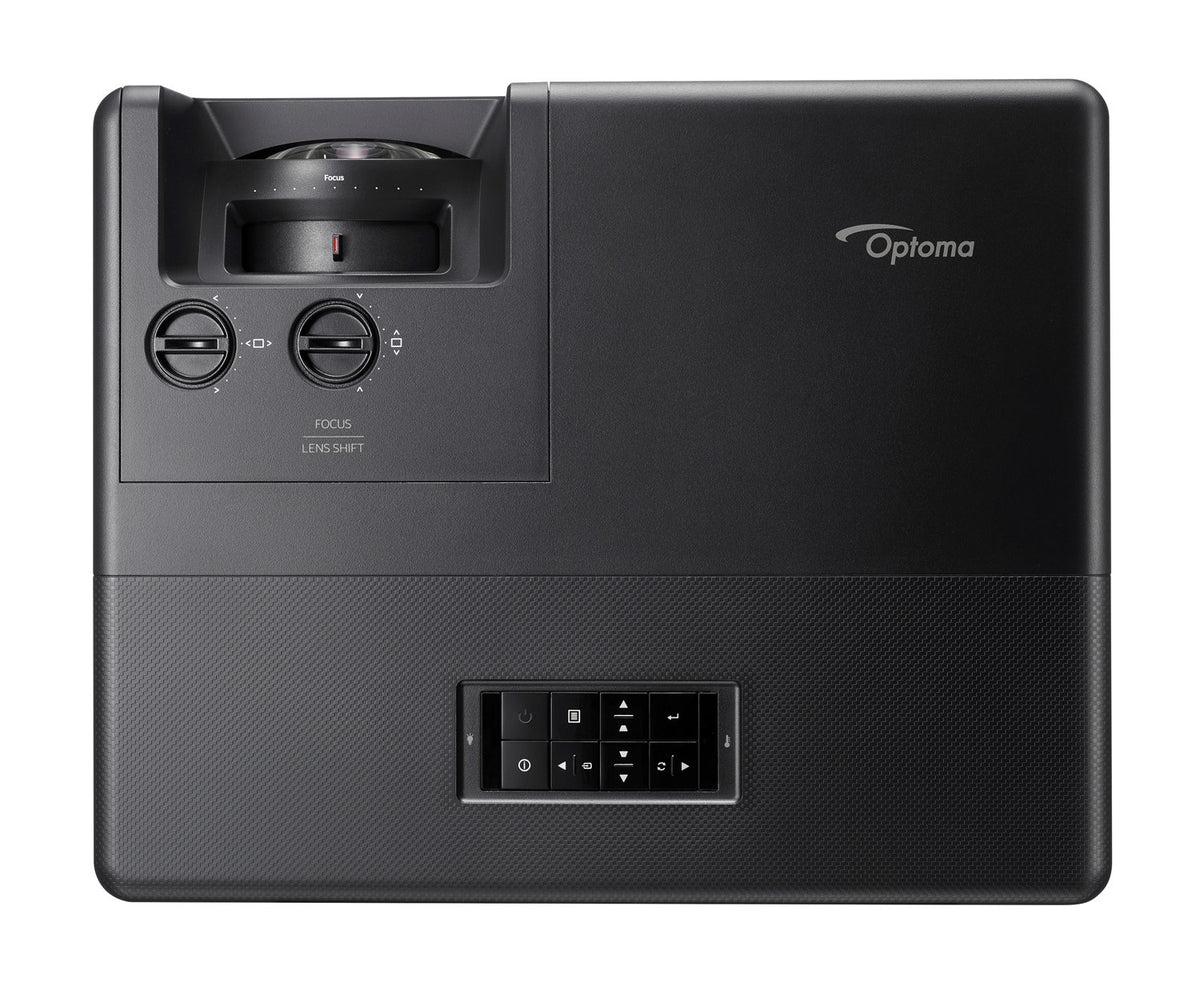

Added features include a short throw lens, manual horizontal and vertical lens shift and built-in 10W speakers. Suitable for a wide variety of applications, this bright, short throw projector is perfect for immersive spaces and simulation applications. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Bright short throw WUXGA laser projector: Perfect for immersive spaces and simulation applications
- Long life DuraCore laser technology: Delivers 30,000 hours of virtually maintenance free operation
- Dust resistant: Independently tested, IP6X certified
- Control flexibility of HDBaseT: 4K, HDR and HLG compatibility
- Lights on viewing
- HDR and HLG compatible
- Superior contrast
Technical Specifications:
| Spec | Value |
|---|---|
| Model | ZU507TST |
| Resolution | WUXGA (1920x1200) |
| Brightness | 5,000 lumens |
| Contrast ratio | 300,000:1 |
| Display technology | DLP |
| Light source | DuraCore Laser |
| Light source life | 30,000 hours |
| Throw ratio | 0.58:1 |
| Zoom | Fixed |
| Lens shift | Vertical -100 to 110%, Horizontal: +/-4% |
| Screen size | 0.76m to 7.62m (30" to 300") diagonal |
| Projection distance | 0.38m, 3.75m |
| Connections | Inputs 2 x HDMI 2.0, 1 x VGA, 1 x Composite video, 2 x Audio 3.5mm Outputs 1 x USB-A power 1.5A, 1 x Audio 3.5mm, 1 x VGA Control 1 x 12V trigger, 1 x HDBaseT, 1 x RJ45, 1 x RS232 |
| Wired network | Yes |
| Noise level | 33dB to 36dB |
| Power consumption | 240W to 366W |
| Power supply | Universal AC 100--240V+/- 10% to 50 / 60 Hz with PFC input |
| IP rating | IP6X |
| Built-in speakers | 2 x 10W |
| Dimensions (W x D x H) | 374 x 302 x 117 mm |
| Net weight | 5.3 kg |
Why Buy the Optoma ZU507TST from Trianze Tech?
- Genuine Optoma laser projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right lens, mount and screen for the ZU507TST
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Optoma ZU507TST: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Optoma ZU507TST is rated at 5,000 lumens and a contrast ratio of 300,000:1. Brightness is measured by the manufacturer under standard test conditions, so real rooms with ambient light need a screen and room lighting that match.
The Optoma ZU507TST has a native resolution of WUXGA (1920x1200) with a native 16:10 aspect ratio, and it accepts 4:3,16:9,16:10 content. Content at other resolutions is scaled to fit.
The Optoma ZU507TST offers a throw ratio of 0.58:1 (short throw), lens shift of Vertical -100 to 110%, Horizontal: +/-4%. Projection distance is 0.38m, 3.75m m.
The Optoma ZU507TST uses a laser light source rated for up to 30,000 hours, so it needs no lamp changes in normal use. Dust protection is rated IP6X.

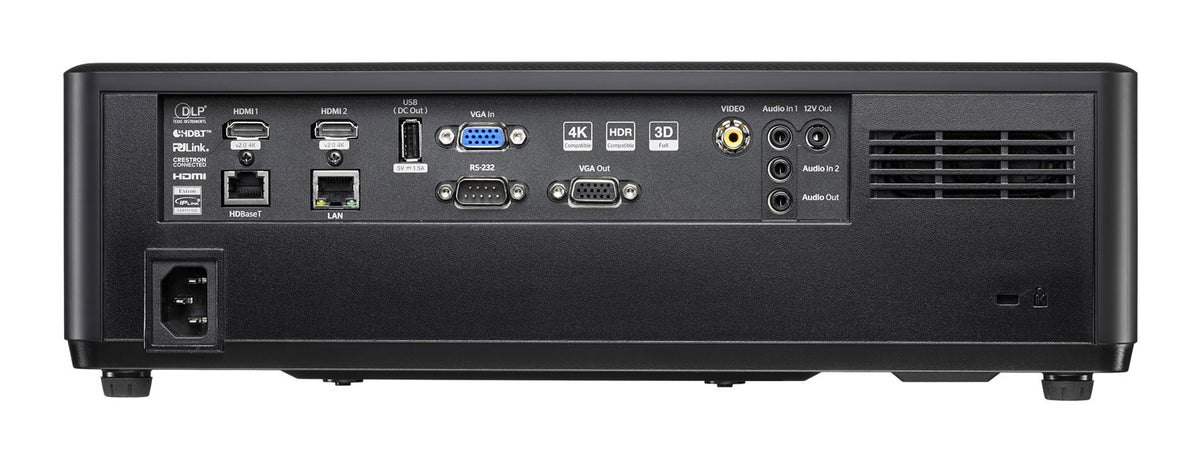

The Optoma ZU507TST connections are: Inputs 2 x HDMI 2.0, 1 x VGA, 1 x Composite video, 2 x Audio 3.5mm Outputs 1 x USB-A power 1.5A, 1 x Audio 3.5mm, 1 x VGA Control 1 x 12V trigger, 1 x HDBaseT, 1 x RJ45, 1 x RS232. Wired networking: Yes.
Trianze Tech stocks the Optoma ZU507TST in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
