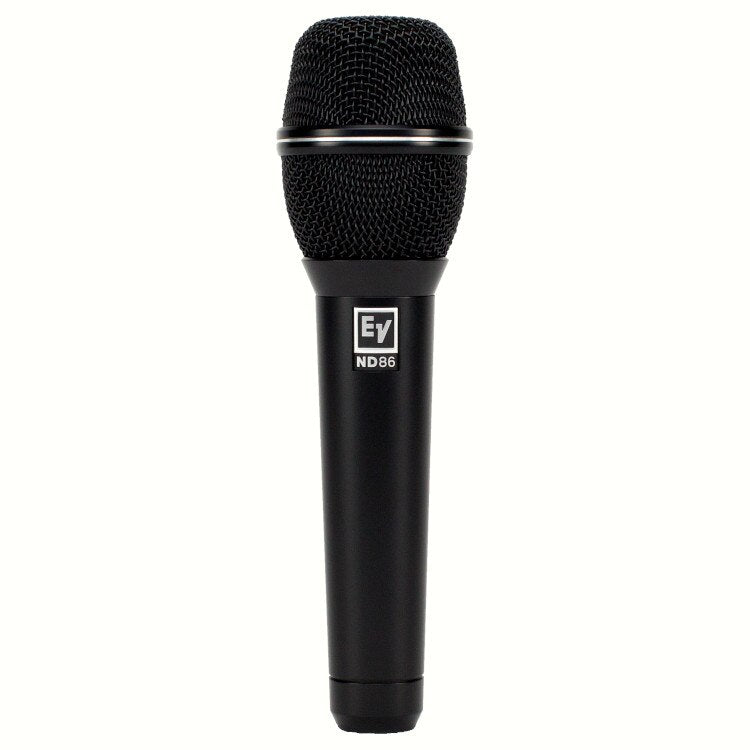

Electro-Voice ND86: Vocal Supercardioid Dynamic Microphone
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Electro-Voice ND86 at a Glance
- Brand
- Electro-Voice
- Model
- ND86
- SKU
- 85243
- Category
- Microphones
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Electro-Voice ND86 Overview
The ND86 is a robust, high-performance, large-diaphragm dynamic supercardioid vocal microphone. Designed for excellent acoustic control in even the largest of venues, the ND86 capsule is precisely tuned to deliver present, smooth, and detailed sound, as well as superior isolation from sound on the stage. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Max SPL: 134.5 dB
- Frequency Response: Close: 30 Hz-17 kHz; Far: 70 Hz-17 kHz
- Sensitivity: 5.6 mV/Pascal (-45 dBV/Pa) @ 1 kHz
- Polar Pattern: Supercardioid
- Element Type: Dynamic neodymium magnet structure
- Nominal Impedance: 350 ohms balanced (low-z)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | ND86 |
| Brand | Electro-Voice |
| Max SPL | 134.5 dB |
| Frequency Response | Close: 30 Hz-17 kHz; Far: 70 Hz-17 kHz |
| Sensitivity | 5.6 mV/Pascal (-45 dBV/Pa) @ 1 kHz |
| Polar Pattern | Supercardioid |
| Element Type | Dynamic neodymium magnet structure |
| Nominal Impedance | 350 ohms balanced (low-z) |
| LF Impedance | 350 ohms balanced (low-z) |
| Case Material | Zinc die cast handle, Memraflex grille |
| Net weight | 6.5 oz (184 g) |
| Shipping Weight | 8.4 oz (238 g) |
| Connectivity | 3-pin XLR |
| Color | 20 |
| Height | 170 |
| Included Accessories | (1) Gig bag, (1) stand clip, and (1) Euro thread adapter |
Why Buy the Electro-Voice ND86 from Trianze Tech?
- Genuine Electro-Voice product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the audio system around the ND86
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for venues, houses of worship and corporate spaces
What's Included and Support
Frequently asked
Electro-Voice ND86: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The ND86 is a robust, high-performance, large-diaphragm dynamic supercardioid vocal microphone. Designed for excellent acoustic control in even the largest of venues, the ND86 capsule is precisely tuned to deliver present, smooth, and detailed sound, as well as superior isolation from sound on the stage.
For the Electro-Voice ND86, Electro-Voice lists the following. Max SPL: 134.5 dB; Frequency Response: Close: 30 Hz-17 kHz; Far: 70 Hz-17 kHz; Sensitivity: 5.6 mV/Pascal (-45 dBV/Pa) @ 1 kHz; Polar Pattern: Supercardioid; Nominal Impedance: 350 ohms balanced (low-z).
For the Electro-Voice ND86, Electro-Voice lists the following. Connectivity: 3-pin XLR.
For the Electro-Voice ND86, Electro-Voice lists the following. Net weight: 6.5 oz (184 g); Shipping Weight: 8.4 oz (238 g); Color: 20.
The model is ND86. Quote this model when you call or message Trianze Tech so we match the exact product and version.
Trianze Tech stocks the Electro-Voice ND86 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
