Electro-Voice EVOLVE 50: Portable Column System Subwoofer, Black
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Electro-Voice EVOLVE 50 at a Glance
- Brand
- Electro-Voice
- Model
- EVOLVE 50
- SKU
- 16220
- Category
- Subwoofers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Electro-Voice EVOLVE 50 Overview

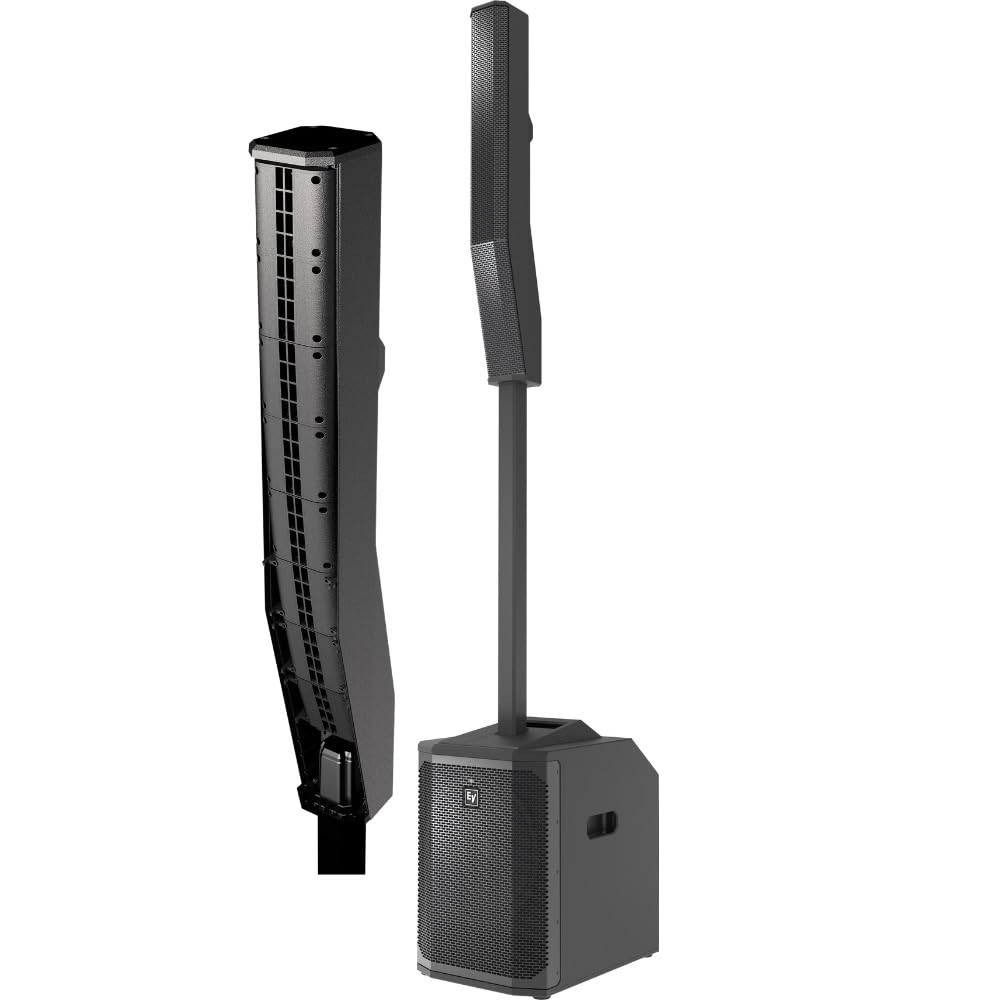

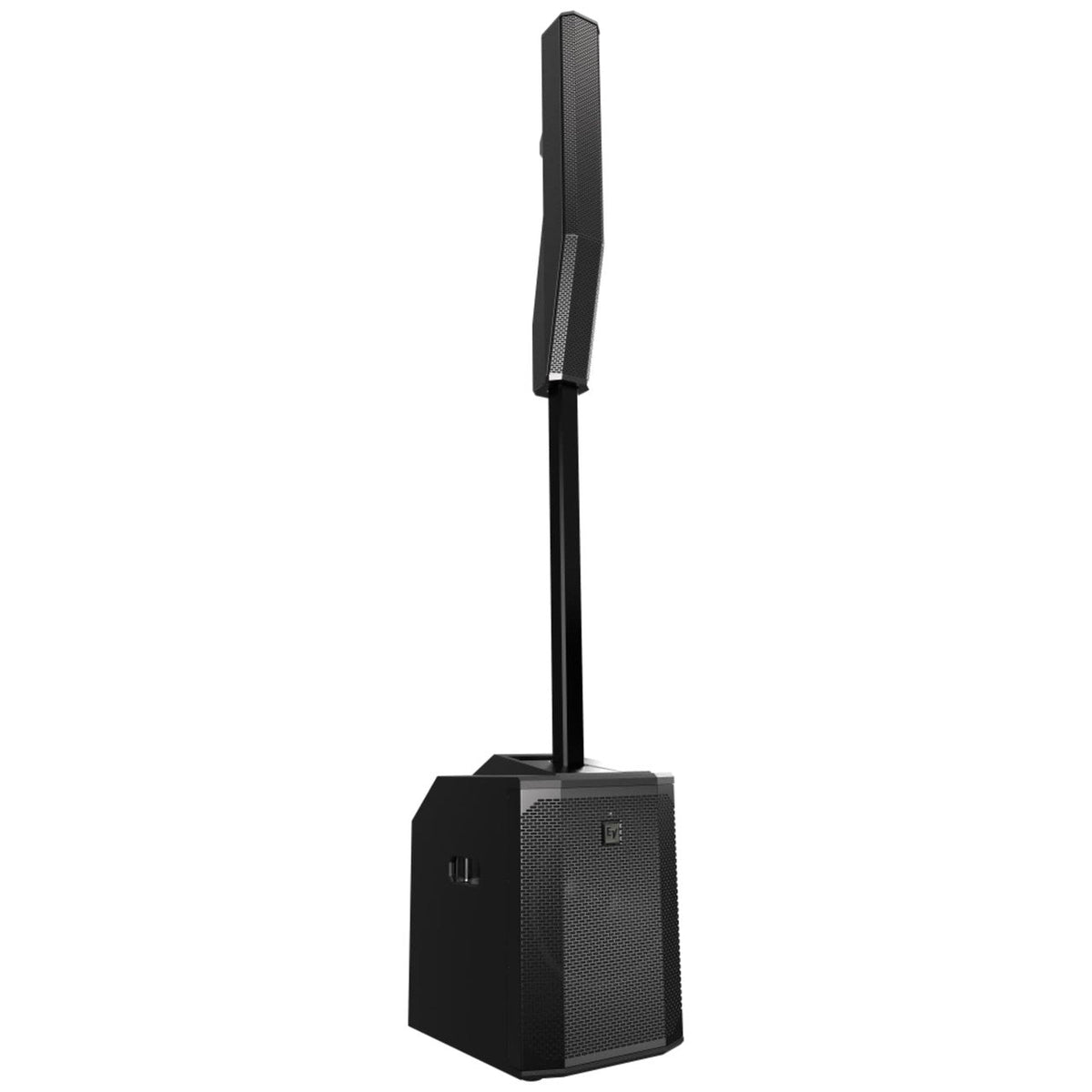

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12" subwoofer capable of a functional frequency output down to 37 Hz. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- The bi-directional aluminum pole's connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole.
- The signal is internally routed to the components.
- Max SPL: 127 dB
- Frequency Response: 43 Hz-20 KHz
- Frequency Range (-10 dB): 37 Hz-20 KHz
- Total Output Power: 1000 W
Technical Specifications:
| Spec | Value |
|---|---|
| Model | EVOLVE 50 |
| Brand | Electro-Voice |
| Max SPL | 127 dB |
| Frequency Response | 43 Hz-20 KHz |
| Frequency Range (-10 dB) | 37 Hz-20 KHz |
| Total Output Power | 1000 W |
| LF power handling (continuous) (W) | 500 |
| HF power handling (continuous) (W) | 500 |
| Connectivity | 2x XLR/TRS Combo Jack Input, 1x 3.5 mm Input, 1x Stereo RCA Input, 1x Wireless Bluetooth Audio Input, 1x XLR THRU Output, 1x XLR MIX OUT Output |
| Color | Black or white |
| Enclosure | Sub: 15 mm plywood Column: Composite Pole: Aluminum |
| Grille | Steel with black or white powder coat |
| Net weight | 57.75 lbs (26.25 kg) |
| Phantom Power | Yes |
| Shipping Weight | 94.8 lb (subwoofer) 25.1 lb (column and pole) |
| Frequency response low (-3 dB) (Hz) | 40 Hz |
| Frequency response high (-3 dB) (Hz) | 18000 Hz |
| Amplifier Watt Peak | 2000 W |
| Power consumption (W) | 100-240 V AC, 50-60 Hz, 1.5-0.6 A |
| Dimensions (H x W x D) (mm) | Sub: 448 x 332 x 432 |
Why Buy the Electro-Voice EVOLVE 50 from Trianze Tech?
- Genuine Electro-Voice product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the audio system around the EVOLVE 50
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for venues, houses of worship and corporate spaces
What's Included and Support
Frequently asked
Electro-Voice EVOLVE 50: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12" subwoofer capable of a functional frequency output down to 37 Hz.
For the Electro-Voice EVOLVE 50, Electro-Voice lists the following. Max SPL: 127 dB; Frequency Response: 43 Hz-20 KHz; LF power handling (continuous) (W): 500; HF power handling (continuous) (W): 500; Amplifier Watt Peak: 2000 W.
For the Electro-Voice EVOLVE 50, Electro-Voice lists the following. Connectivity: 2x XLR/TRS Combo Jack Input, 1x 3.5 mm Input, 1x Stereo RCA Input, 1x Wireless Bluetooth Audio Input, 1x XLR THRU Output, 1x XLR MIX OUT Output.
For the Electro-Voice EVOLVE 50, Electro-Voice lists the following. Total Output Power: 1000 W; LF power handling (continuous) (W): 500; HF power handling (continuous) (W): 500; Phantom Power: Yes.
For the Electro-Voice EVOLVE 50, Electro-Voice lists the following. Color: Black or white; Enclosure: Sub: 15 mm plywood Column: Composite Pole: Aluminum; Net weight: 57.75 lbs (26.25 kg); Shipping Weight: 94.8 lb (subwoofer) 25.1 lb (column and pole); Dimensions (H x W x D) (mm): Sub: 448 x 332 x 432.
Trianze Tech stocks the Electro-Voice EVOLVE 50 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
