Electro-Voice EVF-12/126-WFW: 12 inch Front Load Point Source Loudspeaker, Outdoor, 120 degree x 60 degree
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Electro-Voice EVF-12/126-WFW at a Glance
- Brand
- Electro-Voice
- Model
- EVF-12/126-WFW
- SKU
- 203597
- Category
- Speakers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Electro-Voice EVF-12/126-WFW Overview
The Electro-Voice EVF 12 is a second-generation passive point source loudspeaker built for professional installed audio systems that need strong output, controlled coverage, and dependable deployment flexibility. Designed for short to medium-throw applications, it fits a wide range of projects including performing arts spaces, worship facilities, music venues, and mid-sized stadium installations. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- The EVF 12 platform has been reworked with updated internal design elements to improve performance while maintaining the familiar form factor used in existing project planning.
- For integrators and system designers, the EVF 12 offers broad application coverage through multiple horn pattern options, black or white finish choices, and available fully weatherized versions for more demanding environments.
- Max SPL: 134 dB
- Frequency Range (-10 dB): 48 Hz to 20 kHz
- Power handling (continuous) (W): 400 W
- Power Handling: 400 W
Technical Specifications:
| Spec | Value |
|---|---|
| Model | EVF-12/126-WFW |
| Brand | Electro-Voice |
| Max SPL | 134 dB |
| Frequency Range (-10 dB) | 48 Hz to 20 kHz |
| Power handling (continuous) (W) | 400 W |
| Power Handling | 400 W |
| Nominal Impedance | 8 ohm |
| Minimum Impedance | 6.4 ohm |
| Recommended HPF | 50 Hz |

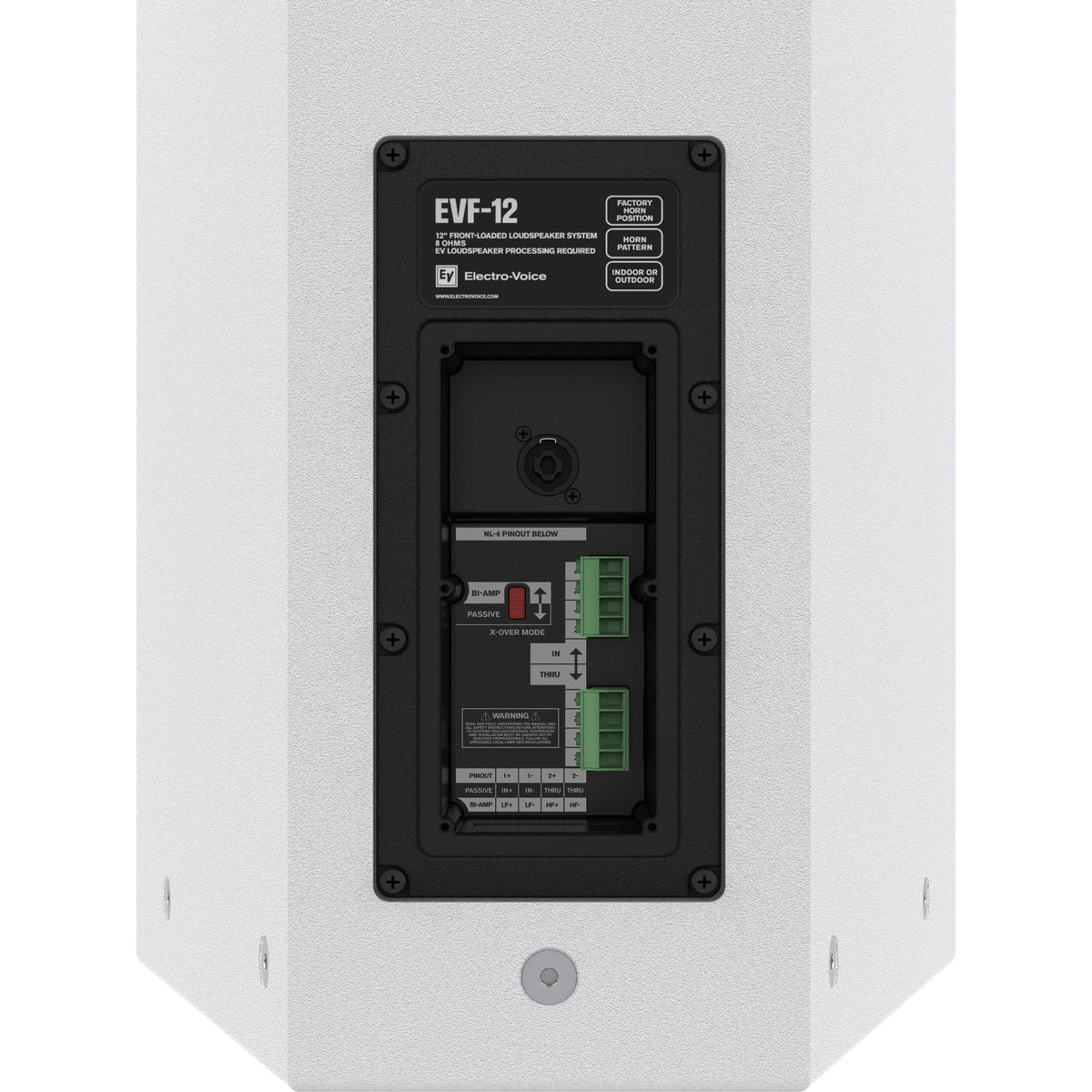

| Connectivity | 10 AWG Euroblock NL4 |
| IP Rating | IP55 |
| Ambient Temperature | -20 C, +50 C |
| Color | Black (RAL9005) White (RAL9003) |
| Net weight | 30.5 kg |
| Shipping Weight | 35.5 kg |
| Dimensions (H x W x D) (mm) | 769 mm x 407 mm x 417 mm |
Why Buy the Electro-Voice EVF-12/126-WFW from Trianze Tech?
- Genuine Electro-Voice product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the audio system around the EVF-12/126-WFW
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for venues, houses of worship and corporate spaces
What's Included and Support
Frequently asked
Electro-Voice EVF-12/126-WFW: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Electro-Voice EVF 12 is a second-generation passive point source loudspeaker built for professional installed audio systems that need strong output, controlled coverage, and dependable deployment flexibility. Designed for short to medium-throw applications, it fits a wide range of projects including performing arts spaces, worship facilities, music venues, and mid-sized stadium installations.
For the Electro-Voice EVF-12/126-WFW, Electro-Voice lists the following. Max SPL: 134 dB; Power handling (continuous) (W): 400 W; Power Handling: 400 W; Nominal Impedance: 8 ohm; Minimum Impedance: 6.4 ohm.
For the Electro-Voice EVF-12/126-WFW, Electro-Voice lists the following. Connectivity: 10 AWG Euroblock NL4.
For the Electro-Voice EVF-12/126-WFW, Electro-Voice lists the following. Power handling (continuous) (W): 400 W; Power Handling: 400 W.
For the Electro-Voice EVF-12/126-WFW, Electro-Voice lists the following. Color: Black (RAL9005) White (RAL9003); Net weight: 30.5 kg; Shipping Weight: 35.5 kg; Dimensions (H x W x D) (mm): 769 mm x 407 mm x 417 mm.
Trianze Tech stocks the Electro-Voice EVF-12/126-WFW in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
