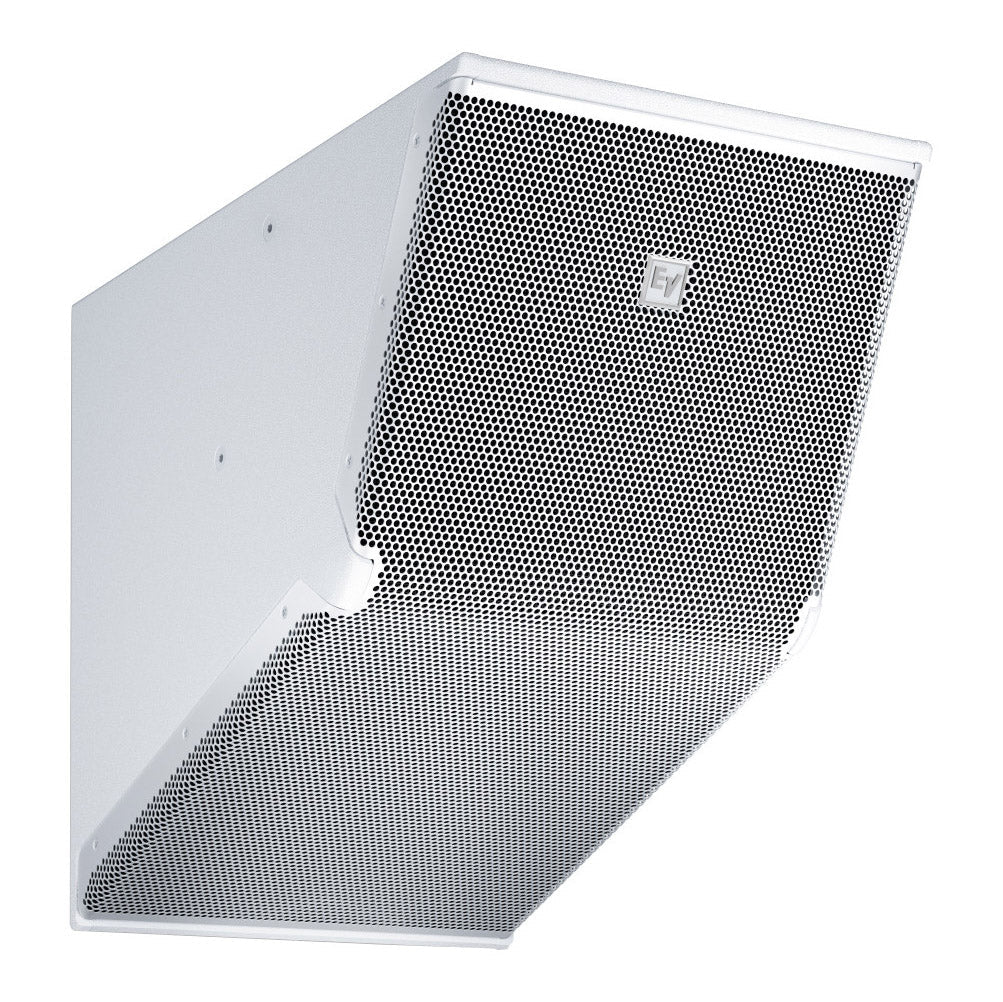

Electro-Voice EVC-1122-VI: 12-Inch Passive Speaker, White
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Electro-Voice EVC-1122-VI at a Glance
- Brand
- Electro-Voice
- Model
- EVC-1122-VI
- SKU
- 18893
- Category
- Speakers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Electro-Voice EVC-1122-VI Overview
The EVC-1122/VI is a unique offering that is constructed in a variable intensity (VI) configuration. In a variable intensity loudspeaker, the downward angle of the front-facing woofer and the asymmetrical wave guide work together to evenly cover a clearly defined, rectangular audience area with a single loudspeaker system. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- The size of the coverage area is determined by the mounting height and the vertical mounting angle of the loudspeaker.
- The advantage of the VI approach is that there is reduced variation in sound level from the front to the back of the audience, compared to typical point source solutions.
- Frequency Response: 70 Hz to 22 kHz
- Frequency Range (-10 dB): 50 Hz to 25 kHz
- LF transducer size (in): EVS-12M
- Nominal Impedance: 8 ohm
Technical Specifications:
| Spec | Value |
|---|---|
| Model | EVC-1122-VI |
| Brand | Electro-Voice |
| Frequency Response | 70 Hz to 22 kHz |
| Frequency Range (-10 dB) | 50 Hz to 25 kHz |
| LF transducer size (in) | EVS-12M |
| Nominal Impedance | 8 ohm |
| Minimum Impedance | 7 ohm |
| Recommended HPF | 45 Hz |
| Net weight | 20.3 kg (44.7 lb) |
| Shipping Weight | 22.7 kg (50.0 lb) |
| Sensitivity | 79 dB (1 W/4 m) |
| Sensitivity (1W/1m) | 79 dB (1 W/4 m) |
| Connectivity | Dual four-pin 10 AWG Phoenix/ Euro Block screw-terminals |
| Enclosure | 15-mm plywood with EVCoat |
Why Buy the Electro-Voice EVC-1122-VI from Trianze Tech?
- Genuine Electro-Voice product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the audio system around the EVC-1122-VI
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for venues, houses of worship and corporate spaces
What's Included and Support
Frequently asked
Electro-Voice EVC-1122-VI: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The EVC-1122/VI is a unique offering that is constructed in a variable intensity (VI) configuration. In a variable intensity loudspeaker, the downward angle of the front-facing woofer and the asymmetrical wave guide work together to evenly cover a clearly defined, rectangular audience area with a single loudspeaker system.
For the Electro-Voice EVC-1122-VI, Electro-Voice lists the following. Frequency Response: 70 Hz to 22 kHz; Nominal Impedance: 8 ohm; Minimum Impedance: 7 ohm; Sensitivity: 79 dB (1 W/4 m); Sensitivity (1W/1m): 79 dB (1 W/4 m).
For the Electro-Voice EVC-1122-VI, Electro-Voice lists the following. Connectivity: Dual four-pin 10 AWG Phoenix/ Euro Block screw-terminals.
For the Electro-Voice EVC-1122-VI, Electro-Voice lists the following. Net weight: 20.3 kg (44.7 lb); Shipping Weight: 22.7 kg (50.0 lb); Enclosure: 15-mm plywood with EVCoat.
The model is EVC-1122-VI. Quote this model when you call or message Trianze Tech so we match the exact product and version.
Trianze Tech stocks the Electro-Voice EVC-1122-VI in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
