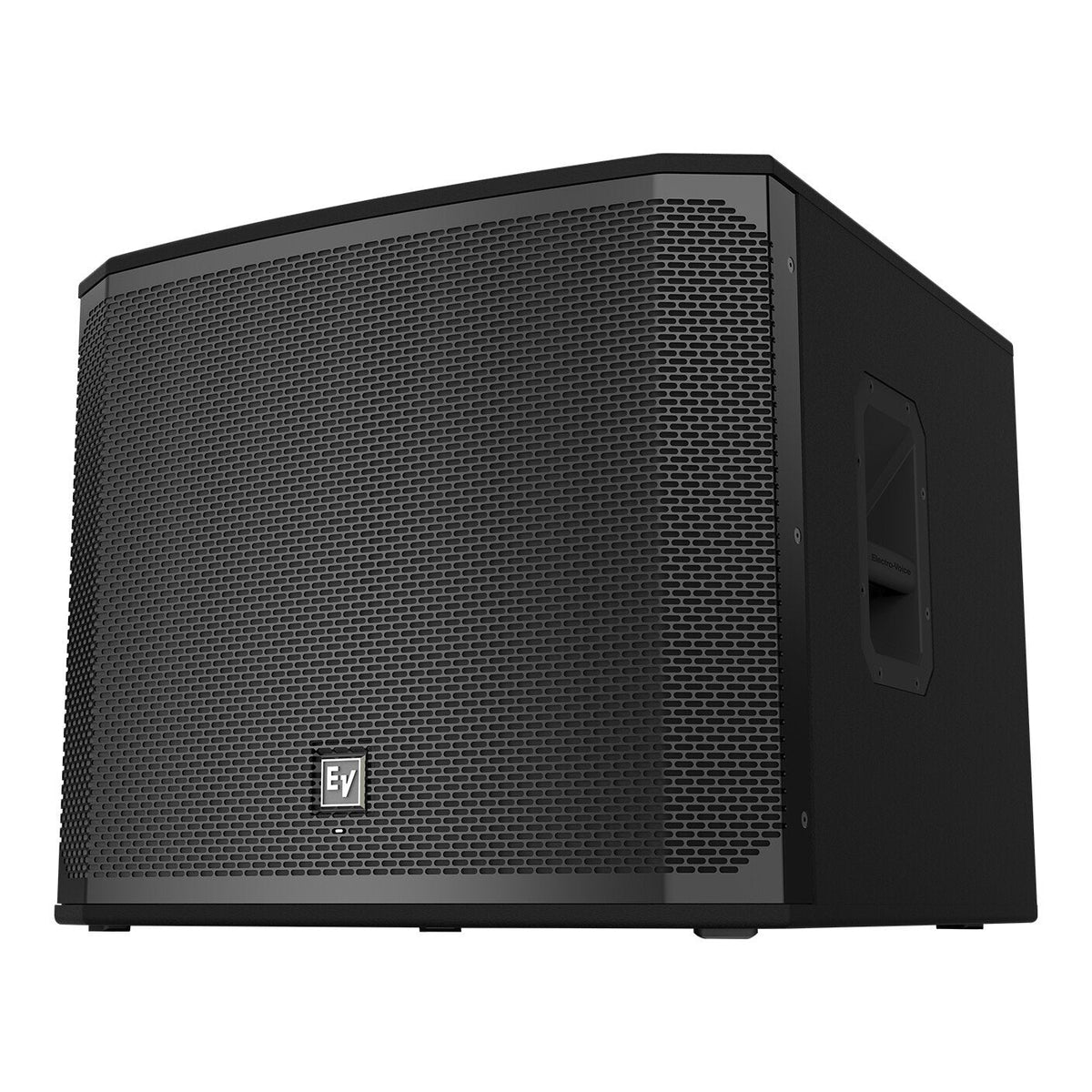

Electro-Voice EKX-18S: 18-Inch Passive Subwoofer
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Electro-Voice EKX-18S at a Glance
- Brand
- Electro-Voice
- Model
- EKX-18S
- SKU
- 21890
- Category
- Subwoofers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Electro-Voice EKX-18S Overview
The EKX-18S 18" passive subwoofer combines quality and reliability in a compact package suitable for a wide range of sound reinforcement scenarios. Electro-Voice's award-winning industrial design, incorporating robust wood enclosures, premium-quality hardware, and durable EVCoat finish, ensures that this sub looks as great as it sounds. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Max SPL: 134 dB
- Frequency Response: 50 Hz to 100 Hz
- Frequency Range (-10 dB): 35 Hz to 300 Hz
- Sensitivity (1W/1m): 96 dB
- LF transducer size (in): EVS-18C 457 mm (18 in)
- Woofer Size: EVS-18C 457 mm (18 in)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | EKX-18S |
| Brand | Electro-Voice |
| Max SPL | 134 dB |
| Frequency Response | 50 Hz to 100 Hz |
| Frequency Range (-10 dB) | 35 Hz to 300 Hz |
| Sensitivity (1W/1m) | 96 dB |
| LF transducer size (in) | EVS-18C 457 mm (18 in) |
| Woofer Size | EVS-18C 457 mm (18 in) |
| Power Handling | 400 W continuous, 1600 W peak |
| Nominal Impedance | 8 ohm |
| Minimum Impedance | 7 ohm |
| Recommended HPF | 30 Hz |
| Connectivity | Dual NL4 |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Net weight | 31.8 kg (70.0 lb) |
| Shipping Weight | 40.1 kg (88.4 lb) |
| Dimensions (H x W x D) (mm) | 520 mm x 606 mm x 612 mm |
Why Buy the Electro-Voice EKX-18S from Trianze Tech?
- Genuine Electro-Voice product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the audio system around the EKX-18S
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for venues, houses of worship and corporate spaces
What's Included and Support
Frequently asked
Electro-Voice EKX-18S: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The EKX-18S 18" passive subwoofer combines quality and reliability in a compact package suitable for a wide range of sound reinforcement scenarios. Electro-Voice's award-winning industrial design, incorporating robust wood enclosures, premium-quality hardware, and durable EVCoat finish, ensures that this sub looks as great as it sounds.
For the Electro-Voice EKX-18S, Electro-Voice lists the following. Max SPL: 134 dB; Frequency Response: 50 Hz to 100 Hz; Sensitivity (1W/1m): 96 dB; Power Handling: 400 W continuous, 1600 W peak; Nominal Impedance: 8 ohm.
For the Electro-Voice EKX-18S, Electro-Voice lists the following. Connectivity: Dual NL4.
For the Electro-Voice EKX-18S, Electro-Voice lists the following. Power Handling: 400 W continuous, 1600 W peak.
For the Electro-Voice EKX-18S, Electro-Voice lists the following. Enclosure: 15 mm plywood with EVCoat; Net weight: 31.8 kg (70.0 lb); Shipping Weight: 40.1 kg (88.4 lb); Dimensions (H x W x D) (mm): 520 mm x 606 mm x 612 mm.
Trianze Tech stocks the Electro-Voice EKX-18S in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
