d&b audiotechnik E12: 12 Inch Coaxial 2 Way Passive Loudspeaker, 80 x 50 Degree Rotatable Horn, NL4
Model
:
E12 NL4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

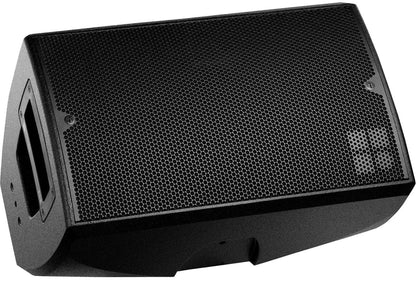

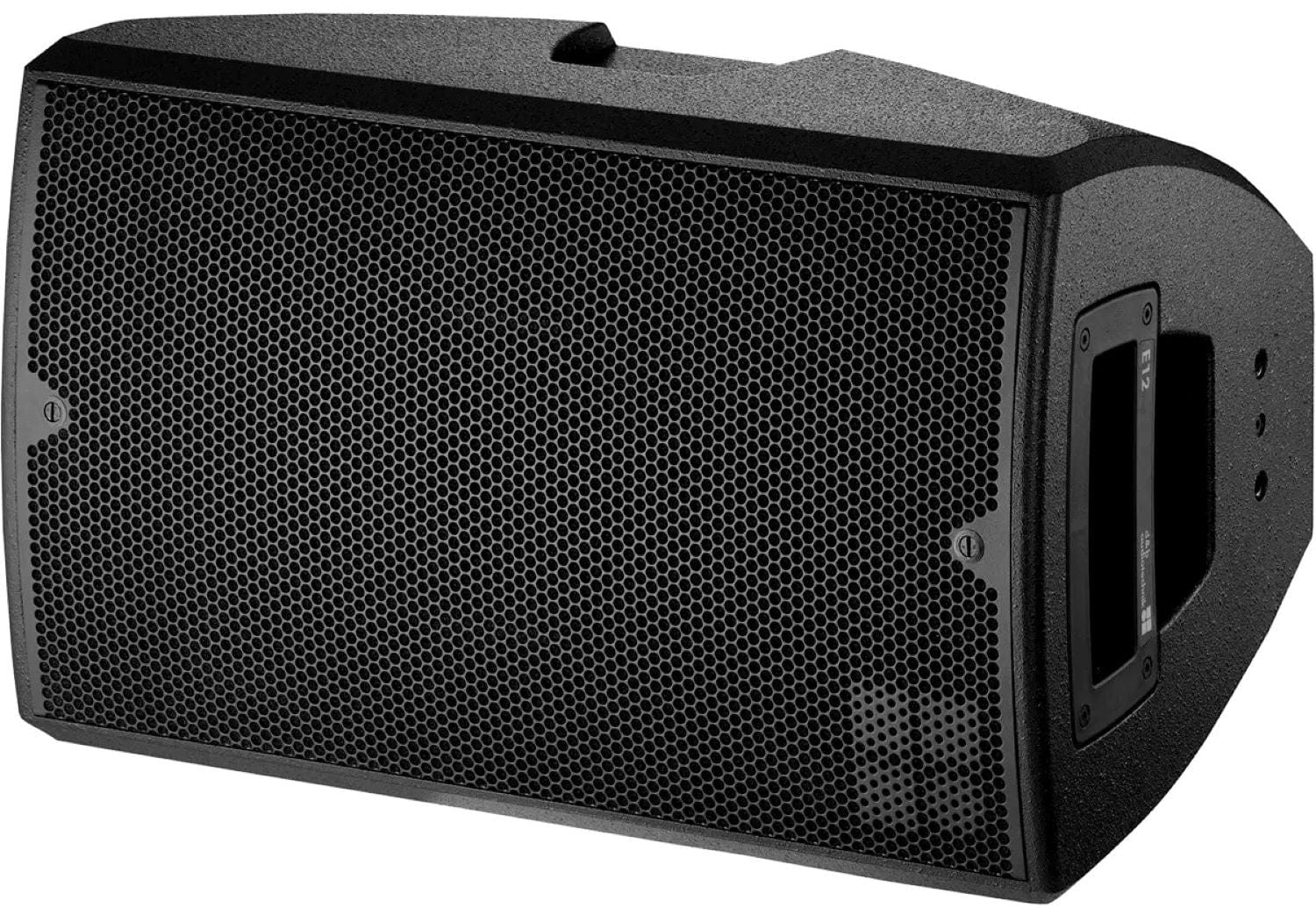

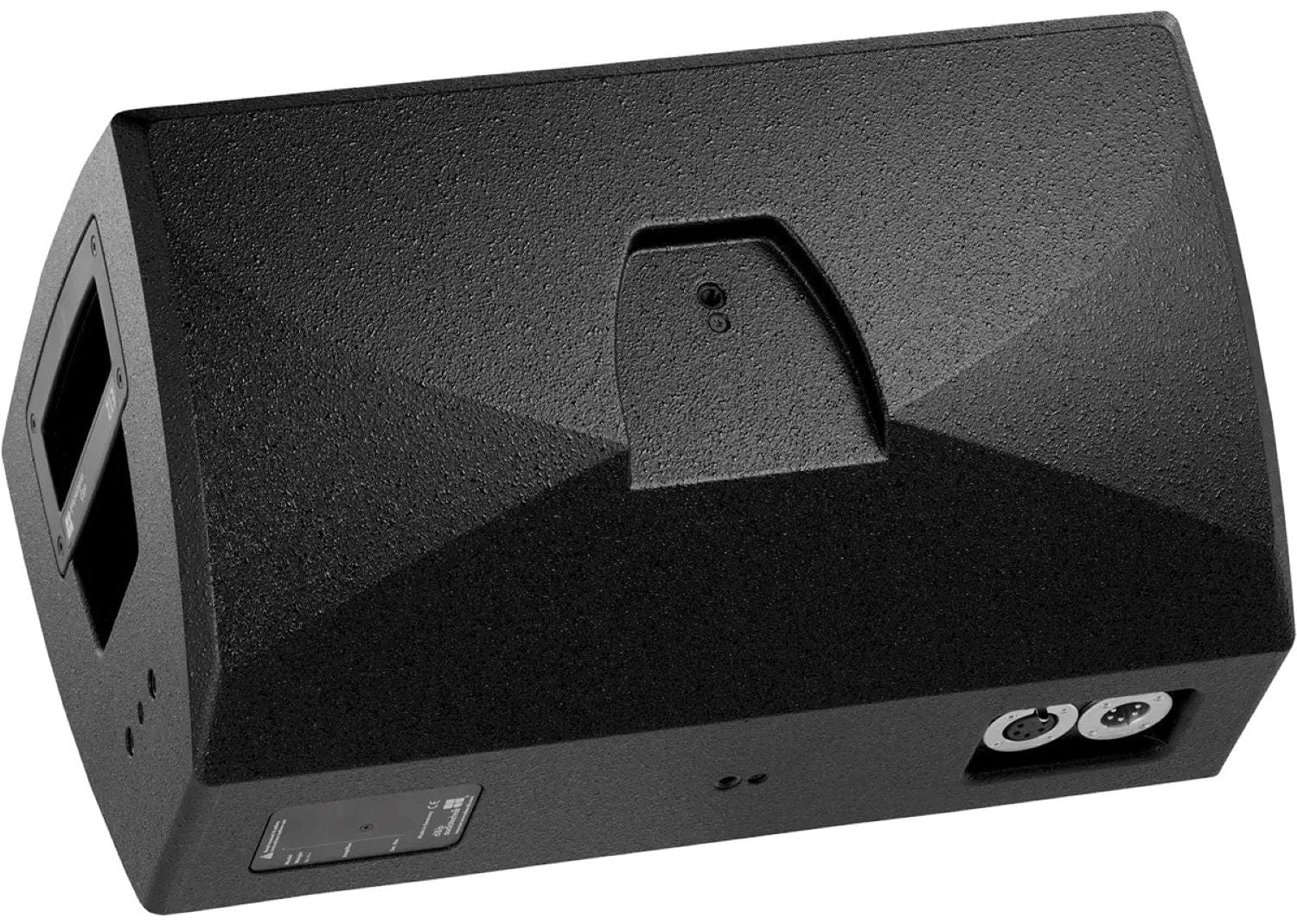

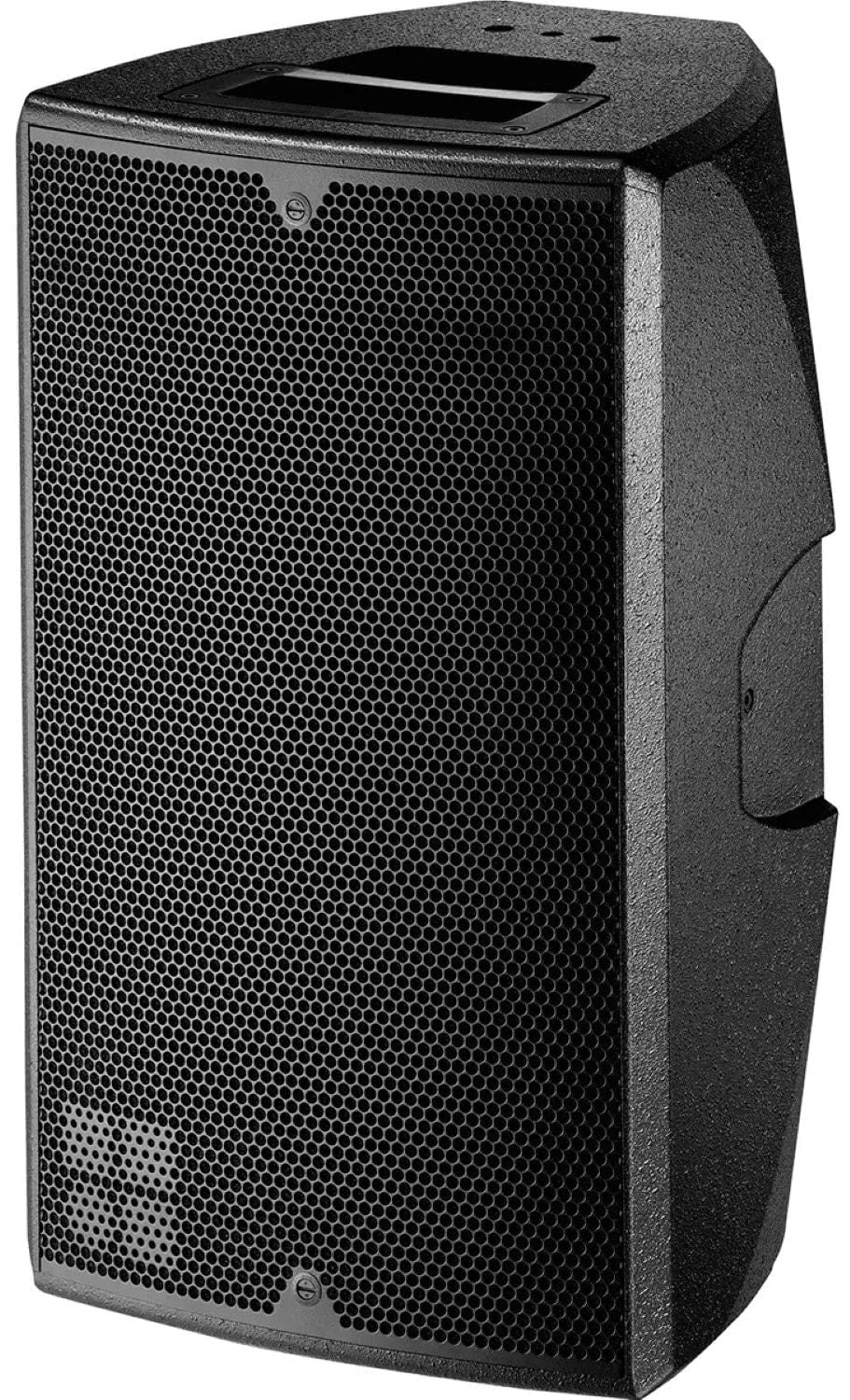

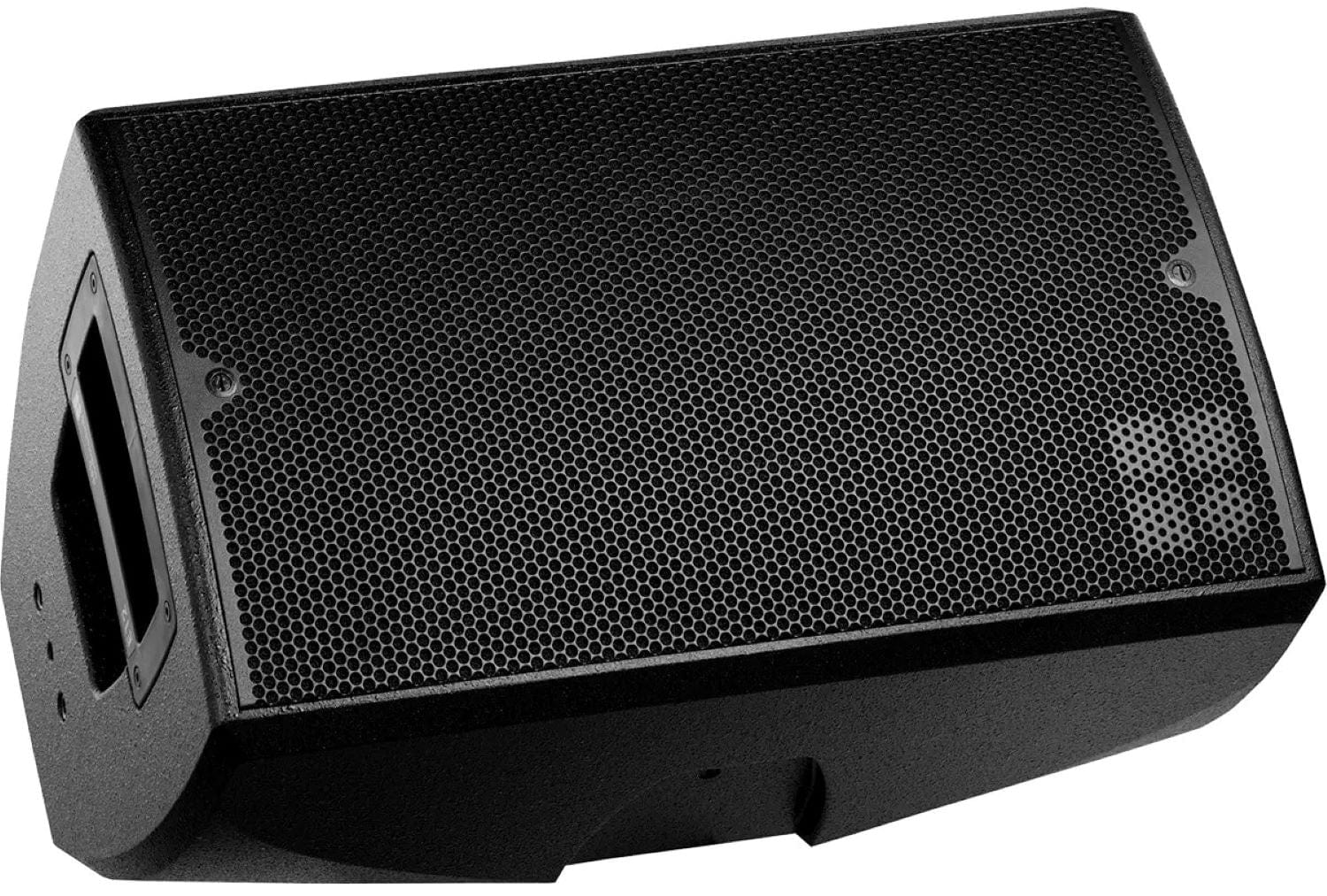

d&b audiotechnik E12 12 Inch Coaxial Loudspeaker with NL4 Connectors
The d&b audiotechnik E12 is a high performance 2 way multipurpose loudspeaker with an integrated 12 inch and 1.3 inch coaxial driver, for speech and music as a stand alone full range system or within larger distributed systems. Its 80 x 50 degree horn rotates through 90 degrees, and the multifaceted cabinet works upright, horizontal or as a stage monitor. This version has 2 x NL4 connectors. Trianze Tech supplies the E12 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 12 inch neodymium driver with coaxial 1.3 inch compression driver
- 80 x 50 degree horn, rotatable to 50 x 80 degrees
- Up to 134 dB SPLmax with D12
- Upright, horizontal or stage monitor use
- Polyurethane integral hard foam cabinet with hidden stand socket
- 2 x NL4 connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E12 (NL4) |
| Type | 2 way coaxial passive loudspeaker |
| Frequency Response | 50 Hz to 18 kHz (standard), 100 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 131 dB with D6, 134 dB with D12 |
| Input Level (100 dB SPL/1 m) | -17 dBu |
| Nominal Impedance | 8 ohms |
| Power Handling | 300 W RMS / 1600 W peak (10 ms) |
| Dispersion | 80 x 50 degrees, rotatable |
| Components | 12 inch neodymium driver, coaxial 1.3 inch compression driver with 3 inch coil, passive crossover |
| Connections | 2 x NL4 (pins 1+/1-) |
| Weight | 16 kg (35 lb) |
Why Buy the d&b audiotechnik E12 NL4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E12 NL4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik E12 has an 80 x 50 degree dispersion pattern, and the horn rotates through 90 degrees to give 50 x 80 degrees.
The d&b audiotechnik E12 reaches 131 dB maximum SPL with a D6 amplifier and 134 dB with a D12 (1 m, free field).
This d&b audiotechnik E12 version has 2 x NL4 connectors with pin assignment 1+/1-.
Yes. The multifaceted cabinet of the d&b audiotechnik E12 allows upright or horizontal use as well as deployment as a stage monitor.
The d&b audiotechnik E12 covers 50 Hz to 18 kHz in standard mode and 100 Hz to 18 kHz in CUT mode (-5 dB).
Trianze Tech supplies the d&b audiotechnik E12 NL4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
