d&b audiotechnik DS10: Dante to AES3 Audio Network Bridge with 5 Port Switch, 1 RU
Model
:
DS10 Audio Network Bridge
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

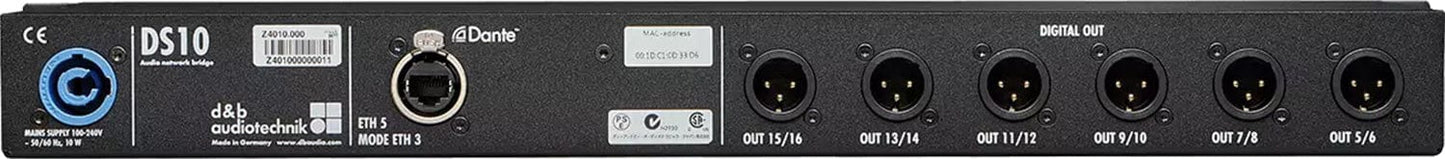

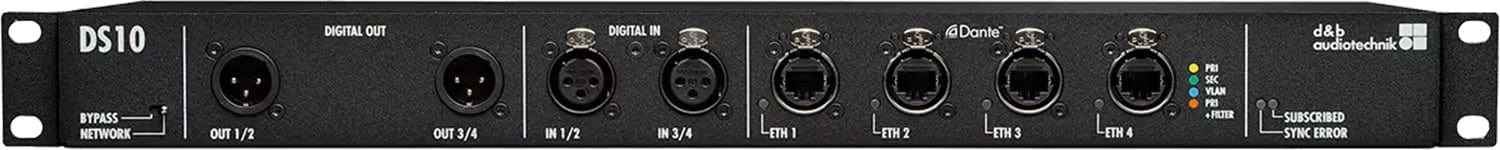

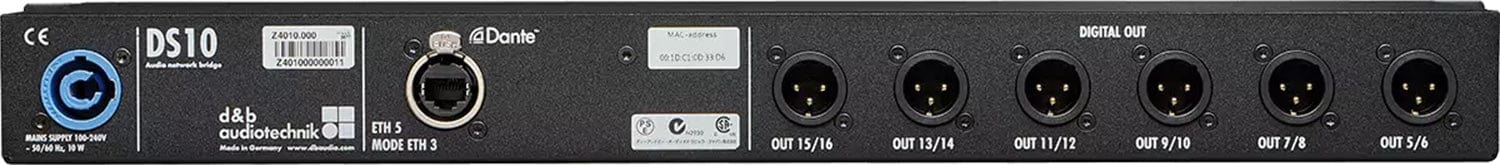

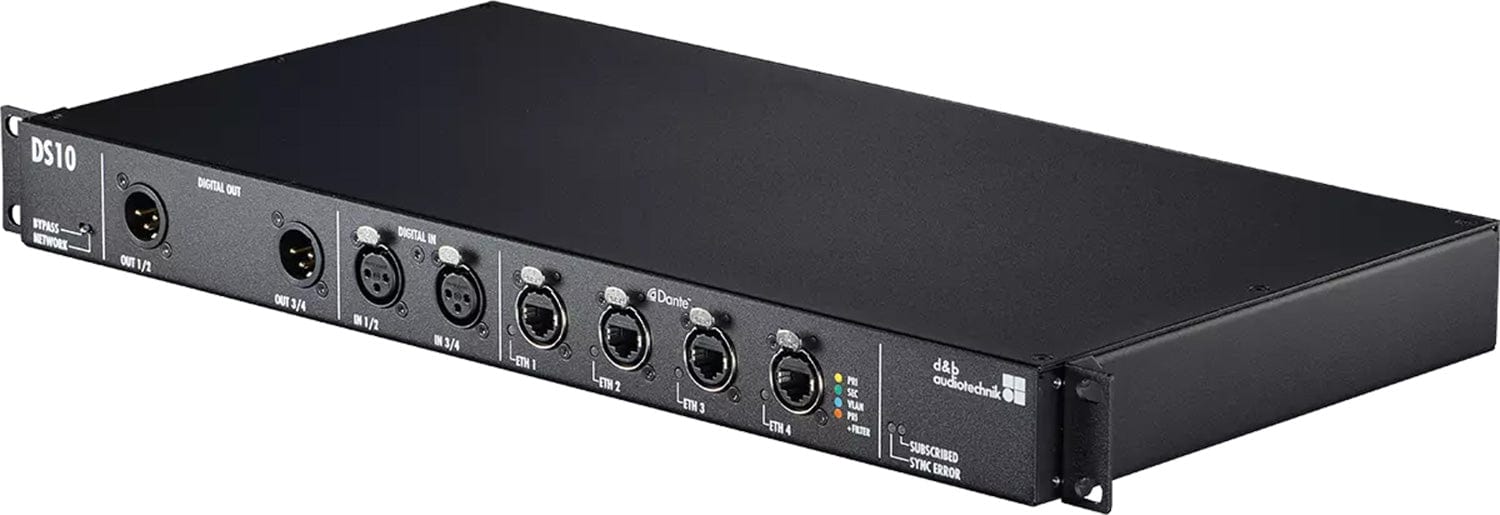

d&b audiotechnik DS10 Dante to AES3 Audio Network Bridge
The d&b audiotechnik DS10 Audio Network Bridge interfaces between Dante networks and AES3 digital audio, while distributing Ethernet control data in front of the amplifiers. It delivers up to sixteen Dante channels on AES3 outputs with channel label metadata, and four AES3 inputs give a break in path to the Dante network. Trianze Tech supplies the DS10 for networked d&b systems in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 16 AES3 digital output channels from Dante
- 4 AES3 digital input channels into Dante
- Integrated 5 port Ethernet switch
- AES3 streams carry Dante channel label metadata
- Bypass mode for AES3 distribution
- 1 RU, 232 mm deep
Technical Specifications:
| Spec | Value |
|---|---|
| Model | DS10 |
| Type | Dante to AES3 audio network bridge |
| Digital Outputs | 16 channels AES3, 3-pin XLR male, 48/96 kHz |
| Digital Inputs | 4 channels AES3, 3-pin XLR female, 32 to 192 kHz with SRC |
| Network | Built in 5 port Ethernet switch, etherCON, 100/1000 Mbit |
| Operating Temperature | 0 to 40 C |
| Mains | powerCON, 100 to 240 V, overvoltage protection up to 400 V AC |
| Dimensions | 1 RU x 19 inch x 232 mm |
| Weight | 3.75 kg (8.26 lb) |
Why Buy the d&b audiotechnik DS10 Audio Network Bridge from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the DS10 Audio Network Bridge with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik DS10 bridges Dante network audio to AES3, sending up to sixteen Dante channels to d&b amplifiers and distributing Ethernet control data.
The d&b audiotechnik DS10 has 16 AES3 output channels (8 AES3 streams) and 4 AES3 input channels (2 AES3 streams).
Yes. The d&b audiotechnik DS10 has a built in 5 port Ethernet switch on etherCON connectors at 100 or 1000 Mbit.
The d&b audiotechnik DS10 outputs AES3 at 48 or 96 kHz, and its AES3 inputs accept 32 to 192 kHz through a sample rate converter.
The d&b audiotechnik DS10 is a 1 RU, 19 inch unit 232 mm deep and weighs 3.75 kg (8.26 lb).
Trianze Tech supplies the d&b audiotechnik DS10 Audio Network Bridge in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
