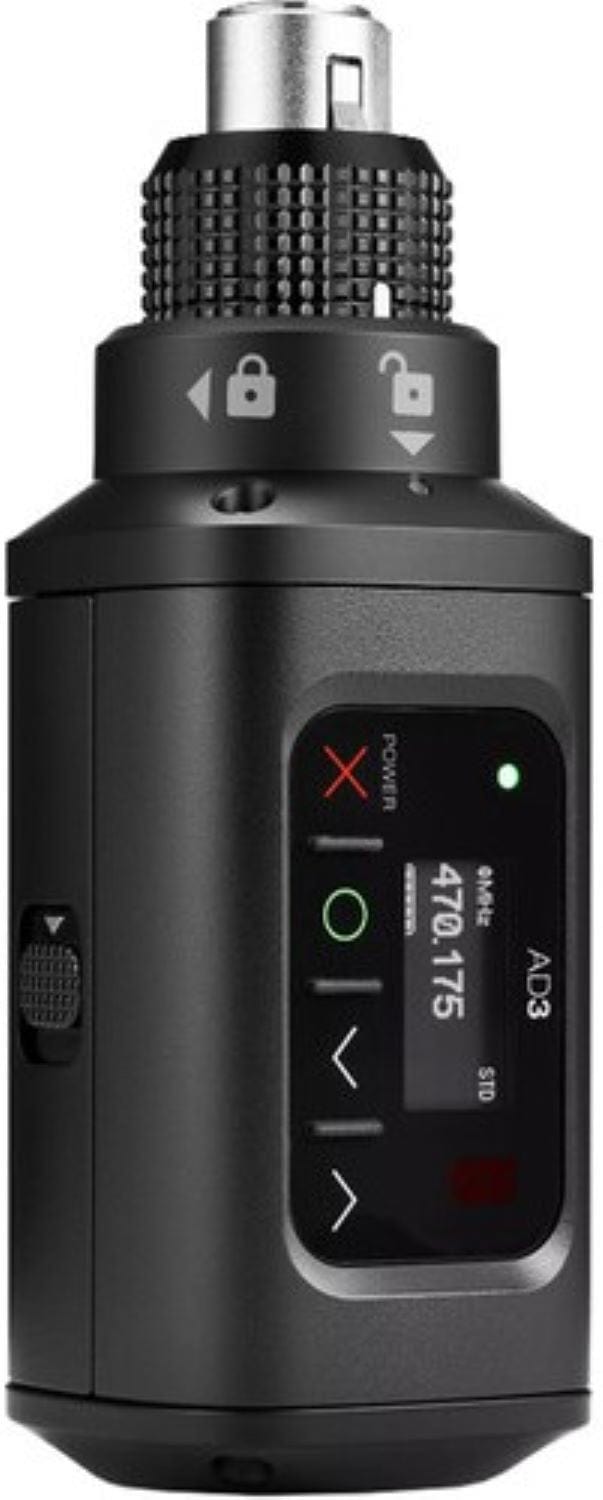

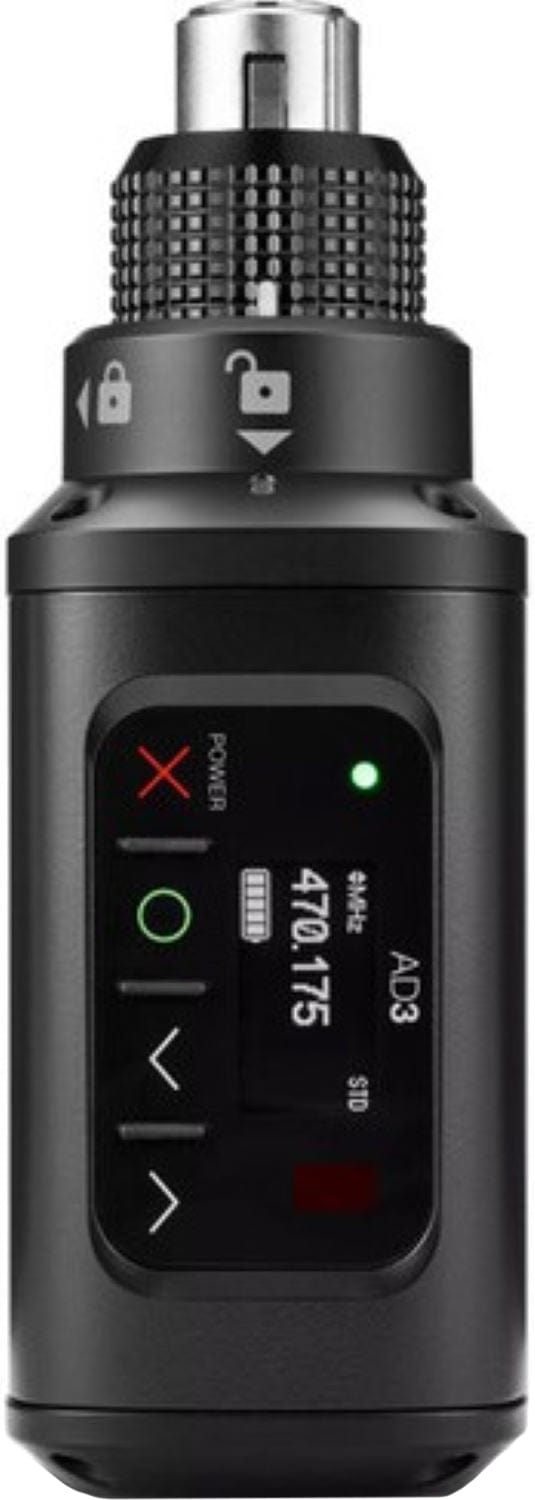

Shure Axient AD3 Axient Digital Plug-On Wireless Transmitter

The Shure AD3 is a digital handheld wireless plug-on microphone transmitter compatible with Axient Digital series receivers. The AD3 features a secure XLR connector and supplies 48 V phantom power, allowing you to use any handheld or shotgun XLR microphone with the Axient digital wireless system.

The transmitter operates in a single 146 MHz ultrawide UHF bandwidth with selectable 2/10/35mW RF output power and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or an SB900A lithium-ion rechargeable battery (available separately).

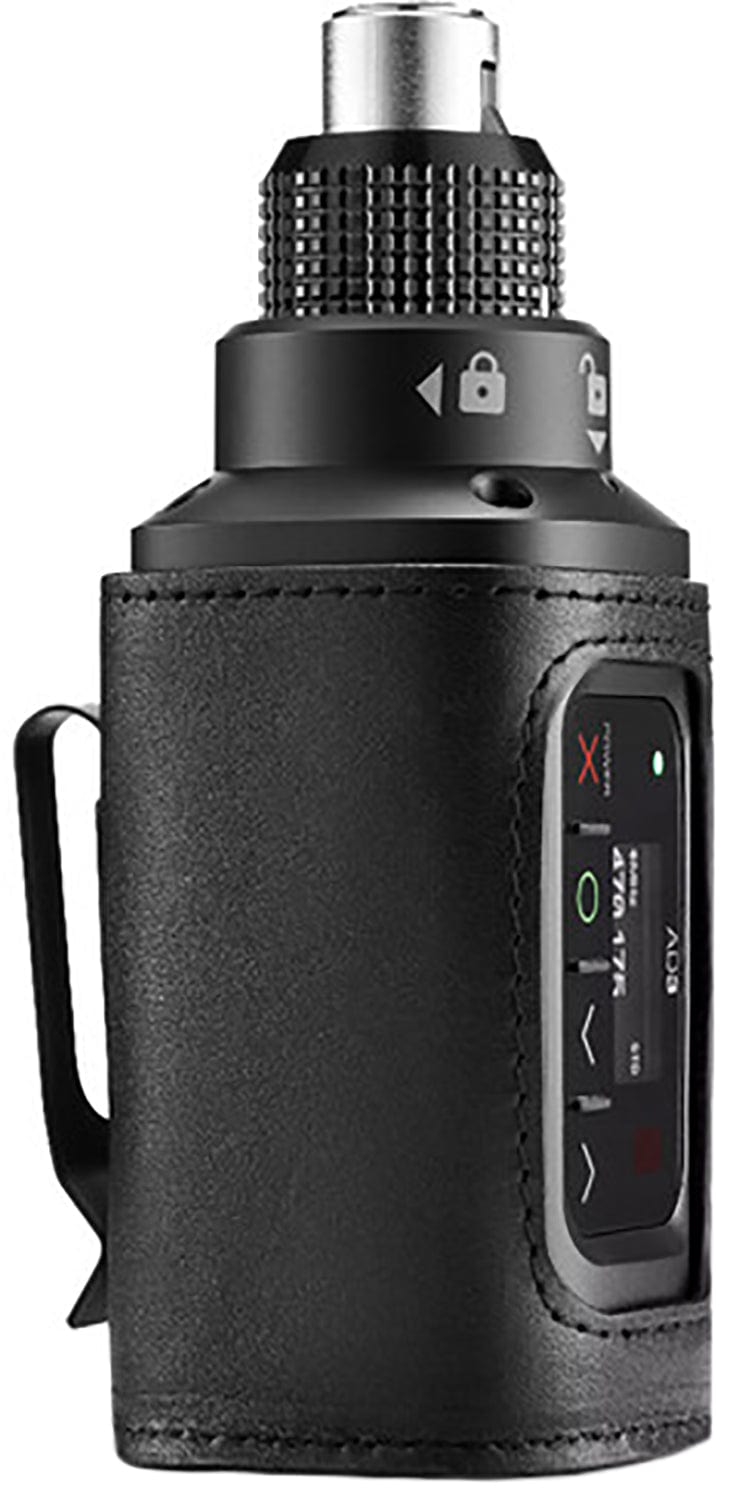

With a durable, moisture-resistant, lightweight aluminum housing, the AD3 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it ideal for high-profile, sound-reinforcement applications.

Features:

• For Axient Digital Receivers

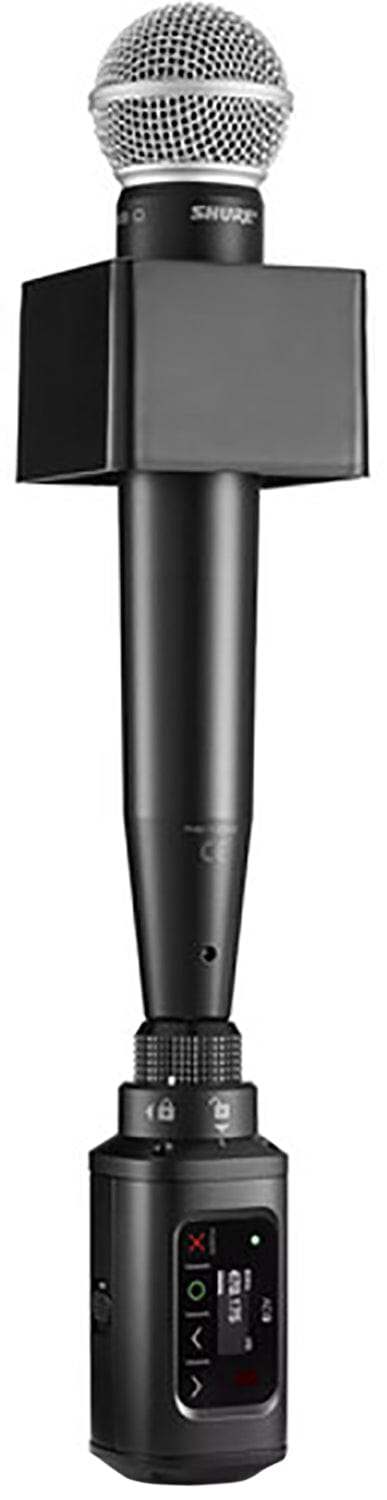

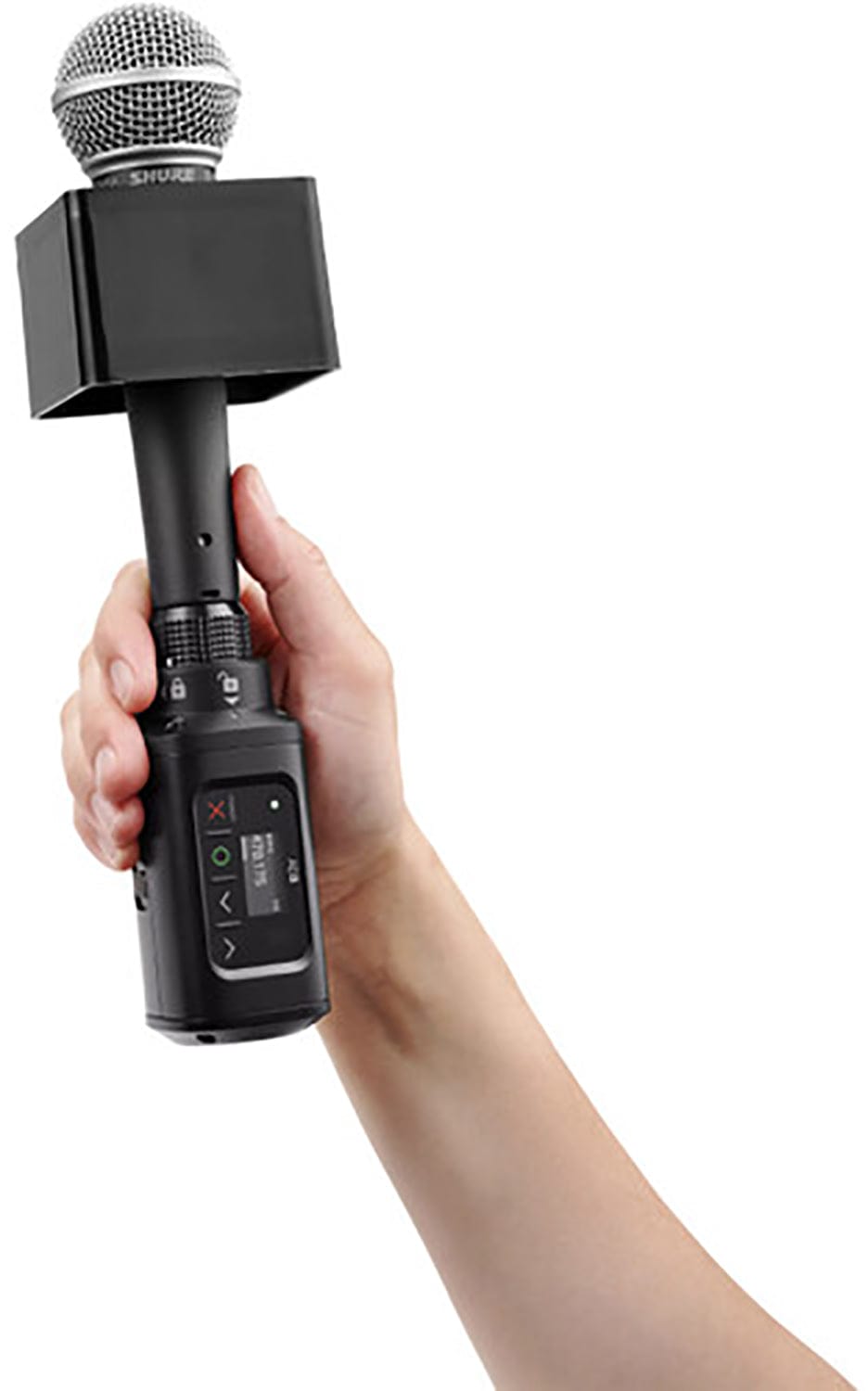

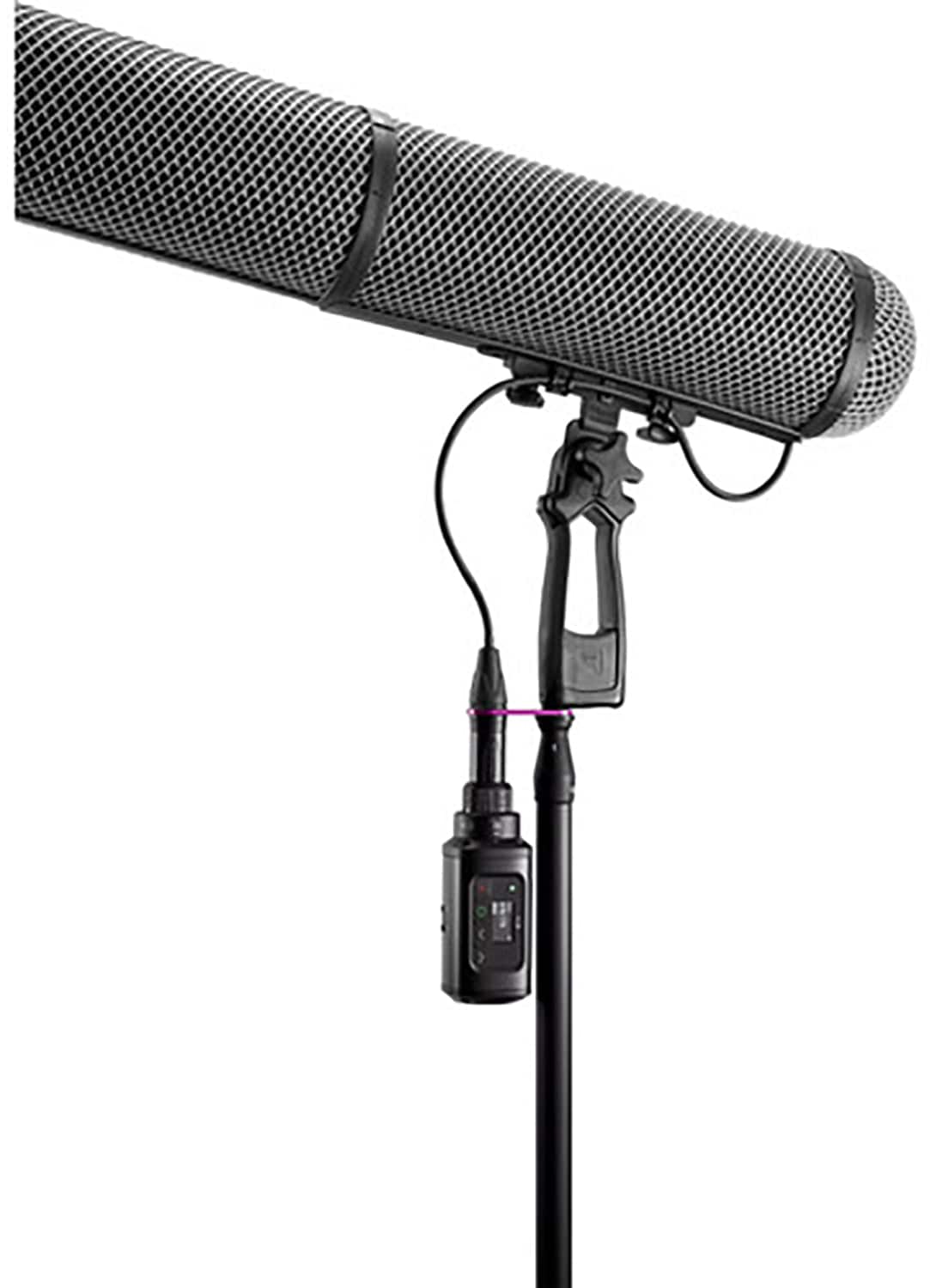

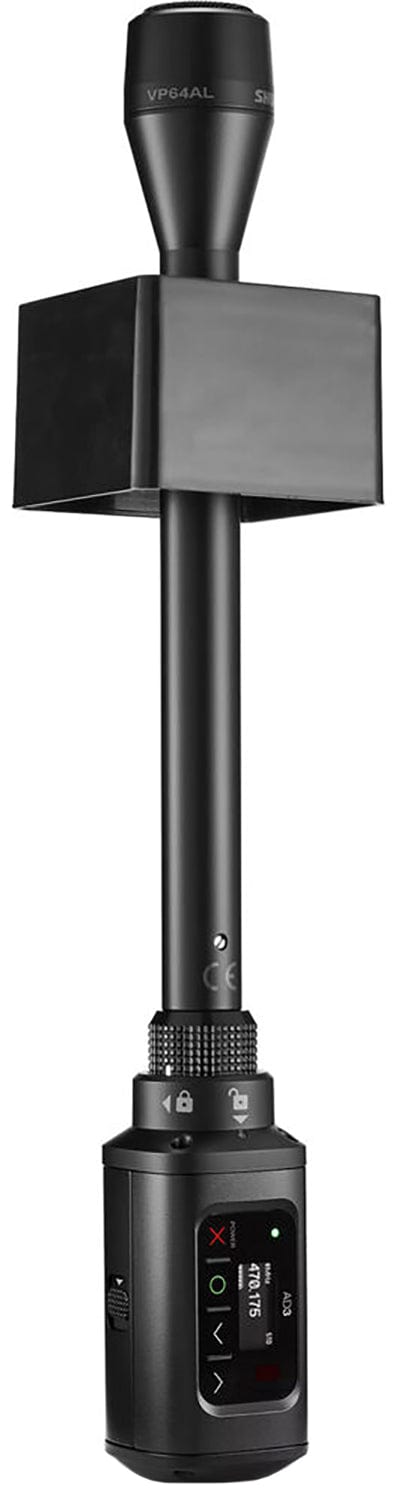

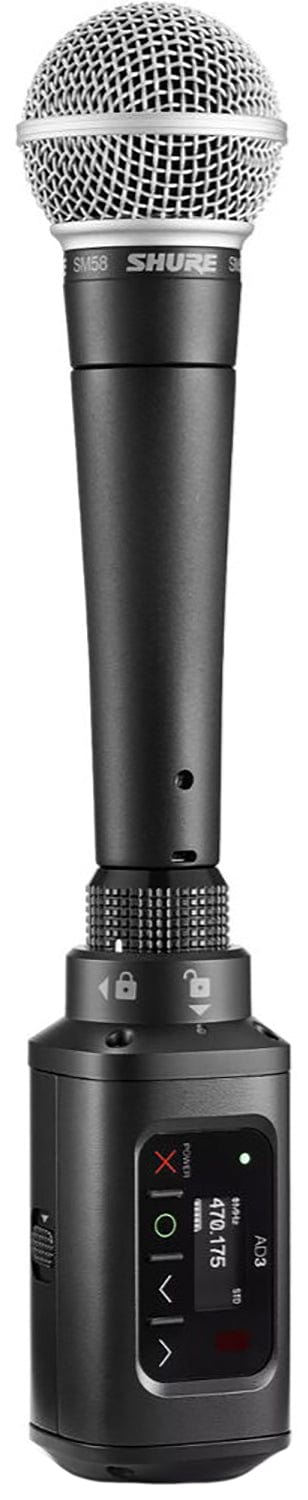

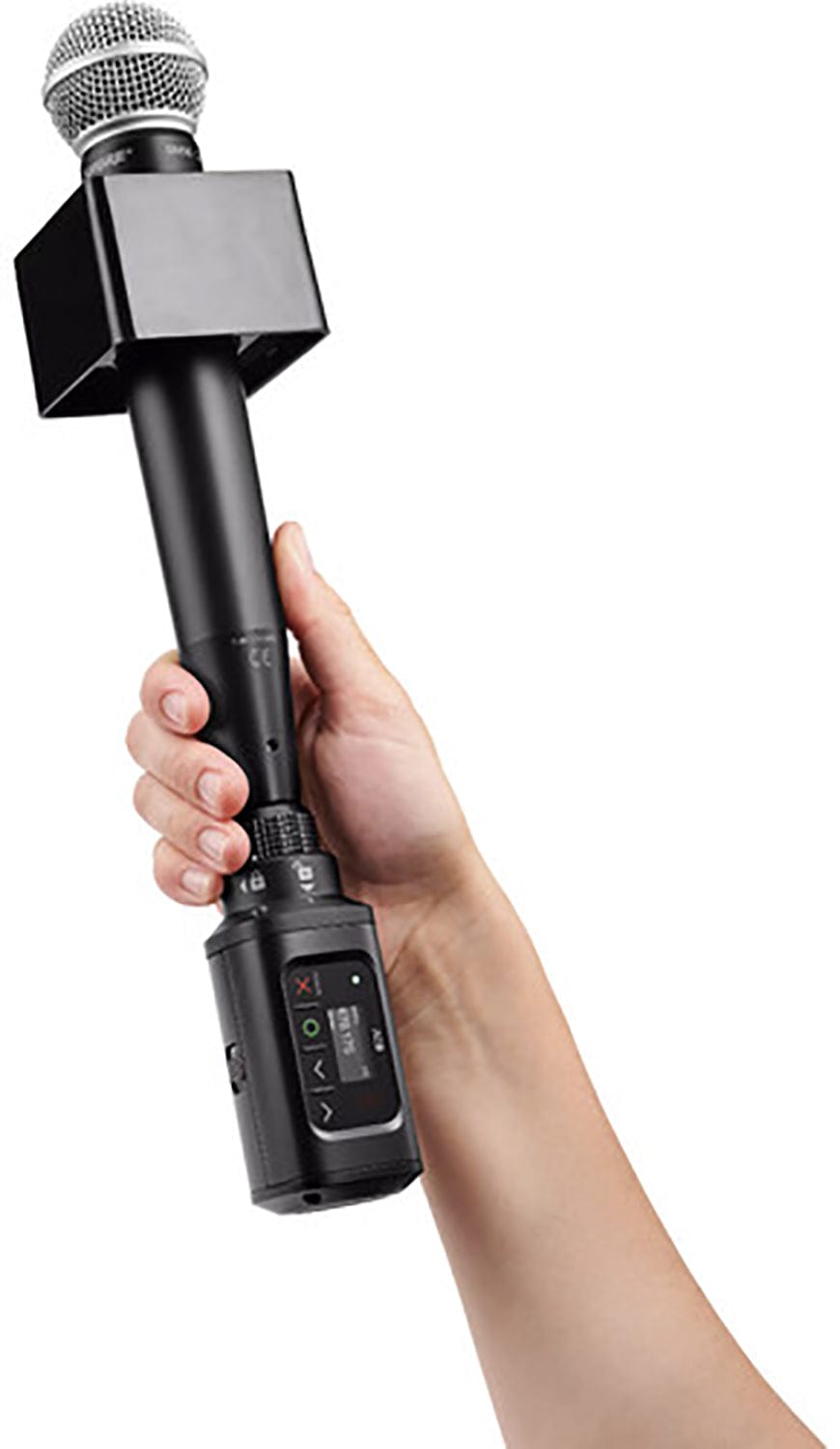

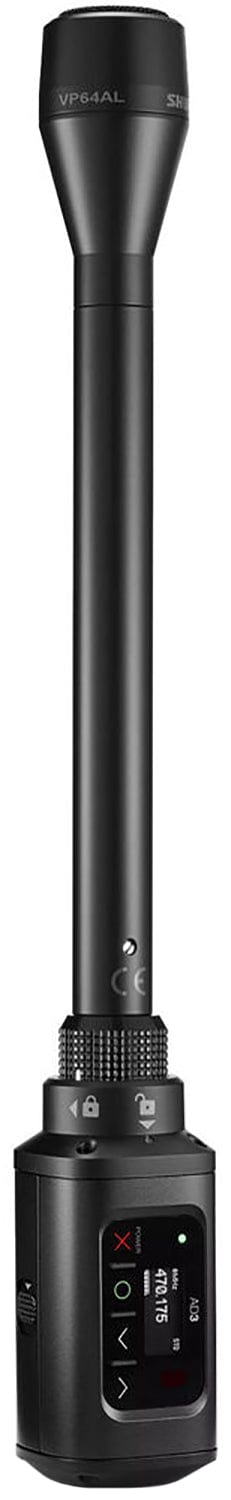

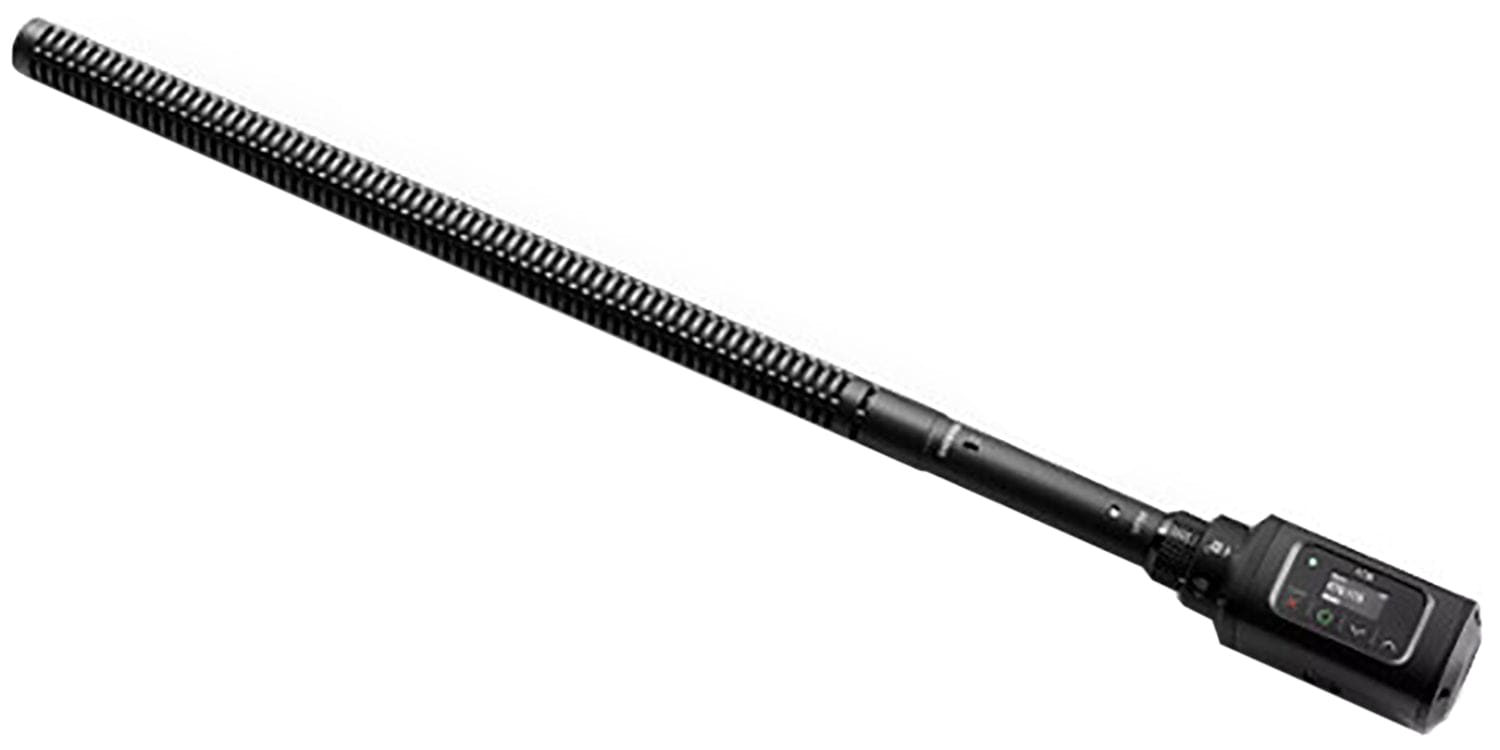

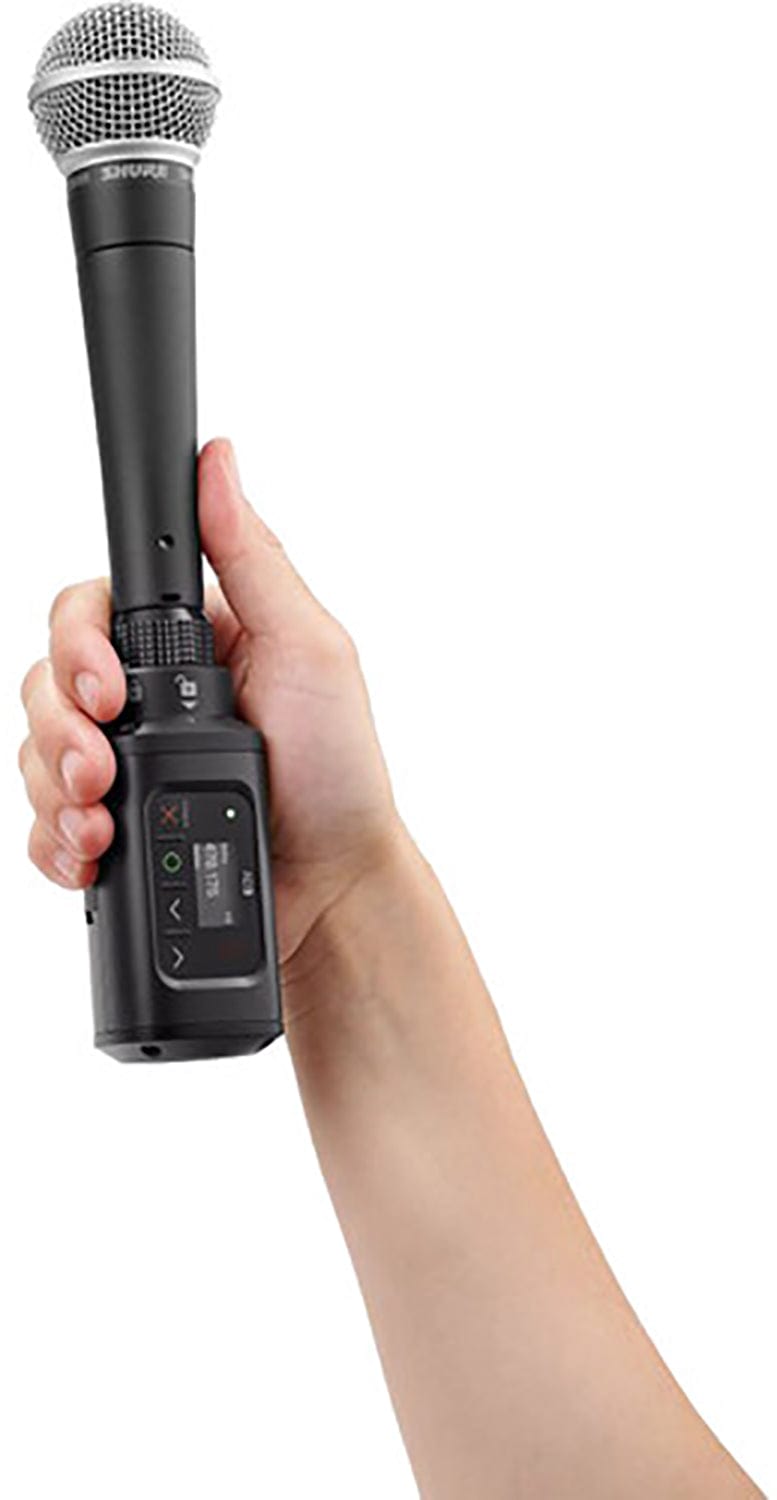

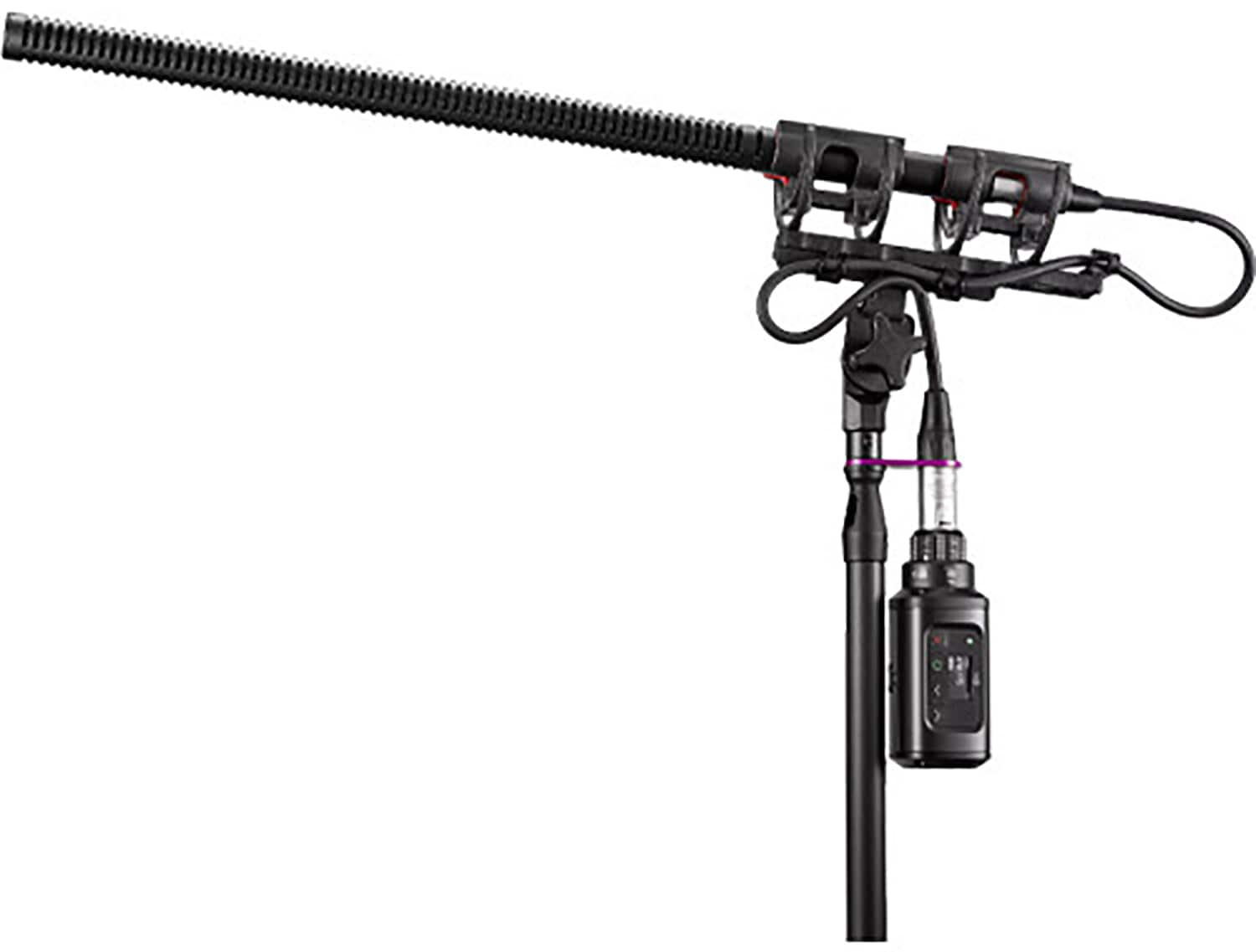

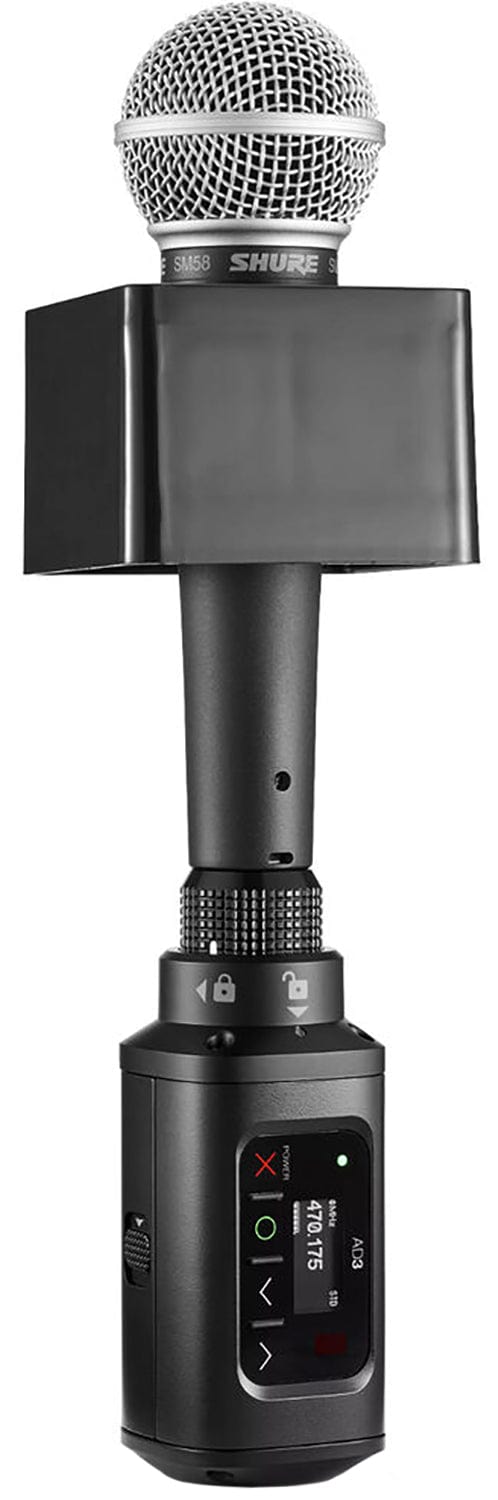

• Use with Any Handheld or Shotgun Mic
• XLR Connector with 48V Phantom
• Automatic Gain Adjustment
• 2/10/35mW RF Output Power
• Backlit LCD
• Secure AES-256 Encryption
• Networked Intelligent Charging
• 8 Hours with SB900A Rechargeable Battery

Specifications:

• RF Frequency Band: 470 to 616 MHz
• RF Bandwidth: 166 MHz
• Frequency Step Size: 25 kHz
• RF Channel Scanning: Auto-Scan
• Max Operating Range: 328.1' / 100 m (Line of Sight)
• Latency: 2 to 2.9 ms (Selectable)
• Encryption: AES 256
• Modulation: Proprietary
• Transmitter:
  • Transmitter Type: Plug-On
  • RF Output Power: 2 / 10 / 35 mW

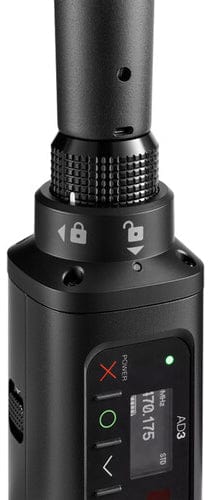

  • Audio I/O: 1 x XLR 3-Pin Female Balanced Input (Lockable)
  • Phantom Power: +48 V
  • Pad: None
  • Auto-Level Control: Yes
  • Gain Range: -12 to +21 dB (3 dB Steps)
  • Signal Processing: None
  • Frequency Response: 20 Hz to 20 kHz
  • Sync Method: IR
  • Antenna: 1 x Internal Single-Band Helical (Handheld)
  • Power Requirements: Battery

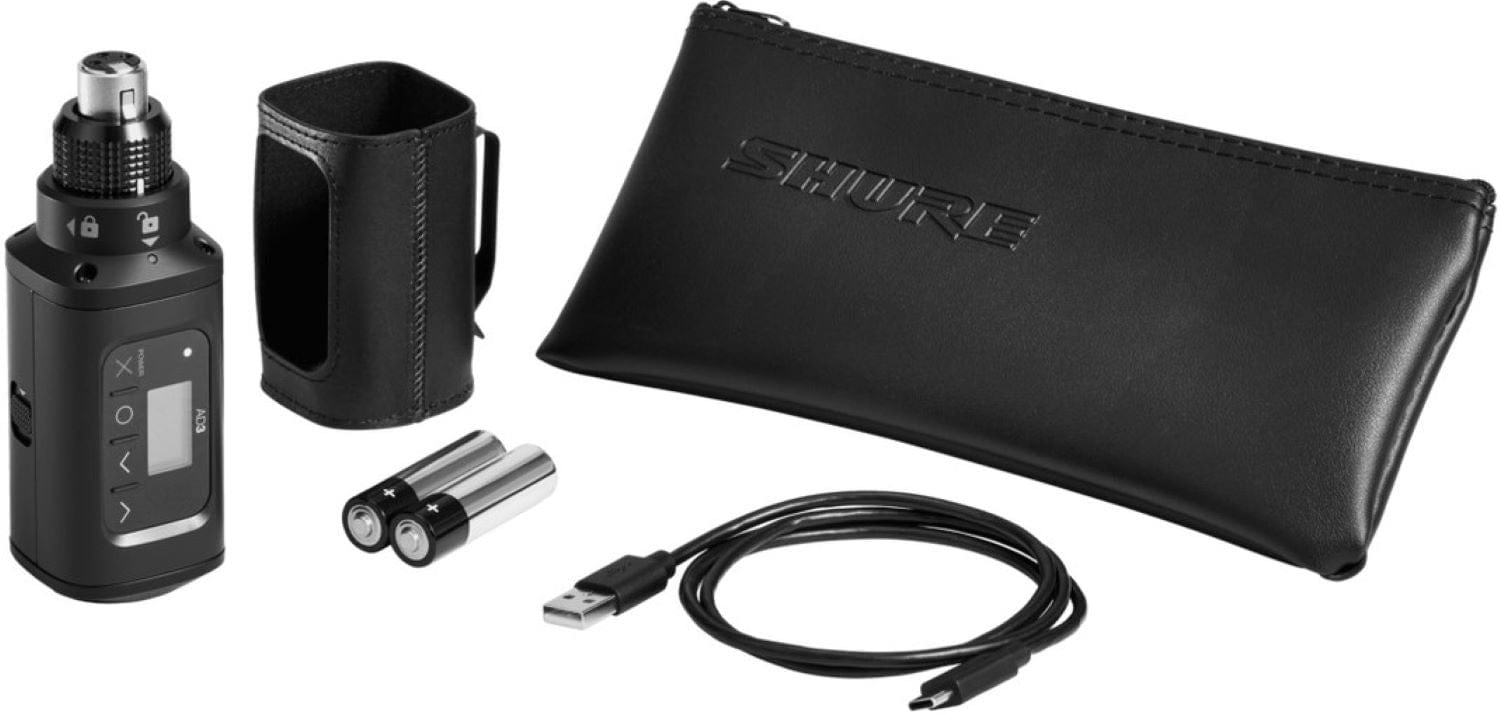

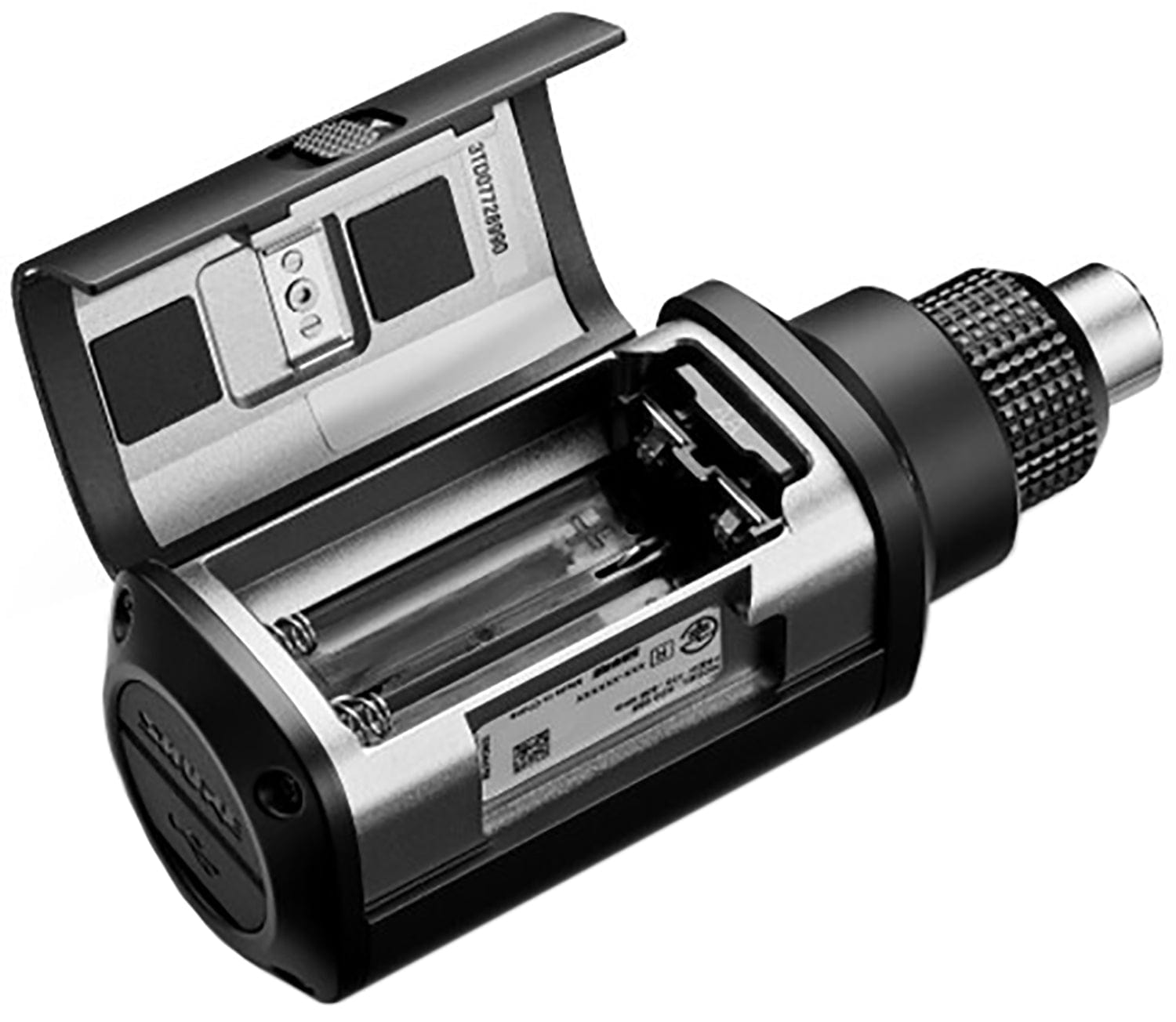

  • Battery Type:

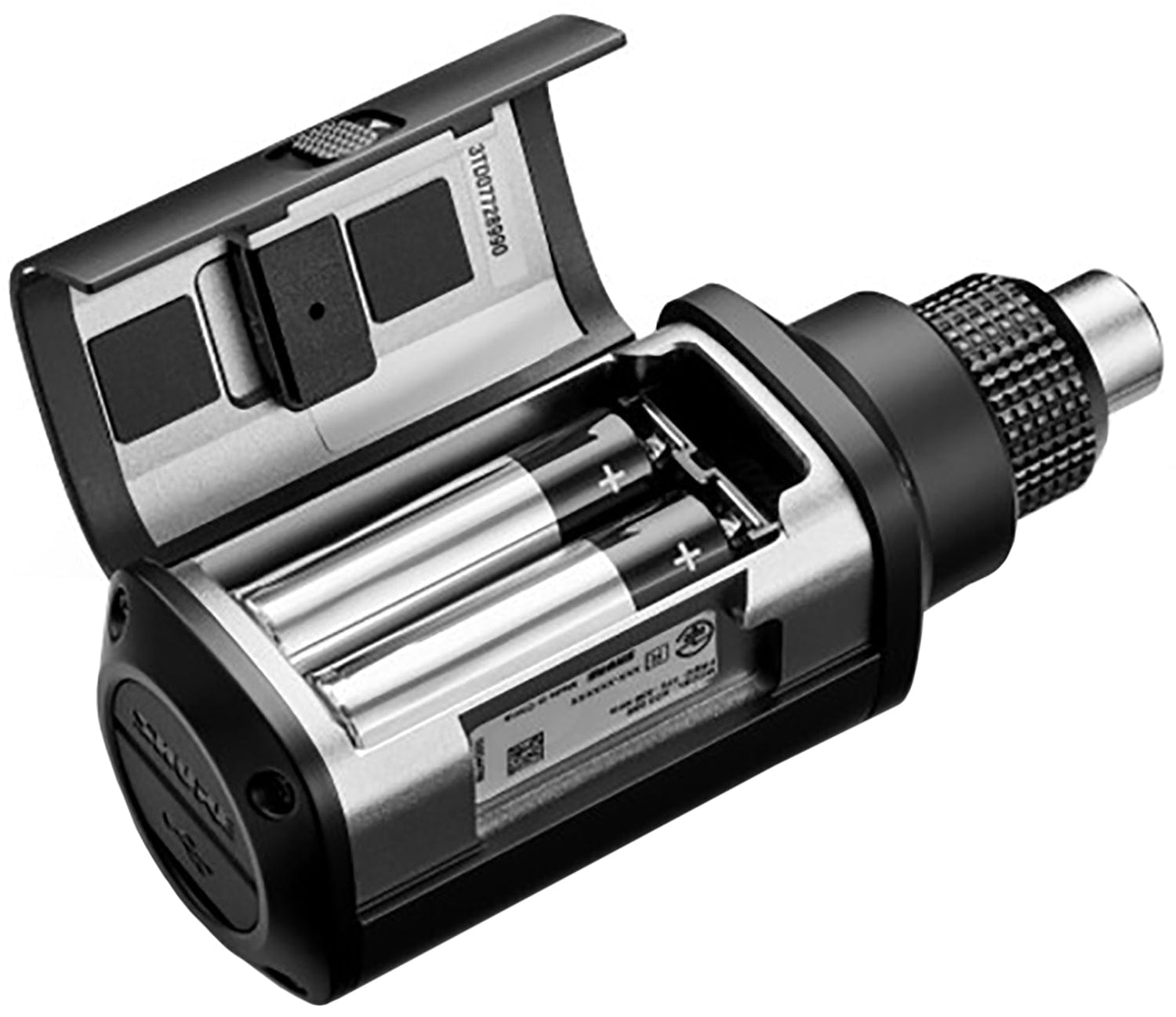

    • 2 x AA (Included)

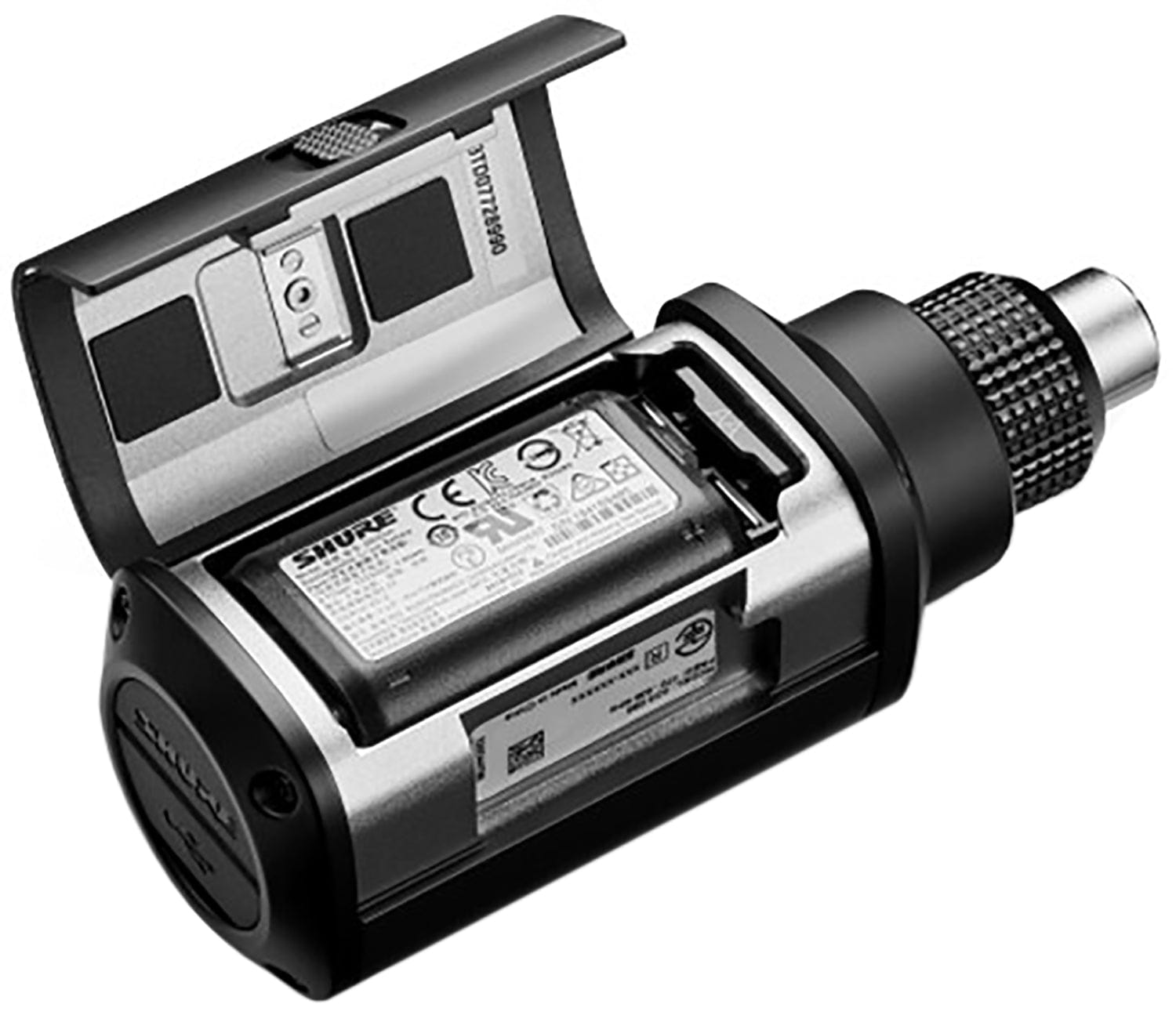

    • 1 x Shure SB900A (Not Included, Replaceable)
  • Approx. Battery Life:
    • Med.: 8 Hours (Alkaline)
    • Med.: 8 Hours (Lithium Shure SB900A)

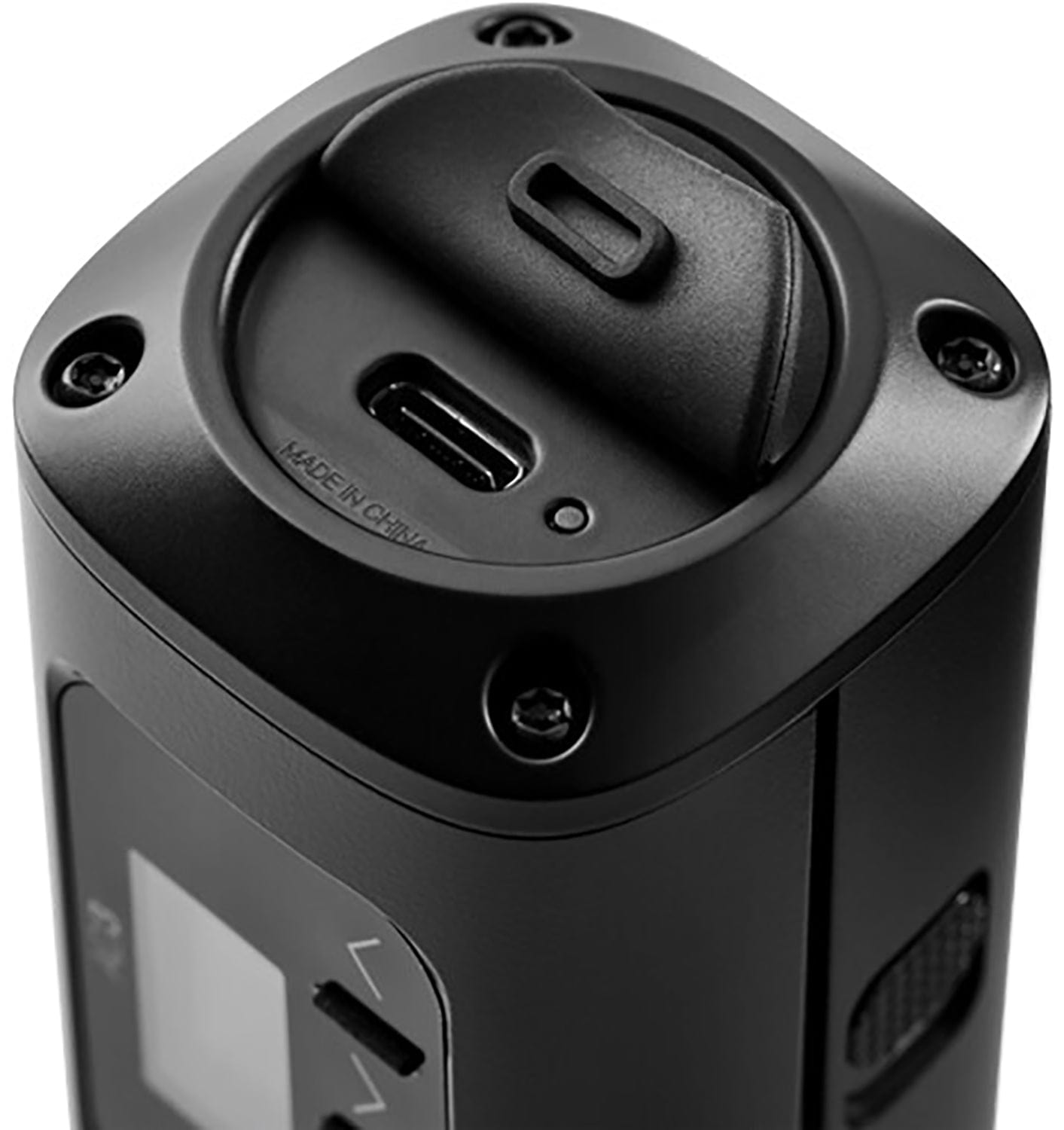

  • USB/Lightning I/O: 1 x USB-C (Charging)

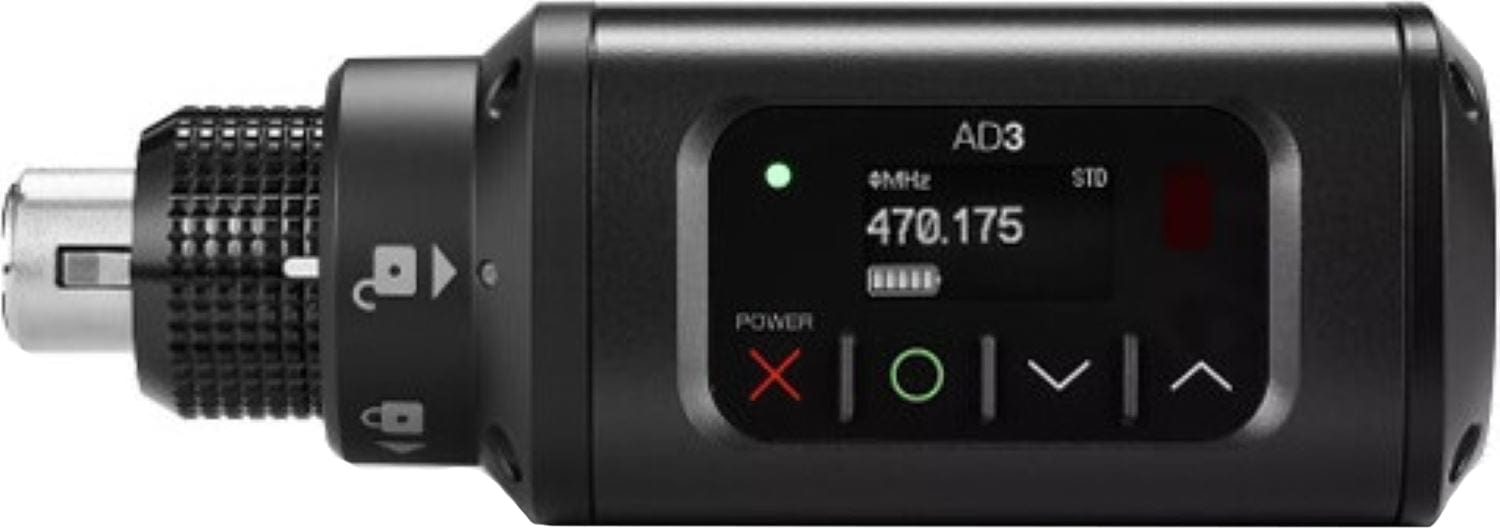

  • Display & Indicators: 1 x LCD (Battery Status, Channel, Group, Signal Strength)
  • Housing: Aluminum
  • Operating Temperature: 0 to 122°F / -17 to 50°C
  • Storage Temperature: -20 to 165°F / -28 to 73°C
• Packaging Info:
  • Package Weight: 1.475 lb
  • Box Dimensions (LxWxH): 12.1 x 4.6 x 3.4"
