Shure HA-8091: PWS Domed Helical Antenna, 460 to 900 MHz with 9 to 11 dBi Gain
Model
:
HA-8091
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure HA-8091: PWS Domed Helical Antenna, 460 to 900 MHz with 9 to 11 dBi Gain

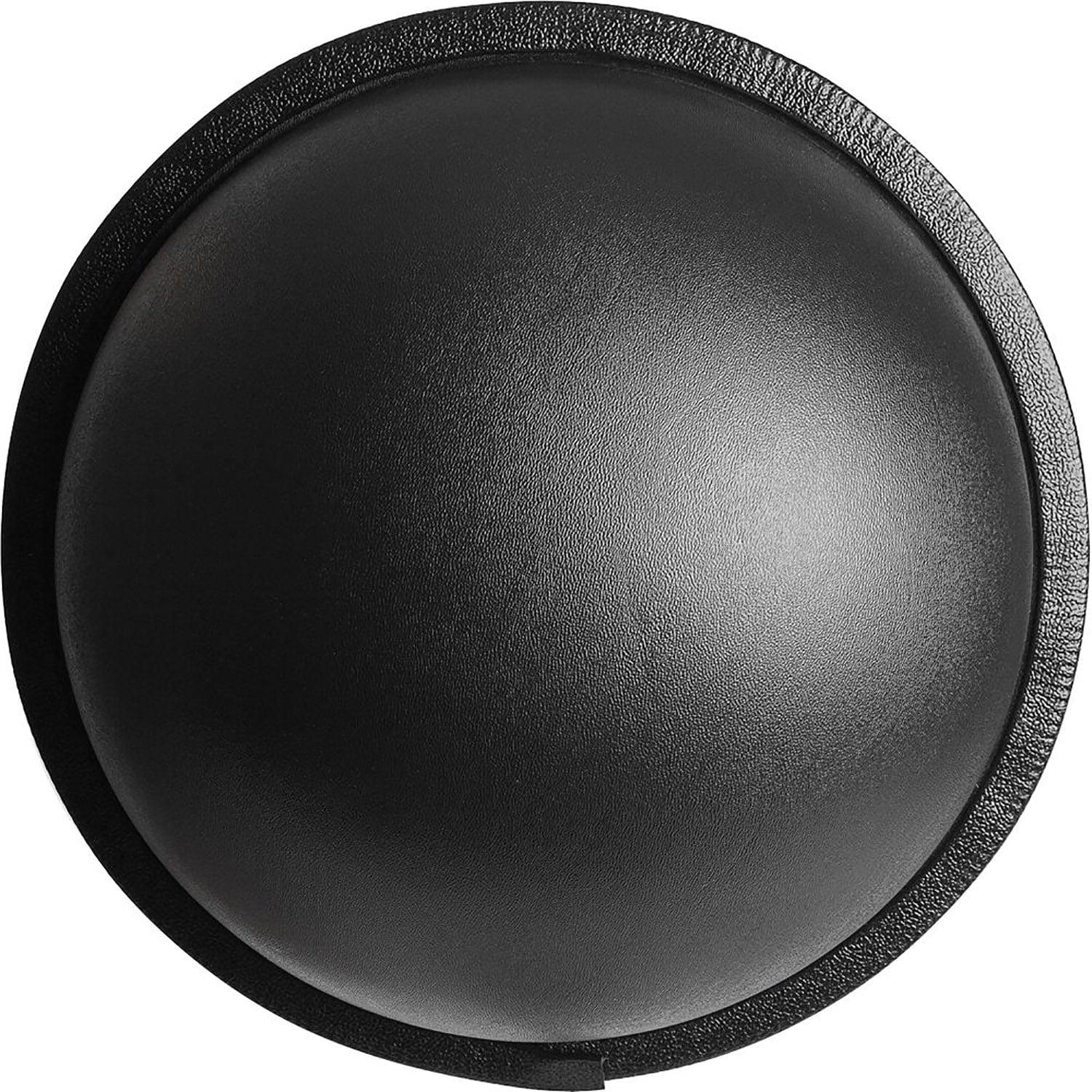

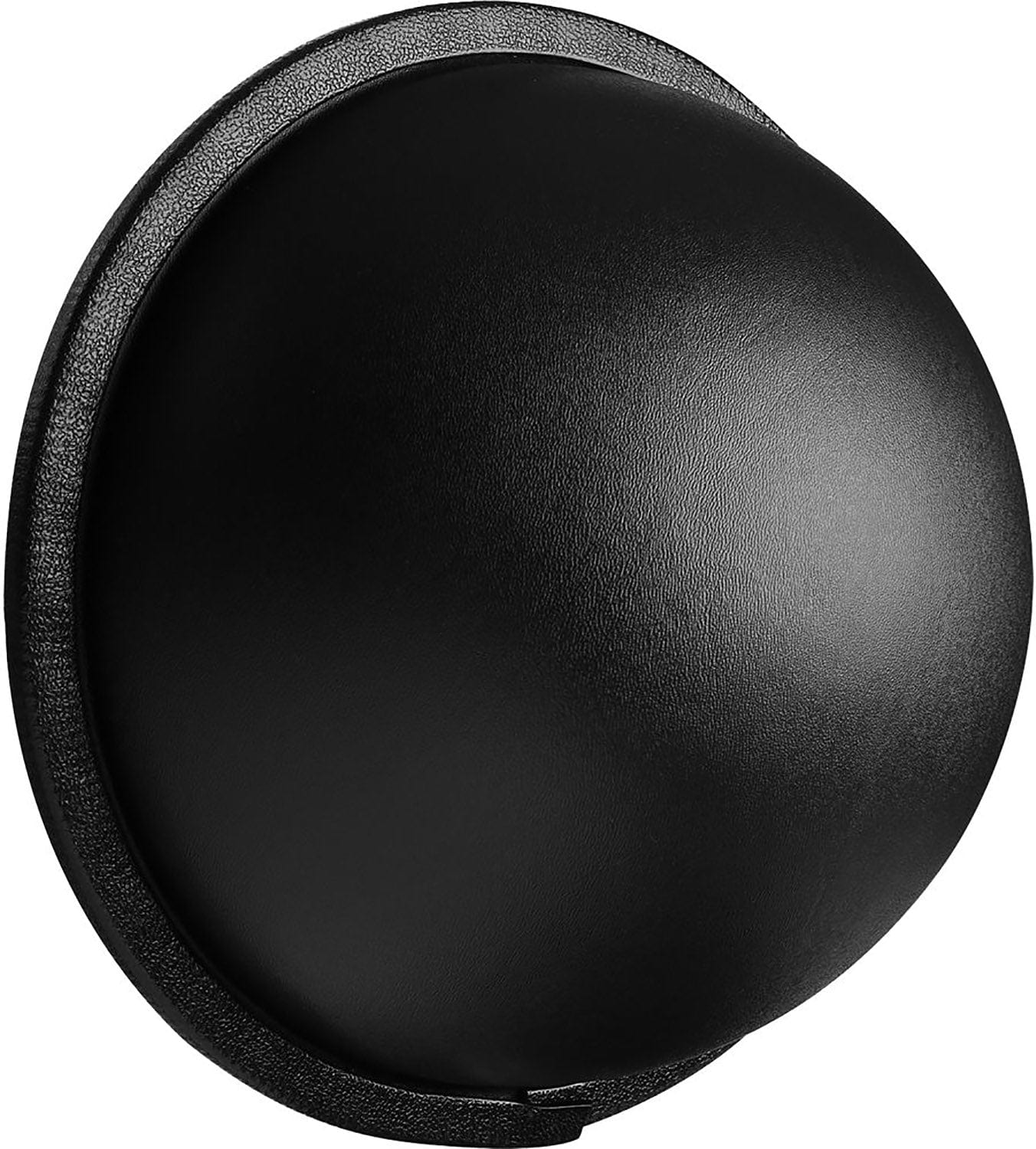

The Shure HA-8091 PWS domed helical antenna has the same circular polarization as the original PWS helical but in a sealed, more compact enclosure, for venues and installations where sight line appearance is a priority. Its inherent gain, greater bandwidth and drop-out resistant polarization suit multi-channel wireless microphone, in-ear and intercom systems in theatres, arenas and houses of worship across Dubai, Abu Dhabi and the wider UAE.
Key Features
- Sealed domed enclosure with a compact, inconspicuous profile
- Circular polarization distributes the signal through all polarizations to reduce dropouts
- High gain for a strong signal
- Usable as a transmitting or receiving antenna
- Dual mounting adapter for 5/8 inch 27 and 3/8 inch 16 standards
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | HA-8091 |
| Frequency Range | 460 to 900 MHz |
| Impedance | 50 ohms |
| Beamwidth | 72 degrees |
| Antenna Gain (On Axis) | 9 to 11 dBi |
| Rear Rejection | 14 dB |
| RF Connector | BNC female, right-angle |
| Dimensions / Weight | 34.5 x 34.5 x 15.9 cm / 1.7 kg (3.8 lb) |
Why Buy the Shure HA-8091 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for RF accessories.
- Genuine Shure stock sourced through authorized distribution channels
- Discreet dome for venues where appearance matters
- RF and antenna placement advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for installations and rental fleets
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The HA-8091 has the same circular polarization as the original PWS helical antenna but in a sealed, more compact dome, for venues and installations where sight line appearance is a priority.
The HA-8091 covers 460 to 900 MHz with a 50 ohm impedance, an on-axis gain of 9 to 11 dBi, a beamwidth of 72 degrees and 14 dB of rear rejection.
Yes. It can be used as a transmitting or a receiving antenna, so it suits in-ear monitor transmitters and wireless microphone receivers in large-scale events.

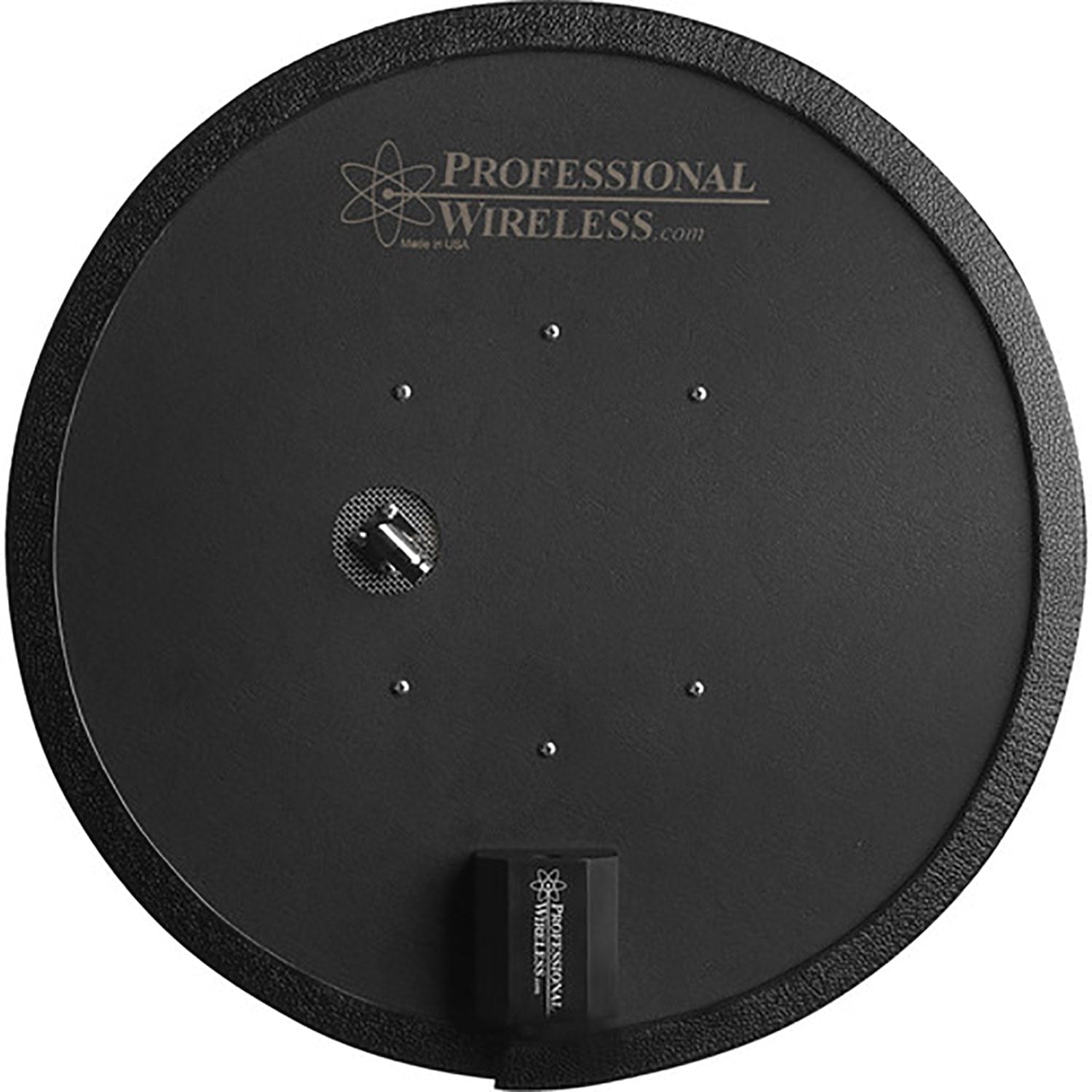

It has a BNC female right-angle connector and a dual mounting adapter supporting 5/8 inch 27 (US) and 3/8 inch 16 (European) standards.
The HA-8091 measures 34.5 x 34.5 x 15.9 cm (13.6 x 13.6 x 6.25 in) and weighs 1.7 kg (3.8 lb).
Trianze Tech stocks the Shure HA-8091 Antenna in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
