Bose EdgeMax EM180: White In-Ceiling Loudspeaker with PhaseGuide Technology (Open Box) | 777189-0220
Model
:
777189-0220
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

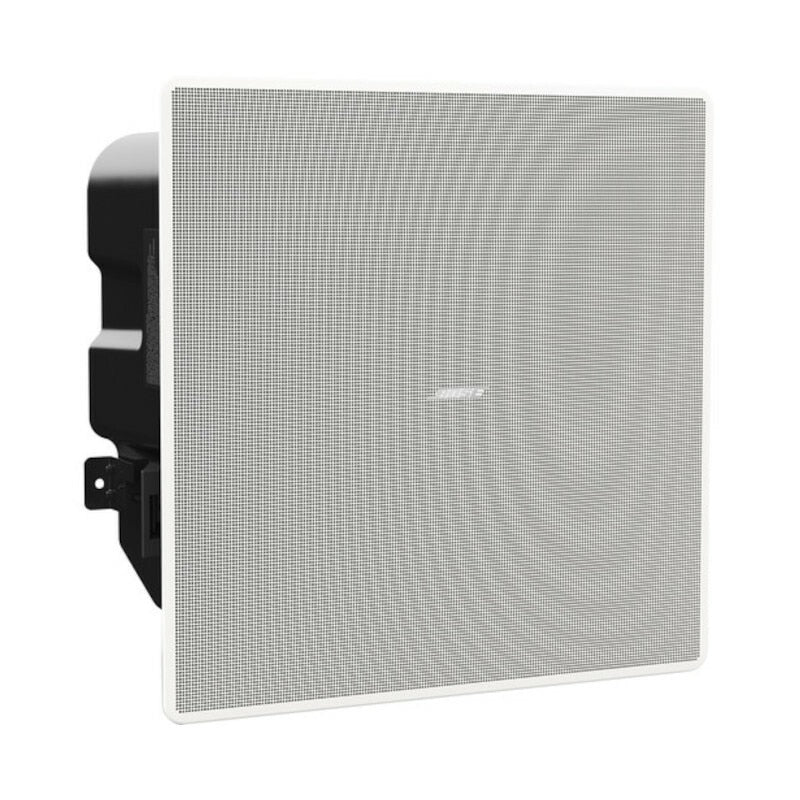

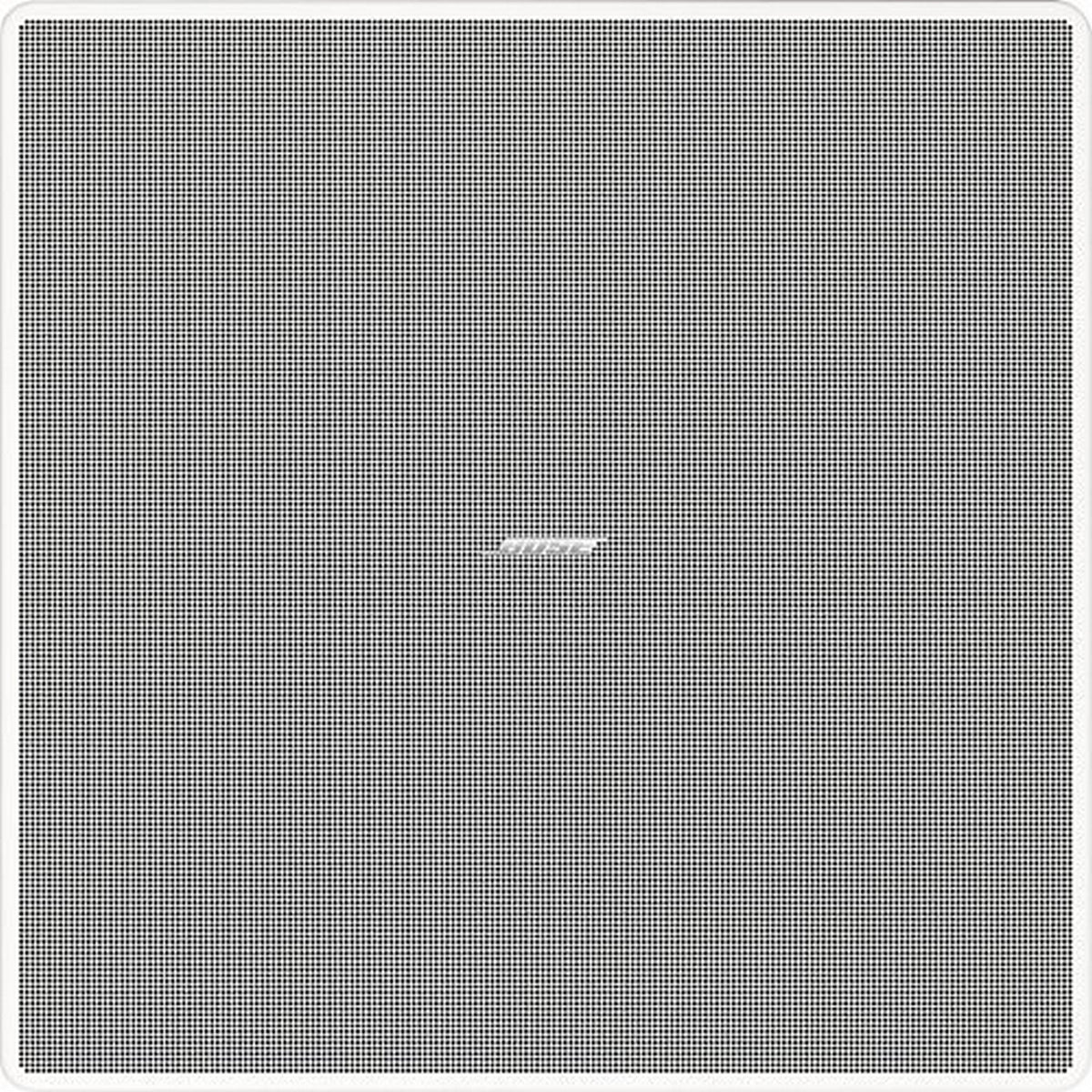

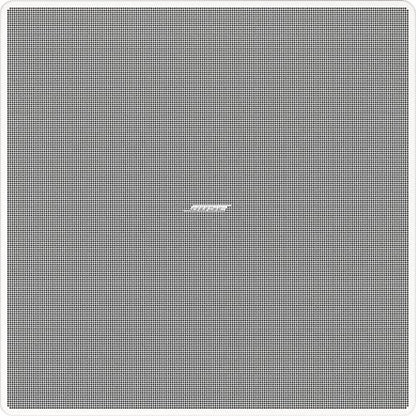

Bose EdgeMax EM180 In-Ceiling Loudspeaker: White, Open Box
This is a genuine Bose Professional EdgeMax EM180 loudspeaker in an open box unit, fully functional and inspected, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech at a reduced price versus new stock. The EM180 uses patented PhaseGuide technology to project sound 180 degrees along a wall perimeter, replacing multiple conventional dome tweeter ceiling speakers with one unit.
Key Features

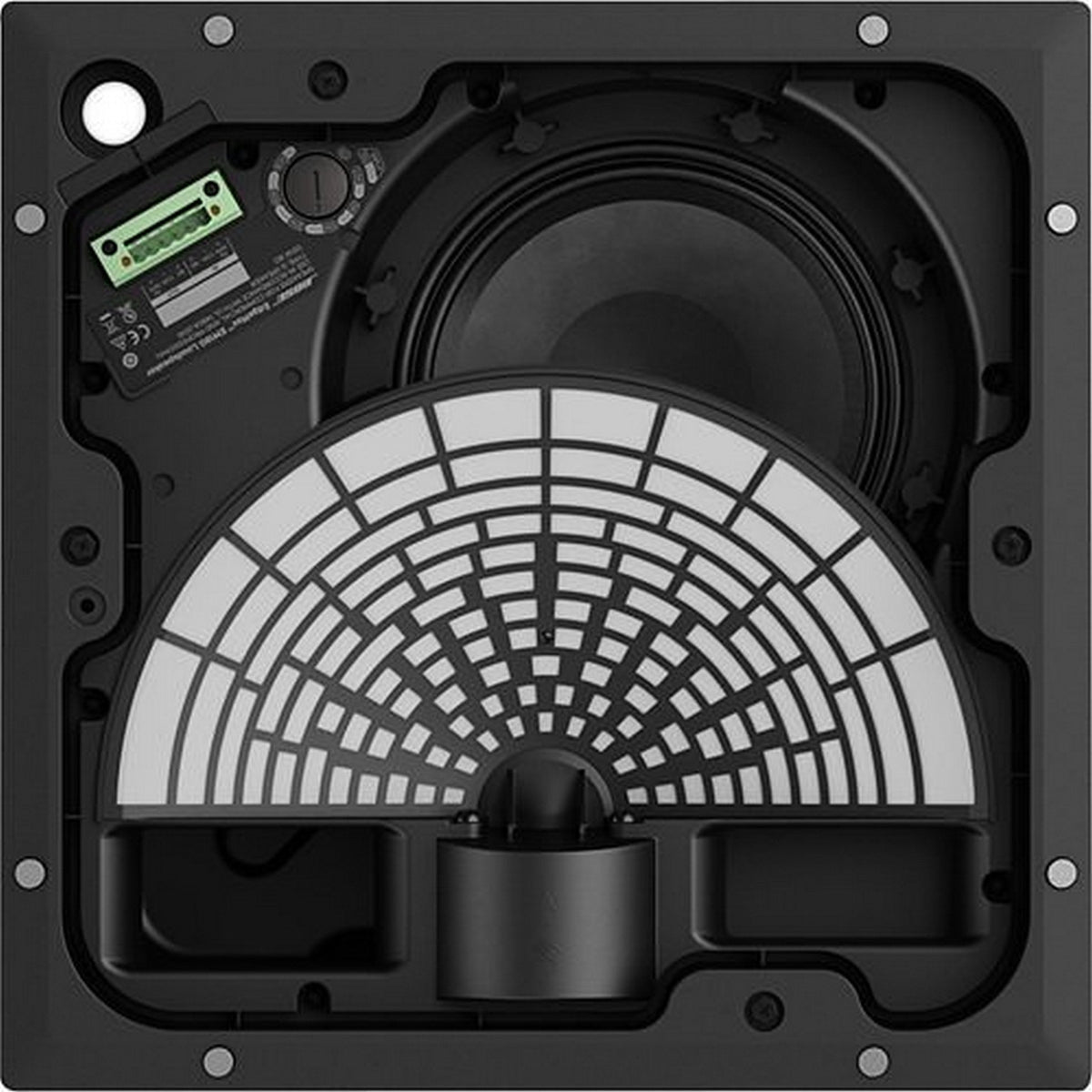

- Patented PhaseGuide technology with a high frequency compression driver and 8 inch woofer for boundary loaded bass
- 180 degree horizontal coverage designed for mounting along a wall to ceiling perimeter
- 125W RMS and 500W peak power handling with 114dB SPL continuous, 120dB peak
- 70V and 100V transformer taps from 2.5W to 80W plus bypass mode, with a 1kHz passive crossover
Technical Specifications
| Driver Configuration | High frequency compression driver, 8 inch woofer, two way |
| Frequency Response | 45Hz to 20kHz |
| Coverage | 180 degrees horizontal for wall perimeter mounting |
| Power Handling | 125W RMS, 500W peak, 114dB SPL / 120dB peak SPL |
| Impedance | 70V taps 2.5 to 80W, 100V taps 5 to 80W, bypass mode |
| Color | White |
| Condition | Open box, inspected and fully functional |
| Part Number | 777189-0220 |
Why Buy the Bose EdgeMax EM180 from Trianze Tech?
- Genuine Bose Professional loudspeaker sourced and supported locally in the UAE
- Open box pricing on fully inspected, fully functional stock
- Fast delivery and installation support across Dubai, Abu Dhabi and the GCC
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This EM180 is a genuine open box unit that has been inspected and confirmed fully functional. It is sold at a reduced price compared to new stock and is not a factory sealed unit.
The EM180 handles 125W RMS and 500W peak power, delivering up to 114dB continuous and 120dB peak SPL from its 8 inch woofer and compression driver.
The EM180 delivers 180 degree horizontal coverage using Bose PhaseGuide technology, designed for mounting along a wall to ceiling perimeter rather than a corner.
The EM180 offers 70V taps from 2.5W to 80W and 100V taps from 5W to 80W, plus a bypass mode, set via a 1kHz passive crossover with an integrated transformer.
The EM180 provides 180 degree horizontal coverage for wall perimeter mounting, while the EM90 provides 90 degree coverage for corner mounting. Both share the same PhaseGuide driver technology.
Trianze Tech stocks the Bose EdgeMax EM180 open box unit in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
