d&b audiotechnik Z5563.000: DS10 Rack Upgrade Kit with DS10 Dante to AES3 Audio Network Bridge and Rack Cabling
Model
:
Z5563.000 DS10 Rack Upgrade Kit
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik Z5563.000 DS10 Rack Upgrade Kit

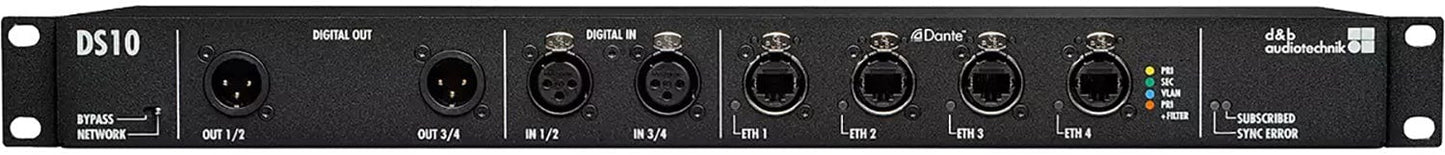

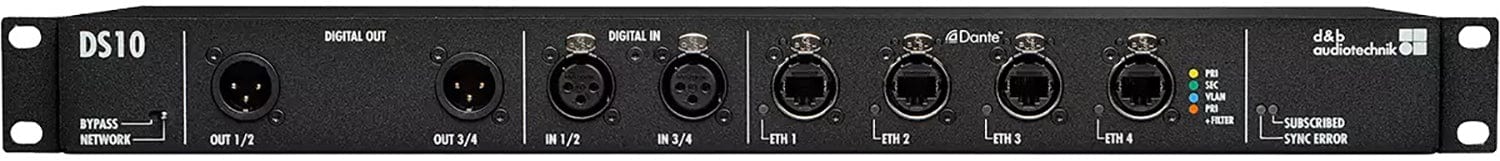

The d&b audiotechnik Z5563.000 DS10 Rack Upgrade Kit adds a DS10 Audio network bridge (Z4010.000) to a d&b rack, with the cables needed to connect it. The 1 RU DS10 interfaces between Dante networks and AES3, delivering up to sixteen Dante channels to d&b amplifiers via AES3 outputs, with four AES3 inputs, an integrated 5-port Ethernet switch and a front panel that matches the D80 Touring rack I/O panel. Trianze Tech supplies the Z5563.000 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Includes the DS10 Dante to AES3 network bridge
- Up to 16 Dante channels out via 8x AES3
- 4 AES3 input channels (2x AES3)
- Integrated 5-port Ethernet switch with redundancy, VLAN and multicast filtering
- Bypass mode for AES3 distribution
- Front panel matches the D80 Touring rack I/O panel
Technical Specifications:
| Spec | Value |
|---|---|
| Package | DS10, power cord, 2x AES/EBU XLR, CAT5e patch |
| DS10 Outputs | 16 channels (8x AES3), 3 pin XLR male, 48/96 kHz |
| DS10 Inputs | 4 channels (2x AES3), 3 pin XLR female, 32 to 192 kHz with SRC |
| Network | etherCON, built-in 5-port switch, 100/1000 Mbit |
| Power | powerCON, 100 to 240 V, 50 to 60 Hz |
| Size | 1 RU x 19 in x 232 mm |
| DS10 Weight | 3.75 kg (8.26 lb) |
Why Buy the d&b audiotechnik Z5563.000 DS10 Rack Upgrade Kit from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5563.000 DS10 Rack Upgrade Kit with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.

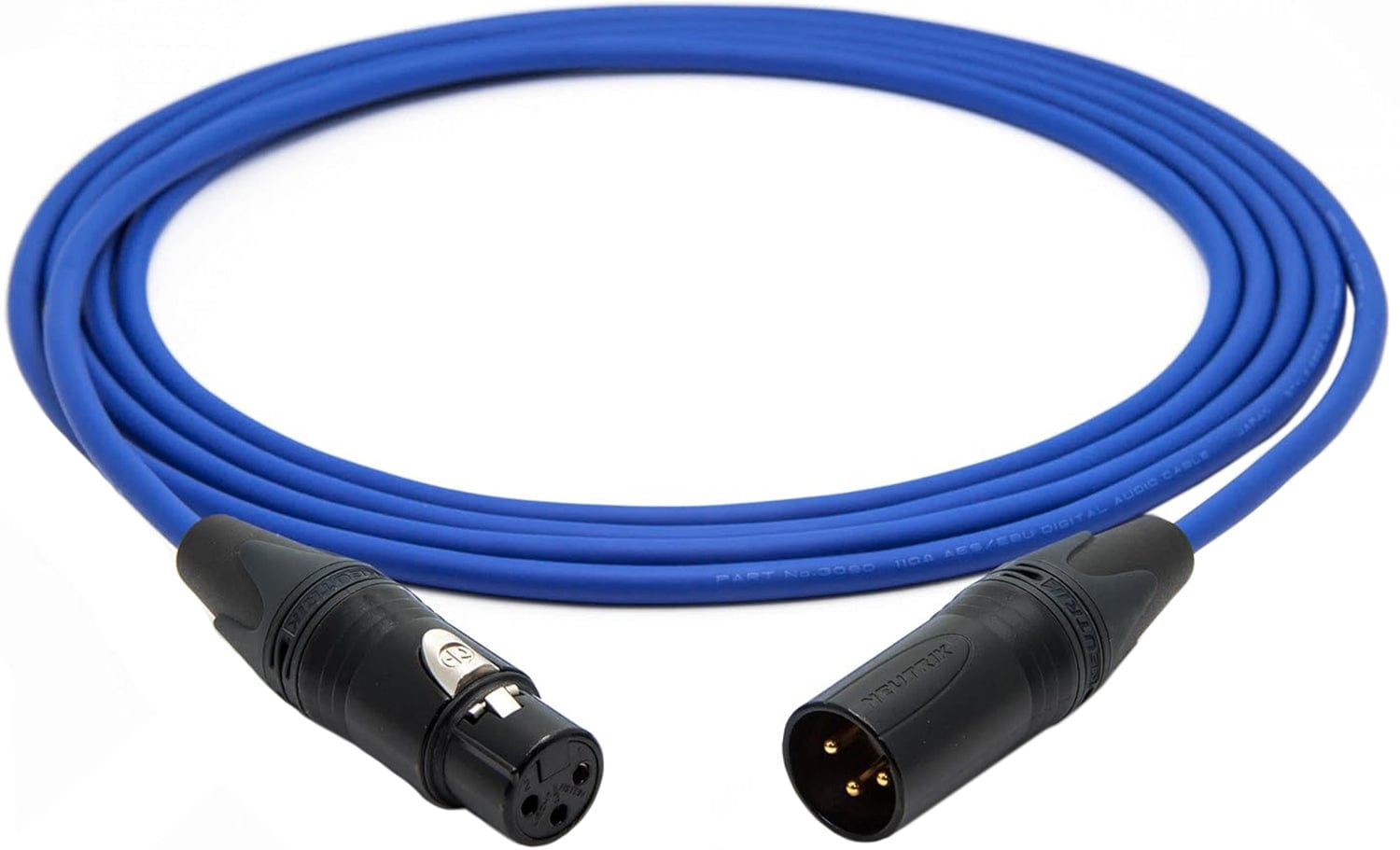

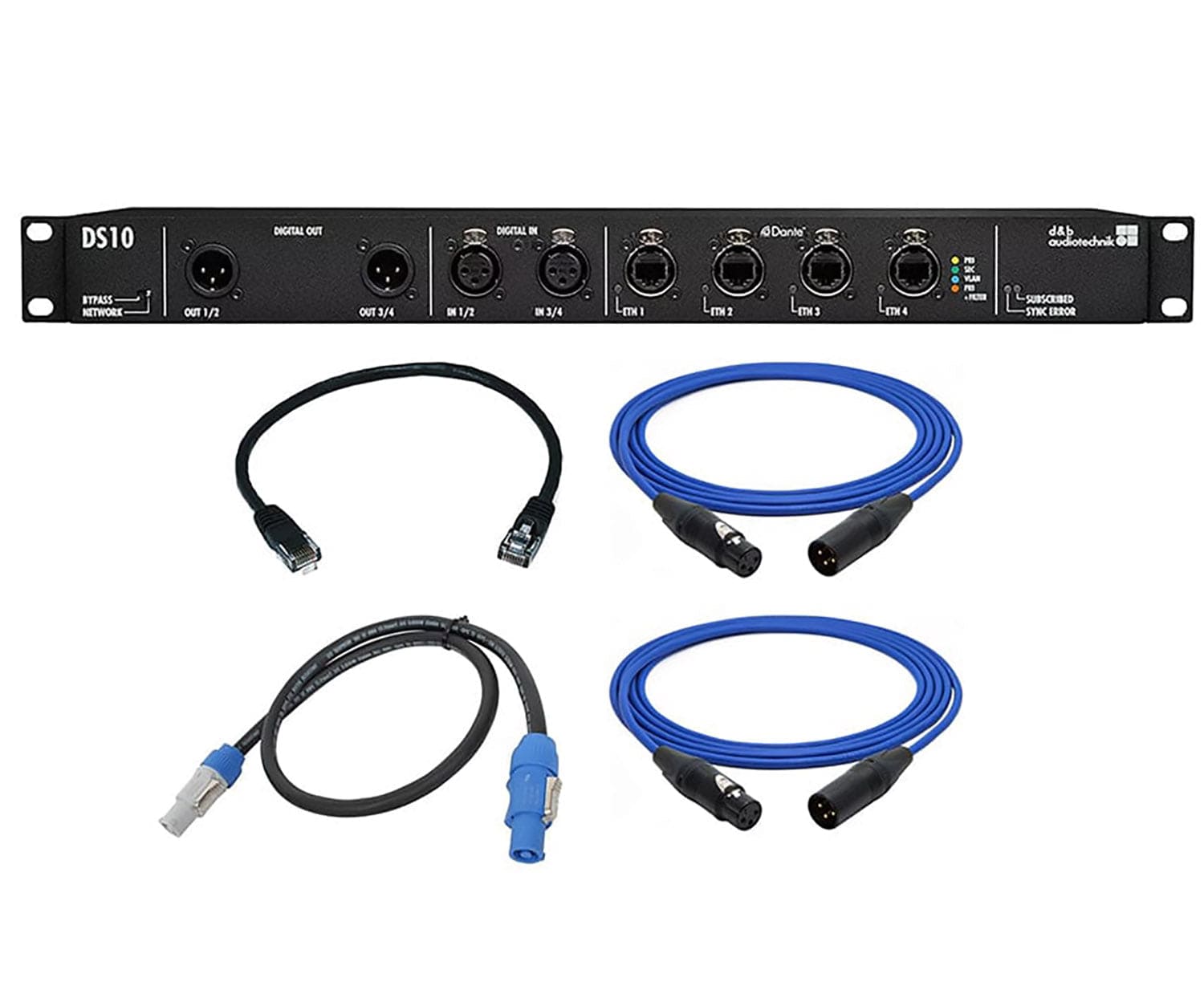

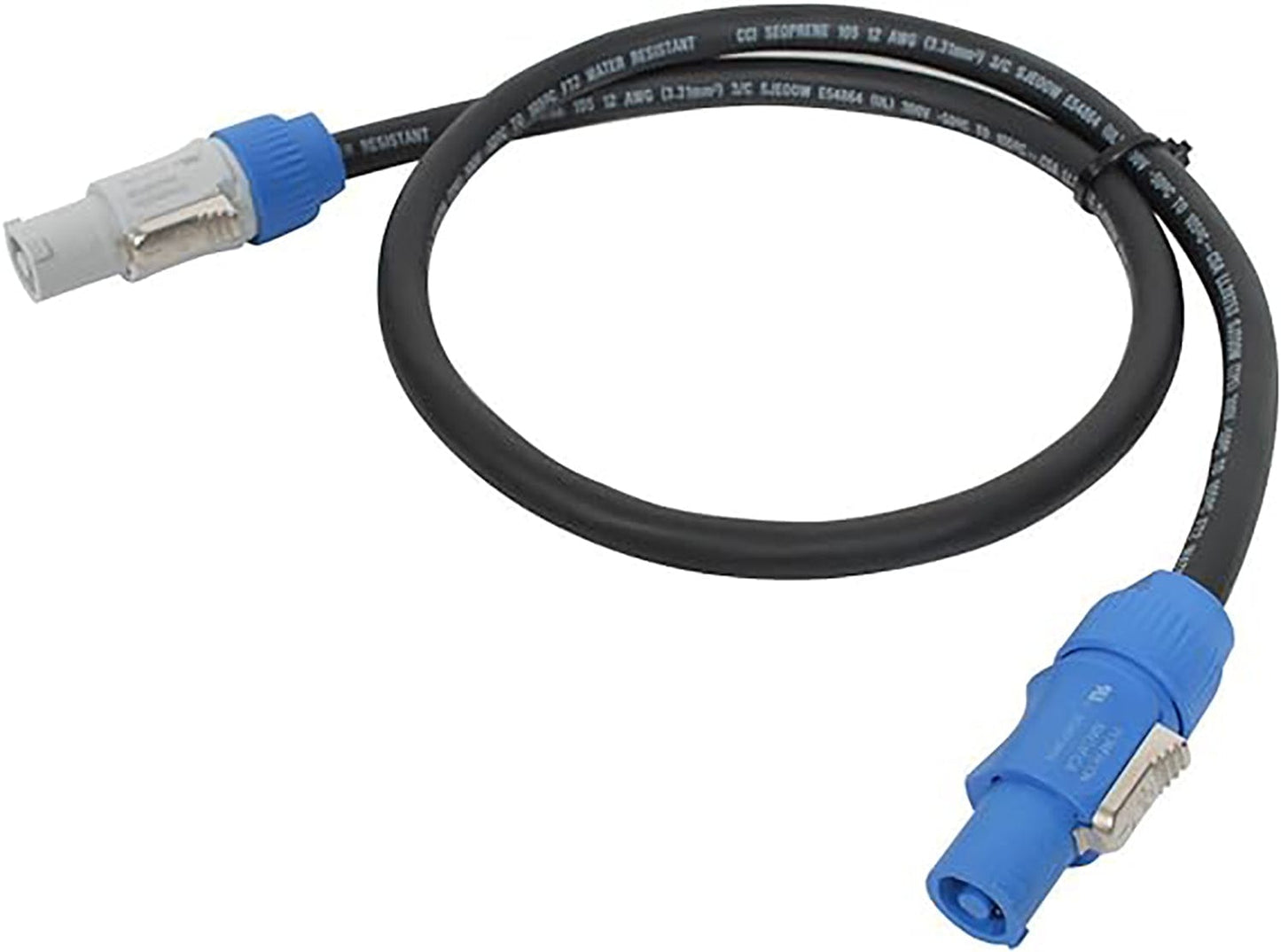

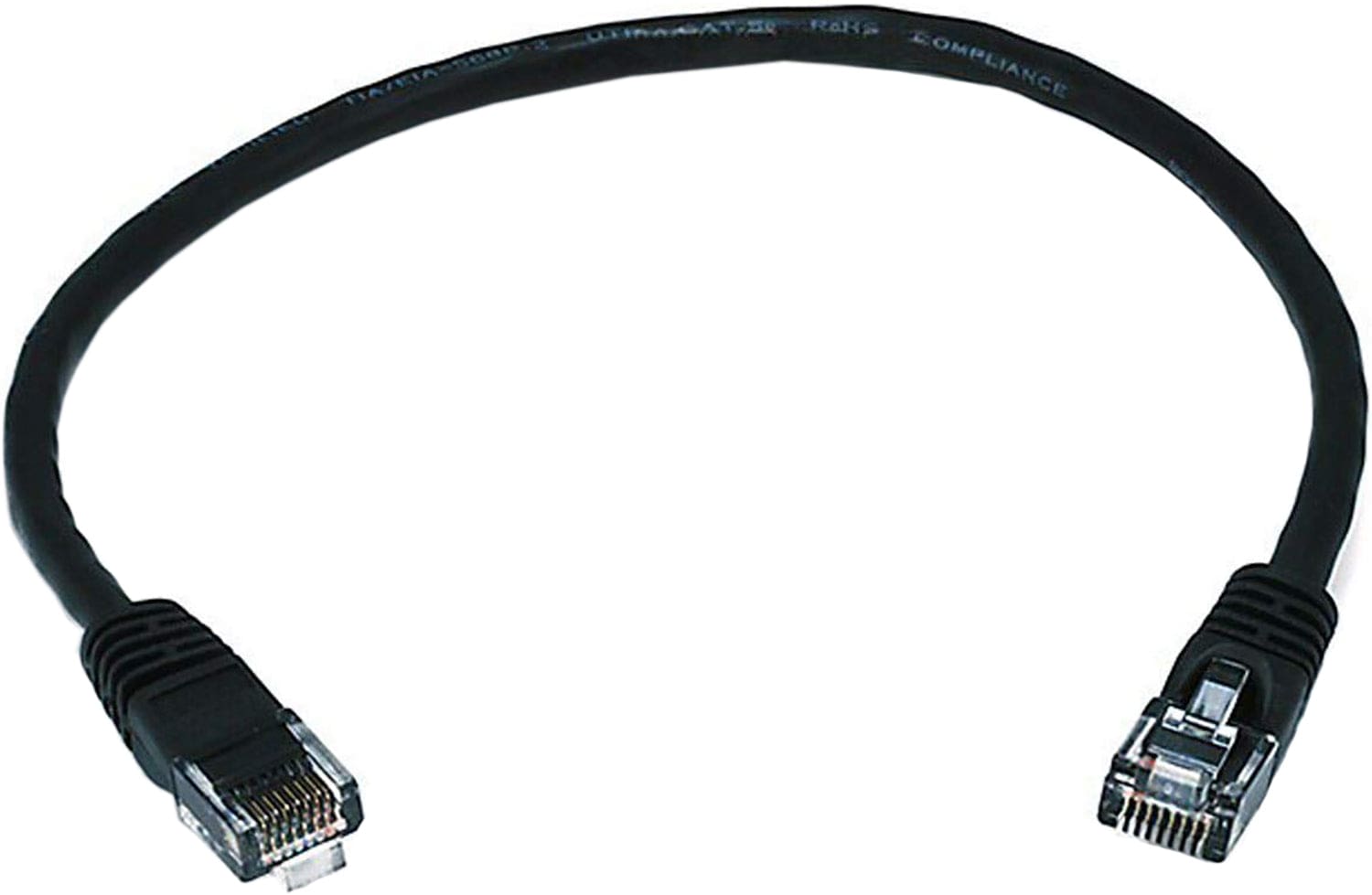

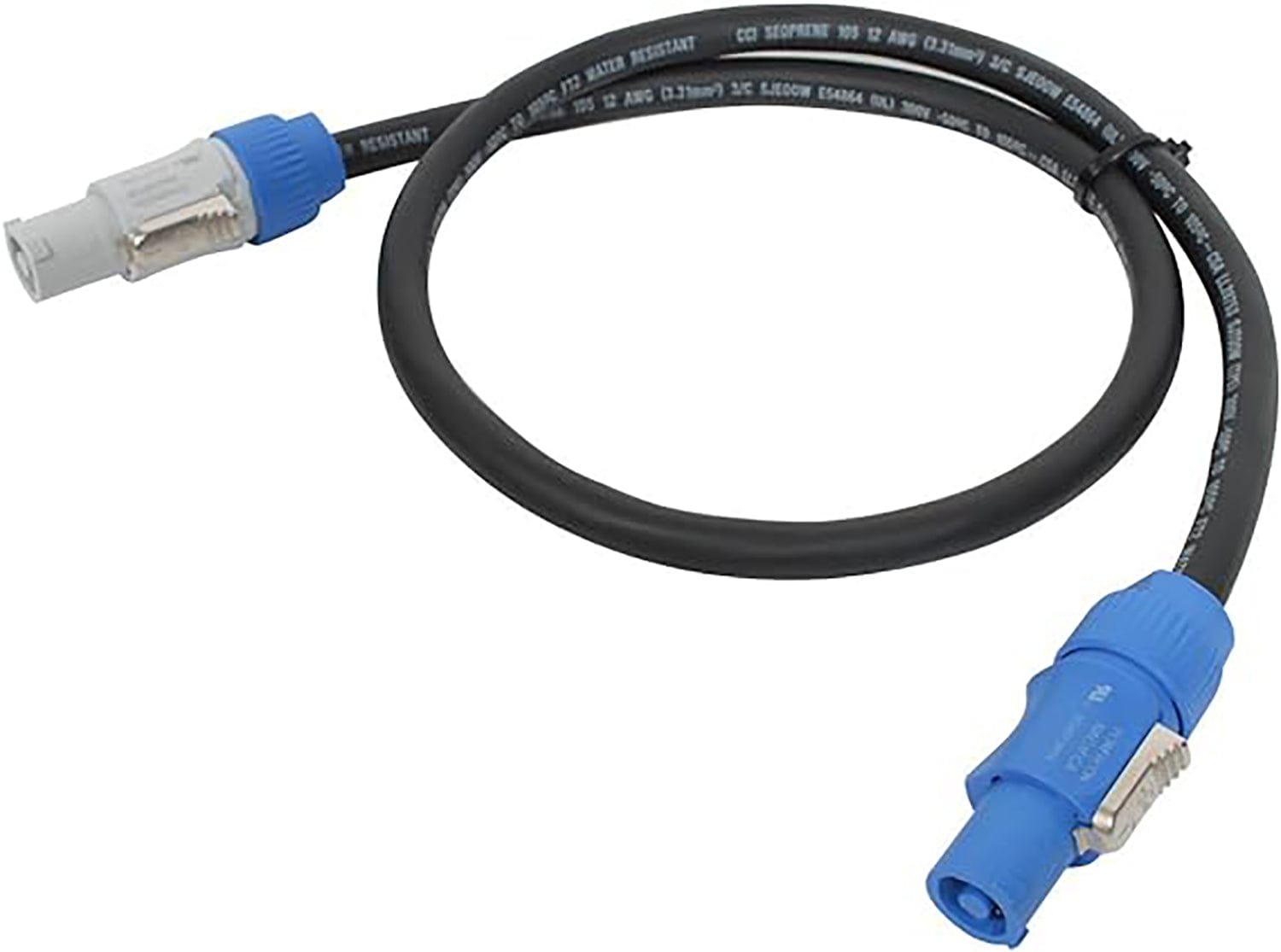

The d&b audiotechnik Z5563.000 includes 1x Z4010.000 DS10 Audio network bridge, 1x Z2610.130 powerCON to powerCON power cord, 2x E7500.024 AES/EBU XLR cables and 1x K6018.025 CAT5e patch cable.
The DS10 interfaces between Dante networks and AES3 digital audio. It delivers up to sixteen Dante channels via AES3 outputs to d&b amplifiers, carrying Dante channel labels as meta data, and offers four AES3 inputs for uses such as a front of house break-in.
The power cord connects the DS10 to the auxiliary powerCON socket on the mains distributor, the two AES/EBU cables link DS10 outputs 1/2 and 3/4 to inputs D1/2 and D3/4 of the I/O panel, and the CAT5e cable links DS10 ETH 3 to ETH 1 of the I/O panel.
The DS10 has an integrated 5-port Ethernet switch (100/1000 Mbit) with primary and redundant Dante networks, VLAN modes and multicast filtering, so audio and R1 remote control data can share one Ethernet cable.
The DS10 is a 1 RU, 19 in unit, 232 mm deep and 3.75 kg, with a powerCON mains input rated for 100 to 240 V, 50 to 60 Hz.
