d&b audiotechnik Z5553.000: Flying Bracket for Ceiling, Truss or Stand Mounting of d&b 24S and 24S-D
Model
:
Z5553.000 24S Flying Bracket
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

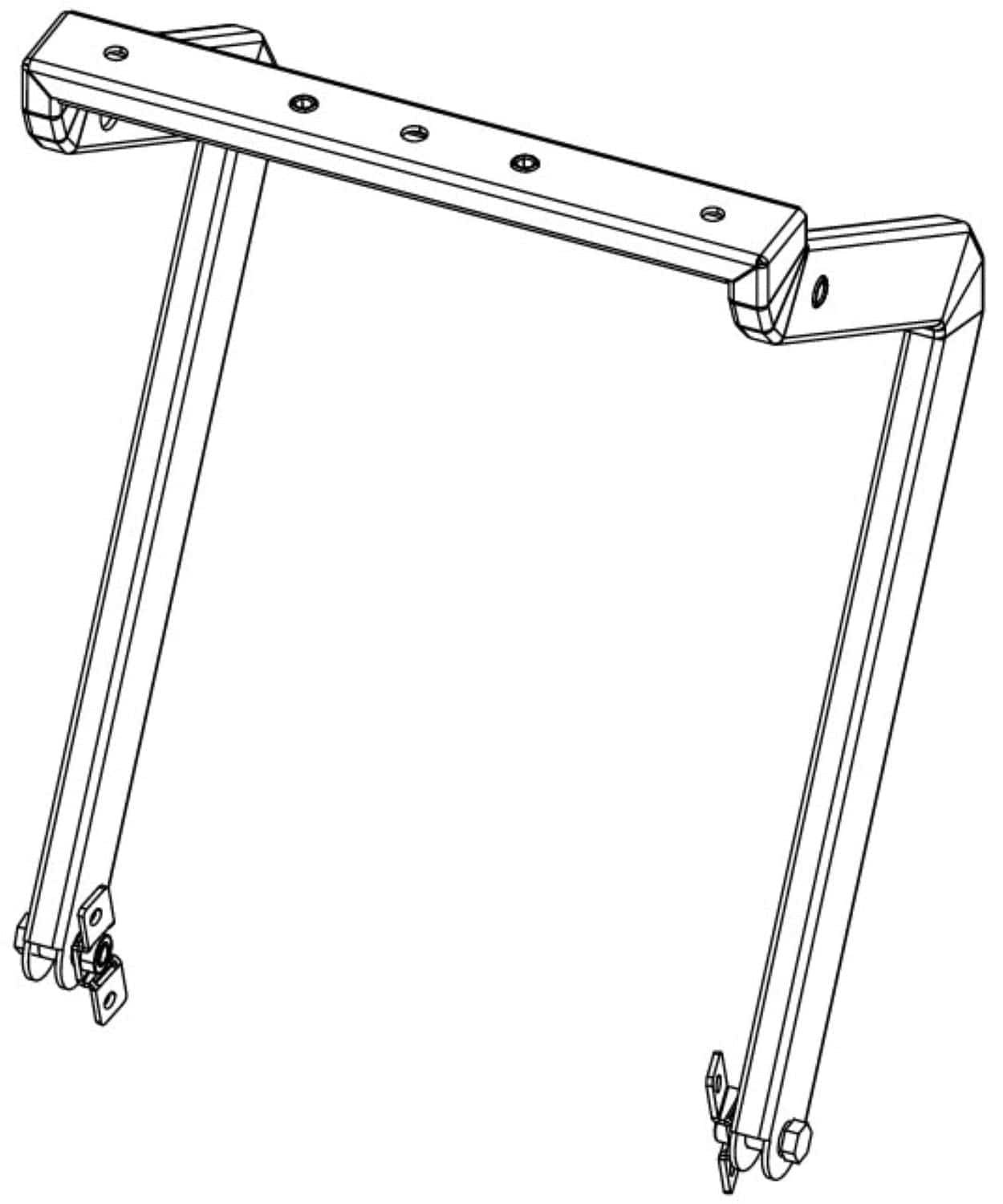

d&b audiotechnik Z5553.000 24S Flying Bracket
The d&b audiotechnik Z5553.000 Flying Bracket must only be used with d&b 24S or 24S-D cabinets. Its tie bar has two M8 threaded inserts at the standard d&b spacing of 115 mm (4.5 in). The bracket can be mounted directly to ceilings, flown vertically from bars or truss of 40 mm to 70 mm tube diameter using the Z5010 TV spigot with the Z5012 Pipe clamp, or mounted on 35 mm loudspeaker stands with the Z5024 adapter. Trianze Tech supplies the Z5553.000 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- For d&b 24S and 24S-D only
- Tie bar with two M8 inserts at 115 mm spacing
- Direct ceiling mounting
- Truss flying with Z5010 and Z5012
- Stand mounting with Z5024
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Z5553.000 |
| Type | Flying bracket |
| Designed For | d&b 24S, 24S-D |
| Tie Bar Inserts | 2 x M8 at 115 mm (4.5 in) |
| Truss Tube | 40 to 70 mm with Z5010 and Z5012 |
| Stand Tube | 35 mm with Z5024 |
Why Buy the d&b audiotechnik Z5553.000 24S Flying Bracket from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5553.000 24S Flying Bracket with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5553.000 Flying Bracket must only be used with d&b 24S or 24S-D cabinets.
The d&b Z5553.000 can be mounted directly to ceilings, flown vertically from bars or truss, or mounted on loudspeaker stands.
Using the Z5010 TV spigot with fixing plate and the Z5012 Pipe clamp, the d&b Z5553.000 can be flown from bars or truss with a tube diameter between 40 mm and 70 mm (1.5 in to 2.75 in).
Yes. With the Z5024 Loudspeaker stand adapter, the d&b Z5553.000 mounts on stands with a 35 mm (1.4 in) tube diameter.
The tie bar has two M8 threaded inserts at the standard d&b spacing of 115 mm (4.5 in) to accept accessories such as the Z5010 and Z5024.
Trianze Tech supplies the d&b audiotechnik Z5553.000 24S Flying Bracket in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
