d&b audiotechnik 12S-D WR: 12 Inch Wide Dispersion Installation Loudspeaker, Weather Resistant IP55
Model
:
12S-D WR
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

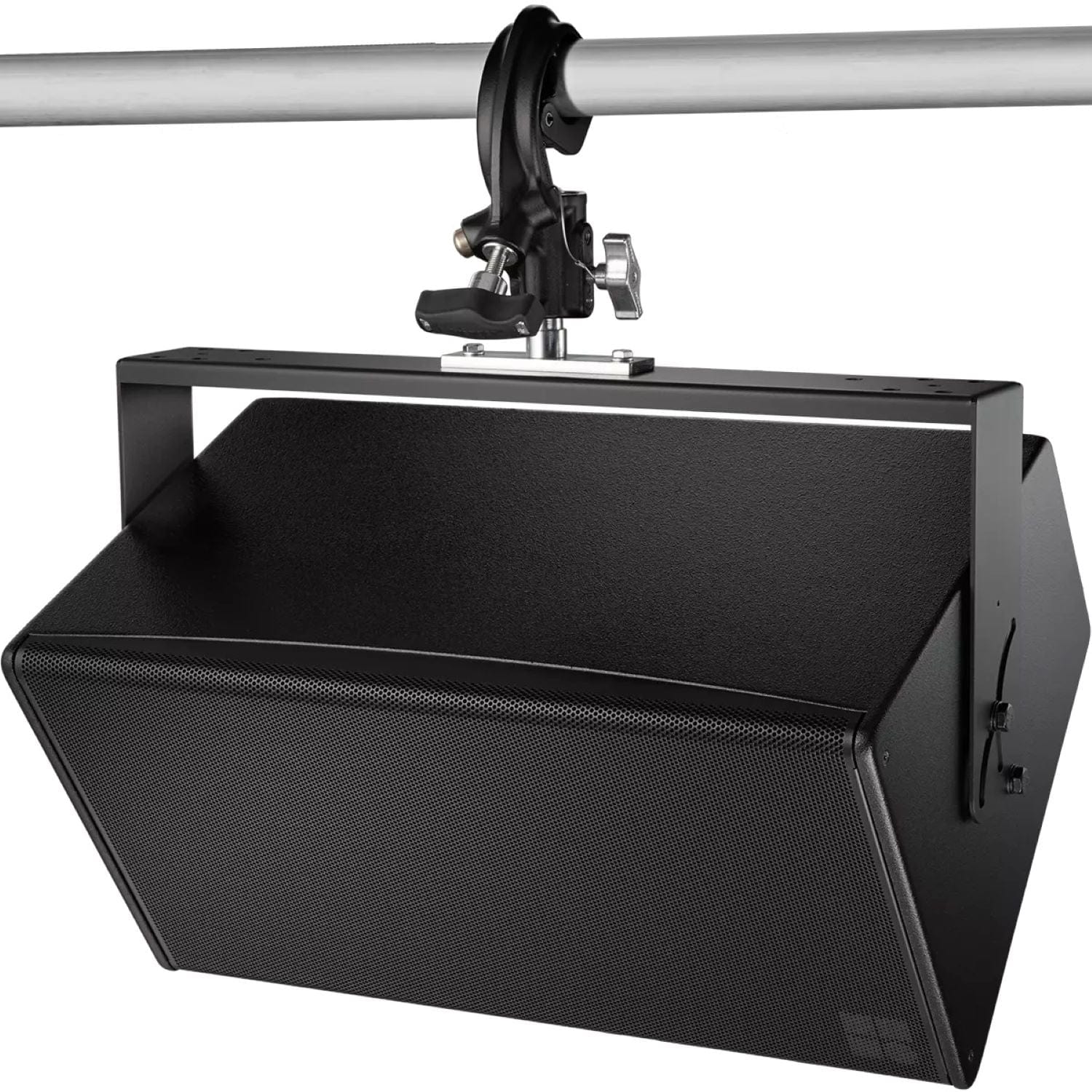

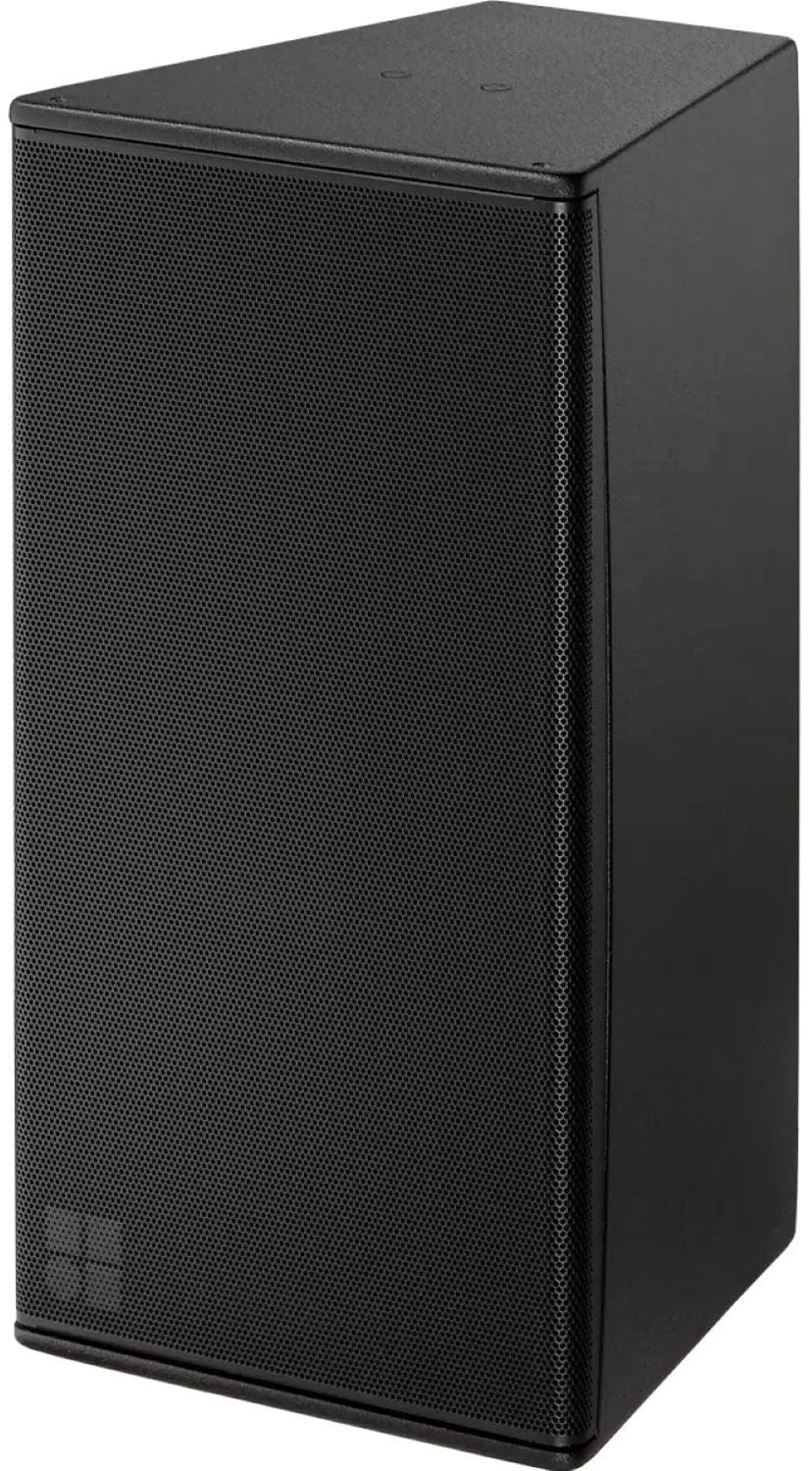

d&b audiotechnik 12S-D WR Weather Resistant 12 Inch Loudspeaker with 110 x 55 Degree Horn, IP55
The d&b audiotechnik 12S-D WR is the weather resistant version of the wide dispersion 12S-D, rated IP55 with a black PCP finish for outdoor use. It pairs a 12 inch neodymium driver and 1.4 inch compression driver with a rotatable 110 x 55 degree horn, covering 48 Hz to 18 kHz. Trianze Tech supplies the 12S-D WR for outdoor projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Weather Resistant (WR) option with IP55 rating
- Black PCP (Polyurea Cabinet Protection) finish
- Wide 110 x 55 degree rotatable horn
- Recessed Faston connector panel with PG13.5 cable gland cover plate
- 12 inch neodymium driver and 1.4 inch compression driver
- Extended response from 48 Hz to 18 kHz
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 12S-D WR |
| Type | Weather resistant 2-way passive installation loudspeaker |
| Protection Rating | IP55 |
| Finish | Black PCP (Polyurea Cabinet Protection) |
| Components | 12 inch neodymium driver, 1.4 inch compression driver with CD horn |
| Dispersion (h x v) | 110 x 55 degrees, rotatable |
| Frequency Response (-5 dB) | 48 Hz to 18 kHz standard, 100 Hz to 18 kHz CUT mode |
| Max SPL | 133 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 300/1600 W |
| Connection | Faston connector panel, PG13.5 cable gland plate (6 to 12 mm cable) |
| Dimensions (H x W x D) | 638 x 338 x 365 mm |
| Weight | 17 kg (37 lb) |
Why Buy the d&b audiotechnik 12S-D WR from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 12S-D WR with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Yes. The d&b audiotechnik 12S-D WR is IP55 rated with an impact and weather protected black PCP finish, designed for outdoor use.
The d&b audiotechnik 12S-D WR has a wide 110 x 55 degree dispersion pattern with a rotatable horn.
The d&b audiotechnik 12S-D WR has a recessed Faston connector panel and a cover plate accepting single or dual PG13.5 cable glands for cables from 6 to 12 mm.
The d&b audiotechnik 12S-D WR reaches 133 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers.
The d&b audiotechnik 12S-D WR covers 48 Hz to 18 kHz (-5 dB) in standard mode, or 100 Hz to 18 kHz in CUT mode.
Trianze Tech supplies the d&b audiotechnik 12S-D WR in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
