d&b audiotechnik 10S WR: 10 Inch Passive Installation Loudspeaker, Weather Resistant IP55 Version
Model
:
10S WR
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik 10S WR Weather Resistant 10 Inch Passive Installation Loudspeaker, IP55

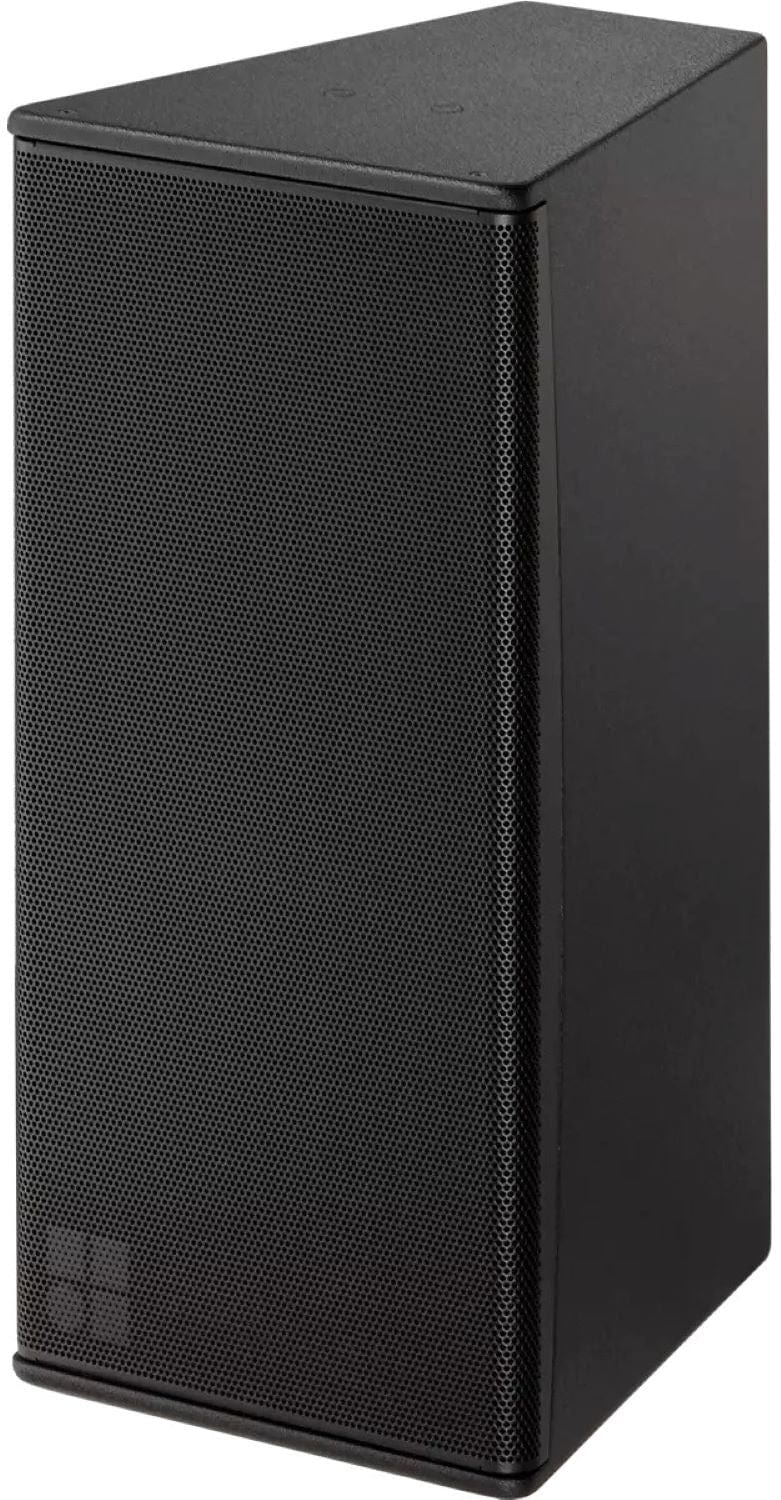

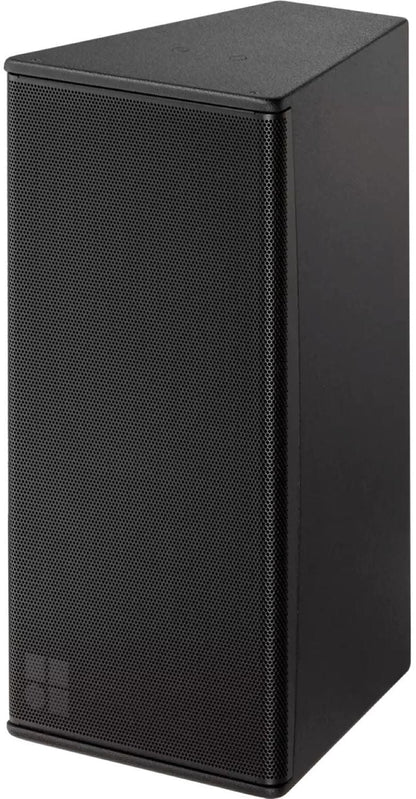

The d&b audiotechnik 10S WR is the weather resistant version of the 10S 2-way installation loudspeaker, rated IP55 for operation in changing outdoor conditions. It keeps the 10 inch neodymium driver, 1.4 inch compression driver and rotatable 75 x 50 degree horn of the standard model, and comes with a fixed input cable. Trianze Tech supplies the 10S WR for outdoor and semi outdoor projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Weather Resistant (WR) option with IP55 rating
- Fixed input cable, H07RN-F 2 x 2.5 mm2, 5.5 m standard length
- 10 inch neodymium driver and 1.4 inch compression driver
- Rotatable 75 x 50 degree horn
- Full range response from 60 Hz to 18 kHz
- Marine plywood cabinet, ball impact resistant to DIN 18032-3
Technical Specifications:
| Spec | Value |
|---|---|
| Model | 10S WR |
| Type | Weather resistant 2-way passive installation loudspeaker |
| Protection Rating | IP55 |
| Components | 10 inch neodymium driver, 1.4 inch compression driver with CD horn |
| Dispersion (h x v) | 75 x 50 degrees, rotatable |
| Frequency Response (-5 dB) | 60 Hz to 18 kHz standard, 100 Hz to 18 kHz CUT mode |
| Max SPL | 130 dB (D20/5D/30D/D40/D80/40D) |
| Nominal Impedance | 12 ohms |
| Power Handling (RMS/peak) | 200/1200 W |
| Input | Fixed cable, H07RN-F 2 x 2.5 mm2, 5.5 m |
| Weight | 13 kg (29 lb) |
Why Buy the d&b audiotechnik 10S WR from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the 10S WR with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
WR stands for Weather Resistant. The d&b audiotechnik 10S WR has an IP55 rating so it can operate in changing ambient conditions outdoors.
The d&b audiotechnik 10S WR has a fixed input cable of type H07RN-F, 2 x 2.5 mm2 (AWG 13), with a standard length of 5.5 m (18 ft).
Yes. The d&b audiotechnik 10S WR uses the same 10 inch and 1.4 inch drivers, 75 x 50 degree horn and 60 Hz to 18 kHz response as the standard 10S.
The d&b audiotechnik 10S WR reaches 130 dB maximum SPL with D20, 5D, 30D, D40, D80 or 40D amplifiers.
The d&b audiotechnik 10S WR has a 12 ohm nominal impedance and handles 200 W RMS and 1200 W peak.
Trianze Tech supplies the d&b audiotechnik 10S WR in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
