d&b audiotechnik Y8 Compact Line Array Loudspeaker with NLT4 F/M Connections

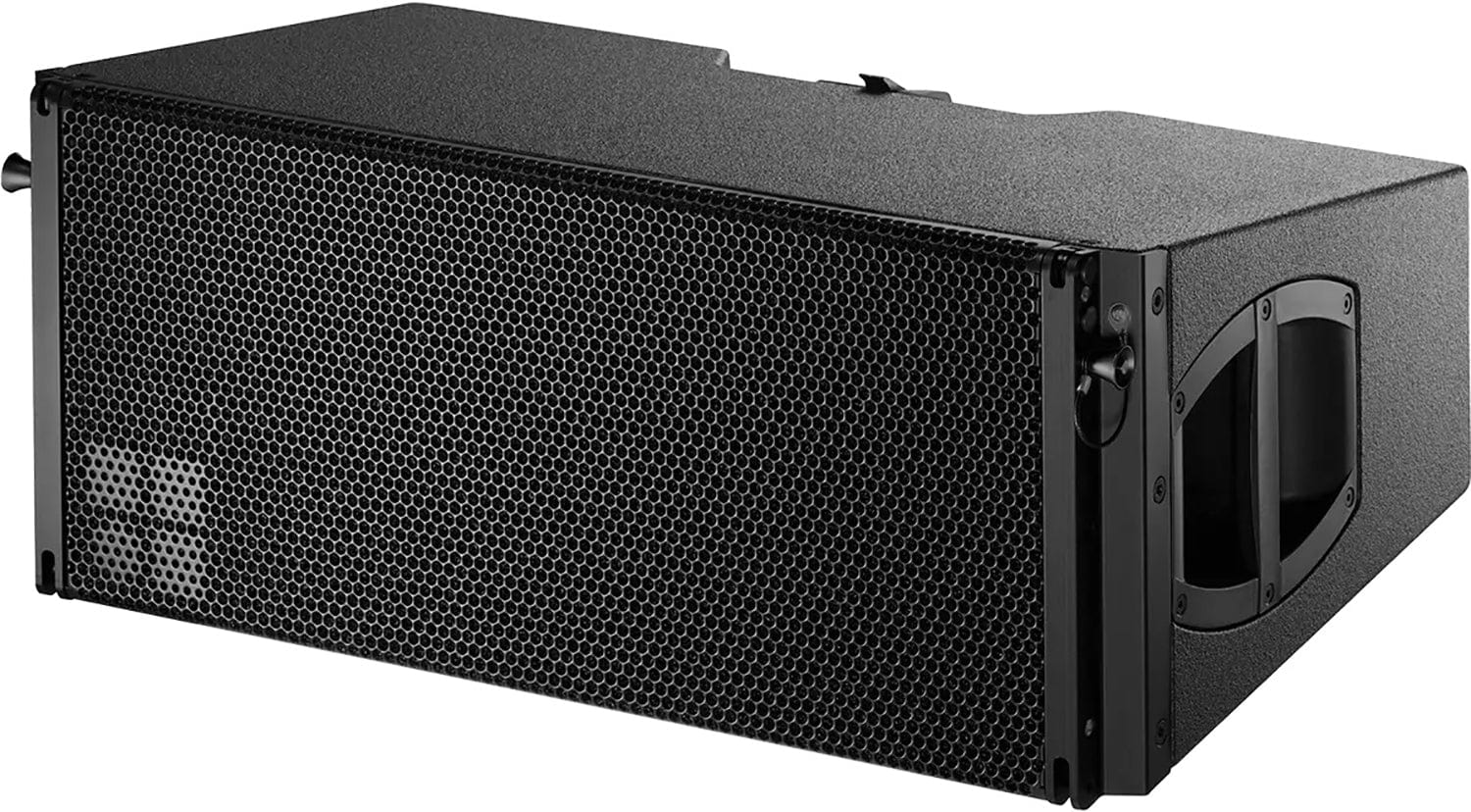

The d&b audiotechnik Y8 is a compact 2 way passive line array loudspeaker for vertical columns, with two 8 inch drivers in a dipole arrangement and a centrally mounted 1.4 inch compression driver with a wave transformer. It offers 80 degree horizontal directivity controlled down to 500 Hz, and arrays of up to twenty four loudspeakers with splay angles from 0 to 14 degrees in 1 degree steps. It can be used in pure Y8 columns or combined with Y12 and Y-SUB cabinets, with integrated three point rigging. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the Y8 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Compact 2 way passive line array design
- 80 degree horizontal dispersion controlled down to 500 Hz
- Up to 139 dB SPLmax
- Splay angles 0 to 14 degrees in 1 degree steps
- Integrated three point rigging
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Y8 (NLT4 F/M) |
| Type | 2 way passive line array loudspeaker |
| Frequency Response | 54 Hz to 19 kHz (standard), 100 Hz to 19 kHz (CUT mode), -5 dB |
| Max SPL | 134 dB with 10D, 137 dB with D20/30D, 139 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 400 W RMS / 1600 W peak (10 ms) |
| Dispersion | 80 degrees horizontal |
| Splay Angle Settings | 0 to 14 degrees (1 degree increments) |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 257 x 630 x 375 mm |
| Weight | 20 kg (44 lb) |
Why Buy the d&b audiotechnik Y8 NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Y8 NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This version of the d&b audiotechnik Y8 has 2 x NLT4 F/M connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik Y8 has 80 degree horizontal directivity controlled down to 500 Hz, narrower than the 120 degree Y12 for longer throw.

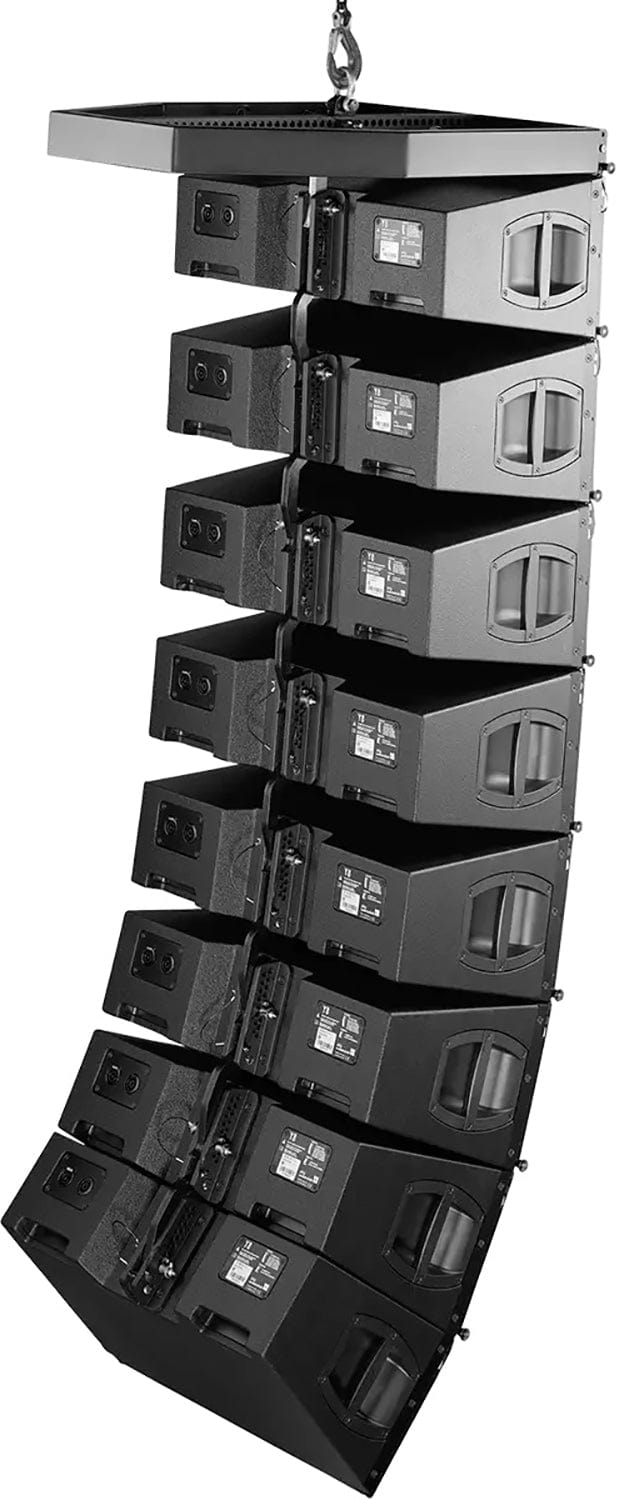

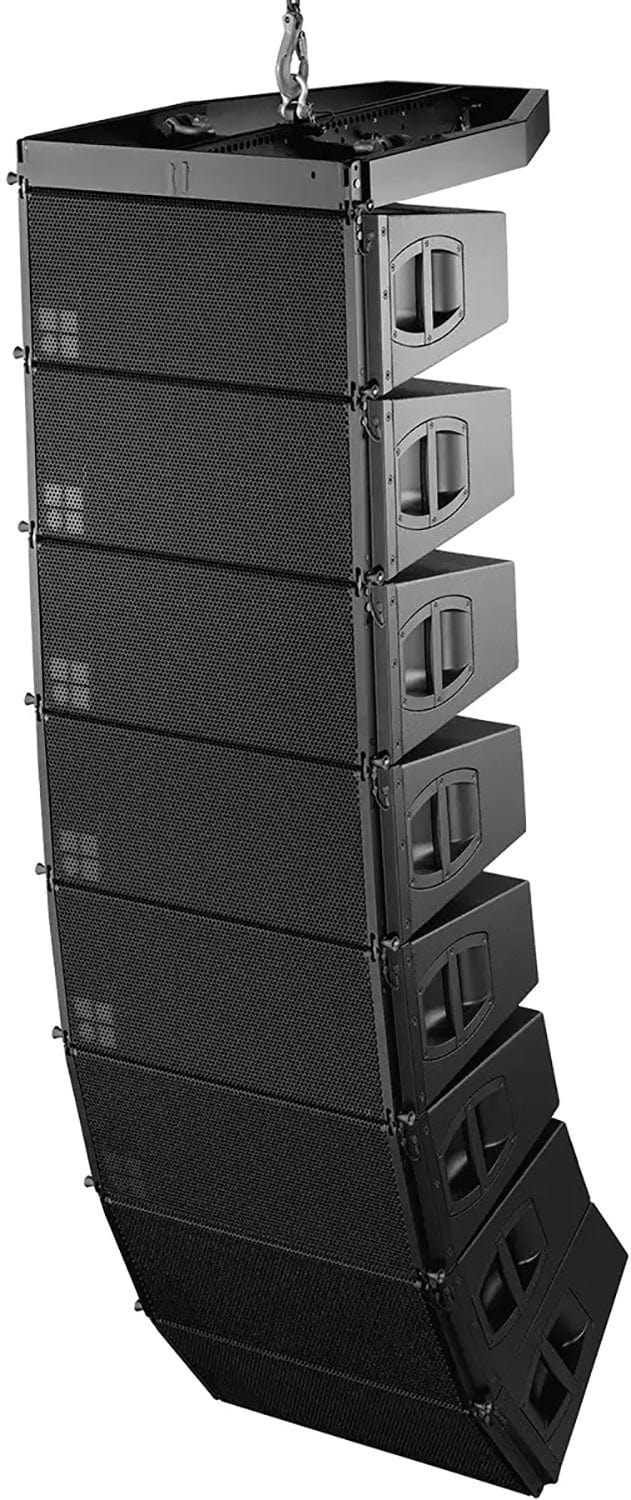

Up to twenty four d&b audiotechnik Y8 cabinets can be flown in a vertical array, with splay angles from 0 to 14 degrees in 1 degree steps.
The d&b audiotechnik Y8 handles 400 W RMS and 1600 W peak (10 ms), with two cabinets per amplifier channel.
The d&b audiotechnik Y8 weighs 20 kg (44 lb) and measures 257 x 630 x 375 mm (10 x 24.8 x 14.8 inches).
