d&b audiotechnik T10: 2 Way Passive Line Array and Point Source Loudspeaker with NLT4 F/M Connections
Model
:
T10 NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik T10 Line and Point Source Loudspeaker with NLT4 F/M Connections

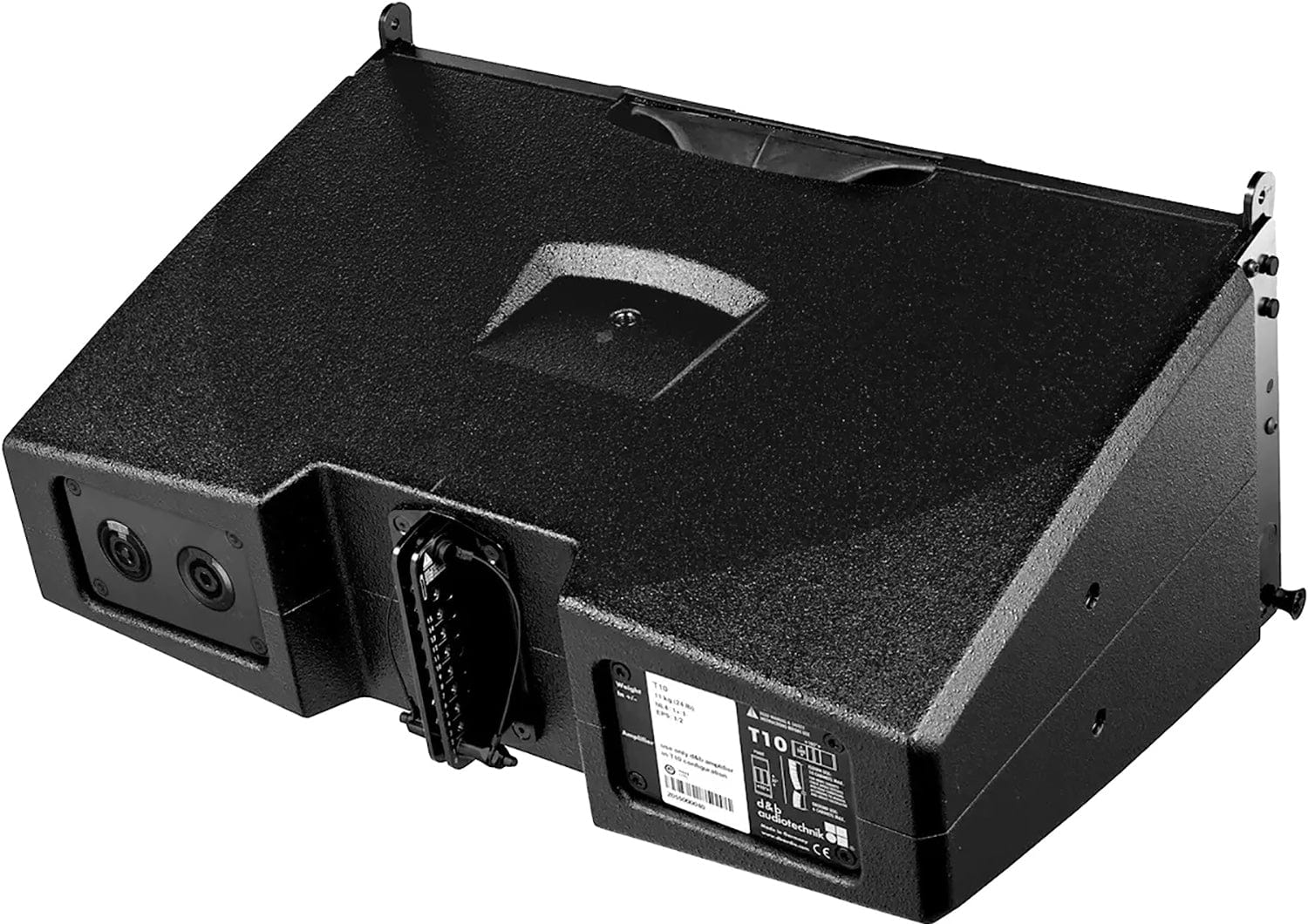

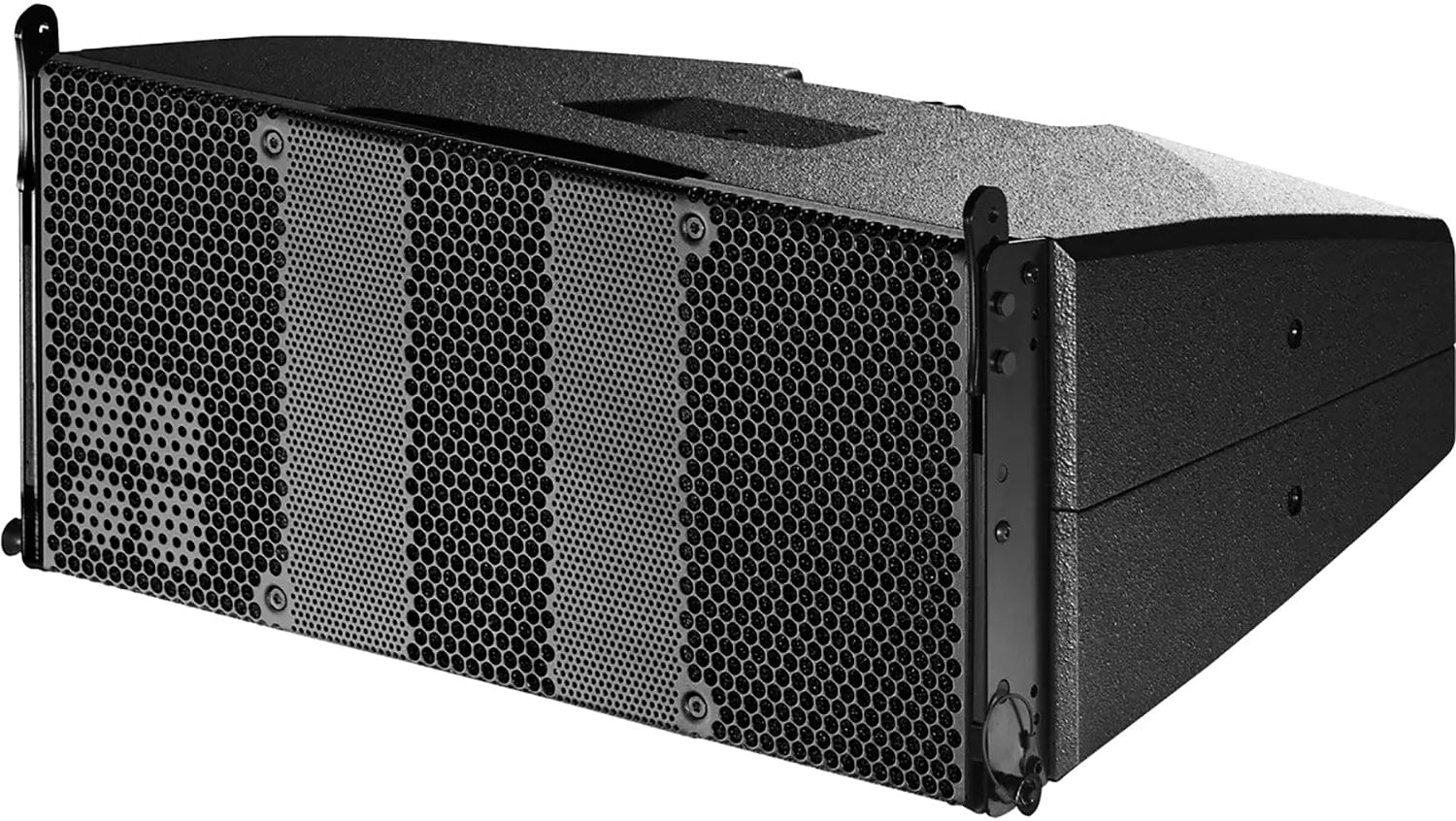

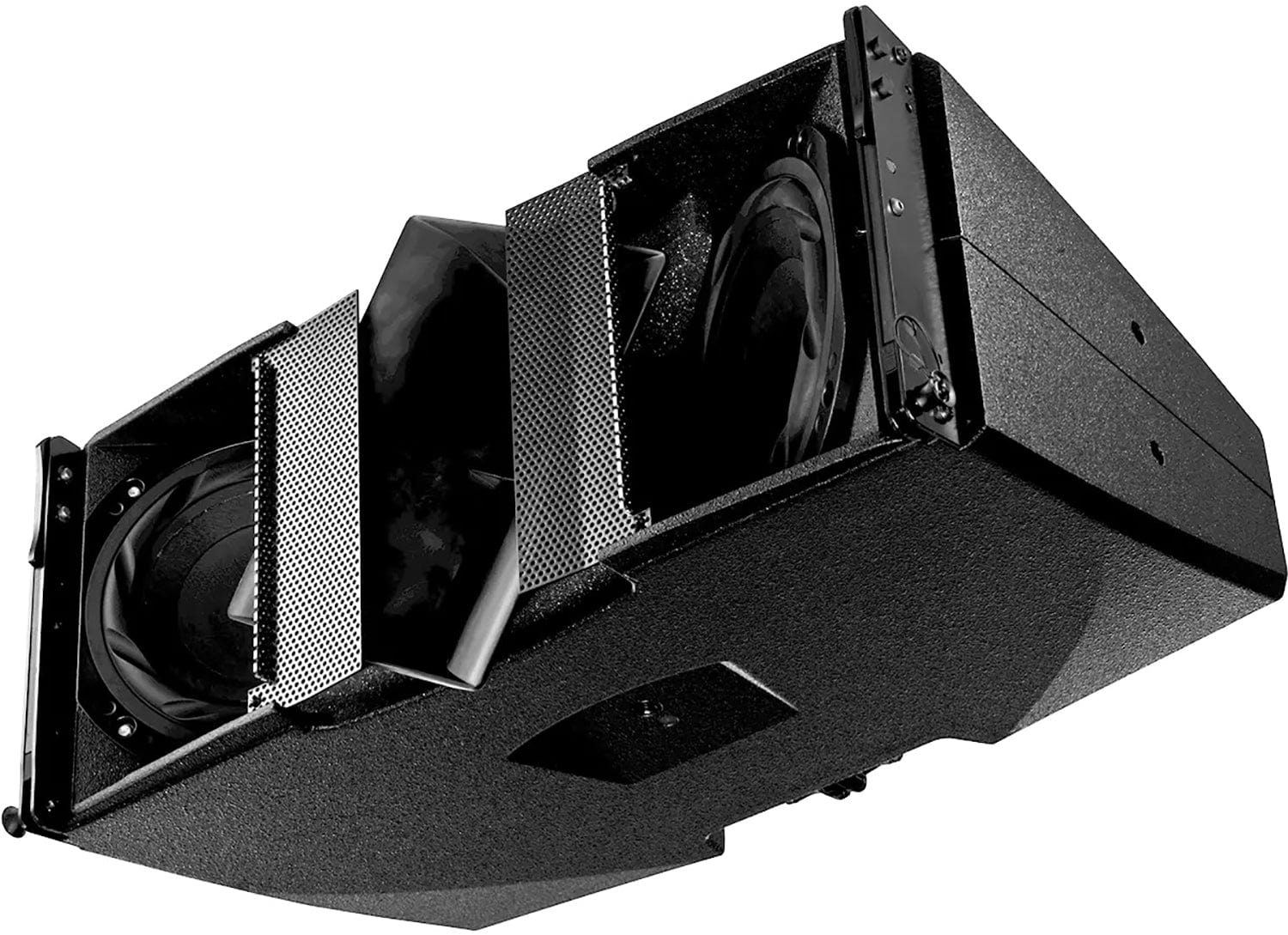

The d&b audiotechnik T10 is a passive 2 way loudspeaker with two 6.5 inch drivers in a dipolar arrangement, a 1.4 inch HF compression driver and a passive crossover. It works both as a line array element with 105 degree horizontal dispersion and, with its horn rotated by 90 degrees, as a 90 x 35 degree point source. The polyurethane integral hard foam cabinet has integrated line array rigging and an impact resistant finish. This version is fitted with 2 x NLT4 F/M connectors. Trianze Tech supplies the T10 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Works as a line array element or point source
- 2 x 6.5 inch neodymium drivers with 1.4 inch compression driver
- 105 degree line source or 90 x 35 degree point source dispersion
- Up to 132 dB SPLmax
- Integrated line array rigging
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | T10 (NLT4 F/M) |
| Type | 2 way loudspeaker with rotatable horn for point and line source operation |
| Frequency Response | 68 Hz to 18 kHz (standard), 120 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 129 / 127 dB with 10D, 132 / 130 dB with D20/5D/30D and D40/D80/40D (two operating configurations) |
| Cabinets per Amplifier Channel | 4 |
| Nominal Impedance | 16 ohms |
| Power Handling | 200 W RMS / 800 W peak (10 ms) |
| Dispersion | 90 x 35 degrees (point source), 105 degrees horizontal (line source) |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 197 x 470 x 300 mm |
| Weight | 11 kg (24 lb) |
Why Buy the d&b audiotechnik T10 NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the T10 NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This version of the d&b audiotechnik T10 has 2 x NLT4 F/M connectors, with a nominal impedance of 16 ohms.
The d&b audiotechnik T10 offers 105 degree horizontal dispersion as a line array element and 90 x 35 degree dispersion as a point source with the horn rotated by 90 degrees.
The d&b audiotechnik T10 covers 68 Hz to 18 kHz in standard mode and 120 Hz to 18 kHz in CUT mode (-5 dB).
The d&b audiotechnik T10 handles 200 W RMS and 800 W peak (10 ms), and up to four cabinets run per amplifier channel.
The d&b audiotechnik T10 weighs 11 kg (24 lb) and measures 197 x 470 x 300 mm.
Trianze Tech supplies the d&b audiotechnik T10 NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
