d&b audiotechnik V-GSUB: Ground Stack Cardioid Subwoofer with 18 Inch and 12 Inch Drivers, NLT4 F/M Connections
Model
:
V-GSUB NLT4 F/M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik V-GSUB Ground Stack Cardioid Subwoofer with NLT4 F/M Connections

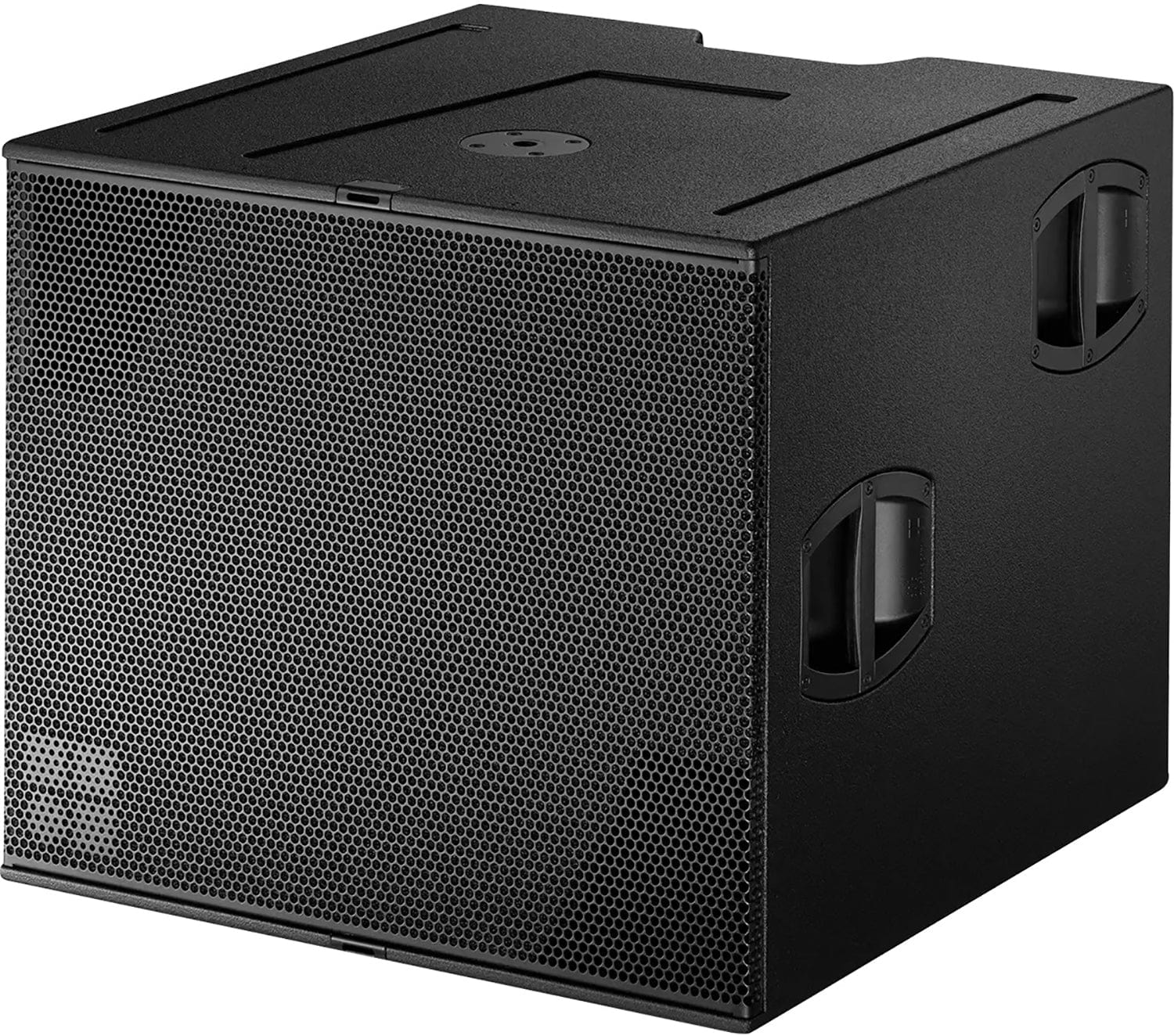

The d&b audiotechnik V-GSUB is an actively driven high performance cardioid subwoofer for ground stacked use, powered by a single amplifier channel. An 18 inch bass reflex driver faces front and a 12 inch driver in a two chamber bandpass design radiates to the rear, reducing excitation of the reverberant field at low frequencies. Runners on the bottom and matching recesses on top keep stacks secure, and the marine plywood cabinet has a PCP finish and metal grill. This version has 2 x NLT4 F/M connectors. Trianze Tech supplies the V-GSUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Cardioid subwoofer powered by a single amplifier channel
- 18 inch front driver and 12 inch rear driver
- 37 to 115 Hz frequency response
- Up to 137 dB SPLmax
- Stacking runners and recesses
- 2 x NLT4 F/M connectors
Technical Specifications:
| Spec | Value |
|---|---|
| Model | V-GSUB (NLT4 F/M) |
| Type | Ground stack cardioid subwoofer |
| Frequency Response | 37 to 115 Hz (standard), 37 to 95 Hz (100 Hz mode), -5 dB |
| Max SPL | 133 dB with D20/30D, 137 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 800 W RMS / 3200 W peak (10 ms) |
| Components | 1 x 18 inch driver, 1 x 12 inch driver |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 606 x 700 x 728 / 830 mm |
| Weight | 61 kg (135 lb) |
Why Buy the d&b audiotechnik V-GSUB NLT4 F/M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the V-GSUB NLT4 F/M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
This version of the d&b audiotechnik V-GSUB has 2 x NLT4 F/M connectors, with a nominal impedance of 8 ohms.
The d&b audiotechnik V-GSUB combines an 18 inch bass reflex driver facing front with a 12 inch driver in a two chamber bandpass design radiating to the rear.
The d&b audiotechnik V-GSUB handles 800 W RMS and 3200 W peak (10 ms), with two cabinets per amplifier channel.
No. The d&b audiotechnik V-GSUB is intended for ground stacked applications only. The V-SUB is the flyable version with integrated rigging.
The d&b audiotechnik V-GSUB measures 606 x 700 x 728 / 830 mm and weighs 61 kg (135 lb).
Trianze Tech supplies the d&b audiotechnik V-GSUB NLT4 F/M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
