Bose 40146: FreeSpace 3 Surface Mount Acoustimass Bass Module, Black
Model
:
40146
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

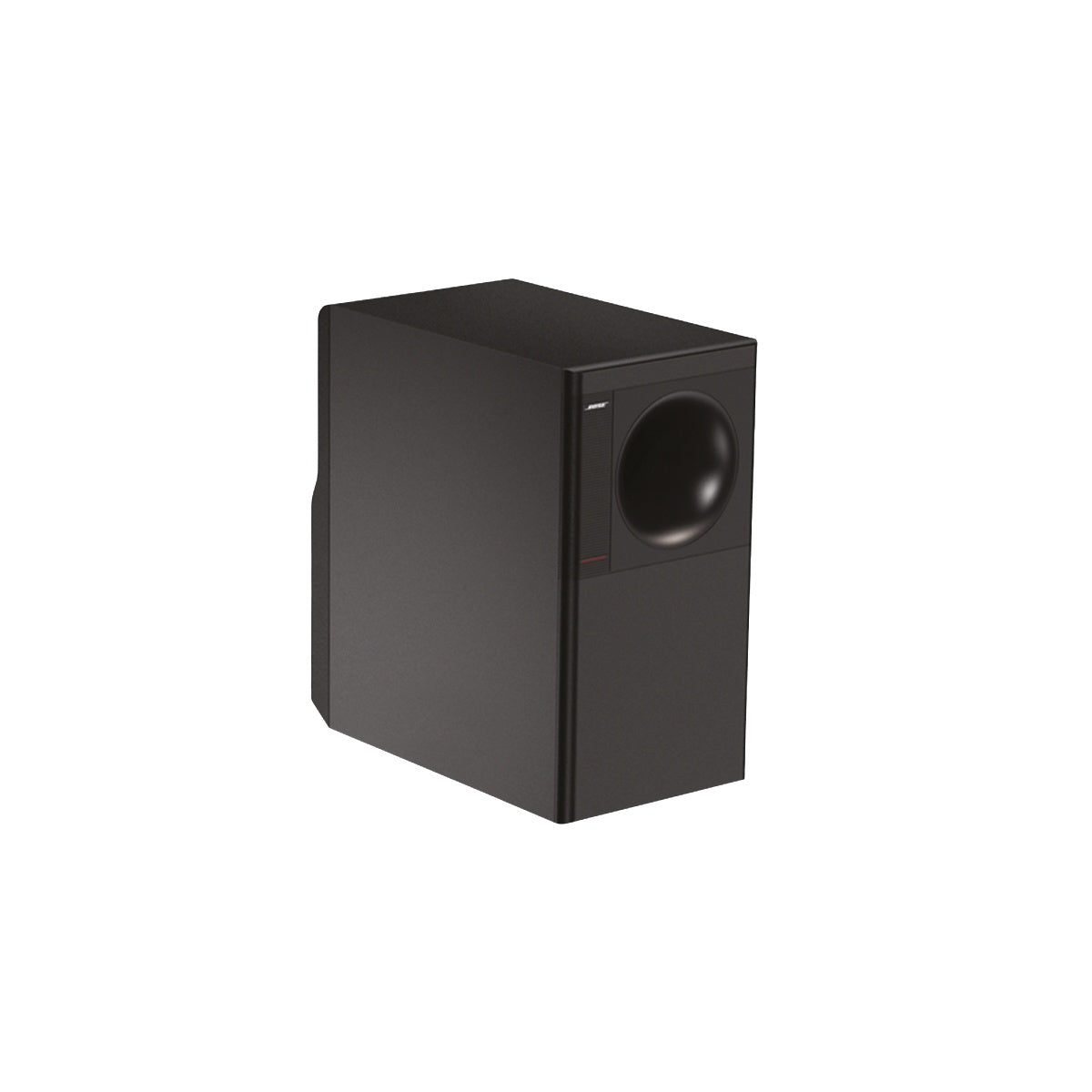

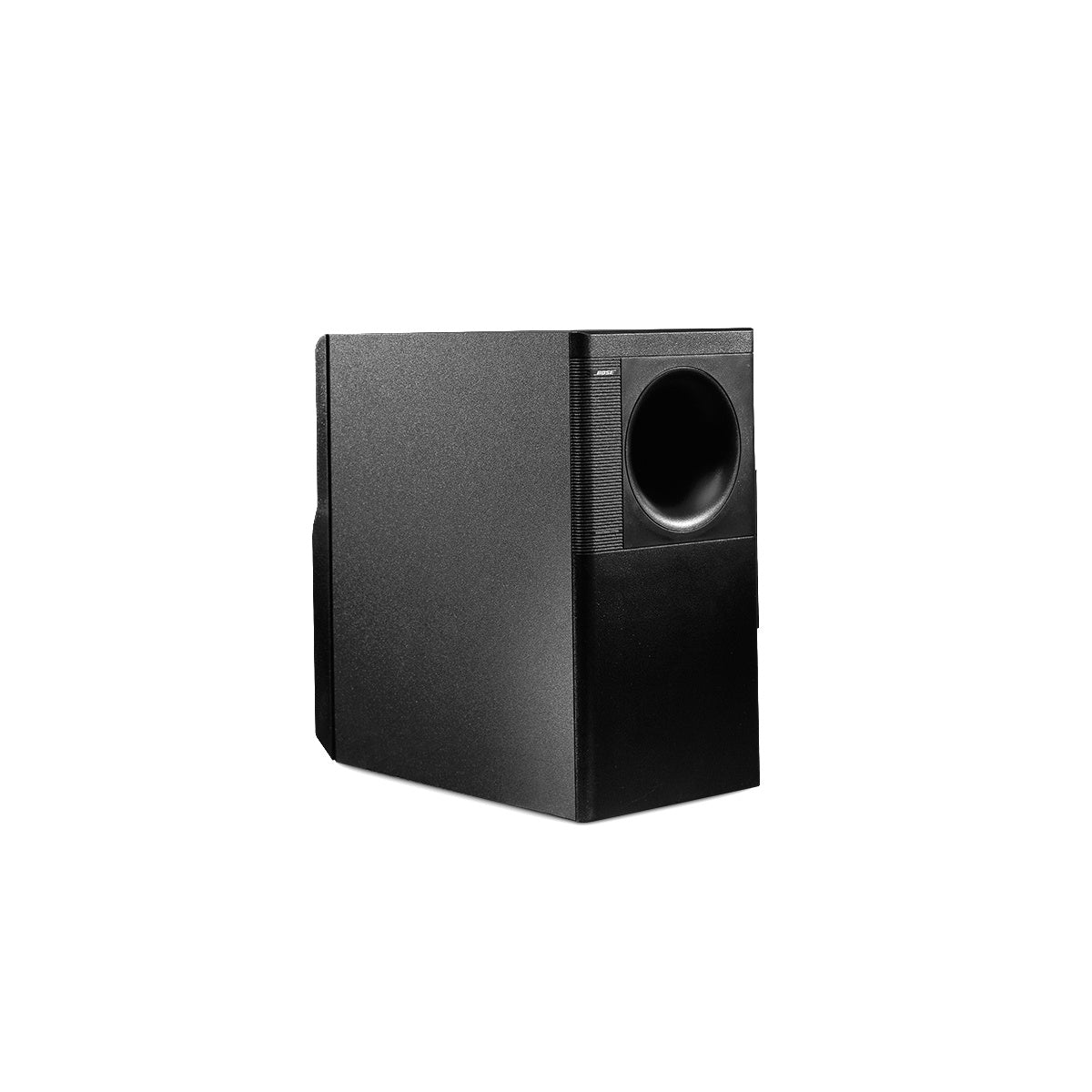

Bose 40146: FreeSpace 3 Surface Mount Acoustimass Bass Module, Black
The Bose 40146 is a genuine Bose Professional surface mount Acoustimass bass module, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech for background music systems needing low frequency reinforcement.
Key Features
- 5.25 inch woofer delivers non-localized bass down to 40Hz
- Acoustimass technology filters out audible distortion for clean low end
- Selectable 70/100V or low impedance operation
- Each module can feed two or four FreeSpace 3 satellites
Technical Specifications
| Driver | 5.25 inch (133mm) woofer |
| Low Frequency Extension | Down to 40Hz |
| Power Handling 70/100V | 200W continuous, 800W peak mono |
| Power Handling Low Impedance | 50W per channel stereo (200W peak), 100W mono (400W peak) |
| Sensitivity | 76dB SPL per channel, 79dB SPL mono |
| Maximum SPL | 96dB per channel (102dB peak), 102dB mono (108dB peak) |
| Satellite Support | Two or four FreeSpace 3 satellites per module |
| Color | Black |
| Part Number | 40146 |
Why Buy the Bose 40146 from Trianze Tech?
- Genuine Bose Professional bass module sourced and supported locally in the UAE
- Fast delivery and installation support across Dubai, Abu Dhabi and the GCC
- Dedicated commercial audio design support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Each Bose 40146 bass module can feed two or four FreeSpace 3 satellites, depending on the wiring configuration used.
The Bose 40146 uses a 5.25 inch woofer and Acoustimass technology to deliver non-localized bass down to 40Hz without audible distortion.
Yes. The 40146 offers selectable 70/100V operation at 200W continuous and 800W peak in mono, or low impedance operation at 50W per channel stereo.
Yes. Multiple 40146 modules can be connected in parallel to scale bass reinforcement across a larger FreeSpace 3 zone.
The 40146 reaches 96dB SPL per channel (102dB peak) or 102dB SPL in mono (108dB peak) at 1 meter.
Trianze Tech stocks the Bose 40146 FreeSpace 3 surface mount Acoustimass bass module in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
